Motor Length: 38mm / 80mm
Rated voltage：24V / 48V

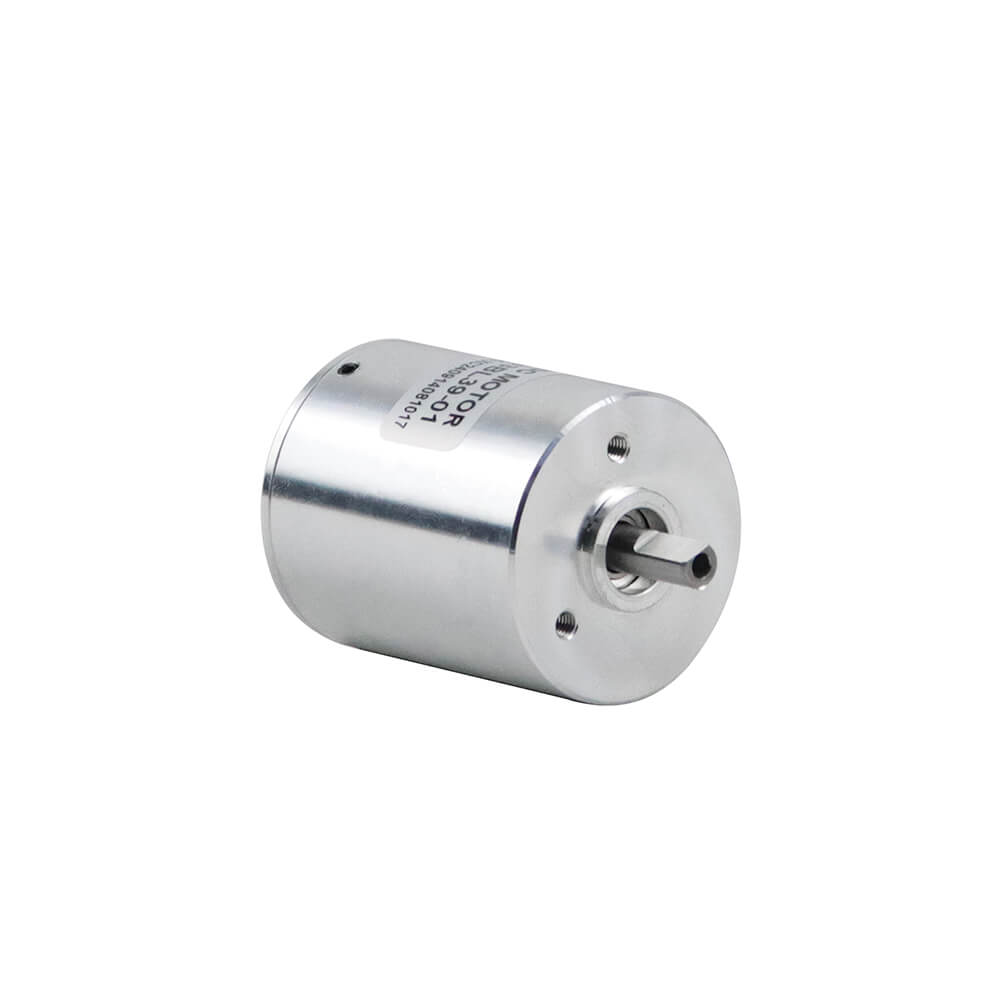

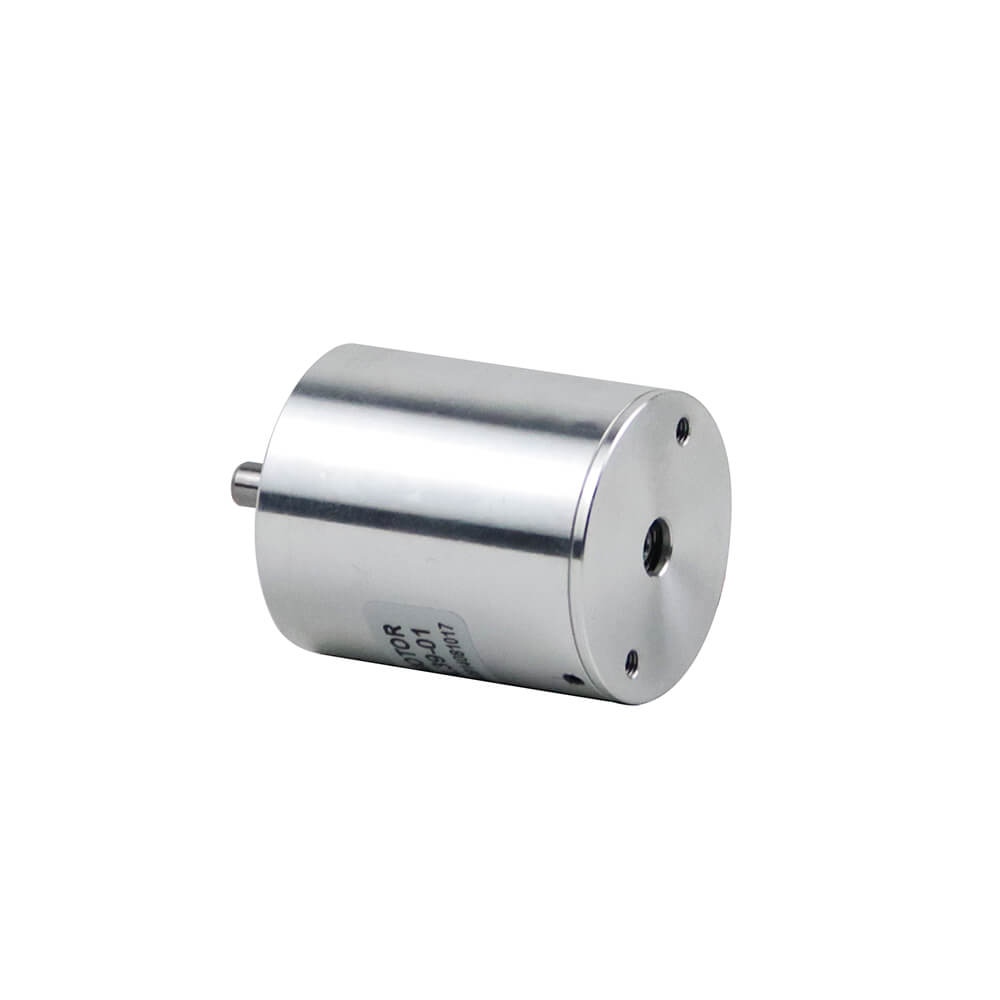

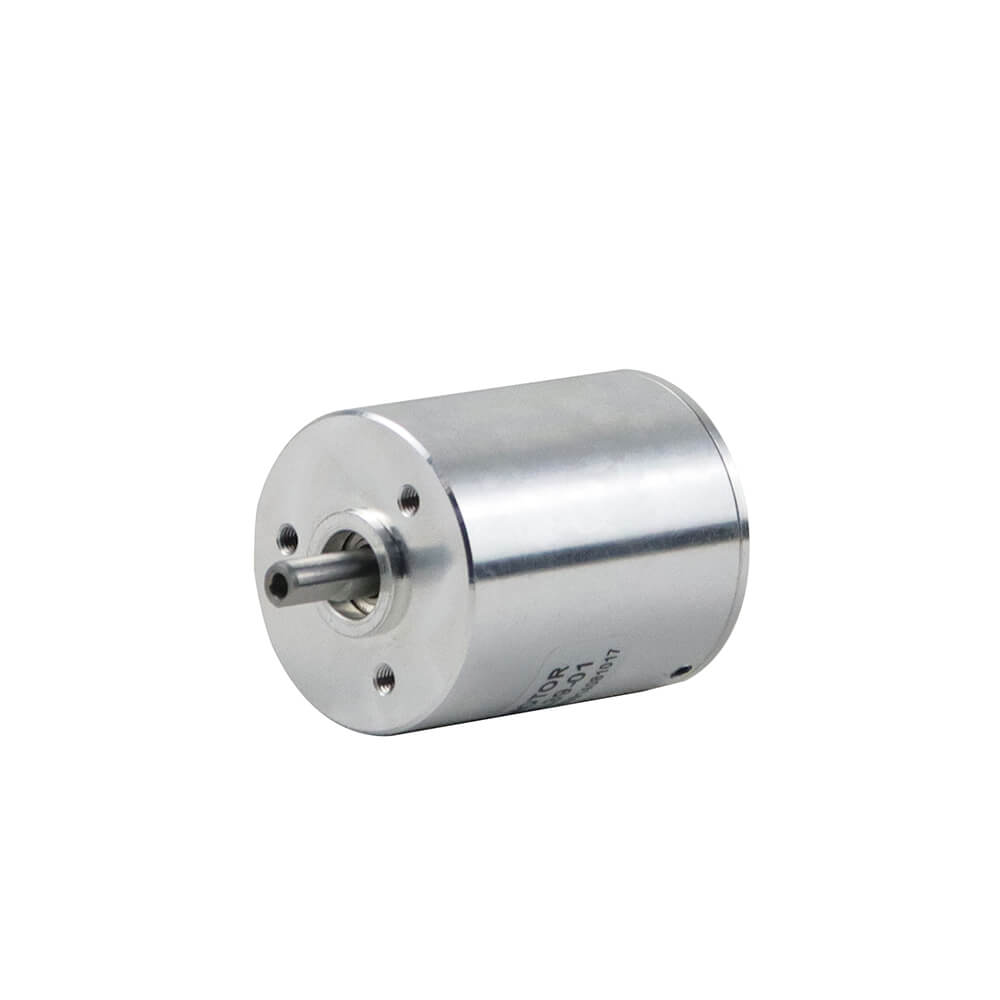

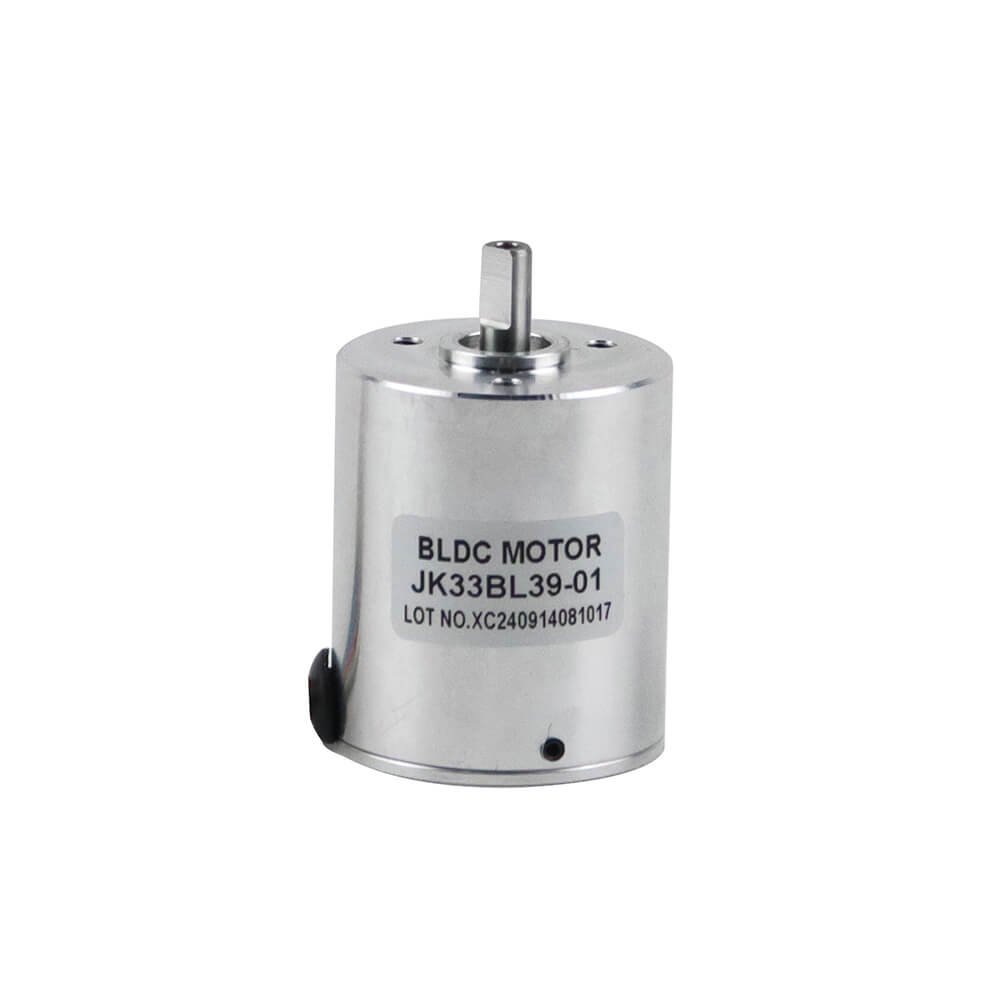

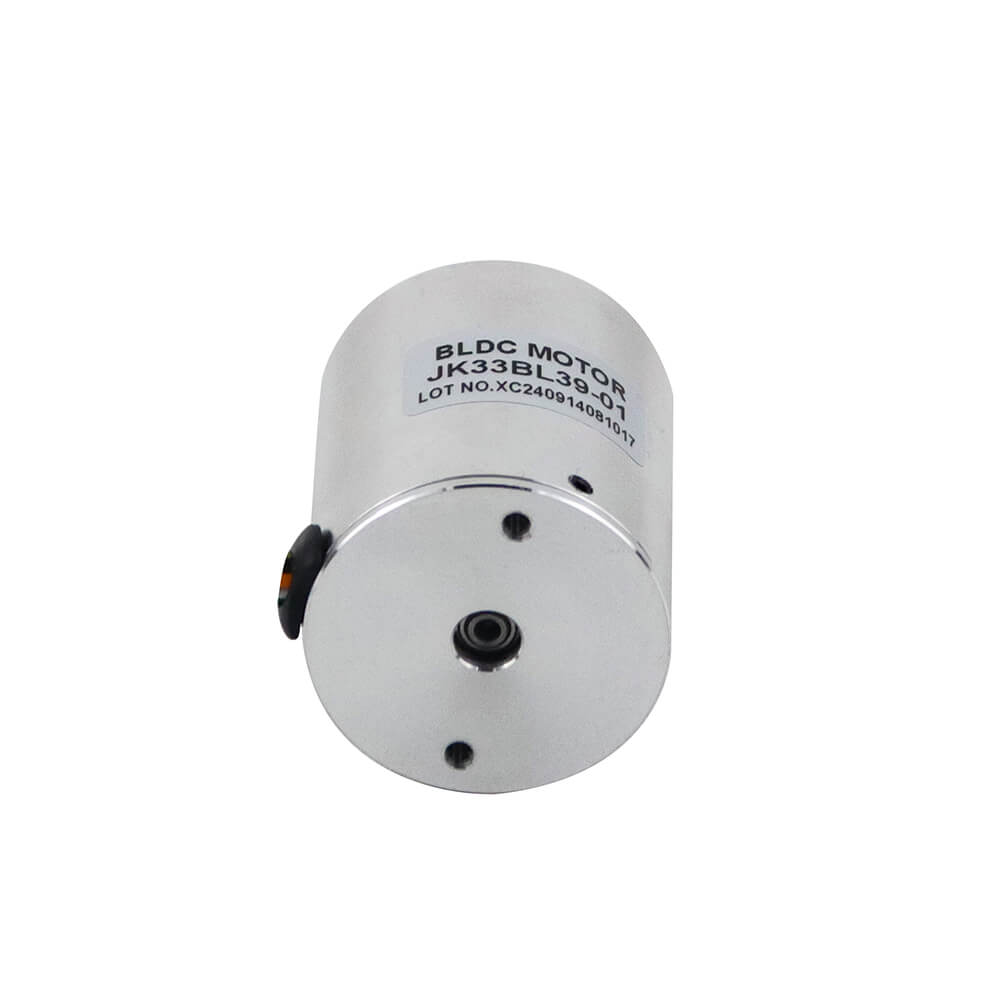

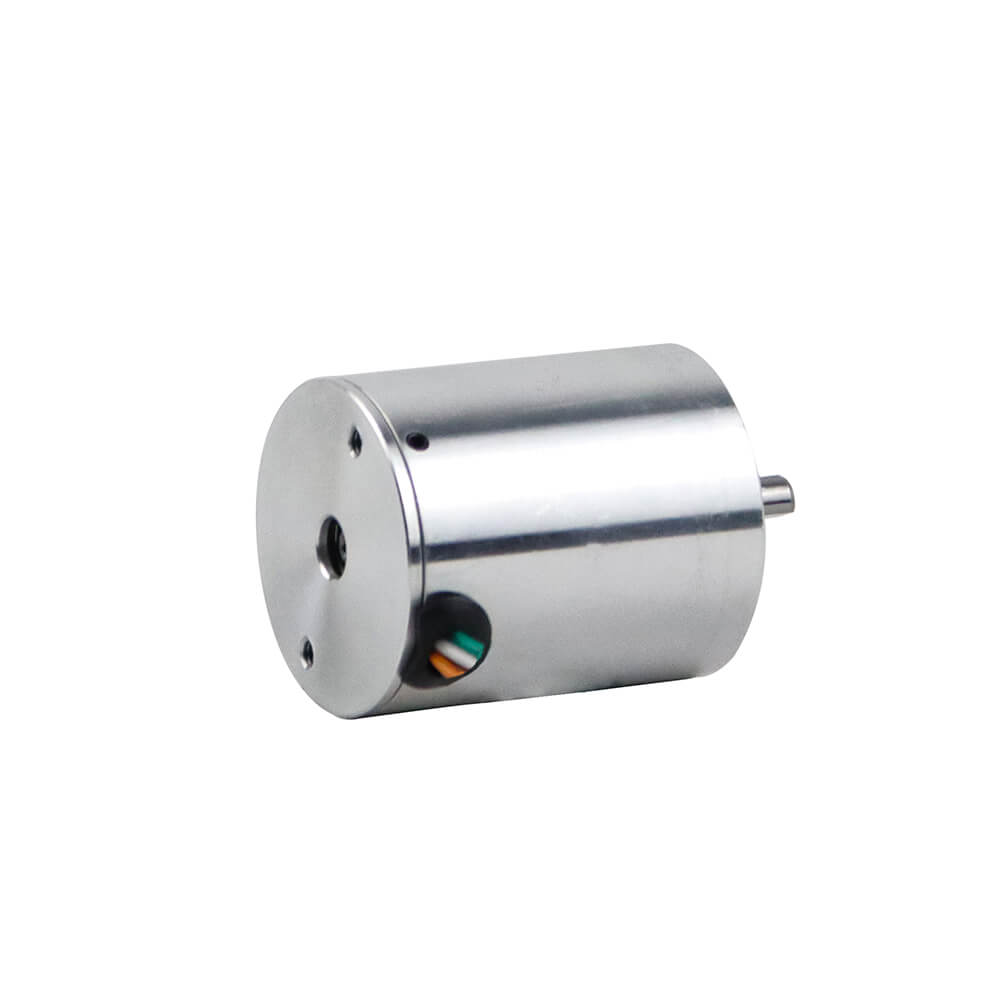

33BL Round Head Brushless BLDC DC Motor
Jkongmotor
33mm
3 phase
24V, 48V
10 Pcs
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
| Model No. | Rated voltage | Motor Length | Current | Rated power | Inductance | Rated torque | Rated speed | Weight |
| VDC | (L)mm | A | W | mH | mN.m | Rpm | kg | |
| JK33BL30-24 | 24 | 30 | 1.5 | 7 | 7 | 22 | 3000 | 0.085 |
| JK33BL80-24 | 24 | 80 | 5.6 | 40 | 0.55 | 50 | 7800 | 0.2 |
| JK33BL80-48 | 48 | 80 | 2.9 | 40 | 1.45 | 40 | 10000 | 0.2 |
| Bldc Motors Wires | Hall Sensor Wires | ||||||
| U | V | W | +5VDC | GND | Hu | Hv | Hw |
| Yellow | Green | Blue | Red | Black | Yello | Green | Blue |
