JKIDS80-P02A Integrated Brushless Dc Servo Motor 80x80x175mm Pulse Control 1000W 72V 3000Rpm 3.2N.m with Integrated Driver

Type: Integrated Brushless Dc Servo Motor

Poles: 4poles

Rated Power: 1000W

Rated Speed: 3000±10%RPM

Rated Current: 17A

Rated Torque: 3.2Nm(453.15oz.in)

Encoder: 17Bit Absolute Encoder

Model:
JKIDS80-P02A
Brand:
JKONGMOTOR
Rated Speed:
3000rpm
Bldc Poles:
4 poles
Rated Voltage:
72V
Communication Methods:
Pulse Type, RS485 ModBus, CANopen Network
MOQ:
10 Pcs


Availability:



Inquire

Jkongmotor JKIDS80-P02A 80x80x175mm integrated brushless dc servo motor with pulse control 1000W 72V 3000Rpm 3.2N.m with 17bit integrated driver. For more different integrated servo motor requirements please contact us!!!

Electrical Specifications：

Model Name: JKIDS80-P02A
Phase: 3
Poles: 4
Rated Power: 1000W
Rated Voltage: 72V
Rated Speed: 3000±10%RPM
Rated Current: 17A
Rated Torque: 3.2Nm(453.15oz.in)
Encoder: 17Bit
Control Method: Pulse (RS485, CANopen optional)

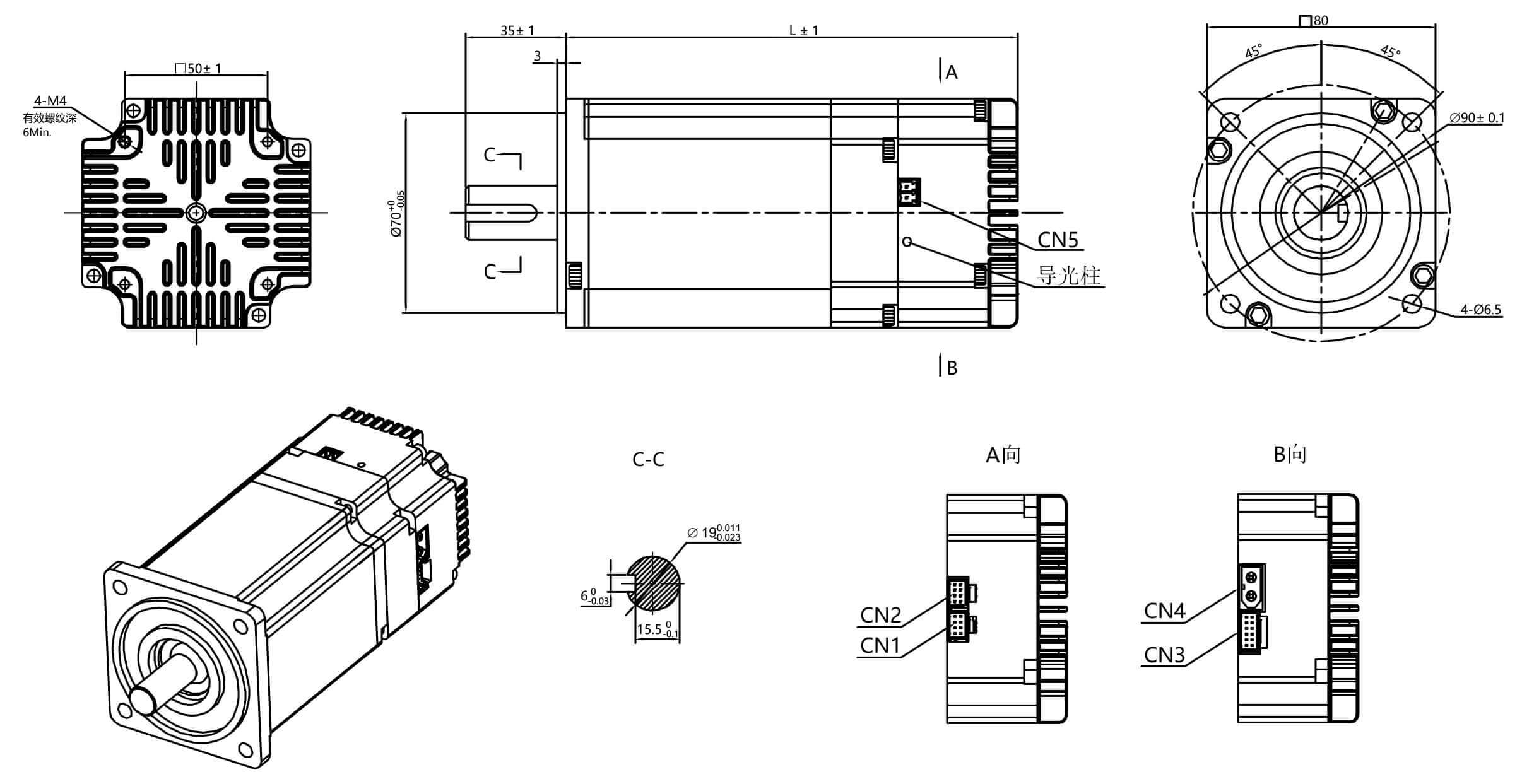

Physical Specifications:

Frame Size: 80x80mm
Body Length: 175mm

Integrated Brushless Dc Servo Motors Features:

Adopting a new 32-bit M4+core with 120M or 240M main frequency
Stable torque characteristics from low to high speeds, with high speed and precision
Equipped with brake resistor interface to prevent damage to the electromechanical braking system
Wide speed range, low temperature rise, and high efficiency
Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor
Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions
Configure a 17 bit single turn absolute encoder

Communication method:

Pulse type
RS485 MOdbus RTU network type
CANopen network type

Protection level:

Waterproof type: IP30, IP54, IP65, optional

80mm Integrated Brushless Dc Servo Motors Usage:

Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese medicine ingredient industry, etc

80mm Integrated Servo Motor Electrical Specification:

Electrical Specification
Product Type	/	80mm Integrated Brushless Dc Motor
Model Name	/	JKIDS80-P02A
Phase	/	3
Poles	/	4
Power	W	1000
Rated Voltage	V	72
Rated Current	A	17
Rated Speed	Rpm	3000±10%
Rated Torque	N.m	3.2
Total Height	mm	175
Phase to Phase Resistance	ohms	0.14±10%
Phase to Phase Inductance	mH	0.22±20%
Encoder	/	17Bit
Insulation Class	/	F

Integrated Driver Specification：

Driver Parameters	Min	Rated	Max
Input Voltage（V）	16	24	60
Logic Input Voltage (V）	5	5	24
Logic Input Current（mA）	10	10	50
Pulse Frequency（KHz)			200

24v Integrated Brushless Motors Usage Environment：

Environment	Parameters
Cooling Method	Natural or forced cooling
Application	Avoid dust, oil and corrosive gases; keep away from other heat generating equipment; prohibit the presence of combustible gases and conductive dust.
Operating Temperature	0℃ ～ +50℃
Environmental humidity	≤85%RH（no condensation）
Vibrations	5.9m/s² max
Storage Temperature	-25℃ ～ +70℃

Integrated Driver Status Indicator：

Color	Name	Function
Green	PWR	Power indicator
Red	ALM	Alarm indicator

Integrated Drivers I/O port：

Ports	Pin	Port Name	Descriptions
CN1	1	-	undefined
	2	-	undefined
	3	-	undefined
	4	-	undefined
	5	COM	Common Ports
	6	5V	Serial Communication Power Supply
	7	RXD	Serial communications receiver
	8	TXD	Serial communications transmitter
CN2	1	-	undefined
	2	-	undefined
	3	-	undefined
	4	-	undefined
	5	COM	Common Ports
	6	5V	Serial Communication Power Supply
	7	RXD	Serial communications receiver
	8	TXD	Serial communications transmitter
CN3	1	ALM+	Positive alarm signal
	2	ALM-	Negative alarm signal
	3	READY+	Positive signal in place
	4	READY-	Negative signal in place
	5	DIN+	Positive input signal
	6	DIN-	Negative input signal
	7	ENA+	Positive enable signal
	8	ENA-	Negative enable signal
	9	DIR+	Positive direction signal
	10	DIR-	Negative direction signal
	11	PUL+	Positive pulse signal
	12	PUL-	Negative pulse signal
CN4	1	GND	Negative Power Wiring
CN4	2	VCC	Positive Power Wiring
CN5	1	RB+	Positive brake resistor wiring
CN5	2	RB-	Negative brake resistor wiring
