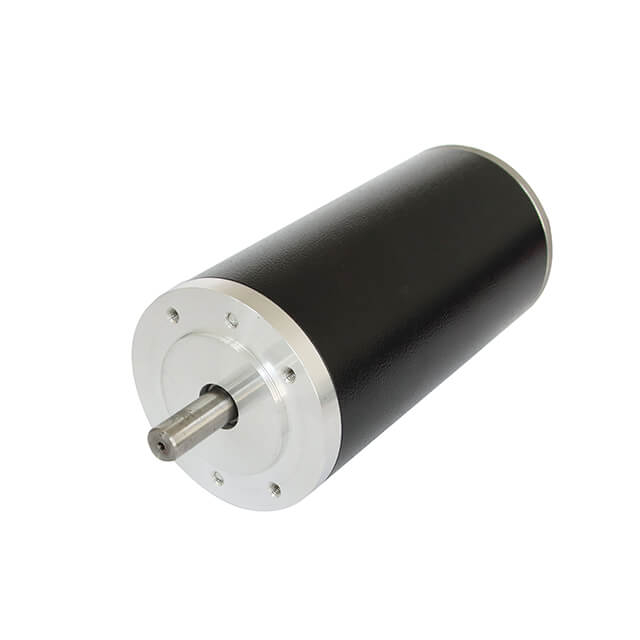

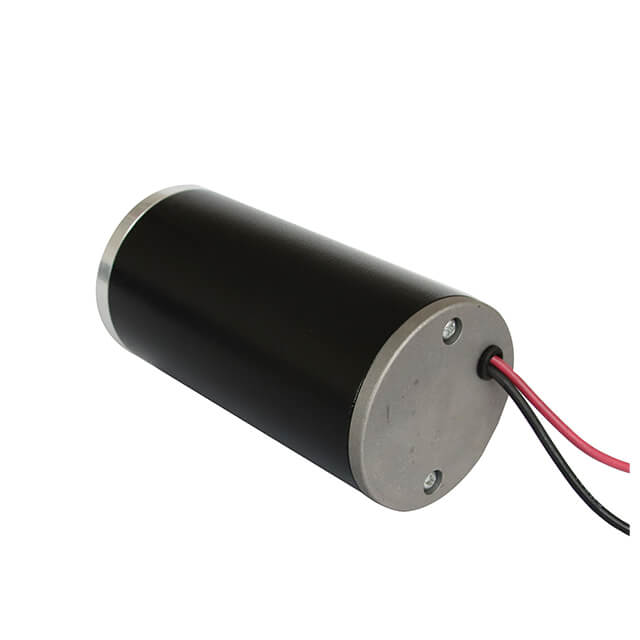

Permanent Magnet Brush Dc Motor 80ZYT Series JK80ZYT01A-24V 3150Rpm 0.6N.m 200W L=120mm Brushed Motor

Jkongmotor 24V 80ZYT Series  brushed dc motor (JK80ZYT01A-24V) with 3150Rpm speed and size 80x80x120mm. It has 2 wires, 0.6N.m and 200W. For more different dc brush motors requirements (such as gearbox, brake, encoder, or other parts), please contact us!!!

Electrical Specifications：

• Type: 24V 3150Rpm Brushed Dc Motor

• Model Name: JK80ZYT01A

• Rated Voltage: 24V (Option for 12v up to 220vdc)

• Rated Speed: 3150Rpm

• No Load Speed: 3600Rpm


• Rated Torque: 0.6N.m

• Rated Power: 200W

• Protection Level: IP40

• Optional Parts: Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations, EMI/RFI Suppression Circuit, Thermal Protection, High Temperature Class H Insulation...

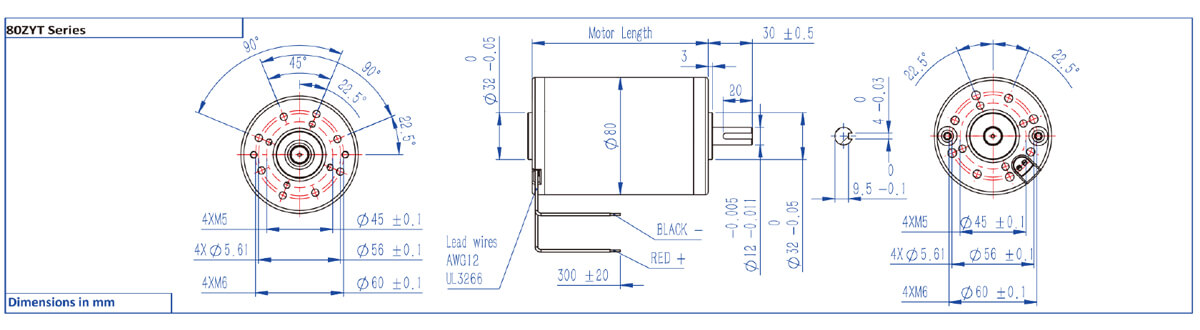

Physical Specifications:

• Frame Size: 80 x 80mm

• Body Length: 120mm

• Shaft Diameter: 5mm

• Number of Leads: 2

• Leads Length: 300mm

• Weight: 2.5kg
