Permanent Magnet Brush Dc Motor 36ZYT Series JK36ZYT02A-24V 3000Rpm 30mN.m 9.4W L=70mm Brushed Motor

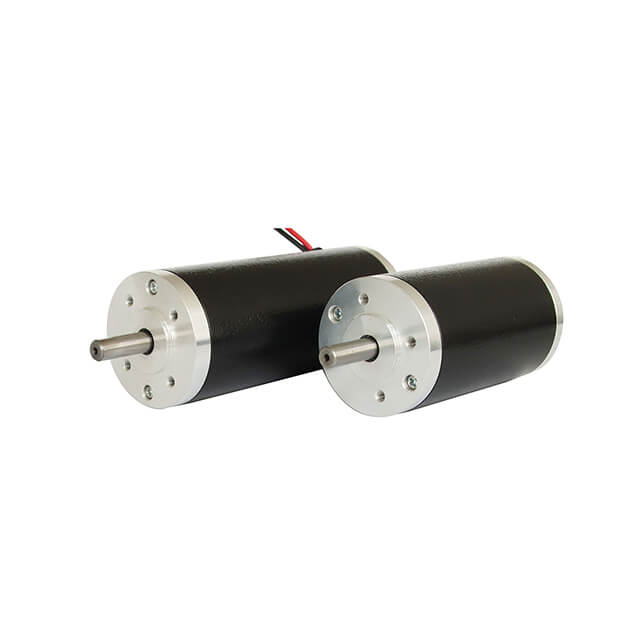

Jkongmotor 24V 36ZYT Series  brushed dc motor (JK36ZYT02A-24V) with 3000Rpm speed and size 36x36x70mm. It has 2 wires, 30mN.m and 9.4W. For more different dc brush motors requirements (such as gearbox, brake, encoder, or other parts), please contact us!!!

Electrical Specifications：

• Type: 24V 3000Rpm Brushed Dc Motor

• Model Name: JK36ZYT02A

• Rated Voltage: 24V (Option for 12v up to 48vdc)

• Rated Speed: 3000Rpm

• No Load Speed: 3800Rpm


• Rated Torque: 30mN.m

• Rated Power: 9.4W

• Protection Level: IP40

• Optional Parts: Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations, EMI/RFI Suppression Circuit, Thermal Protection, High Temperature Class H Insulation...





Physical Specifications:

• Frame Size: 36 x 36mm

• Body Length: 70mm

• Shaft Diameter: 5mm

• Number of Leads: 2

• Leads Length: 300mm

• Weight: 0.30kg
