JKONGMOTOR offers high-precision integrated stepper servo motor solutions tailored for laparoscopic surgical robot systems. Through professional OEM ODM customized services, we provide compact, low-noise, and closed-loop motion control that ensures micron-level accuracy and reliable performance in demanding medical environments.

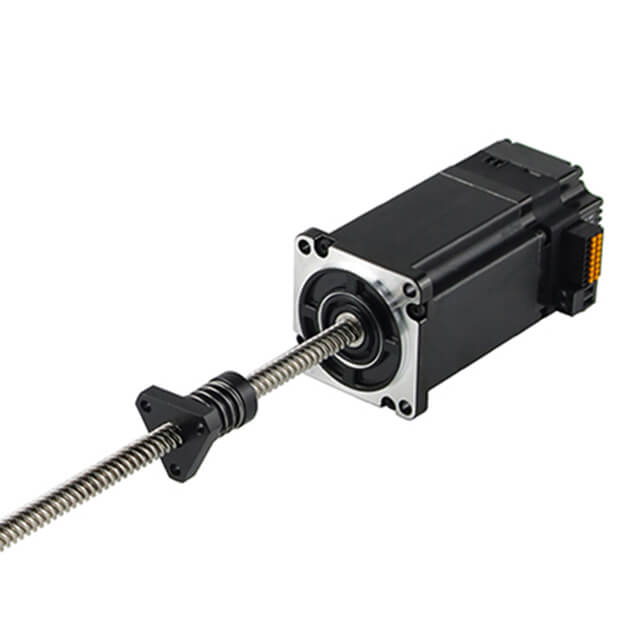

The ISC57 series integrated external linear stepper motor provides an advanced motion control solution for laparoscopic surgical robots through its compact integrated structure, high-thrust screw drive mechanism, closed-loop precision control capability, and flexible OEM/ODM customization options. By combining motor, driver, encoder, and precision screw actuator into a single compact module, the ISC57 series significantly improves integration efficiency while reducing system complexity and wiring requirements.
Laparoscopic surgical robots operate in highly sensitive environments where precision movement must be synchronized in real time. Traditional separated motor-drive systems often face challenges such as:
Complex installation
Large structural footprint
Signal interference
Mechanical backlash
Heat accumulation
Limited integration flexibility
Integrated stepper servo motors solve these problems by combining multiple components into a unified intelligent actuator system.
Key advantages include:
Compact integrated architecture
High-precision positioning
Low vibration operation
Smooth low-speed control
Reduced electromagnetic interference
Fast response capability
Simplified cable management
Improved surgical stability
For laparoscopic robotic arms, camera positioning modules, surgical tool actuation systems, and precision lifting mechanisms, integrated stepper servo systems provide the stability required for high-end medical automation equipment.
Traditional open-loop stepper motors may experience:
Missed steps
Resonance
Heat buildup
Position drift
In medical robotic systems, these issues are unacceptable.
The ISC57 series integrated stepper servo motor adopts advanced closed-loop control technology that continuously monitors motor position through encoder feedback.
This provides:
Real-time position correction
Higher motion stability
Improved torque utilization
Reduced vibration
Lower temperature rise
Faster acceleration response
For laparoscopic surgery, smooth motion is critical during:
Tool insertion
Precision cutting
Camera adjustment
Tissue manipulation
Micro-positioning operations
Closed-loop integrated servo control ensures the robot maintains accurate positioning even during continuous high-speed operation.
Compact Structure Design for Space-Constrained Surgical Equipment
Laparoscopic surgical robot systems often have extremely limited internal installation space.
The ISC57 integrated external linear stepper motor uses a highly compact structure that eliminates:
External driver boxes
Excessive wiring
Complex mounting assemblies
This compact integration provides several engineering benefits:
Reduced Equipment Size
Medical equipment manufacturers can develop smaller and lighter robotic systems.
Simplified Assembly Process
Integrated architecture significantly reduces assembly complexity and installation time.
Improved Reliability
Fewer external connectors reduce failure points and signal interference.
Cleaner Internal Layout
Compact motion modules improve airflow management and thermal stability.
These advantages are especially important for portable medical robotic devices and compact surgical platforms.
How to Choose the Correct Screw Parameters for Laparoscopic Robots
Selecting the correct screw configuration is one of the most important engineering decisions.
Low Lead Pitch for Ultra-Precision Movement
Small lead pitches such as 1mm are ideal for:
Surgical tool positioning
Camera fine adjustment
Micro linear movements
Advantages include:
Higher positioning resolution
Better motion control
Improved low-speed smoothness
Higher Lead Pitch for Faster Motion
Larger lead pitches are suitable for:
Fast transfer positioning
Auxiliary axis movement
Automated loading systems
Advantages include:
Faster linear speed
Improved efficiency
Reduced movement cycle time
Ball Screw vs Trapezoidal Screw
Ball Screw Advantages
Higher efficiency
Lower friction
Longer lifespan
Better repeatability
Trapezoidal Screw Advantages
Lower cost
Simpler structure
Better self-locking capability
For laparoscopic surgical robots requiring continuous precision movement, ball screw configurations are often preferred.
OEM and ODM Customization Capabilities for Surgical Robot Manufacturers
Medical robotics manufacturers require far more than standard motor products. Every surgical robot platform has unique:
This enables perfect matching with robotic arm structures and surgical motion systems.
Customized Motor Parameters
Different surgical systems require different dynamic performance characteristics.
Customized motor options include:
Holding torque adjustment
Rated current optimization
Voltage customization
Encoder resolution selection
Closed-loop tuning
These parameters can be optimized according to:
Motion acceleration requirements
Load inertia
Precision targets
Thermal management goals
Customized Communication Interfaces
Modern surgical robots often use industrial communication systems for synchronized multi-axis control.
Supported customized interfaces may include:
RS485
CANBUS
EtherCAT
Modbus
Pulse + Direction control
This allows seamless integration with medical robot control platforms.
Customized Mechanical Structures
The ISC57 integrated linear motor platform can also support customized:
Flange dimensions
Mounting holes
Housing structures
Connector orientations
Cable lengths
Protective structures
This flexibility simplifies integration into complex robotic surgical equipment.
Professional OEM and ODM Customization Capabilities for Surgical Robot Manufacturers
In the precision-driven field of medical technology, surgical robot manufacturers require motion control solutions that offer more than just basic functionality. They demand extreme accuracy, compact footprints, and high reliability. Jkongmotor, a leading specialist in integrated external linear stepper motors, provides comprehensive OEM and ODM customization capabilities designed to meet these stringent requirements, acting as a pivotal partner in the development of next-generation surgical robotics.
Tailored Precision and Mechanical Integration
The core of surgical robotic excellence lies in its ability to execute delicate movements. Jkongmotor’s professional customization begins with the mechanical architecture. Manufacturers can specify stroke lengths, motor sizes (such as the compact Nema 11 series), and screw types—including T-type lead screws for cost-effective precision or ball screws for high-efficiency and heavy-load applications. This flexibility allows the motor to fit perfectly into the limited spatial envelopes of robotic arms or bedside units without compromising on thrust force or positioning resolution.
Advanced Electronic and Control Customization
Beyond mechanical adjustments, the "Integrated" nature of Jkongmotor’s solutions is a significant advantage for ODM projects. By embedding drivers, encoders, and brakes directly into the motor housing, the system reduces wiring complexity and electromagnetic interference (EMI)—a critical factor in operating room environments.
Customization extends to the "brain" of the motion system. Jkongmotor supports advanced industrial communication protocols, including RS485 Modbus-RTU and CANopen, ensuring seamless integration into the robot’s master control system. For mission-critical surgical tasks, factory-integrated closed-loop systems with encoder feedback are available. These systems eliminate lost steps and provide real-time error correction, ensuring absolute positioning stability during sensitive procedures.
Comprehensive OEM/ODM Service Lifecycle
A professional customization capability is defined by its process as much as its product. Jkongmotor’s engineering team works in close collaboration with surgical robot designers from the initial conceptual stage. This includes:
Rapid Prototyping: Utilizing a rich inventory of raw materials to shorten sample delivery cycles.
Specialized Environment Adaptation: Customizing IP ratings for sterilization requirements or adding electromagnetic brakes for power-off safety.
Rigorous Quality Assurance: Every customized unit undergoes stringent testing to meet motor industry standards, ensuring stability and durability in clinical settings.
Conclusion
For surgical robot manufacturers, the ability to customize every aspect of a linear actuator—from its magnetic materials to its communication interface—is not just a luxury; it is a necessity for innovation. Jkongmotor’s integrated linear stepper motor solutions provide the high precision, reliability, and application-specific engineering required to push the boundaries of robotic-assisted surgery. By choosing a partner with deep OEM/ODM expertise, manufacturers can accelerate their time-to-market while delivering systems that offer unmatched surgical precision.
Medical Equipment Reliability Requirements
Laparoscopic surgical systems require long-term operational reliability under demanding conditions.
The ISC57 series is designed for:
Stable continuous operation
Low maintenance requirements
Reduced mechanical wear
Long service life
Important reliability features include:
High-quality bearing systems
Precision screw processing
Optimized thermal design
Stable encoder feedback
Anti-interference circuitry
These features improve system stability during long surgical procedures.
How Integrated Motion Solutions Improve Surgical Robot Performance
Integrated stepper servo solutions improve surgical robotic systems in multiple ways:
Performance Factor
Improvement
Position Accuracy
Higher precision
Motion Stability
Reduced vibration
System Integration
Easier assembly
Thermal Management
Lower heat generation
Cable Complexity
Reduced wiring
Reliability
Fewer failure points
Maintenance
Simplified servicing
Space Utilization
Compact installation
As medical robotic systems continue evolving toward higher precision and smaller structures, integrated motion solutions are becoming the industry standard.
The ISC57 integrated external linear stepper motor series provides an advanced solution that combines compact integrated architecture, precision screw transmission, intelligent servo control, and flexible customization capability for modern medical robotic applications.
With comprehensive engineering support, customized screw design, optimized motor parameters, and flexible communication integration, the ISC57 platform helps surgical robot manufacturers achieve higher precision, improved reliability, and more efficient system integration in next-generation laparoscopic robotic systems.
FAQs
1. Q: How to choose the right integrated stepper servo motor for high-precision laparoscopic surgical robot systems?
A: Choosing the ideal motor requires balancing micron-level accuracy with compact design. At JKONGMOTOR, we recommend our integrated stepper servo motor series which combines the motor, encoder, and drive to eliminate signal latency. For medical OEMs, we focus on high-resolution feedback and low-cogging torque to ensure smooth, tremor-free instrument movement during delicate procedures.
2. Q: Can JKONGMOTOR provide OEM ODM customized solutions for surgical robot joint motors?
A: Yes, we specialize in OEM ODM customized integrated motion solutions. We understand that each surgical robot has unique spatial constraints and torque profiles. Our engineering team can customize shaft dimensions, winding characteristics, and communication protocols (like EtherCAT or CANopen) to fit perfectly into your robotic arm joints.
3. Q: Why is an integrated stepper servo motor preferred over traditional motors in robotic-assisted surgery?
A: The integrated stepper servo motor offers a significant advantage in "cable management" and "space optimization." By integrating the driver into the motor housing, it reduces EMI (Electromagnetic Interference) and simplifies wiring, which is critical for maintaining sterile environments and increasing the degrees of freedom (DoF) in laparoscopic robots.
4. Q: What are the benefits of choosing an integrated stepper servo motor with closed-loop control for medical robotics?
A: Closed-loop integrated stepper servo motors prevent "lost steps," a non-negotiable requirement for patient safety. Our motors provide real-time position feedback, ensuring that the surgical tool exactly follows the surgeon's commands with high repeatability and zero positioning errors.
5. Q: Does JKONGMOTOR offer customized integrated stepper servo motor options for low-noise operating room environments?
A: Absolutely. We provide customized motor designs optimized for silent operation. By refining the electromagnetic structure and using high-precision bearings, our integrated motors minimize vibration and acoustic noise, ensuring a focused and calm environment for the surgical team.
6. Q: How does the factory's customized integrated stepper servo motor capability support rapid prototyping for startups?
A: Our factory offers a flexible customized development cycle. From initial CAD design to prototype testing, we support medical startups with small-batch OEM services. This allows for quick iteration of robotic arm designs while ensuring the integrated stepper servo motor meets all clinical performance standards.
7. Q: What communication protocols are supported by your integrated stepper servo motor for seamless system integration?
A: To ensure compatibility with advanced robotic controllers, our integrated stepper servo motors support standard industrial protocols including CANopen, RS485, and EtherCAT. We also offer customized firmware adjustments to match your specific master-slave control architecture.
8. Q: Can I get an integrated stepper servo motor with a customized IP rating for surgical sterilization?
A: Yes, for surgical applications, hygiene is paramount. We can provide customized integrated stepper servo motors with specialized seals and smooth surface treatments (up to IP65/IP67) that are resistant to medical-grade cleaning agents and prevent particle shedding.
9. Q: What is the torque density of a NEMA 17 integrated stepper servo motor for compact surgical tools?
A: Our NEMA 17 integrated stepper servo motor is designed for high torque-to-weight ratios. We use high-grade magnetic materials to ensure that even our smallest motors can provide the necessary holding torque for laparoscopes and robotic grippers without overheating.
10. Q: Why should medical device manufacturers partner with JKONGMOTOR for OEM ODM customized motor projects?
A: JKONGMOTOR combines advanced manufacturing with rigorous quality control. Our OEM ODM customized services include full traceability and performance validation (vibration, temperature rise, and accuracy tests), ensuring every integrated stepper servo motor delivered is reliable for life-critical surgical applications.
