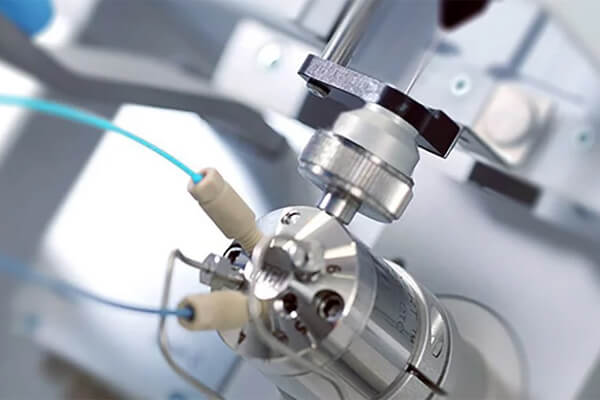

Integrated slide stage systems for high injection imaging equipment provide high precision, low vibration, and compact design by integrating motor, driver, and linear motion components. With OEM ODM customized capabilities, manufacturers can tailor structure, control, and performance to achieve optimal imaging accuracy, efficiency, and system reliability.
In high-injection imaging equipment, we demand uncompromising performance from every motion component. The selection of integrated slide stages directly determines imaging clarity, positioning accuracy, and system efficiency. By leveraging advanced solutions from Jkongmotor, we gain access to integrated linear motion systems that combine motor, driver, controller, and feedback mechanisms into a single compact architecture, significantly enhancing performance while reducing system complexity.
We focus on selecting slide stages that deliver precision, stability, compactness, and intelligent control, ensuring optimal results in demanding high-injection imaging applications.
We require micron-level positioning accuracy for imaging applications such as optical inspection, medical imaging, and semiconductor analysis. Integrated slide stages with closed-loop feedback systems and high-resolution encoders ensure consistent and repeatable positioning.
Jkongmotor solutions incorporate high-precision step control and encoder feedback, enabling accurate motion with minimal deviation.
We prioritize stages capable of rapid movement while maintaining stability. Integrated architectures reduce latency and improve responsiveness, enabling fast positioning with minimal settling time.
We ensure that the slide stage supports imaging modules, lenses, and injection components. Robust designs with high thrust output and rigid structures maintain stability during dynamic motion.
Traditional slide stages require separate motors, drivers, and controllers. In contrast, Jkongmotor integrated linear motion systems combine all essential components into a single unit, delivering:
Reduced wiring complexity
Lower installation time
Improved reliability
Compact system footprint
This integrated design minimizes external connections, reducing failure points and enhancing long-term stability.
Unlike traditional rotary-to-linear conversion systems, integrated linear motion solutions provide direct linear movement, eliminating backlash and improving positioning accuracy.
|
|
|
|
|
|
|
|
|
We evaluate the drive structure carefully:

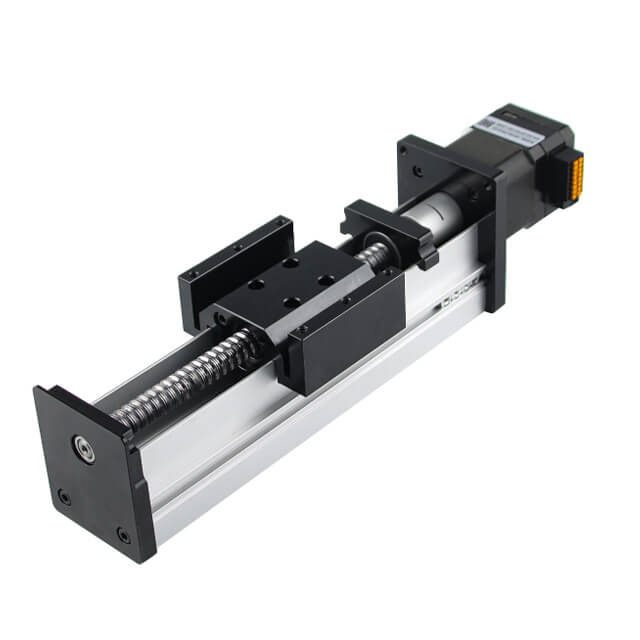

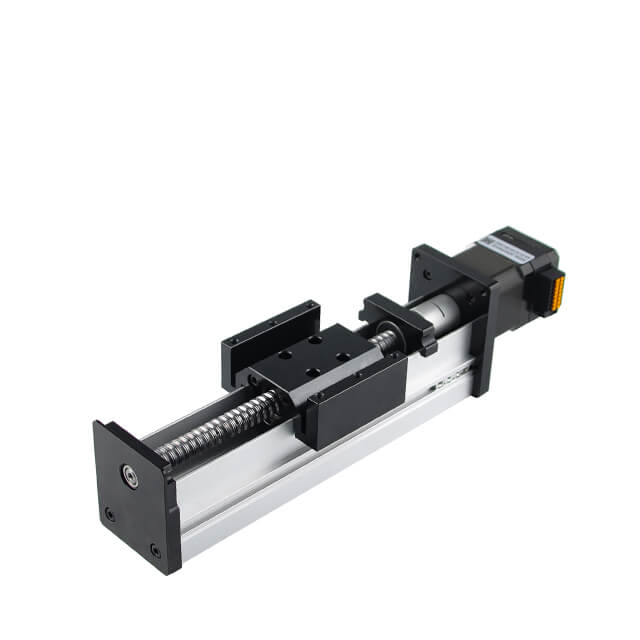

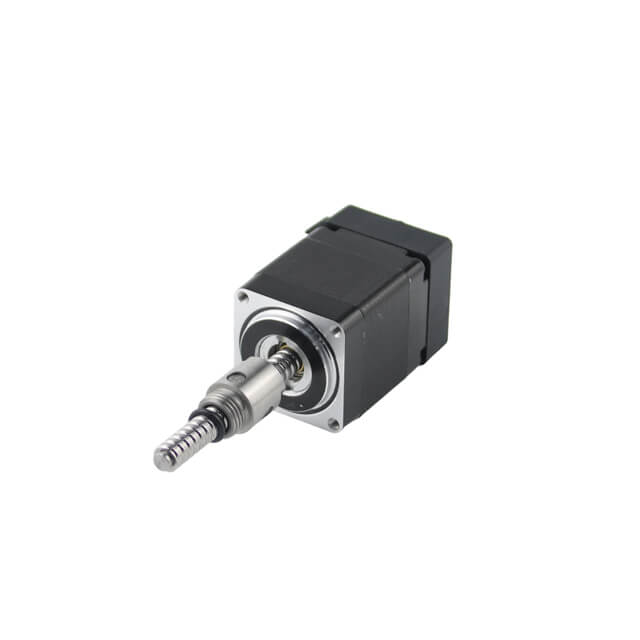

Ball screw integrated stages for high precision and load capacity
Lead screw (T-type) designs for cost-effective precision

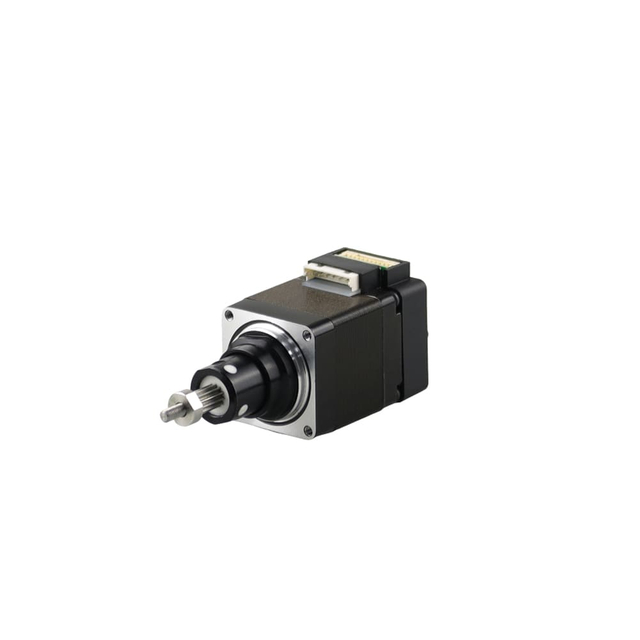

Linear actuator integration for compact and direct motion
Jkongmotor provides T-type, ball screw, and actuator-based integrated linear motion options, enabling flexible application matching.
We prioritize integrated closed-loop stepper or servo motors with:
Cortex-M4 high-performance controllers
Up to 200kHz impulse response frequency
Intelligent current control for reduced vibration and heat
These features ensure smooth, quiet, and highly responsive motion, critical for imaging accuracy.
We ensure seamless integration with automation systems by selecting slide stages supporting:
Pulse control
RS485 Modbus RTU
CANopen communication
These protocols allow real-time synchronization and multi-axis control, essential in complex imaging equipment.
Modern imaging equipment demands compact designs. Integrated slide stages from Jkongmotor offer:
Low-profile structure
Minimal installation space
Simplified mounting
This enables efficient system layouts without sacrificing performance.
We select systems with optimized energy usage:
Intelligent current adjustment reduces heat generation
Low internal resistance components improve efficiency
Stable operation under continuous load
These features extend system lifespan and maintain consistent performance.
High-injection imaging often operates in controlled environments. We choose integrated slide stages with:
Low particle emission
Sealed structures
Stable and vibration-free motion
Jkongmotor offers IP30, IP54, and IP65 protection options, ensuring reliable operation in various environmental conditions.
For biological or chemical environments, we ensure materials and coatings withstand exposure while maintaining precision.
As a professional manufacturer and solution provider, Jkongmotor stands out by combining strong OEM/ODM customization capabilities with deep industry solution expertise, enabling customers to transform concepts into high-performance motion systems efficiently.
We provide full-cycle customization services, covering everything from initial design and engineering validation to mass production. With over a decade of experience and a dedicated R&D team, Jkongmotor supports:
Custom design based on application requirements
Rapid prototyping and testing
Scalable manufacturing for mass production
Continuous technical support and optimization
This approach ensures that each motion system is not just a component, but a fully optimized solution tailored to the customer’s equipment.
We customize the core mechanical structure to meet different motion requirements:
Lead screw types: T-type for cost efficiency, ball screw for high precision
Actuator structures: captive, non-captive, and external designs
Stroke length and travel range: tailored to specific application needs
Thrust force and load capacity: optimized for performance
These flexible configurations allow engineers to balance accuracy, speed, and cost for different use cases.
Beyond mechanical design, we provide deep customization of electronic and control systems:
Integrated drivers and controllers for simplified architecture
Communication protocols: Pulse, RS485 Modbus RTU, CANopen
Voltage customization for different system requirements
Encoder integration: incremental or absolute for closed-loop control
This enables seamless integration with PLCs and automation systems, ensuring high precision, real-time feedback, and stable motion control.
We offer additional functional modules to meet complex requirements:
Gearboxes (planetary, worm, right-angle) for torque optimization
Electromagnetic brakes for load holding and safety
High-resolution encoders for improved positioning accuracy
Multi-axis integration capabilities for coordinated motion systems
These enhancements significantly improve system flexibility, safety, and performance in demanding applications.
To ensure reliability in various environments, we support:
IP protection levels (IP30, IP54, IP65)
Corrosion-resistant materials and coatings
Sealed structures for dust and moisture protection
This ensures consistent operation in medical, industrial, and harsh environmental conditions.
Jkongmotor’s integrated linear motion systems combine:
Motor
Lead screw or ball screw
Driver and controller
Feedback system
into a compact all-in-one architecture, eliminating the need for external components and reducing wiring complexity.
This design delivers:
Higher reliability
Faster installation
Reduced system footprint
Improved motion precision
Integrated systems are especially suitable for space-constrained and high-precision equipment, enabling efficient and streamlined system integration.
We go beyond product manufacturing to provide complete motion control solutions, including:
Application analysis and requirement definition
Motion system design and simulation
Component selection and customization
System integration and optimization
This one-stop approach ensures reduced development time, lower risk, and improved system performance.
Jkongmotor solutions are widely applied across multiple industries, with tailored configurations for each sector:
Syringe pumps and infusion systems
Laboratory automation devices
Precision diagnostic equipment
These applications require high accuracy, smooth motion, and reliability, which are achieved through closed-loop control and customized structures.
Wafer handling systems
Inspection equipment
Micro-positioning stages
We deliver high precision, low vibration, and stable performance, meeting strict industry standards.
Multi-axis motion platforms
Packaging and labeling machines
Automated assembly systems
Integrated linear motion modules enable efficient multi-axis coordination and simplified system architecture.
CNC positioning systems
Additive manufacturing equipment
Intelligent automation devices
These applications benefit from compact design, high thrust output, and flexible configuration.
We ensure product reliability through advanced testing systems:
Coordinate measuring machines for dimensional accuracy
Vibration testing for stability validation
Temperature and humidity testing for environmental durability
Salt spray testing for corrosion resistance
These processes guarantee consistent performance and long service life under real-world conditions.
Jkongmotor utilizes automated production lines and precision machining processes, including:
Automatic assembly systems
Precision grinding and coating technologies
Rotor pressing and inspection systems
This ensures:
High production efficiency
Stable product quality
Scalable manufacturing capacity
With sufficient raw material inventory and finished product stock, we provide:
Fast delivery cycles
Stable supply for large-scale projects
Reduced risk of production delays
This makes Jkongmotor a reliable partner for long-term industrial cooperation.
We work closely with customers to provide:
Technical consultation and system optimization
Custom design based on real application scenarios
Rapid response and after-sales support
Our engineering team ensures that every solution is practical, efficient, and aligned with customer goals, accelerating time-to-market and improving product competitiveness.
We deliver a unique combination of capabilities:
Full OEM/ODM customization from mechanical to electronic systems
Integrated linear motion technology for compact and efficient design
Industry-specific solutions with proven applications
Strong R&D and engineering expertise
Advanced manufacturing and quality assurance systems
This positions Jkongmotor as not just a supplier, but a strategic motion control solutions partner.
Jkongmotor delivers deep customization and complete solution capabilities, enabling customers to achieve higher precision, better efficiency, and faster system integration.
Jkongmotor combines powerful OEM/ODM customization capabilities with one-stop industry motion control solutions, delivering highly tailored, high-performance integrated linear motion systems for diverse and demanding applications.
We select integrated systems with intelligent current control, minimizing vibration and noise—critical for high-resolution imaging.
Integrated linear motion systems provide high thrust output, ensuring stable movement even under heavy loads.
Closed-loop control prevents step loss and ensures precise positioning under varying loads, improving imaging consistency.
We prioritize:
Ultra-smooth motion
Low noise operation
High precision positioning
We require:
High-speed scanning
Sub-micron accuracy
Thermal stability
We focus on:
Compact integration
Flexible customization
Reliable long-term operation
Integrated solutions from Jkongmotor excel in these applications due to their precision control and compact architecture.
We observe rapid advancements in:
Smart integrated motion systems with real-time diagnostics
AI-assisted motion optimization
Higher integration density with smaller footprints
Enhanced communication and IoT compatibility
Manufacturers like Jkongmotor are driving innovation by combining intelligent control with compact mechanical design, enabling next-generation imaging systems.
Selecting the optimal integrated slide stage requires a comprehensive evaluation of:
Precision and repeatability
Integrated linear motion architecture
Customization capabilities
Environmental adaptability
Control and communication flexibility
By adopting Jkongmotor integrated linear motion solutions, we achieve higher accuracy, reduced system complexity, improved reliability, and faster integration, making them an ideal choice for high-injection imaging equipment.
Jkongmotor integrated linear motion systems deliver compact, high-precision, and fully customizable slide stage solutions, enabling superior performance and reliability in high-injection imaging equipment.
An integrated slide stage combines motor, driver, and linear motion components into a compact system, enabling precise positioning and smooth movement. OEM ODM customized solutions optimize structure, stroke, and control interfaces to meet specific imaging accuracy and throughput requirements.
When selecting an integrated slide stage, consider positioning accuracy, repeatability, load capacity, and vibration control. OEM ODM customization allows tailored lead screws, guide rails, and control protocols for specialized imaging environments.
Low vibration ensures image clarity and measurement accuracy. Integrated designs with closed-loop control and customized damping structures reduce noise and micro-vibrations, improving imaging stability.
Integrated slide stages reduce wiring, save space, and simplify installation. OEM ODM customization further enhances compatibility, improves system efficiency, and reduces maintenance by integrating all motion components into one unit.
Customization enables selection of high-resolution encoders, precision ball screws, and optimized motion algorithms, ensuring micron-level positioning accuracy required for imaging applications.
Manufacturers can customize stroke length, motor size (NEMA standards), encoder type, communication interfaces (RS485, CANopen), and mechanical structures such as ball screw or linear guide systems.
By combining motor, driver, and motion components into a single unit, integrated slide stages reduce footprint and wiring complexity, making them ideal for compact imaging systems.
Closed-loop systems provide real-time feedback, prevent step loss, and ensure consistent positioning accuracy under varying loads, which is essential for high-resolution imaging processes.
Integrated designs reduce external components and failure points, while customized protection features (overcurrent, overheating) enhance durability and long-term stability.
A factory with strong OEM ODM capabilities can provide end-to-end solutions—from design and prototyping to mass production—ensuring better system integration, faster delivery, and tailored performance for imaging equipment.
