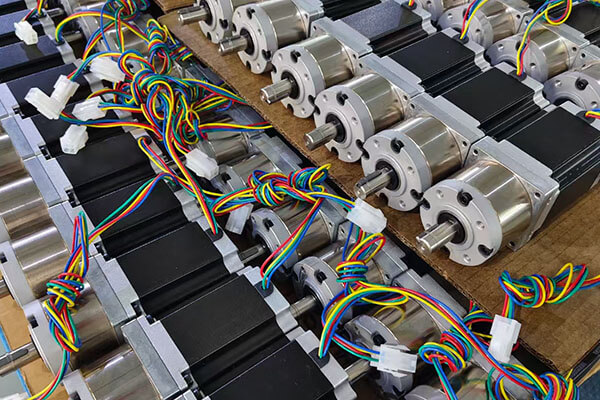

A geared stepper motor is a stepper motor combined with a gearbox (gearhead) to increase torque output and improve motion control precision. This combination allows the motor to deliver higher torque at lower speeds, making it ideal for applications that require fine positioning, controlled motion, and high load capacity.
Geared stepper motors come in various configurations, each designed to meet specific application requirements related to torque, speed, precision, and size. The combination of motor type and gearbox type determines the overall performance and efficiency of the system.
Below are the main types of geared stepper motors, categorized by both motor design and gearbox construction.
Permanent Magnet (PM) stepper motors use a permanent magnet rotor and operate on a simple electromagnetic principle.
When coupled with a gearbox, these motors offer moderate precision and high torque at low speeds.
Simple and cost-effective design
Step angle typically between 7.5° and 15°
Suitable for low-speed, low-cost applications
Printers, small robotics, automatic valves, and consumer appliances.
This type has a toothed soft-iron rotor and no permanent magnets. The rotor moves to align with the energized stator teeth, creating a step motion.
When paired with a gearhead, VR stepper motors provide fast response and smooth low-speed control, though they produce less torque than hybrid models.
Step angle between 5° and 15°
Simple structure and low inertia
Ideal for light-load applications
Instrumentation, small actuators, and low-power automation systems.
The hybrid stepper motor combines the advantages of PM and VR types. It has a permanent magnet rotor with toothed poles, providing fine step resolution, high torque, and excellent efficiency.
When integrated with a gearbox, hybrid stepper motors deliver high precision and excellent torque-to-size ratio, making them the most popular type.
Step angle as fine as 0.9° or 1.8°
High torque and smooth performance
Supports microstepping for increased accuracy
CNC machines, robotics, medical devices, and industrial automation.
A planetary gearbox consists of a central sun gear, multiple planet gears, and an outer ring gear.
This design distributes torque evenly, resulting in high torque density, compact size, and excellent efficiency.
Very high torque output
Compact and balanced design
High precision with minimal backlash
Robotics, automation systems, and precision positioning equipment.
Spur gearboxes use straight-toothed gears mounted on parallel shafts. They are simple, cost-effective, and efficient but may produce more noise compared to planetary types.
Economical and easy to maintain
High efficiency in low-load applications
Suitable for low to medium torque needs
Printers, vending machines, and office automation equipment.
A worm gearbox uses a worm screw that meshes with a toothed wheel. This configuration provides high gear reduction ratios and self-locking capability, meaning the output shaft cannot easily back-drive the motor.
Very high torque multiplication
Self-locking mechanism enhances stability
Smooth, vibration-free operation
CCTV pan-tilt systems, conveyors, gates, and lifting mechanisms.
A harmonic drive gearbox uses a flexible spline mechanism to achieve extremely high gear reduction in a compact space. It offers zero backlash and very high precision, though it’s more expensive.
Zero or near-zero backlash
Compact and lightweight
Exceptional positioning accuracy
Aerospace systems, robotics arms, and surgical automation.
In this setup, the gearbox and motor shafts are aligned in a straight line, offering a compact and balanced design. It’s ideal for systems where space is limited.
Compact and simple design
Efficient power transmission
Easy installation
Automated tools, compact machinery, and motion control systems.
Here, the output shaft is oriented at a 90° angle to the motor shaft using a worm or bevel gear system. This configuration is used where space constraints or specific mechanical designs require angular power transfer.
Space-saving layout
High torque capability
Ideal for complex machine geometries
Packaging machines, conveyors, and material handling systems.
| Type | Gearbox Design | Main Advantage | Typical Applications |
|---|---|---|---|
| PM Geared Stepper | Spur / Planetary | Low cost, simple | Printers, toys, appliances |
| VR Geared Stepper | Spur | Fast response | Instruments, sensors |
| Hybrid Geared Stepper | Planetary / Worm | High torque, precision | Robotics, CNC, automation |
| Planetary Gearbox | Planetary | High torque density | Robotics, industrial use |
| Spur Gearbox | Spur | Low cost, efficient | Office machines |
| Worm Gearbox | Worm | Self-locking, high reduction | Lifts, conveyors |
| Harmonic Drive | Harmonic | Zero backlash, compact | Aerospace, robotics |
The type of geared stepper motor you choose depends on the application’s torque, precision, and space requirements.
For high-precision automation, hybrid planetary geared stepper motors are ideal.
For cost-effective solutions, spur geared motors perform efficiently.
And when maximum torque with safety is needed, worm geared stepper motors deliver unmatched performance.
Together, these diverse types ensure that geared stepper motors can power everything from simple consumer devices to advanced industrial robots with precision and reliability.
A geared stepper motor is a combination of two main systems—a stepper motor and a gearbox (gearhead)—working together to achieve high torque, precision, and controlled motion. Below are the key components that make up a geared stepper motor:
This is the heart of the system. The stepper motor converts electrical pulses into discrete mechanical movements. Each pulse moves the motor shaft by a fixed angle called a step angle, allowing precise control of position and speed.
Rotor: The rotating part, usually containing permanent magnets.
Stator: The stationary part with electromagnetic coils that generate magnetic fields to drive the rotor.
Bearings: Support smooth and stable rotation of the shaft.
Attached to the motor’s output shaft, the gearbox multiplies torque and reduces speed. It contains interlocking gears that transfer motion from the motor shaft to the output shaft at a specific gear ratio (e.g., 5:1, 10:1, 20:1).
Planetary Gearbox: Offers high torque density and compact size.
Spur Gearbox: Simple, cost-effective, and efficient for low-load applications.
Worm Gearbox: Provides high reduction ratios with self-locking ability.
The output shaft delivers the final motion to the load or mechanism being driven. It rotates at a reduced speed but higher torque, as determined by the gearbox ratio. This shaft is typically hardened for durability and precision alignment.
This component connects the geared stepper motor to other parts of a system, such as pulleys, lead screws, or wheels. It ensures smooth power transmission and prevents misalignment or vibration during operation.
The outer casing protects the internal components from dust, vibration, and heat. In industrial models, the housing may be aluminum or stainless steel, providing excellent heat dissipation and mechanical stability.
Some geared stepper motors include an encoder—a sensor that provides feedback about the motor’s position, speed, and direction. This turns the system into a closed-loop stepper motor, improving accuracy and preventing missed steps.
| Component | Function |
|---|---|
| Stepper Motor Core | Converts electrical signals into rotational steps |
| Gearbox | Multiplies torque and reduces output speed |
| Output Shaft | Delivers mechanical motion to the load |
| Shaft Coupling | Connects motor to driven mechanism |
| Motor Housing | Protects and supports internal parts |
| Encoder (optional) | Provides position and speed feedback |
A geared stepper motor integrates all these components to deliver precise, high-torque motion suitable for automation, robotics, and precision machinery applications.
A geared stepper motor operates by combining the precise motion control of a stepper motor with the mechanical advantage of a gearbox. This integration allows the motor to deliver high torque, smooth rotation, and fine positioning—even at low speeds.
At its core, the stepper motor converts electrical pulses into mechanical motion. Each pulse energizes a specific set of coils (electromagnets) inside the stator, creating magnetic fields that pull the rotor into a new position.
Every pulse moves the rotor by a fixed angle known as a step angle (e.g., 1.8° per step).
The frequency of the pulses determines the speed of rotation.
The number of pulses determines the distance or angle of rotation.
This step-by-step movement enables precise angular control without needing feedback sensors in most applications.
The gearbox (gearhead) is attached directly to the motor shaft. Its primary function is to reduce speed and increase torque. The gears inside the gearbox transmit the motion from the motor shaft to the output shaft, but at a lower rotational speed and higher torque output.
If the gear ratio is 10:1, the motor shaft must rotate 10 times for the output shaft to complete 1 full rotation.
Speed is reduced by a factor of 10.
Torque is increased roughly 10 times (minus mechanical losses).
This gearing effect allows the motor to handle heavier loads or provide more precise positioning at lower speeds.
The output shaft of the gearbox delivers the motion to the connected mechanism—such as a robotic joint, conveyor belt, or lead screw.
Because of the gearbox’s reduction ratio, the output motion is smoother, slower, and more powerful compared to a direct-drive stepper motor.
In advanced geared stepper motors, an encoder may be attached to monitor position and speed. The encoder sends real-time feedback to the motor controller, allowing automatic corrections for any missed steps.
Accuracy
Efficiency
Response time
Protection against overloads
The stepper driver or controller manages the input pulse signals sent to the motor. It determines:
Pulse rate (speed control)
Pulse count (position control)
Pulse direction (rotation direction)
By adjusting these parameters, the controller ensures the geared stepper motor performs precise movements required for automation, robotics, and CNC machinery.
The controller sends electrical pulses to the stepper motor.
The stepper motor converts each pulse into a small rotational step.
The gearbox multiplies torque and reduces speed.
The output shaft delivers powerful, precise motion to the load.
High Torque at Low Speed: Ideal for heavy loads or slow, precise motion.
Accurate Positioning: Step-by-step motion ensures repeatability.
Smooth Operation: Gear reduction eliminates jerky motion.
Longer Life: Reduced stress on the motor extends its durability.
In summary, a geared stepper motor works by using electromagnetic step control combined with mechanical gear reduction to achieve high torque, precision, and stability. This makes it a perfect solution for industrial automation, robotics, medical devices, and precision instruments that require controlled and reliable motion.
Geared stepper motors are a crucial component in precision motion control systems, offering a combination of high torque, excellent positioning accuracy, and smooth operation. These motors integrate a gearbox with a stepper motor, enhancing torque output while maintaining precise control over rotational movement. They are commonly used in robotics, CNC machinery, automation systems, and medical devices where accuracy and reliability are paramount.
One of the most defining features of a geared stepper motor is its ability to deliver significantly higher torque than standard stepper motors. The integrated gearbox multiplies torque output by reducing the motor’s speed. This allows the motor to handle heavier loads and increased mechanical resistance without losing step accuracy.
For instance, a stepper motor with a 10:1 gear ratio can produce ten times more torque at the output shaft compared to the base motor, enabling smoother and more controlled movements even under demanding conditions.
Geared stepper motors are engineered to deliver exceptional positioning precision. The gear reduction not only increases torque but also reduces step angle, which translates into finer control.
For example, a typical 1.8° stepper motor combined with a 5:1 gear reduction results in an effective step angle of 0.36° per step. This improvement ensures more accurate and smoother rotational motion, making these motors ideal for applications such as 3D printers, telescopes, and robotic arms, where minute adjustments are critical.
The inclusion of a gearbox enhances the motor’s ability to maintain stability under heavy loads. Unlike direct-drive stepper motors, geared stepper motors prevent slippage and loss of synchronization, ensuring that even at low speeds or during sudden directional changes, the movement remains steady.
This load-handling capability makes them an ideal choice for automated positioning systems, industrial conveyors, and precision assembly equipment where consistent performance is necessary.
Despite their enhanced torque performance, geared stepper motors maintain a compact and space-efficient design. The combination of motor and gearbox provides high power density, allowing them to fit into tight spaces without compromising performance.
This compactness is especially advantageous in medical imaging equipment, compact robotics, and portable instruments, where design constraints require powerful yet small-sized actuators.
Another prominent feature of geared stepper motors is their ability to reduce output speed, which enhances control accuracy. The gearbox acts as a speed reducer, allowing the motor to deliver slow and stable motion—essential for applications that demand precise alignment and smooth operation.
This makes geared stepper motors indispensable in camera positioning systems, laser cutting machines, and automated measuring devices, where controlled low-speed motion ensures precision.
The holding torque of a geared stepper motor is considerably higher than that of a standard stepper motor. This is because the gearbox multiplies the torque when the motor is stationary, preventing back-driving and maintaining the motor’s position even when power is removed.
This self-locking characteristic is particularly valuable in vertical load systems such as elevators, robotic joints, and linear actuators, where maintaining position is crucial for safety and stability.
Geared stepper motors are available with a variety of gear ratios, allowing users to choose configurations that best suit their application’s speed and torque requirements. Common gear ratios include 3:1, 5:1, 10:1, and 20:1, among others.
This flexibility ensures that engineers can fine-tune performance parameters such as speed, torque, and resolution, optimizing each motor for its intended task—from lightweight positioning systems to heavy-duty industrial automation.
Thanks to the gear reduction mechanism and precise stepper control, geared stepper motors operate with minimal vibration and low acoustic noise. The smoother motion provided by the gearbox reduces mechanical resonance, resulting in quieter performance and longer service life for connected components.
This characteristic is particularly desirable in laboratory equipment, 3D printing, and medical devices, where silent operation and mechanical stability are essential.
Modern geared stepper motors are designed with optimized gear materials and lubrication systems to minimize friction losses. This improves energy efficiency, reducing heat generation while maintaining torque output.
Many manufacturers also incorporate planetary or spur gear designs, which ensure efficient power transmission and long operational life, even under continuous-duty cycles.
The gears used in geared stepper motors are typically made of high-strength materials such as hardened steel or brass, ensuring mechanical durability and resistance to wear. Additionally, the enclosed gearbox design protects internal components from dust, moisture, and contamination, extending the motor’s operational lifespan.
Such durability makes geared stepper motors reliable for industrial automation, packaging systems, and material handling applications, where long-term, maintenance-free performance is desired.
Most geared stepper motors are designed with standard mounting interfaces and shaft dimensions, ensuring seamless integration with various mechanical systems. They are compatible with a wide range of drivers, controllers, and motion control software, simplifying installation and system tuning.
This plug-and-play capability reduces engineering complexity, making geared stepper motors a cost-effective solution for both prototyping and mass production environments.
Unlike DC motors, geared stepper motors allow precise bidirectional motion control without feedback systems. This means they can rotate accurately in both directions by simply changing the pulse sequence. Combined with gear reduction, this offers superior accuracy and repeatability—a necessity for pick-and-place robots, optical systems, and positioning tables.
Advanced geared stepper motors can be integrated into closed-loop control systems, combining the benefits of stepper motor precision with real-time feedback and error correction. This enables automatic adjustment for load variations or positional drift, ensuring consistent accuracy even in demanding applications.
Compared to servo motors, geared stepper motors provide a more economical solution for applications requiring high torque and precise positioning. They eliminate the need for complex feedback mechanisms while offering excellent resolution and torque amplification through mechanical gearing.
This balance of performance and affordability makes geared stepper motors ideal for automation startups, OEMs, and educational robotics projects.
Geared stepper motors combine the precision of stepper technology with the torque amplification of mechanical gearing, offering enhanced performance, reliability, and adaptability for a broad spectrum of motion control applications. From industrial automation to robotics and medical technology, their high torque density, compact design, and exceptional control precision make them a cornerstone of modern motion engineering.
The Indian geared stepper motor industry is experiencing rapid growth, driven by automation, robotics, and the expanding electric vehicle sector. These precision-driven motors are essential in applications that demand accurate motion control, high torque at low speeds, and reliable performance. In this comprehensive guide, we highlight the Top 25 Geared Stepper Motor Manufacturers in India, each recognized for excellence in engineering, quality, and innovation.
Nidec India Pvt. Ltd., a subsidiary of global giant Nidec Corporation, specializes in high-precision motors and motion control systems.
Geared stepper motors
Brushless DC motors
Servo drives and controllers
Renowned for Japanese engineering standards, Nidec offers motors with exceptional torque density, precision, and longevity suitable for robotics and industrial automation.
Established in 1946, Bharat Bijlee is a leading geared stepper motor manufacturer in India’s electrical equipment manufacturing.
Geared stepper motors
Electric drives
Industrial automation systems
Their geared motors are energy-efficient and designed for heavy-duty applications, ensuring long-term reliability.
A subsidiary of the renowned Oriental Motor Co. (Japan), this brand is a leading geared stepper motor manufacturer and has a strong presence in precision motor technologies.
Geared stepper motors
Compact servo systems
Speed controllers
Offers high torque, smooth operation, and customized gear ratios for complex automation systems.
With over three decades of experience, Hindustan Motors is a trusted geared stepper motor manufacturer in the motion control market.
Stepper motors with planetary gears
AC/DC geared motors
Their geared motors are designed for low backlash, high positional accuracy, and compact design.
The motion control division of Sainest is a leading geared stepper motor manufacturer and specializes in custom-built geared stepper motors for industrial and OEM applications.
Hybrid stepper motors
Planetary gearboxes
Integrated stepper motor drives
Known for customization capabilities and robust gear assemblies with minimal noise and vibration.
Pankaj Motors is a leading geared stepper motor manufacturer and has been delivering reliable geared motor solutions to Indian industries since 1990.
NEMA standard geared stepper motors
Compact planetary motors
Provides cost-effective and energy-efficient motors ideal for small and medium automation setups.
Jkongmotor is a professional geared stepper motor manufacturer and offers advanced geared motor solutions for precise control.
Geared stepper motors
Servo drives
Brushless dc motors
Integrated servo motors
linear motors
Specializes in low-noise and high-efficiency geared systems designed for medical and laboratory equipment.
Sharp Motors is a major geared stepper motor manufacturer in Ahmedabad, known for precision-engineered geared motors.
Hybrid geared stepper motors
Worm gear and spur gear motors
High durability, low maintenance, and excellent torque consistency across speeds.
Parvalux is a leading geared stepper motor manufacturer and combines British technology with Indian manufacturing excellence.
Custom geared stepper motors
Permanent magnet DC motors
Delivers compact, high-torque solutions ideal for medical devices and automation lines.
Vishwa Motors focuses on automation-ready stepper and geared solutions.
Stepper gear motors
Linear actuators
Their motors feature high torque-to-inertia ratios and modular gearbox options for industrial flexibility.
A household name in India’s motor industry, Crompton Greaves is a leading geared stepper motor manufacturer and offers superior motion control products.
Geared AC/DC motors
Stepper motor systems
Backed by robust R&D, providing consistent quality and long service life.
Lakshmi Electric Drives is a leading geared stepper motor manufacturer and caters to textile and automation industries with customized geared stepper solutions.
Hybrid stepper motors with integrated gearboxes
High-torque actuators
Expertise in application-specific motor customization and high torque at low RPM.
Jyoti CNC, a global leading geared stepper motor manufacturer in CNC machinery, designs advanced motion control systems.
Precision geared stepper motors
CNC drives and control modules
Incorporates high precision, smooth operation, and smart control integration.
Delta Electronics is a global geared stepper motor manufacturer with an Indian manufacturing and R&D hub.
Stepper motors with precision planetary gears
Servo systems
Focuses on energy-efficient, smart-controlled, and IoT-compatible motor systems.
Lubi Electronics is a leading geared stepper motor manufacturer and manufactures a wide range of industrial motors for automation and robotics.
Geared hybrid stepper motors
Motion controllers
Renowned for high reliability, compact design, and excellent performance-to-price ratio.
Rotomag is one of India’s leading geared stepper motor manufacturers, specializing in electric mobility.
Geared stepper motors for solar tracking and EVs
BLDC and DC motors
Their motors offer exceptional torque output and optimized efficiency for dynamic applications.
An Italian company with strong Indian operations, Bonfiglioli is a leading geared stepper motor manufacturer and delivers precision gear systems for industrial automation.
Planetary geared stepper motors
Servo gear units
Globally trusted for precision, low noise, and long operational life.
Trident Motion is a leading geared stepper motor manufacturer and designs compact geared stepper systems for robotics and laboratory automation.
Micro stepper gear motors
Integrated motion drives
Combines innovation, compactness, and high torque density.
ABB is a global leading geared stepper motor manufacturer in automation and motion technologies, with significant Indian operations.
Hybrid geared stepper motors
Intelligent drive solutions
Known for cutting-edge control algorithms and superior reliability.
A trusted Indian geared stepper motor manufacturer providing OEM stepper and geared motor solutions since 1985.
Worm geared stepper motors
NEMA compliant motors
Affordable, robust, and ideal for industrial retrofits.
Techno Electric is a leading geared stepper motor manufacturer and combines engineering and innovation to deliver motion control systems for automation.
Precision geared motors
Stepper motor controllers
Offers custom engineering, low energy consumption, and optimized torque control.
Amar Engineers is a leading geared stepper motor manufacturer and serves OEMs in packaging, printing, and automation sectors.
Geared hybrid stepper motors
Linear actuators
Known for durability, smooth performance, and custom configurations.
A leading geared stepper motor manufacturer in motion control electronics and geared systems.
Integrated geared stepper motors
Motion drives and PLC modules
Provides precise motion control, compact designs, and digital integration.
Naman Motors is a leading geared stepper motor manufacturer and manufactures hybrid stepping motors for the textile and automation industries.
Hybrid geared stepper motors
Compact drive units
Offers affordable, energy-efficient, and maintenance-free solutions.
Part of the Keli Group, this leading geared stepper motor manufacturer provides advanced stepper and geared solutions for industrial automation.
Geared stepper motors
Torque motors
Ensures high efficiency, precision gearing, and excellent repeatability.
Geared stepper motors have become a cornerstone in the field of precision motion control, combining the strengths of stepper motor technology with the mechanical advantage of a gearbox. This integration delivers a balance of high torque, exceptional accuracy, and reliable operation, making them indispensable across a wide range of industrial, robotic, and automation applications.
Below, we explore the key advantages of geared stepper motors that make them a preferred choice for engineers and designers seeking superior motion performance.
The primary advantage of a geared stepper motor is its enhanced torque capability. By integrating a gearbox, the motor’s rotational force is multiplied while its output speed is reduced.
This gear reduction effect allows the motor to handle heavier mechanical loads without stalling or losing steps. For instance, a stepper motor with a 10:1 gear ratio can deliver ten times the torque of the same motor without gearing.
This advantage is particularly valuable in robotic joints, CNC machinery, and automated conveyors, where strong torque at low speed is essential for smooth and controlled motion.
One of the defining characteristics of geared stepper motors is their superior positional accuracy. The addition of a gearbox effectively reduces the step angle of the motor, resulting in finer resolution per revolution.
For example, a 1.8° stepper motor equipped with a 5:1 gearbox achieves an effective step angle of 0.36°, allowing for highly accurate and stable movements. This makes geared stepper motors ideal for applications requiring micrometer-level precision, such as optical systems, camera focus mechanisms, and 3D printers.
With the torque amplification provided by the gearbox, geared stepper motors exhibit excellent load-bearing capacity and stable motion control. The gear reduction minimizes vibration, reduces oscillation, and ensures consistent performance under varying loads.
This stability makes them ideal for systems that involve vertical lifting, linear movement, or constant acceleration and deceleration, such as pick-and-place robots, assembly machines, and material handling systems.
In many precision applications, speed control is just as important as torque. The gearbox naturally reduces the output speed of the motor, allowing for smooth, controlled, and slow motion even at full motor step rates.
This characteristic is crucial for processes that require accurate alignment and gradual motion, such as laser cutting, medical dosing systems, or automated inspection equipment.
Geared stepper motors provide greater holding torque compared to their non-geared counterparts. The gearbox effectively multiplies the torque when the motor is stationary, preventing back-driving of the load.
This self-locking ability ensures that the motor maintains its position even when power is removed—a critical advantage in applications like elevators, robotic arms, and positioning tables, where maintaining a precise position is vital for operational safety and accuracy.
A key benefit of geared stepper motors is their high power density—delivering more torque in a smaller package. The integrated gearbox allows engineers to achieve the desired output without increasing the motor size.
This makes them suitable for space-constrained environments, such as portable equipment, medical devices, and compact robotics, where both power and precision must coexist within limited dimensions.
The mechanical damping effect of the gearbox reduces stepper motor vibration and resonance, resulting in quieter and smoother operation. This makes geared stepper motors highly suitable for applications that demand low noise levels, including laboratory instruments, optical devices, and healthcare systems.
Additionally, reduced vibration improves positional repeatability and extends the lifespan of mechanical components.
Geared stepper motors are available with a range of gear ratios, enabling users to customize performance for specific application needs.
For example:
Low gear ratios (3:1 – 5:1) provide moderate torque enhancement and higher speed.
High gear ratios (10:1 – 30:1) deliver maximum torque and ultra-fine motion control.
This versatility allows engineers to optimize the balance between speed, torque, and precision, making geared stepper motors adaptable for various industrial and automation systems.
Because the gearbox allows for torque amplification at lower speeds, the stepper motor operates more efficiently within its optimal torque range. This leads to lower current consumption, reduced heat generation, and longer operational life for both the motor and driver.
Energy efficiency is a major advantage in battery-powered systems, mobile robotics, and energy-conscious industrial environments.
The gears used in modern geared stepper motors are made from hardened steel, brass, or high-strength polymers, ensuring wear resistance and mechanical durability. The enclosed gear housing protects internal components from dust, moisture, and contaminants, providing reliable long-term operation even in harsh environments.
This makes geared stepper motors a low-maintenance, cost-effective solution for continuous-duty applications like packaging, labeling, and automation equipment.
Geared stepper motors are designed with standardized mounting patterns and shaft dimensions, making them easy to integrate into new or existing systems. They are compatible with a wide range of stepper motor drivers, controllers, and PLCs, simplifying setup and calibration.
This ease of integration helps reduce engineering time and system development costs, accelerating the deployment of motion control solutions.
For many applications, geared stepper motors serve as a more economical alternative to servo motors, providing comparable precision and torque output at a fraction of the cost.
They eliminate the need for complex feedback encoders or tuning procedures, making them simpler to control and maintain, especially in applications where open-loop control is sufficient.
Geared stepper motors offer excellent repeatability and reversible motion control. The ability to move accurately in both directions by controlling input pulses ensures consistent and predictable performance, even over extended operation cycles.
This precision makes them ideal for automation testing equipment, positioning platforms, and robotic actuators, where repeatable accuracy is non-negotiable.
The advantages of geared stepper motors—including high torque output, enhanced precision, superior load handling, and compact design—make them one of the most versatile and dependable solutions in motion control engineering. They bridge the gap between standard stepper and servo systems, offering efficiency, accuracy, and cost-effectiveness in a single package.
From industrial automation to medical technology and robotics, geared stepper motors continue to set the benchmark for precision-driven mechanical performance in modern engineering systems.
Geared stepper motors are vital components in modern automation, robotics, and precision engineering. By combining a stepper motor with a gearbox, these motors offer enhanced torque, improved precision, and superior load-handling capabilities, making them indispensable across multiple industries. Their versatility allows them to operate in diverse environments where accuracy, reliability, and repeatability are essential.
Below is a comprehensive exploration of the key applications of geared stepper motors in various sectors.
In the field of robotics, geared stepper motors play a central role in ensuring smooth, precise, and controlled movements. The gearbox enhances torque output, allowing robots to perform high-load operations without compromising speed or accuracy.
Robotic arms – for accurate joint control and repeatable positioning.
Pick-and-place robots – for handling delicate components with precision.
Autonomous mobile robots (AMRs) – for controlled wheel and navigation systems.
Collaborative robots (cobots) – for safe and precise human interaction.
With gear reduction, robots achieve fine motion control at low speeds, ensuring stable and efficient performance in manufacturing and service robotics.
CNC (Computer Numerical Control) machines rely heavily on geared stepper motors to achieve high precision and stable torque during machining operations. The integrated gear system provides the mechanical advantage required to move cutting tools or workpieces with minimal vibration.
Milling machines – for precise tool positioning and feed control.
Lathe machines – for spindle movement and part rotation.
Laser and plasma cutters – for steady and controlled motion paths.
3D printers – for accurate layer deposition and nozzle movement.
In these systems, geared stepper motors ensure repeatable accuracy and superior torque control, which are critical for high-quality manufacturing output.
Precision and reliability are vital in medical technology, and geared stepper motors meet these demands perfectly. Their smooth motion, quiet operation, and accurate positioning make them ideal for sensitive medical and analytical instruments.
Syringe pumps and fluid dispensers – for controlled fluid delivery.
Medical imaging systems – such as MRI and CT scanners for mechanical alignment.
DNA analyzers and centrifuges – requiring precise rotational control.
Automated sample handlers – for repeatable and precise micro-movements.
The low vibration and self-locking capabilities of geared stepper motors ensure steady, noise-free, and reliable performance in healthcare environments.
In packaging automation, geared stepper motors deliver the torque and accuracy required for precise product handling, labeling, and wrapping operations. Their repeatable motion control ensures perfect synchronization between multiple moving parts.
Conveyor systems – for consistent product transport.
Labeling heads – for accurate label placement at high speeds.
Sealing and cutting mechanisms – for precise timing and pressure control.
Bottle capping and filling machines – for uniform torque application.
With their high holding torque and smooth operation, geared stepper motors maintain exact control over start-stop cycles, crucial for continuous packaging processes.
Geared stepper motors are extensively used in industrial automation to drive actuators, feeders, and positioning systems. They enable automated assembly, inspection, and transport processes with minimal maintenance requirements.
Pick-and-place mechanisms – for assembling electronic components.
Linear actuators – for pushing, pulling, or lifting tasks.
Rotary indexing tables – for multi-station assembly processes.
Inspection and testing stations – for high-precision part rotation.
Their repeatable performance and easy integration with PLCs and controllers make geared stepper motors a reliable choice for smart factories and Industry 4.0 environments.
In the printing industry, geared stepper motors provide consistent speed control and precise media handling, ensuring high-quality output in both consumer and industrial printers.
Inkjet and laser printers – for paper feed and head movement.
Large-format plotters – for controlled roller and carriage motion.
Barcode and label printers – for synchronized print head operation.
Document scanners – for accurate scanning speed and positioning.
The combination of low vibration and steady torque allows geared stepper motors to produce flawless motion control, minimizing print distortions and alignment errors.
In aerospace and defense, precision and reliability are mission-critical. Geared stepper motors are utilized in systems requiring compact, high-torque, and accurate motion control under extreme conditions.
Antenna positioning systems – for precise tracking and orientation.
Optical targeting and surveillance systems – requiring high-resolution motion.
Flight simulators – for controlled actuation and feedback systems.
Navigation instruments – for mechanical adjustments and stabilization.
The robust design and durability of geared stepper motors ensure dependable operation even in high-vibration or temperature-variable environments.
Modern vehicles incorporate geared stepper motors in various mechatronic systems to improve performance, comfort, and safety.
Headlight positioning and leveling systems – for accurate beam control.
Climate control vents – for automated air direction adjustments.
Instrument clusters and gauges – for smooth needle movement.
Electric throttle and valve systems – for precise actuation.
These motors offer quiet operation, compactness, and long lifespan, aligning perfectly with automotive reliability standards.
In camera systems and optical instruments, geared stepper motors provide fine, stable, and controlled motion, essential for maintaining accurate focus and alignment.
PTZ (Pan-Tilt-Zoom) cameras – for smooth, multi-axis positioning.
Microscopes and telescopes – for high-precision focusing.
Laser alignment systems – requiring micron-level accuracy.
The gear reduction mechanism ensures precise angular control, enabling seamless, jitter-free motion ideal for optical tracking and imaging applications.
Geared stepper motors are increasingly found in smart home devices and consumer electronics, where precise, low-noise motion control enhances functionality and user experience.
Smart locks – for accurate rotational control.
Automated blinds and curtains – for smooth open-close actions.
3D printers and hobby CNC machines – for precision fabrication.
Home robotics and appliances – for consistent mechanical performance.
Their energy efficiency and compact design make them well-suited for battery-powered or IoT-enabled devices.
In the entertainment and stage lighting industry, geared stepper motors are used to create precise, dynamic movements in lighting systems and automated props.
Moving head lights – for accurate pan and tilt movements.
Motorized camera rigs – for smooth motion tracking.
Automated stage effects – for controlled mechanical operations.
Their ability to deliver quiet, repeatable motion ensures smooth performance during live events and filming environments.
In solar tracking systems and renewable energy technologies, geared stepper motors provide high-torque, low-speed rotation to optimize energy efficiency.
Solar panel tracking systems – for continuous alignment with the sun.
Wind turbine control mechanisms – for blade pitch adjustment.
Energy storage systems – for controlled valve and actuator movements.
Their durability, precision, and low power consumption make them ideal for sustainable and long-term energy solutions.
The applications of geared stepper motors span virtually every modern industry—from robotics and medical technology to aerospace and consumer electronics. Their unique combination of high torque, precision control, compactness, and reliability makes them a cornerstone in the evolution of intelligent motion systems.
As automation and mechatronics continue to advance, geared stepper motors will remain at the forefront of high-performance motion control, driving innovation across countless applications worldwide.
Selecting the right geared stepper motor is a critical step in designing efficient, precise, and reliable motion control systems. The ideal motor depends on factors such as load requirements, torque, speed, accuracy, environmental conditions, and control methods. With countless models and specifications available, understanding these parameters helps ensure optimal performance and longevity in any application.
This comprehensive guide outlines the key factors to consider when choosing the right geared stepper motor for your project.
The most crucial factor in selecting a geared stepper motor is the required torque output. Geared stepper motors are specifically designed to increase torque through gear reduction, allowing the motor to handle heavier loads with precision.
Holding Torque: The torque required to keep the load stationary without losing position.
Running Torque: The torque needed to move the load consistently during operation.
Acceleration Torque: Additional torque required to overcome inertia during acceleration or deceleration.
To avoid motor stalling, always select a motor that provides 20–30% more torque than the application’s peak requirement.
Example:
If your application requires 0.8 Nm of torque, choose a geared stepper motor rated for at least 1.0 Nm or higher.
The speed of the output shaft is inversely related to the gear ratio. Higher gear ratios provide greater torque but lower speed, while lower gear ratios allow faster output at the expense of torque.
Low ratios (3:1 – 5:1): Suitable for applications needing moderate torque and higher speed, such as conveyors or scanners.
Medium ratios (10:1 – 20:1): Balanced torque and speed, ideal for robotic arms and packaging systems.
High ratios (30:1 – 100:1): Maximum torque and precision for heavy loads, such as CNC tables and lifting devices.
Select a gear ratio that aligns with your desired output speed and torque balance for smooth and efficient performance.
One of the greatest advantages of geared stepper motors is their fine step resolution. The effective step angle decreases with higher gear ratios, offering greater precision and positioning accuracy.
For instance, a 1.8° stepper motor with a 10:1 gearbox delivers an effective step angle of 0.18°, enabling micro-level precision.
If your application requires smooth, precise motion—such as in camera control systems, 3D printers, or medical devices—opt for a motor with high gear reduction and tight backlash control.
Every application has unique load dynamics, such as rotational inertia, friction, and mechanical resistance. Understanding your load type helps in selecting the right motor size and gearing configuration.
Constant load: Found in conveyors or fans, requiring consistent torque.
Variable load: Seen in robotic joints or lifting arms, where torque fluctuates.
Intermittent load: Used in positioning systems where motion starts and stops frequently.
For high-inertia or heavy loads, a geared stepper motor with a high gear ratio ensures stable, controlled motion without missed steps or resonance issues.
Backlash refers to the small amount of mechanical play between gear teeth. While all gear systems have some backlash, excessive clearance can lead to positional errors and reduced precision.
For high-precision applications, such as laser cutters or optical instruments, choose low-backlash planetary gearboxes (typically <1°).
For general automation, standard spur gearboxes with moderate backlash are cost-effective and sufficient.
Always verify the backlash specification in the manufacturer’s datasheet to ensure compatibility with your accuracy requirements.
Stepper motors come in different frame sizes and types, including bipolar and unipolar configurations. Selecting the right type ensures electrical compatibility and mechanical fit.
NEMA 17: Compact and lightweight, used in small robotics and 3D printers.
NEMA 23: Mid-size, suitable for moderate-load industrial applications.
NEMA 34: High-torque option for heavy-duty automation and CNC equipment.
Ensure the motor’s mounting dimensions, shaft diameter, and connector type match your design’s mechanical layout.
To achieve precise motion control, your geared stepper motor must be compatible with the driver and controller being used.
Rated Voltage and Current: Ensure your driver can supply sufficient current without overheating the motor.
Microstepping Capability: Improves smoothness and accuracy of motion.
Control Interface: Choose between step/direction control, serial, or fieldbus communication depending on your system’s architecture.
A closed-loop stepper driver can further enhance performance by adding feedback for real-time position correction, eliminating lost steps.
Geared stepper motors must withstand their operating environment, which includes factors such as temperature, humidity, and exposure to contaminants.
Temperature range: Choose motors rated for the expected thermal conditions.
Ingress Protection (IP) rating: For dusty or wet environments, select motors with IP65 or higher protection.
Lubrication and sealing: Ensure the gearbox is sealed and pre-lubricated for maintenance-free operation.
In cleanroom, medical, or outdoor applications, these protective features are essential for maintaining performance and reliability.
A geared stepper motor must fit seamlessly into your system’s mechanical setup. Ensure the mounting holes, shaft orientation, and gear output direction are compatible with your equipment design.
Use standard NEMA or IEC mounts for easy replacement and compatibility.
Check shaft length and coupling type for secure mechanical connection.
Consider planetary gearboxes for compact, coaxial designs with minimal space requirements.
Proper integration ensures efficient power transmission and reduces vibration or misalignment issues.
While it’s tempting to select the most powerful motor, over-specifying can increase cost and complexity unnecessarily. Aim for a balance between performance, cost, and longevity.
High-precision, low-backlash gearboxes cost more but provide superior accuracy.
Standard spur gears offer excellent performance for general applications at a lower price.
Consider lifetime maintenance costs, not just initial purchase price.
Choose a reputable manufacturer that offers detailed specifications, performance graphs, and customer support to ensure long-term reliability.
When designing systems for automation or robotics, select a geared stepper motor that supports scalability and modular upgrades.
If your future projects may require higher loads or different configurations, choose a motor series with interchangeable gear ratios or frame sizes. This approach saves redesign time and ensures system compatibility as your needs evolve.
Choosing the right geared stepper motor requires careful evaluation of mechanical, electrical, and environmental factors. By understanding torque, speed, gear ratio, backlash, and mounting requirements, you can select a motor that provides precise, reliable, and efficient motion control for your application.
Whether for industrial automation, robotics, medical devices, or CNC systems, a well-selected geared stepper motor will enhance performance, extend equipment life, and reduce operational costs.
India’s geared stepper motor manufacturers continue to redefine precision engineering with world-class innovations, sustainability, and adaptability to automation demands. From small-scale robotics to large industrial systems, these companies provide the torque, control, and reliability essential for modern motion control applications.
