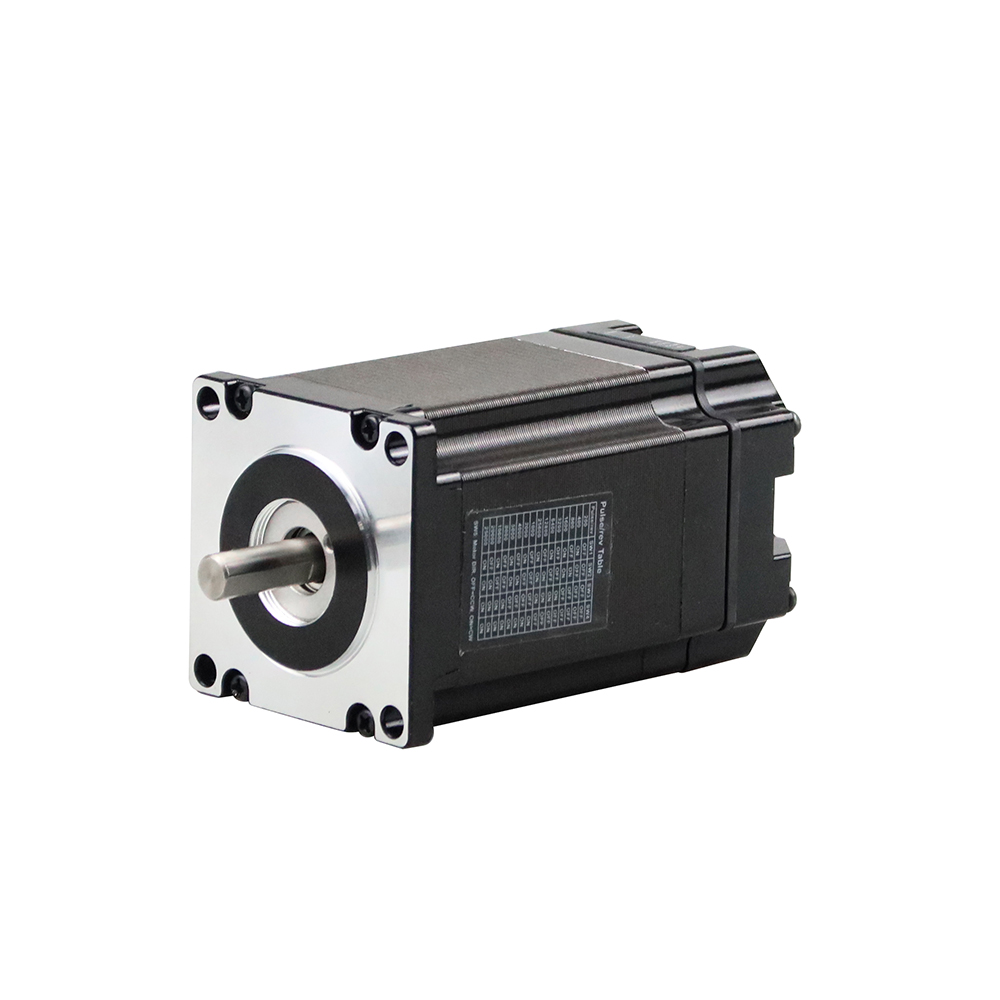

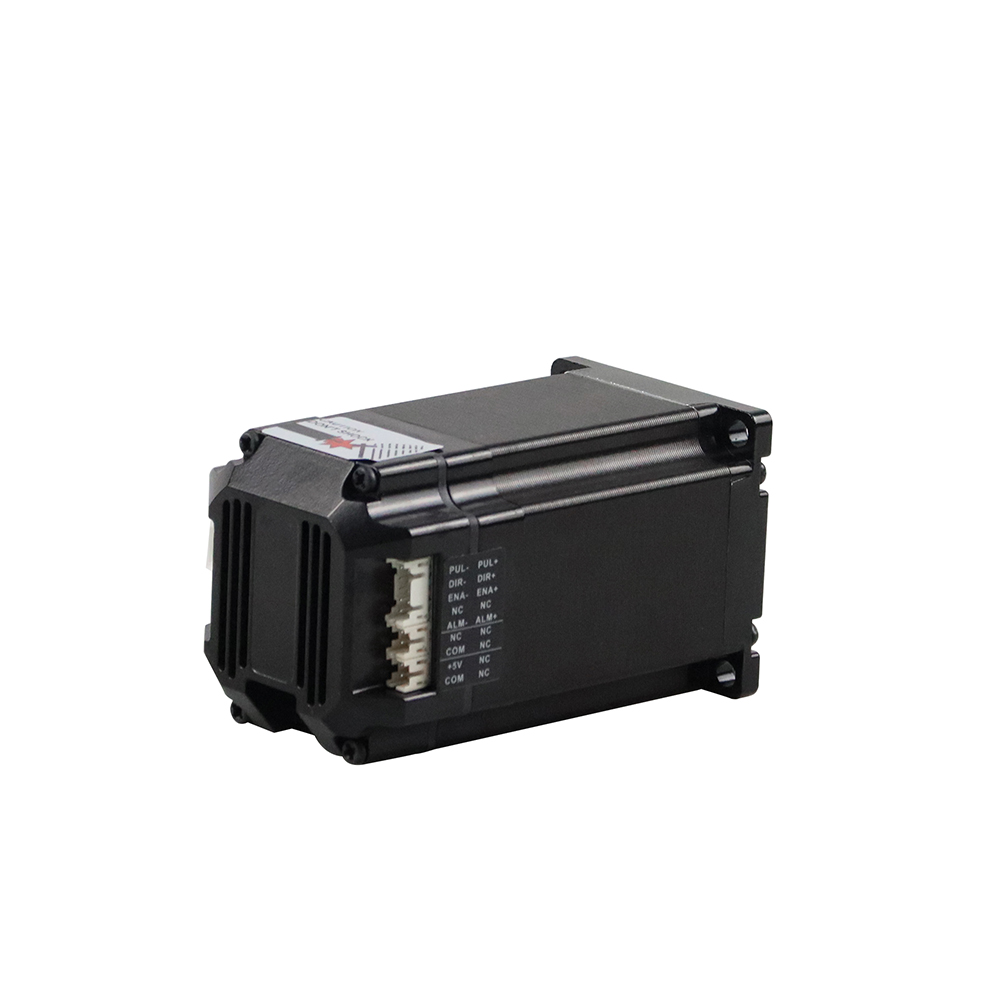

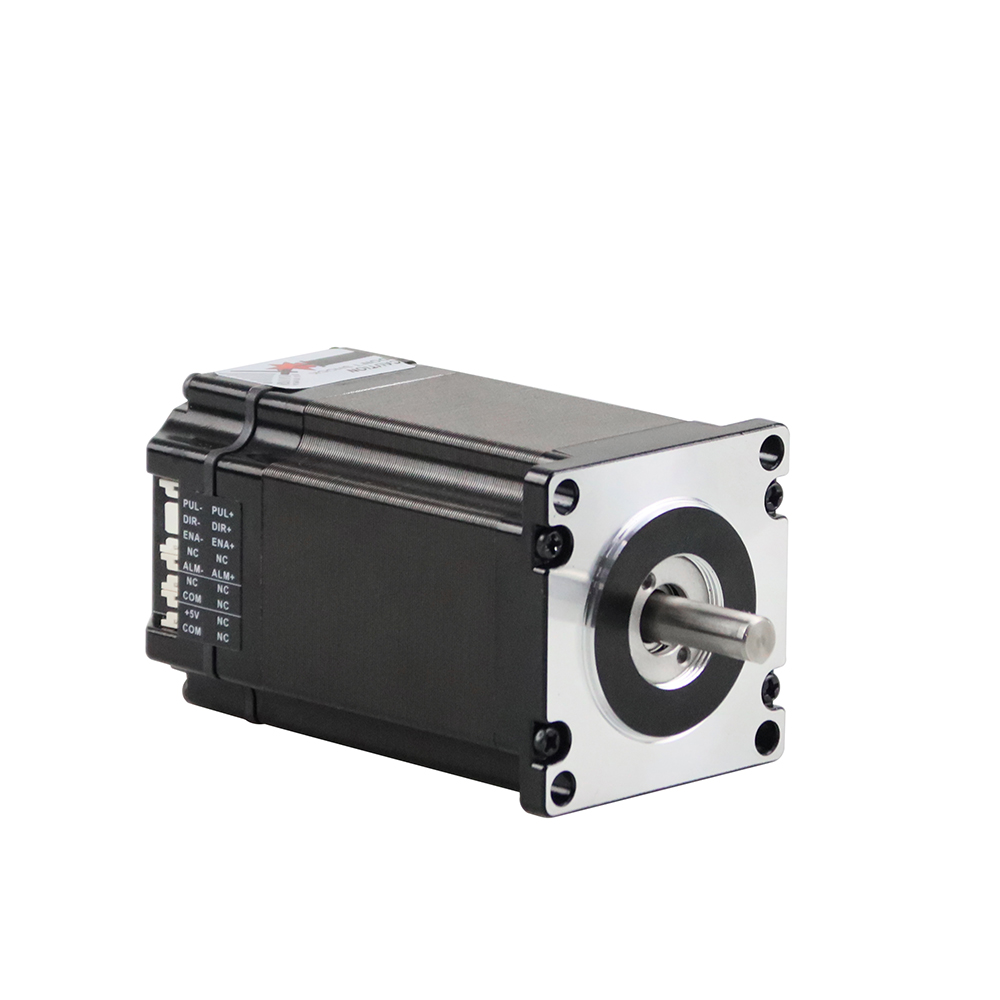

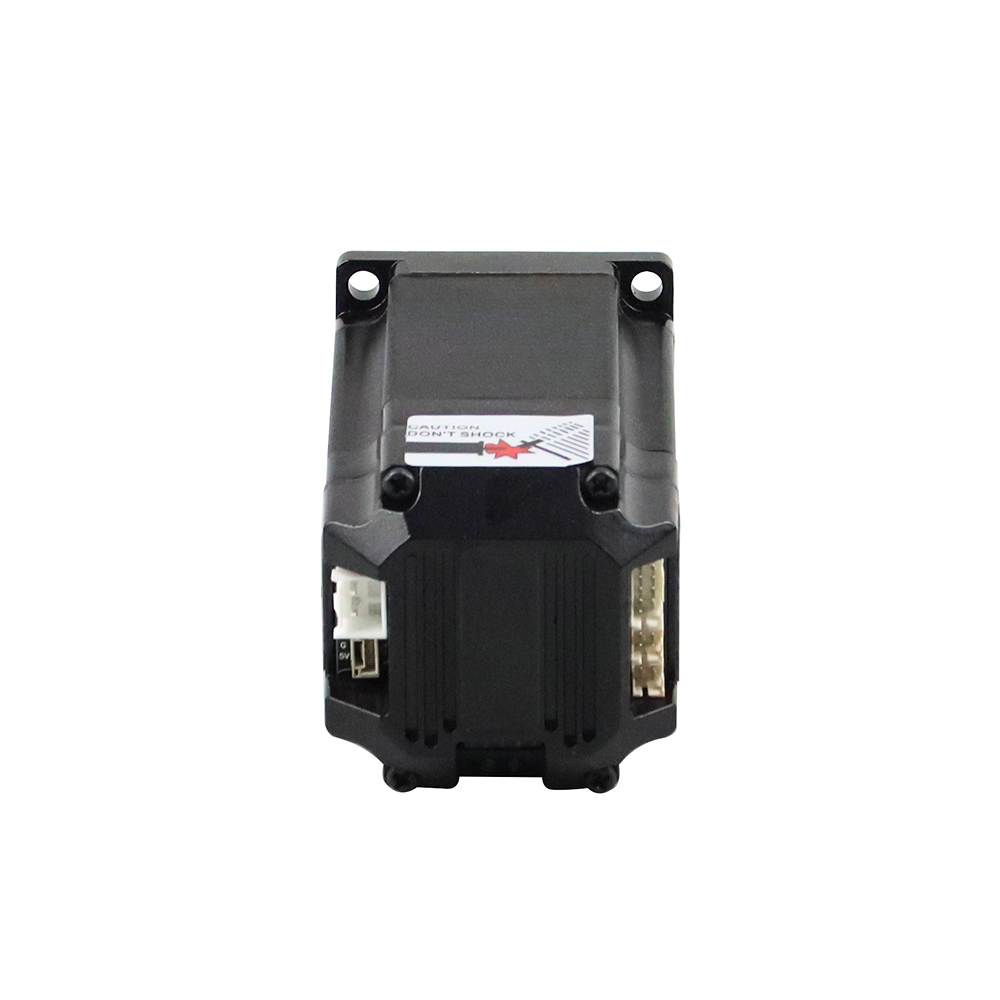

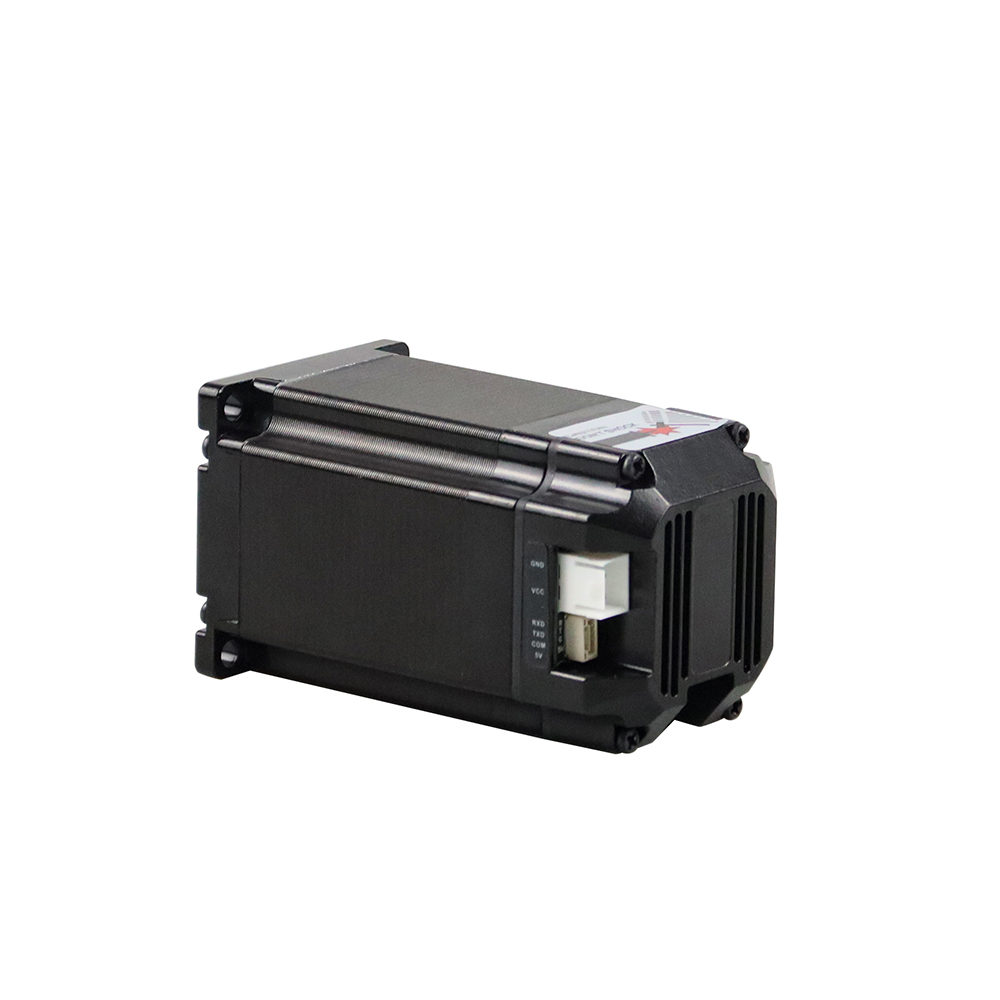

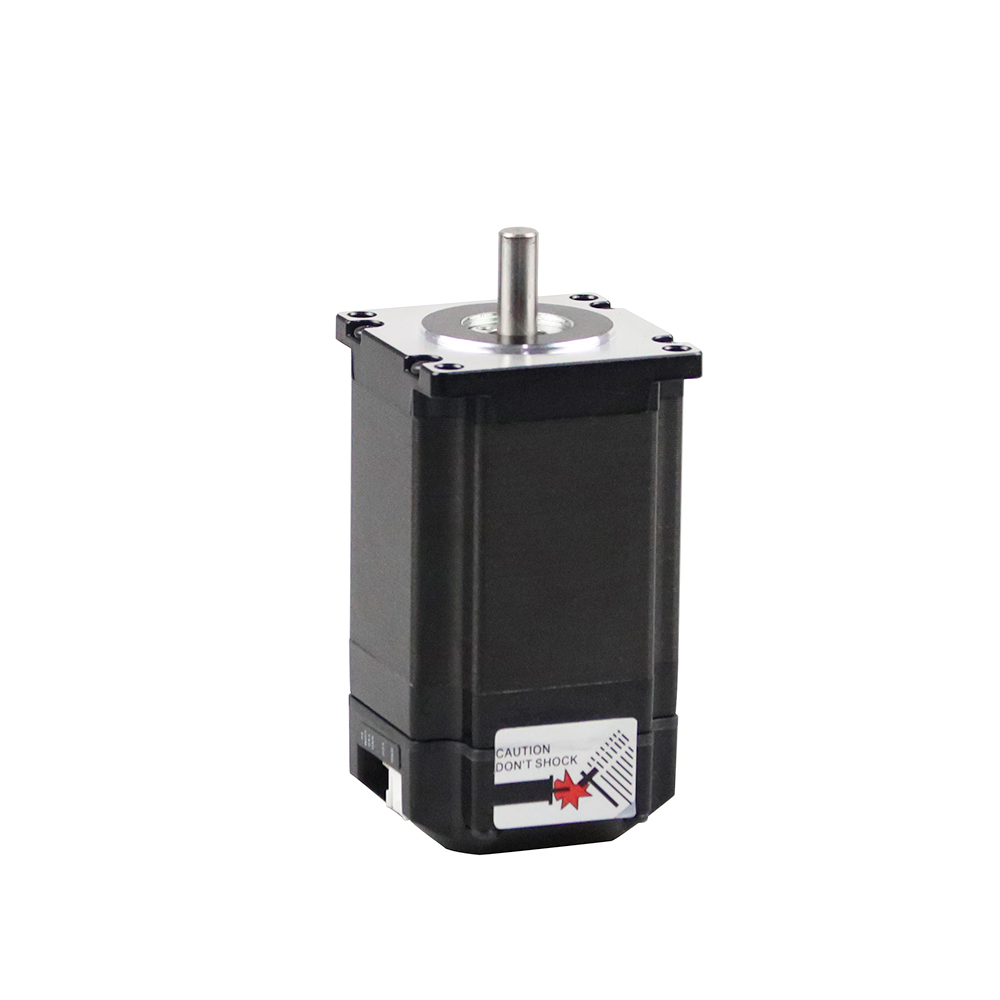

Nema 23 JKISS57-R03A Integrated Stepper Servo Motor 57x57xmm RS485 Control 2.8A 1.89N.m with Integrated Driver

Jkongmotor nema 23 JKISS57-R03A 57x57x100mm integrated stepper servo motor with RS485 control 1.8Degree 2.8A 1.1Ω 1.89N.m with 17bit integrated driver. For more different integrated servo motor requirements please contact us!!!

Electrical Specifications：

• Type: Nema23 stepper motor with integrated built-in driver

• Model Name: JKISS57-R03A

• Phase: 2

• Step Angle: 1.8 degree

• Voltage: 3.08V

• Current: 2.8A

• Resistance: 1.1Ω±10%(20℃)

• Inductance: 3.6mH±20%(1kHz 1V RMS)

• Holding Torque: 1.89Nm(267.65oz.in)

• Encoder: 1000ppr / 17Bit

• Control Method: RS485 (Pulse, CANopen optional)

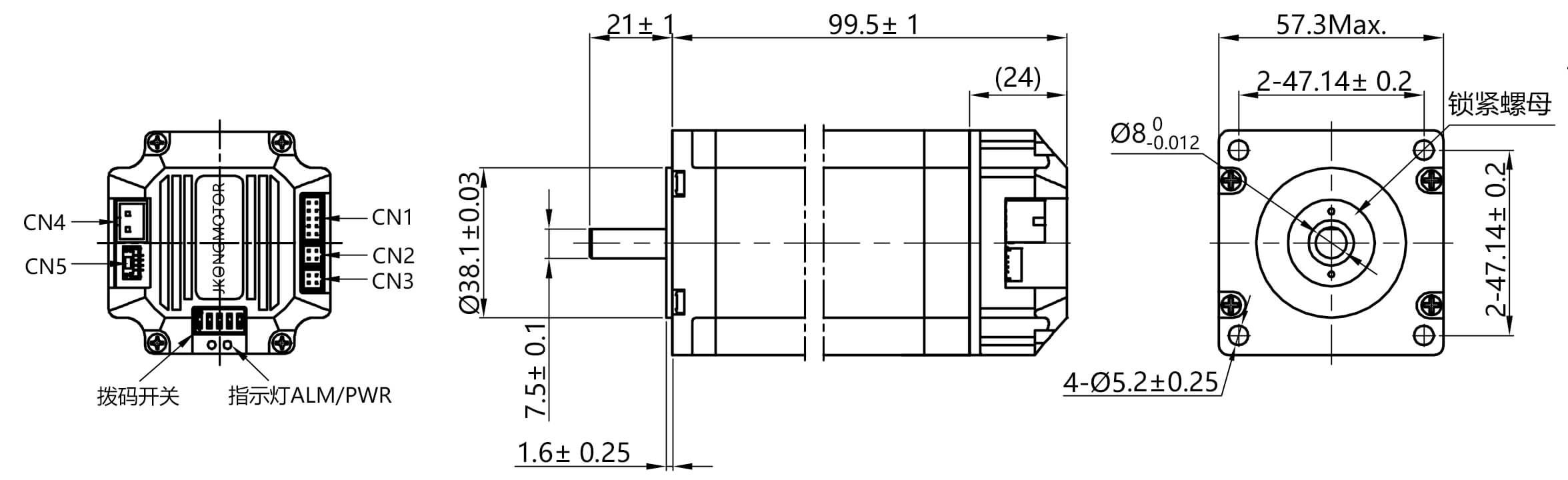

Physical Specifications:

• Frame Size: Nema 23 (57x57mm)

• Body Length: 100mm

• Shaft Diameter: 8mm

• Shaft Length: 21mm





Integrated Stepper Servo Motors Features:

• Cortex-M4 core high-performance 32-bit micro controller

• The highest pulse response frequency can reach 200KHz


• Built in protection function, effectively ensuring the safe use of the device


• Intelligent current regulation to reduce vibration, noise, and heat generation

• Adopting low internal resistance MOS, the heating is reduced by 30% compared to ordinary products

• Voltage range: DC12V-36V

• Integrated design with integrated drive motor, easy installation, small footprint, and simple wiring

• Equipped with anti reverse connection function


Communication method:

• Pulse type

• RS485 MOdbus RTU network type

• CANopen network type





Protection level:

Waterproof type: IP30, IP54, IP65, optional

RS485 Integrated Stepper Servo Motors Usage:

Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese medicine ingredient industry, etc
