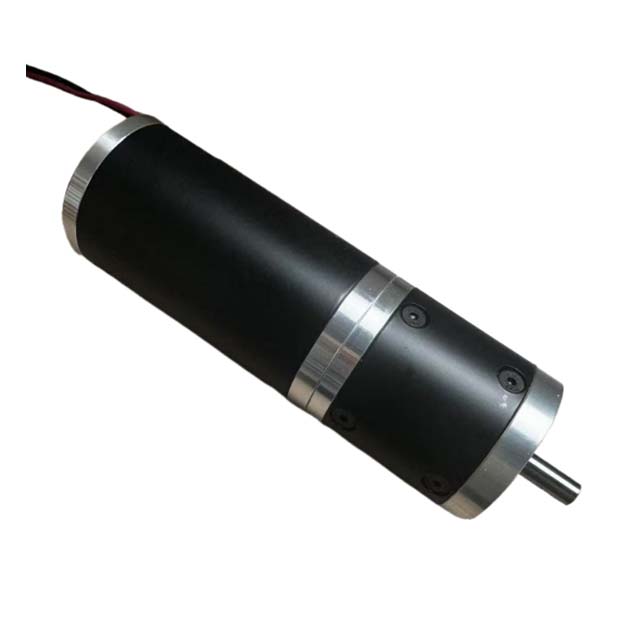

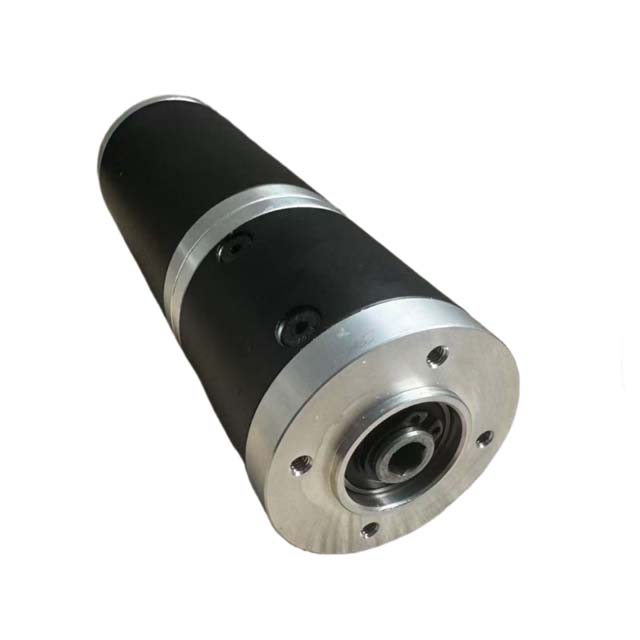

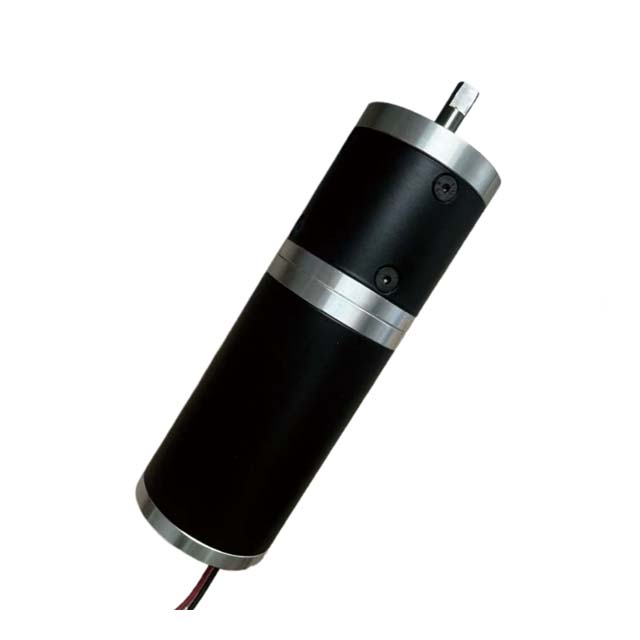

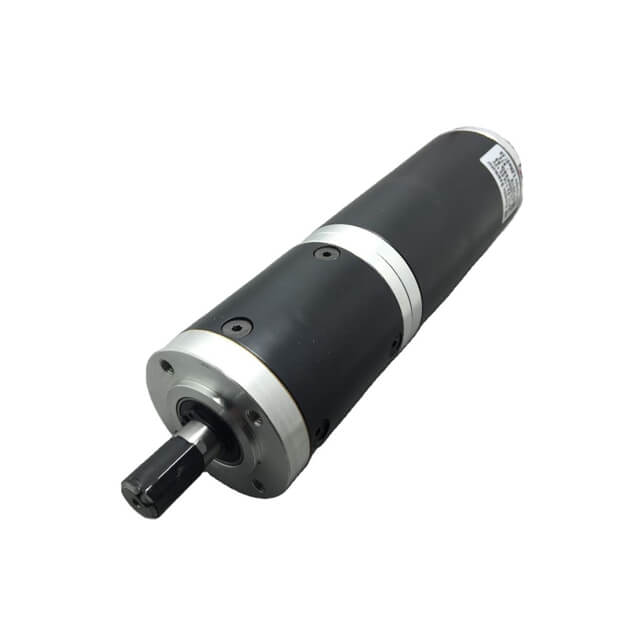

52ZYT Series JK52ZYT02A Geared Brushed DC Motor with Planetary Gearbox Reducer 3500Rpm 0.20N.m 4.2A 73W 52x52x110mm

Jkongmotor 24V 52ZYT Series Planetary Gear brushed dc motor (JK52ZYT02A-24V) with 3500Rpm speed and size 52x52x110mm. It has 2 wires, 0.20N.m and 73W. For more different dc brush motors requirements (such as gearbox, brake, encoder, or other parts), please contact us!!!

Electrical Specifications：

• Type: 24V 3500Rpm Planetary Gear Brushed Dc Motor

• Model Name: JK52ZYT02A with Planetary Gearbox

• Rated Voltage: 24V (Option for 12v up to 60vdc)

• Rated Speed: 3500Rpm

• No Load Speed: 4200Rpm


• Rated Torque: 0.20N.m

• Rated Power: 73W

• Protection Level: IP50 (Option for IP 54)

• Optional Parts: Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations, EMI/RFI Suppression Circuit, Thermal Protection, High Temperature Class H Insulation..

Gearbox Specifications:

• Gearbox Type: Planetary Gearbox

• Gear Ratio: 1/3.6  1/4.25  1/5.33 1/13  1/15  1/18  1/23  1/28 1/43  1/52  1/61  1/72  1/96  1/121 1/154  1/187  1/220  1/260  1/307

• Efficiency: 90% / 81% / 73% / 66%

• Rated Torque: 2N.m / 8N.m / 16N.m / 20N.m

• Max Torque: 6N.m / 25N.m / 50N.m / 60N.m


• Gearbox Length: 46mm / 57mm / 68mm / 80mm

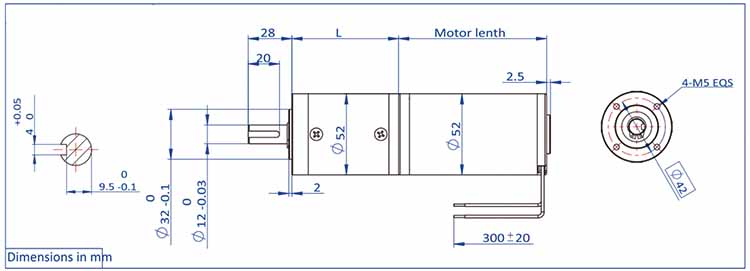

Physical Specifications:

• Frame Size: 52 x 52mm

• Body Length: 110mm

• Shaft Diameter: 5mm

• Number of Leads: 2

• Leads Length: 300mm

• Weight: 1.0kg
