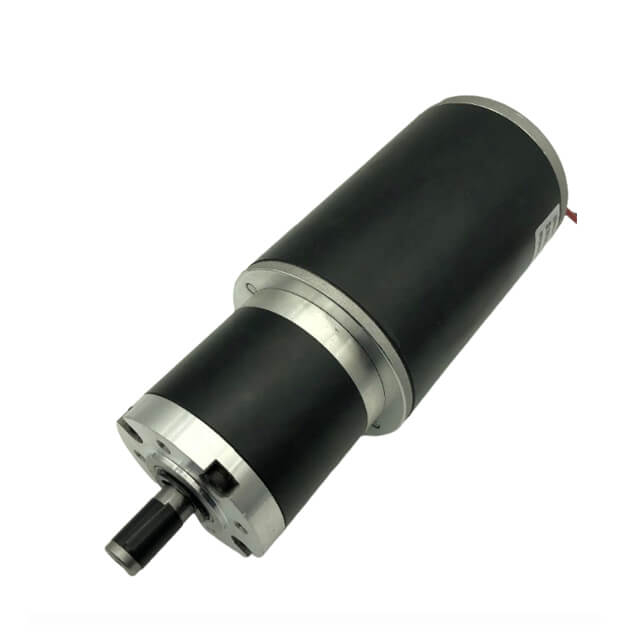

80ZYT Series JK80ZYT02A Geared Brushed DC Motor with Planetary Gearbox Reducer 3150Rpm 0.8N.m 13.5A 265W 80x80x140mm

Jkongmotor 24V 80ZYT Series Planetary Gear brushed dc motor (JK80ZYT02A) with 3150Rpm speed and size 80x80x140mm. It has 2 wires, 0.8N.m and 265W. For more different dc brush motors requirements (such as gearbox, brake, encoder, or other parts), please contact us!!!

Electrical Specifications：

• Type: 24V 3150Rpm Planetary Gear Brushed Dc Motor

• Model Name: JK80ZYT02A with planetary gearbox

• Rated Voltage: 24V (Option for 12v up to 2300vdc)

• Rated Speed: 3150Rpm

• No Load Speed: 3600Rpm


• Rated Torque:0.8N.m

• Rated Power: 265W

• Protection Level: IP50 （Option for IP54)

• Optional Parts: Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations, EMI/RFI Suppression Circuit, Thermal Protection, High Temperature Class H Insulation...





Gearbox Specifications:

• Gearbox Type: Planetary Gearbox

• Gear Ratio: 1/3.6  1/4.25  1/5.33  1/13  1/15  1/18  1/23  1/28 1/43  1/52  1/61  1/72  1/96  1/121 1/154  1/187  1/220  1/260  1/307  1/409  1/514  1/645  1/809

• Efficiency: 90% / 81% / 73% / 66%

• Rated Torque: 4N.m  / 18N.m  / 36N.m  / 45N.m

• Max Torque: 12N.m / 50N.m / 100N.m  / 110N.m


• Gearbox Length: 40mm / 54mm / 67mm / 81mm




Physical Specifications:

• Frame Size: 80 x 80mm

• Body Length: 120mm

• Number of Leads: 2

• Leads Length: 300mm

• Weight: 3.0kg
