76ZYT Series JK76ZYT02A Geared Brushed DC Motor with Planetary Gearbox Reducer 3200Rpm 0.50N.m 9.0A 167W 76x76x118mm

Type:167W 3200Rpm 0.31N.m 76ZYT02A Dc Brush Motor with Planetary Gearbox
Rated Torque:0.50N.m
Body Length: 118mm
Customized Parts: Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations, EMI/RFI Suppression Circuit, Thermal Protection, High Temperature Class H Insulation...

Model:
JK76ZYT02A with Planetary Gearbox
Brand:
Jkongmotor
MOQ:
10 Pcs


Availability:



Inquire

Jkongmotor 24V 76ZYT Series Planetary Gear brushed dc motor (JK76ZYT02A) with 3200Rpm speed and size 76x76x118mm. It has 2 wires, 0.5N.m and 167W. For more different dc brush motors requirements (such as gearbox, brake, encoder, or other parts), please contact us!!!

Electrical Specifications：

Type: 24V 3200Rpm Planetary Gear Brushed Dc Motor
Model Name: JK76ZYT02A with planetary gearbox
Rated Voltage: 24V (Option for 12v up to 220vdc)
Rated Speed: 3200Rpm
No Load Speed: 3800Rpm
Rated Torque:0.50N.m
Rated Power: 167W
Protection Level: IP54（Option for IP65)
Optional Parts: Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations, EMI/RFI Suppression Circuit, Thermal Protection, High Temperature Class H Insulation...

Gearbox Specifications:

Gearbox Type: Planetary Gearbox
Gear Ratio: 1/3.6 1/4.25 1/5.33 1/13 1/15 1/18 1/23 1/28 1/43 1/52 1/61 1/72 1/96 1/121 1/154 1/187 1/220 1/260 1/307 1/409 1/514 1/645 1/809
Efficiency: 90% / 81% / 73% / 66%
Rated Torque: 4N.m / 18N.m / 36N.m / 45N.m
Max Torque: 12N.m / 50N.m / 100N.m / 110N.m
Gearbox Length: 40mm / 54mm / 67mm / 81mm

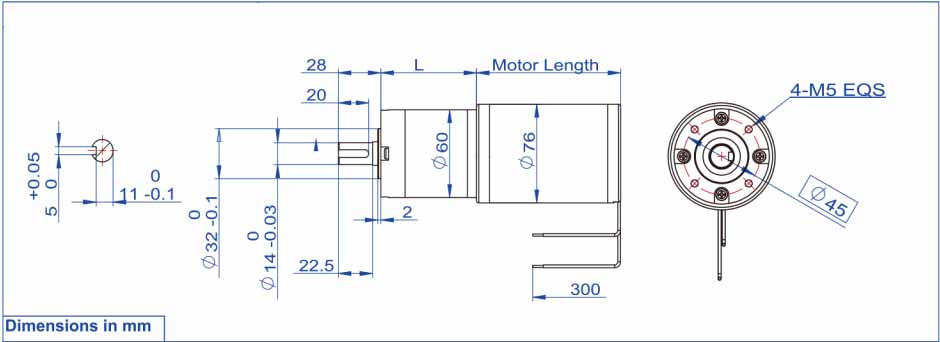

Physical Specifications:

Frame Size: 76 x 76mm
Body Length: 118mm
Number of Leads: 2
Leads Length: 300mm
Weight: 2.0kg

JK76ZYT02A Brush Dc Motor General Specifications:

Product Working:
Ball bearing		high quality ball bearing
magnet		hard ferrite magnet, 2 - poles
protection		IP54, option for IP65
Insulation		F
Certificate		CE Rohs ISO
Options: Customized voltage, winding, shaft, mounting, and lead configurations. EMI / RFI suppression circuit; Thermal protection, high temperature Class H insulation.

JK76ZYT02A Dc Brushed Motor Electrical Specification:

Electrical Specification
Model	Unit	JK76ZYT02A
Rated Voltage	V	24V (Option for 12v up to 220vdc)
Rated Speed	Rpm	3200
Rated Torque	N.m	0.50
Rated Current	A	9.0
Output Power	W	167
No load Speed	Rpm	3800
Weight	kg	2.00
Motor Length	mm	118

Planetary Gearbox Specifications:

Planetary Gearbox Specifications
Ring material	Metal
Bearing at output	Ball bearings
Max. Radial load (10mm from flange)	≤400N
Max, shaft axial load	≤120N
Radial play of shaft (near to flange)	≤0.08mm
Axial play of shaft	≤0.04mm
Backlash at no-load)	≤1.5°
Shaft press fit force, max	≤300N
Reduction Ratio		Rated Torque (N.m)	Max Torque (N.m)	Efficiency	Gearbox Length (mm)	Weight (Kg)
1/3.6 1/4.25 1/5.33		4	12	90%	40	0.52
1/13 1/15 1/18 1/23 1/28		18	50	81%	54	0.71
1/43 1/52 1/61 1/72 1/96 1/121		36	100	73%	67	0.9
1/154 1/187 1/220 1/260 1/307 1/409 1/514 1/645 1/809		45	110	66%	81	1.1

Brushed Dc Motor Optional Parts：

Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations, EMI/RFI Suppression Circuit, Thermal Protection, High Temperature Class H Insulation...
