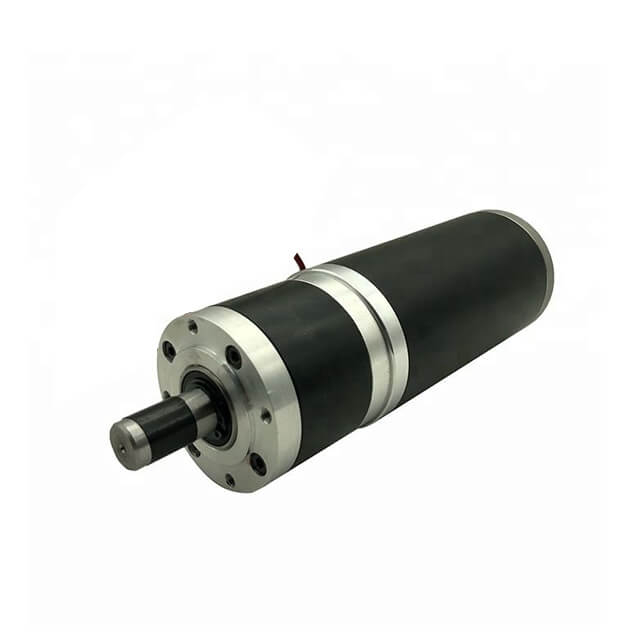

63ZYT Series JK63ZYT01B Geared Brushed DC Motor with Planetary Gearbox Reducer 4000Rpm 0.20N.m 5.0A 84W 63x63x95mm

Jkongmotor 24V 63ZYT Series Planetary Gear brushed dc motor (JK63ZYT01B) with 4000Rpm speed and size 63x63x95mm. It has 2 wires, 0.20N.m and 84W. For more different dc brush motors requirements (such as gearbox, brake, encoder, or other parts), please contact us!!!

Electrical Specifications：

• Type: 24V 4000Rpm Planetary Gear Brushed Dc Motor

• Model Name: JK63ZYT01B with planetary gearbox

• Rated Voltage: 24V (Option for 12v up to 220vdc)

• Rated Speed: 4000Rpm

• No Load Speed: 4700Rpm


• Rated Torque: 0.20N.m

• Rated Power: 84W

• Protection Level: IP50

• Optional Parts: Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations, EMI/RFI Suppression Circuit, Thermal Protection, High Temperature Class H Insulation...

Gearbox Specifications:

• Gearbox Type: Planetary Gearbox

• Gear Ratio: 1/3.6  1/4.25  1/5.33 1/13  1/15  1/18  1/23  1/28 1/43  1/52  1/61  1/72  1/96  1/121 1/154  1/187  1/220  1/260  1/307  1/409  1/514  1/645  1/809

• Efficiency: 90% / 81% / 73% / 66%

• Rated Torque: 3N.m / 4N.m  / 12N.m / 18N.m  / 24N.m / 36N.m  / 30N.m / 45N.m

• Max Torque: 9N.m / 12N.m / 36N.m / 50N.m / 72N.m / 100N.m / 90N.m / 110N.m


• Gearbox Length: 38mm / 40mm / 50mm / 54mm / 61mm / 67mm / 72mm / 81mm

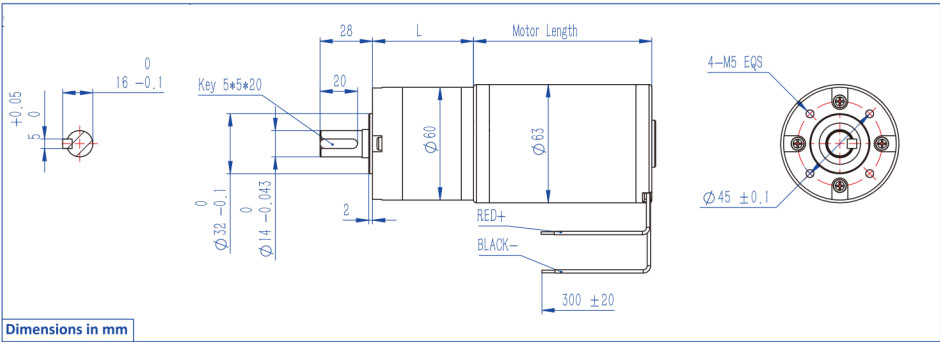

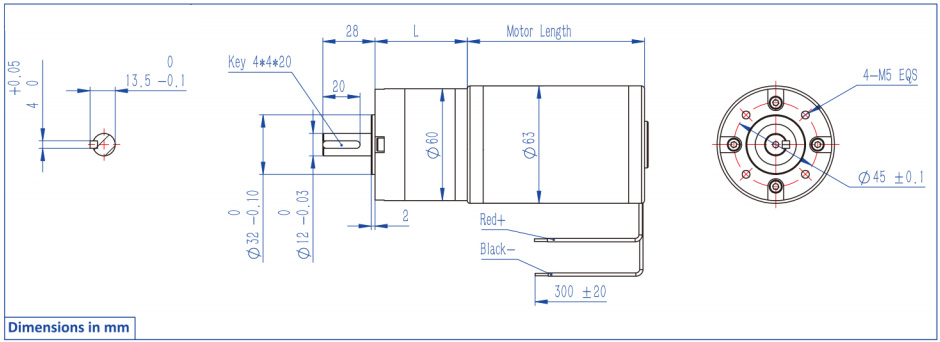

Physical Specifications:

• Frame Size: 63 x 63mm

• Body Length: 95mm

• Shaft Diameter: 5mm

• Number of Leads: 2

• Leads Length: 300mm

• Weight: 1.0kg
