90ZYT Series JK90ZYT01A Geared Brushed DC Motor with Planetary Gearbox Reducer 3000Rpm 1.5N.m 26A 471W 90x90x155mm

Jkongmotor 24V 90ZYT Series Planetary Gear brushed dc motor (JK90ZYT01A) with 3000Rpm speed and size 90x90x155mm. It has 2 wires, 1.5N.m and 471W. For more different dc brush motors requirements (such as gearbox, brake, encoder, or other parts), please contact us!!!

Electrical Specifications：

• Type: 24V 3000Rpm Planetary Gear Brushed Dc Motor

• Model Name: JK90ZYT01A with planetary gearbox

• Rated Voltage: 24V (Option for 12v up to 230vdc)

• Rated Speed: 3000Rpm

• No Load Speed: 3600Rpm


• Rated Torque:1.5N.m

• Rated Power: 471W

• Protection Level: IP50 （Option for IP54)

• Optional Parts: Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations, EMI/RFI Suppression Circuit, Thermal Protection, High Temperature Class H Insulation...





Gearbox Specifications:

• Gearbox Type: Planetary Gearbox

• Gear Ratio: 1/3.55  1/5.31  1/6.6  1/13  1/19  1/23  1/26  1/30  1/37  1/50  1/74  1/92  1/111  1/138

• Efficiency: 90% / 81% / 73% / 66%

• Rated Torque: 8N.m  / 30N.m  / 60N.m  / 80N.m

• Max Torque: 12N.m / 45N.m / 90N.m  / 120N.m


• Gearbox Length: 56mm / 72mm / 72mm / 89mm

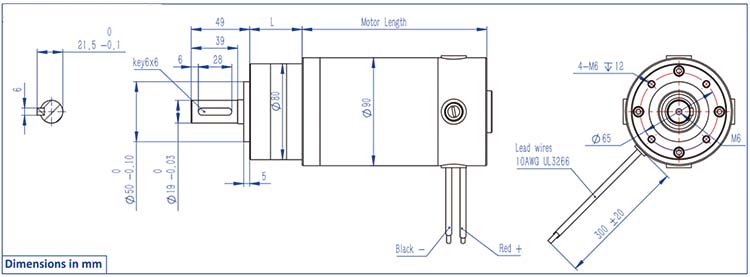

Physical Specifications:

• Frame Size: 90 x 90mm

• Body Length: 155mm

• Number of Leads: 2

• Leads Length: 300mm

• Weight: 3.50kg
