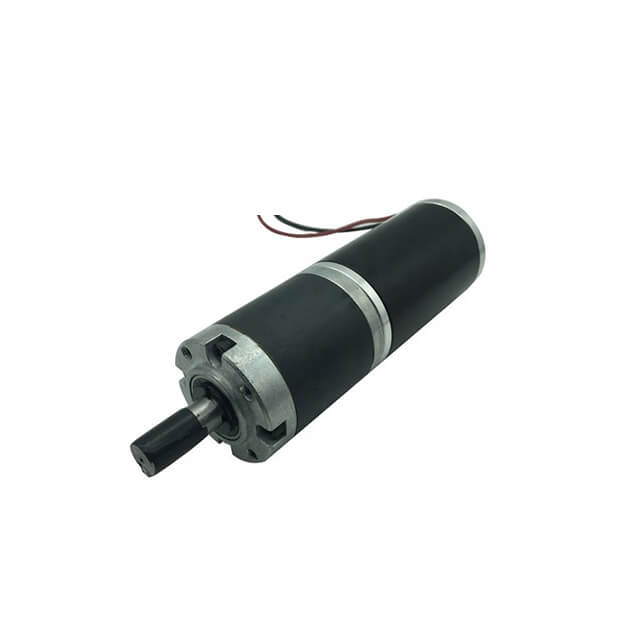

42ZYT Series JK42ZYT04A Geared Brushed DC Motor with Planetary Gearbox Reducer 3600Rpm 70mN.m 1.6A 26.5W 42x42x90mm

Jkongmotor 24V 42ZYT Series Planetary Gear brushed dc motor (JK42ZYT04A-24V) with 3600Rpm speed and size 42x42x90mm. It has 2 wires, 70mN.m and 26.5W. For more different dc brush motors requirements (such as gearbox, brake, encoder, or other parts), please contact us!!!

Electrical Specifications：

• Type: 24V 3600Rpm Planetary Gear Brushed Dc Motor

• Model Name: JK42ZYT04A with Planetary Gearbox

• Rated Voltage: 24V (Option for 12v up to 60vdc)

• Rated Speed: 3600Rpm

• No Load Speed: 4200Rpm


• Rated Torque: 70mN.m

• Rated Power: 26.5W

• Protection Level: IP40

• Optional Parts: Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations, EMI/RFI Suppression Circuit, Thermal Protection, High Temperature Class H Insulation...

Gearbox Specifications:

• Gearbox Type: Planetary Gearbox

• Gear Ratio: 1/3.71  1/5.18  1/14  1/19  1/27 1/49  1/59  1/68  1/82  1/95  1/115  1/181  1/218  1/253  1/305  1/354  1/426  1/495  1/596

• Efficiency: 90% / 81% / 73% / 66%

• Rated Torque: 2N.m / 8N.m / 16N.m / 20N.m

• Max Torque: 5N.m / 20N.m / 40N.m / 50N.m


• Gearbox Length: 34mm / 50mm / 62mm / 74mm




Physical Specifications:

• Frame Size: 42 x 42mm

• Body Length: 90mm

• Shaft Diameter: 5mm

• Number of Leads: 2

• Leads Length: 300mm

• Weight: 0.54kg
