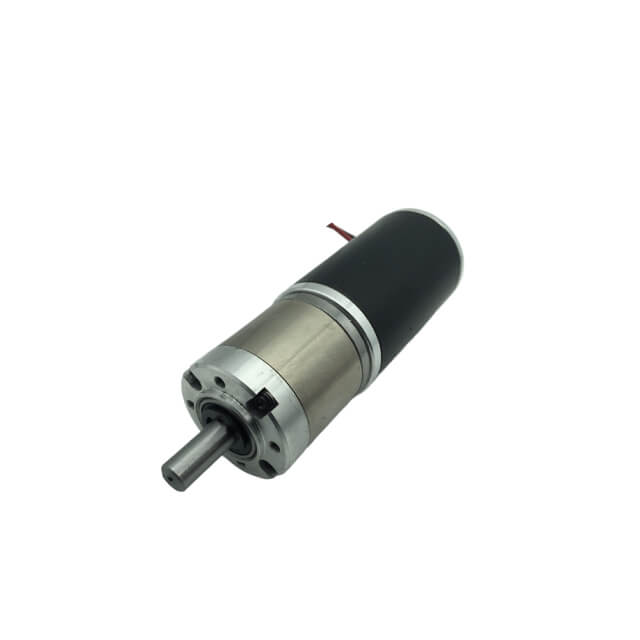

36ZYT Series JK36ZYT03A Geared Brushed DC Motor with Planetary Gearbox Reducer 3000Rpm 40mN.m 0.8A 12.6W 36x36x80mm

Jkongmotor 24V 36ZYT Series  brushed dc planetary gear motor (JK36ZYT03A-24V) with 3000Rpm speed and size 36x36x80mm. It has 2 wires, 40mN.m and 12.6W. For more different dc brush motors requirements (such as gearbox, brake, encoder, or other parts), please contact us!!!

Electrical Specifications：

• Type: 24V 3000Rpm Planetary Geared Brushed Dc Motor

• Model Name: JK36ZYT03A with Planetary Gearbox

• Rated Voltage: 24V (Option for 12v up to 48vdc)

• Rated Speed: 3000Rpm

• No Load Speed: 3800Rpm


• Rated Torque: 40mN.m

• Rated Power: 12.6W

• Protection Level: IP40

• Optional Parts: Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations, EMI/RFI Suppression Circuit, Thermal Protection, High Temperature Class H Insulation...

Gearbox Specifications:

• Gearbox Type: Planetary Gearbox

• Gear Ratio: 1/14  1/19  1/22  1/27  1/35  1/49  1/59  1/68  1/82  1/95  1/115 1/181  1/218  1/253  1/305  1/354  1/426  1/495  1/596

• Efficiency: 81% / 73% / 66%

• Rated Torque: 2N.m / 4N.m / 5N.m

• Max Torque: 6N.m / 10N.m / 12N.m


• Gearbox Length: 38mm / 45mm / 56mm




Physical Specifications:

• Frame Size: 36 x 36mm

• Body Length: 80mm

• Shaft Diameter: 5mm

• Number of Leads: 2

• Leads Length: 300mm

• Weight: 0.34kg
