JK-42JXLG200K Series Planetary Gearbox for 42mm Nema 17 Round Stepper Motor Reduction Ratio: 3.71/5.18/14/19/22/27/49/59/68/82/95/115/181/218/253/305/354/426/495/596:1

Type: JK-42JXLG200K Series Planetary Gearbox

Reduction ratio: 3.71:1/5.18:1/14:1/19:1/22:1/27:1/49:1/59:1/68:1/82:1/95:1/115:1/181:1/218:1/253:1/305:1/354:1/426:1/495:1/596:1

Rated tolerance torque: 2N.m - 20N.m

Max momentary tolerance torque: 5N.m - 50N.m

Model:
JK-42JXLG200K Series
Brand:
Jkongmotor
MOQ:
10 Pcs


Availability:



Inquire

The size of this gearbox is 42 x 42mm. This planetary gearbox is belong to JXE series gearbox, it with gear ratio 3.71:1 / 5.18:1 / 14:1 / 19:1 / 22:1 / 27:1 / 49:1 / 59:1 / 68:1 / 82:1 / 95:1 / 115:1 / 181:1 / 218:1 / 253:1 / 305:1 / 354:1 / 426:1 / 495:1 / 596:1. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value. This inline planetary gearbox built-in an input shaft coupling which can match any standard Nema 17 stepper motor.

Gearbox Specifications:

Model: JK-42JXLG200K Series
Gearbox Type: Planetary Gearbox
Reduction ratio: 3.71:1 / 5.18:1 / 14:1 / 19:1 / 22:1 / 27:1 / 49:1 / 59:1 / 68:1 / 82:1 / 95:1 / 115:1 / 181:1 / 218:1 / 253:1 / 305:1 / 354:1 / 426:1 / 495:1 / 596:1
Efficiency: 90% / 81%/ 73% /66%
Rated tolerance torque: 2N.m - 20N.m
Max momentary tolerance torque: 5N.m - 50N.m
Shaft Maximum Axial Load: 100N
Shaft Maximum Radial Load: 200N

Physical Specifications:

Gearbox Length: 34.2mm / 49.6mm / 62.0mm / 74.4mm
Gearbox Shaft Diameter: Φ10mm
Gearbox Shaft Length: 27mm
Gearbox Key Length: 20mm
JK-42JXLG200K Weight: 0.265kg / 0.38kg / 0.475kg / 0.57kg

planetary gearbox gearbox stepper motor planetary gearbox gear ratio planetary gearbox manufacturers planetary geared stepper motor planetary gear stepper motor planetary gear stepper motor manufacturer planetary reduction gearbox industrial planetary gearbox geared stepper motors

Related Products

JK-80PMB800K Series Planetary Gearbox for 80mm BLDC Motor Reduction Ratio: 3.55/5.31/ 6.6/13/19/23/26/30/37/50/74/92/111/138:1

JK-56JXE450K Series Planetary Gearbox for High Torque 57mm Nema 23 Round Stepper / BLDC Motor Reduction Ratio: 3.6/4.25/ 5.33/13/15/18/23/28/43/52/61/72/96/121/154/187/220/260/307:1

JK-56JXE300K Series Planetary Gearbox for 57mm Nema 23 Round Stepper Motor Reduction Ratio: 3.6/4.25/5.33/13/15/18/23/28/43/52/61/72/96/121/154/187/220/260/307:1

JK-FLF57 Series Common Planetary Gearbox for Nema 17 Stepper Motor Gear Ratio: 4/5/10/20/25/50:1

JK-FLE42 Series Common Planetary Gearbox for Nema 17 Stepper Motor Gear Ratio: 4/5/10/20/25/50/100:1

JK-HPR35 Series Common Planetary Gearbox for Nema 14 Stepper Motor Gear Ratio: 3/4/5/6/7/9/15/20/25/30/35/42/45/100/120/140/150/175/210:1

JK-HPR28 Series Common Planetary Gearbox for Nema 11 Stepper Motor Gear Ratio: 4/5/7/10/16/20/25/28/30/35/40/45/50/64/70/80/100/125/140/175/200:1

JK-PX86 Series Common Planetary Gearbox for Nema 34 Stepper Motor Gear Ratio: 3/4/5/6/8/10/16/20/24/30/36/52/64/96/100/144/216:1

JK-PX57 Series Common Planetary Gearbox for Nema 23 24 Stepper Motor Gear Ratio: 3/4/5/6/7/10/16/20/24/30/36/40/50/64/96/100/144/216:1

Ring material	Metal
Bearing at output	Ball bearings
Max. Radial (12mm from flange)	200N
Max. shaft axial load	100N
Radial play of shaft (near to flange)	≤0.06mm
Axial play of shaft	≤0.3mm
Backlash at no-load	≤2.5°
Shaft press fit force, max	150N

Module	0.6
No. of teeth	11	17
Pressure angle	17°
Hole diameter	Φ3.98
Reduction ratio	1:19,1:22,1:27,1:68,1:82,1:95,1:115	1:14,1:49,1:59

Reduction ratio	Exact reduction ratio	Rated tolerance torque	Max momentary tolerance torque	Efficiency	L (mm)	Weight (g)
1:3.71 1:5.18	1:3.71 1:5.18	2 N.m Max	5 N.m	90%	34.2±0.5	265
1:14 1:19 1:22 1:27	1:13.76 1:19.22 1:22.21 1:26.83	8.0 N.m Max	20 N.m	81%	49.6±0.5	380
1:49 1:59 1:68 1:82 1:95 1:115	1:48.83 1:58.86 1:68.28 1:82.30 1:95.47 1:115.08	16 N.m Max	40 N.m	73%	62.0±0.5	475
1:181 1:218 1:253 1:305 1:354 1:426 1:495 1:596	1:180.96 1:218.12 1:253.03 1:304.99 1:253.80 1:426.46 1:494.71 1:596.31	20 N.m Max	50 N.m	66%	74.4±0.5	570
Input & output same rotation direction; Motor Max. input speed: <5000rpm; Operating temperature range: -15℃ ~ +80℃

Ring material	Metal
Bearing at output	Ball bearings
Max. Radial (12mm from flange)	200N
Max. shaft axial load	100N
Radial play of shaft (near to flange)	≤0.06mm
Axial play of shaft	≤0.3mm
Backlash at no-load	≤2.5°
Shaft press fit force, max	150N

Module	0.6
No. of teeth	11	17
Pressure angle	17°
Hole diameter	Φ3.98
Reduction ratio	1:19,1:22,1:27,1:68,1:82,1:95,1:115	1:14,1:49,1:59

JK-42JXLG200K Series Planetary Gearbox for 42mm Nema 17 Round Stepper Motor Reduction Ratio: 3.71/5.18/14/19/22/27/49/59/68/82/95/115/181/218/253/305/354/426/495/596:1

Gearbox Specifications:

Physical Specifications:

Gearbox Specifications:

Physical Specifications:

JK-42JXLG200K Planetary Gearbox Specification:

Motor Shaft Pinion Specifications:

Planetary Gearbox Physical Specification:

JK-42JXLG200K Planetary Gearbox Specification:

Motor Shaft Pinion Specifications:

Planetary Gearbox Physical Specification:

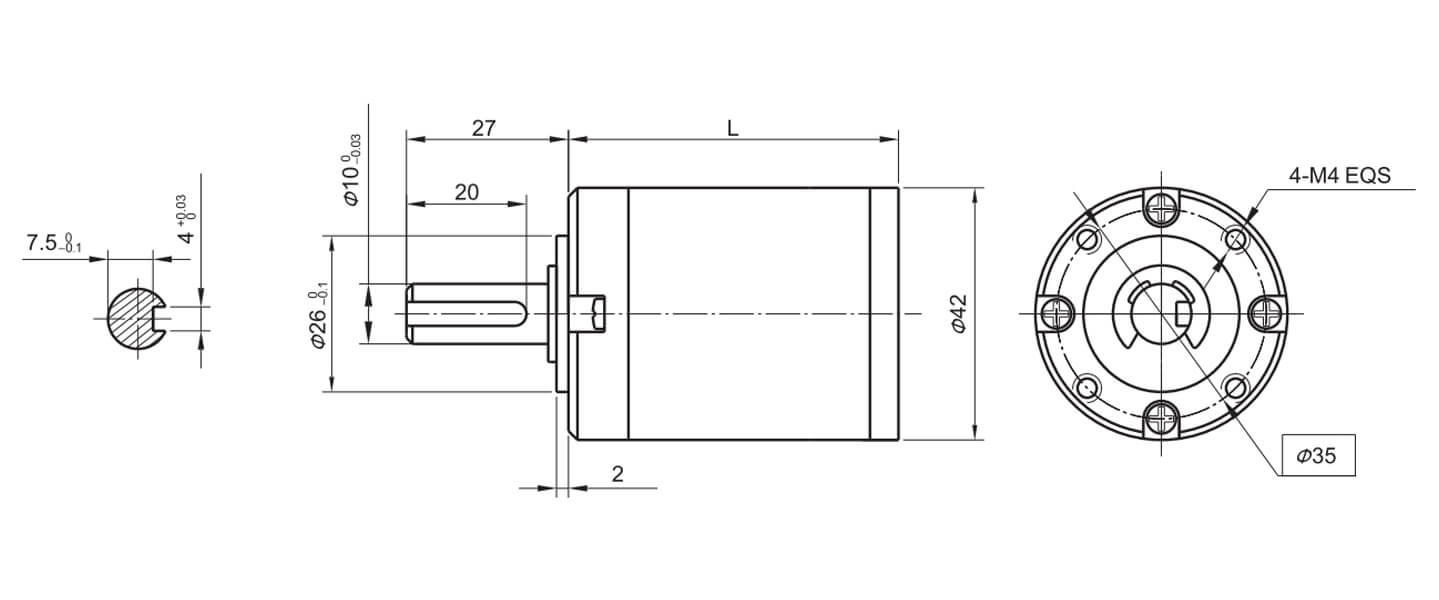

JK-42JXLG200K Series Dimensions：

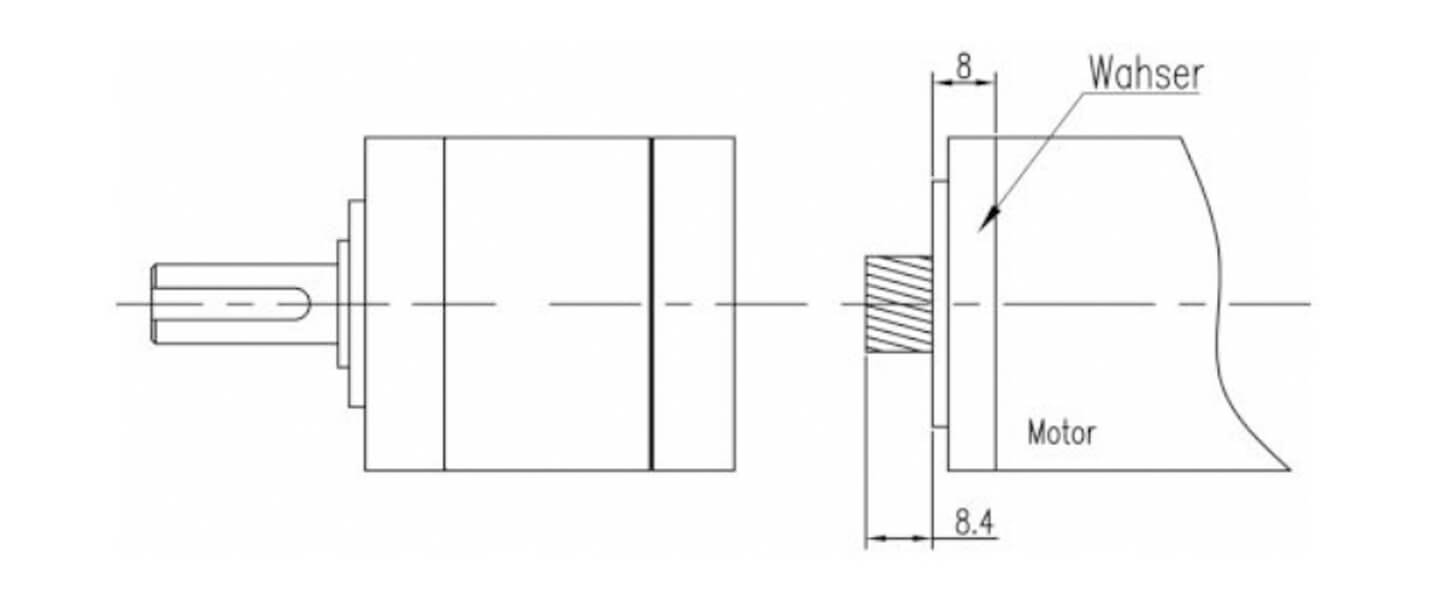

Motor Installation：

JK-42JXLG200K Series Dimensions：

Motor Installation：

Customized Service:

Customized Service:

2D JK-42JXLG200K Series Planetary Gearbox Drawings:

2D JK-42JXLG200K Series Planetary Gearbox Drawings:
