JK-HPR35 Series Common Planetary Gearbox for Nema 14 Stepper Motor Gear Ratio: 3/4/5/6/7/9/15/20/25/30/35/42/45/100/120/140/150/175/210:1

Type: JK-HPR35 Series High Precision Planrtary Gearbox

Gear Ratio: 3:1/4:1/5:1/7:1/9:1/15:1/20:1/25:1/30:1/35:1/42:1/45:1/100:1/120:1/140:1/150:1/175:1/210:1

Rated Torque: 5N.m -10N.m

Model:
JK-HPR35 Series
Brand:
Jkongmotor
MOQ:
10 Pcs


Availability:



Inquire

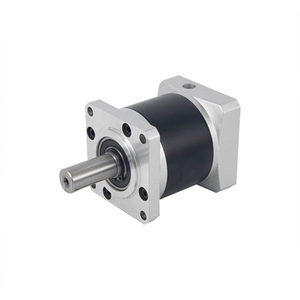

The size of this gearbox is 35 x 35 mm and the input shaft diameter is 5 mm. This high-precision planetary gearbox is belong to HPR series gearbox, it with gear ratio 3:1 / 4:1 / 5:1 / 7:1 / 9:1 / 15:1 / 20:1 / 25:1 / 30:1 / 35:1 / 42:1 / 45:1 / 100:1 / 120:1 / 140:1 / 150:1 / 175:1 / 210:1 and a maximum 15arc-min / 25arc-min / 25arc-min backlash. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value. This inline planetary gearbox built-in an input shaft coupling which can match any standard Nema 14 stepper motor .

Gearbox Specifications:

Model: JK-HPR35 Series
Gearbox Type: Planetary Gearbox
Gear Ratio: 3:1 / 4:1 / 5:1 / 7:1 / 9:1 / 15:1 / 20:1 / 25:1 / 30:1 / 35:1 / 42:1 / 45:1 / 100:1 / 120:1 / 140:1 / 150:1 / 175:1 / 210:1
Efficiency: 96% / 94%/ 90%
Backlash: ≤15 arcmin / ≤25 arcmin/ ≤25 arcmin
Rated Torque: 5N.m- 10N.m
Sundden Stop Torque: 10N.m- 20N.m
Rated Input Speed: 1000rpm
Max Input Speed: 2000rpm
Average Life Span: 20000h
Noise: ≤55dB
Protection Level: iP54

Physical Specifications:

Gearbox Length: 60mm / 69.5mm / 79mm
Gearbox Shaft Diameter: Φ8mm
Gearbox Shaft Length: 20mm
Gearbox Key Length: 12mm
JK-HPR35-L1 / L2 / L3 Weight: 0.17kg / 0.22kg / 0.28kg

planetary gearbox gearbox stepper motor nema 14 planetary gearbox gear ratio planetary gearbox manufacturers nema 14 planetary geared stepper motor planetary gear stepper motor planetary gear stepper motor manufacturer planetary reduction gearbox industrial planetary gearbox geared stepper motors

Related Products

JK-42JXLG200K Series Planetary Gearbox for 42mm Nema 17 Round Stepper Motor Reduction Ratio: 3.71/5.18/14/19/22/27/49/59/68/82/95/115/181/218/253/305/354/426/495/596:1

JK-80PMB800K Series Planetary Gearbox for 80mm BLDC Motor Reduction Ratio: 3.55/5.31/ 6.6/13/19/23/26/30/37/50/74/92/111/138:1

planetary gear stepper motor manufacturer

JK-56JXE450K Series Planetary Gearbox for High Torque 57mm Nema 23 Round Stepper / BLDC Motor Reduction Ratio: 3.6/4.25/ 5.33/13/15/18/23/28/43/52/61/72/96/121/154/187/220/260/307:1

JK-56JXE300K Series Planetary Gearbox for 57mm Nema 23 Round Stepper Motor Reduction Ratio: 3.6/4.25/5.33/13/15/18/23/28/43/52/61/72/96/121/154/187/220/260/307:1

JK-FLF57 Series Common Planetary Gearbox for Nema 17 Stepper Motor Gear Ratio: 4/5/10/20/25/50:1

JK-FLE42 Series Common Planetary Gearbox for Nema 17 Stepper Motor Gear Ratio: 4/5/10/20/25/50/100:1

JK-HPR28 Series Common Planetary Gearbox for Nema 11 Stepper Motor Gear Ratio: 4/5/7/10/16/20/25/28/30/35/40/45/50/64/70/80/100/125/140/175/200:1

JK-PX86 Series Common Planetary Gearbox for Nema 34 Stepper Motor Gear Ratio: 3/4/5/6/8/10/16/20/24/30/36/52/64/96/100/144/216:1

JK-PX57 Series Common Planetary Gearbox for Nema 23 24 Stepper Motor Gear Ratio: 3/4/5/6/7/10/16/20/24/30/36/40/50/64/96/100/144/216:1

JK-HPR35 Series Common Planetary Gearbox for Nema 14 Stepper Motor Gear Ratio: 3/4/5/6/7/9/15/20/25/30/35/42/45/100/120/140/150/175/210:1

Gearbox Specifications:

Physical Specifications:

Gearbox Specifications:

Physical Specifications:

JK-HPR35-L Series Common Planetary Gearbox Specification:

Planetary Gearbox Physical Specification:

JK-HPR35-L Series Common Planetary Gearbox Specification:

Planetary Gearbox Physical Specification:

Nema 14 JK-HPR35-L Output Dimension:

Nema 14 JK-HPR35-L Iutput Dimension:

Nema 14 JK-HPR35-L Output Dimension:

Nema 14 JK-HPR35-L Iutput Dimension:

Customized Service:

Customized Service:

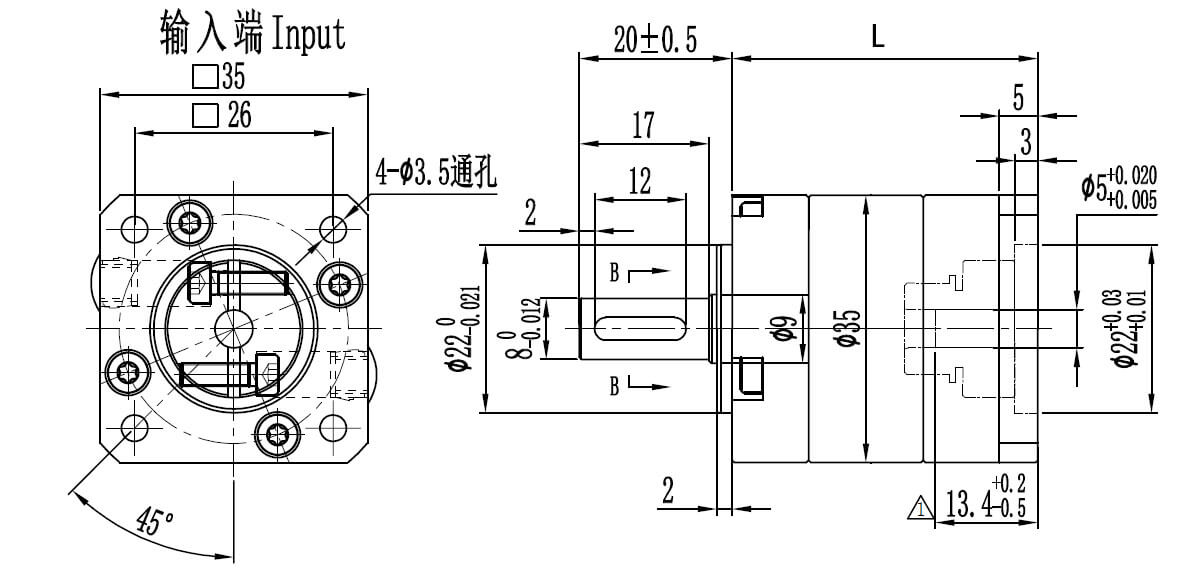

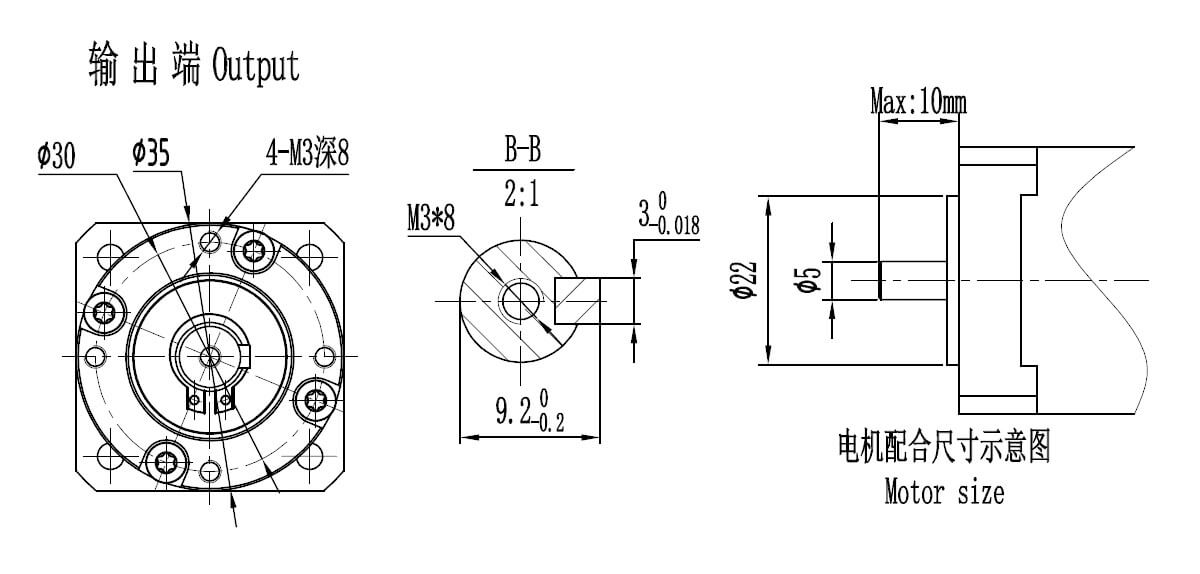

2D JK-HPR35 Series Planetary Gearbox Drawings:

2D JK-HPR35 Series Planetary Gearbox Drawings:

Related Products

Model	/	JK-HPR35-L1					JK-HPR35-L2							JK-HPR35-L3
Gear Ratio	/	3	4	5	6	7	9	15	20	25	30	35	42	45	100	120	140	150	175	210
Gear Trains	/	1					2							3
Gearbox Length	mm	60					69.5							79
Rated Torque	N.m	6	7	6.5	5	5	8	9	8.5	8.5	7	7	7	10	9	9	9	8.5	8.5	8.5
Sundden Stop Torque	N.m	12	14	13	10	10	16	18	17	17	14	14	14	20	18	18	18	17	17	17
Back Lash	arcmin	≤15 arcmin					≤25 arcmin							≤25 arcmin
Efficiency	%	96					94							90
Suitable Motor Dimension	mm	Φ5-10 / Φ22-2 / F26-M3					Φ5-10 / Φ22-2 / F26-M3							Φ5-10 / Φ22-2 / F26-M3
Rated Input Speed	Rpm	1000					1000							1000
Max Input Speed	Rpm	2000					2000							2000
Average Life Span	h	20000					20000							20000
Axial Force	N	100					100							100
Radial Force	N	270					270							270
Noise	dB	≤55					≤55							≤55
Protection Level	IP	IP54					IP54							IP54
Work Temp.	℃	-20 to +150					-20 to +150							-20 to +150
Out Shaft Type	/	Key Shaft Type					Key Shaft Type							Key Shaft Type

Physical Specification
Motor Shaft Type	/	Round Shaft
Gearbox Length	mm	60 / 69.5 / 79
Gearbox Shaft Type	/	Key Shaft Type
Gearbox Shaft Diameter	mm	8
Gearbox Shaft Length	mm	20
Gearbox Key Length	mm	12
Weight	kg	0.17 / 0.22 / 0.28
