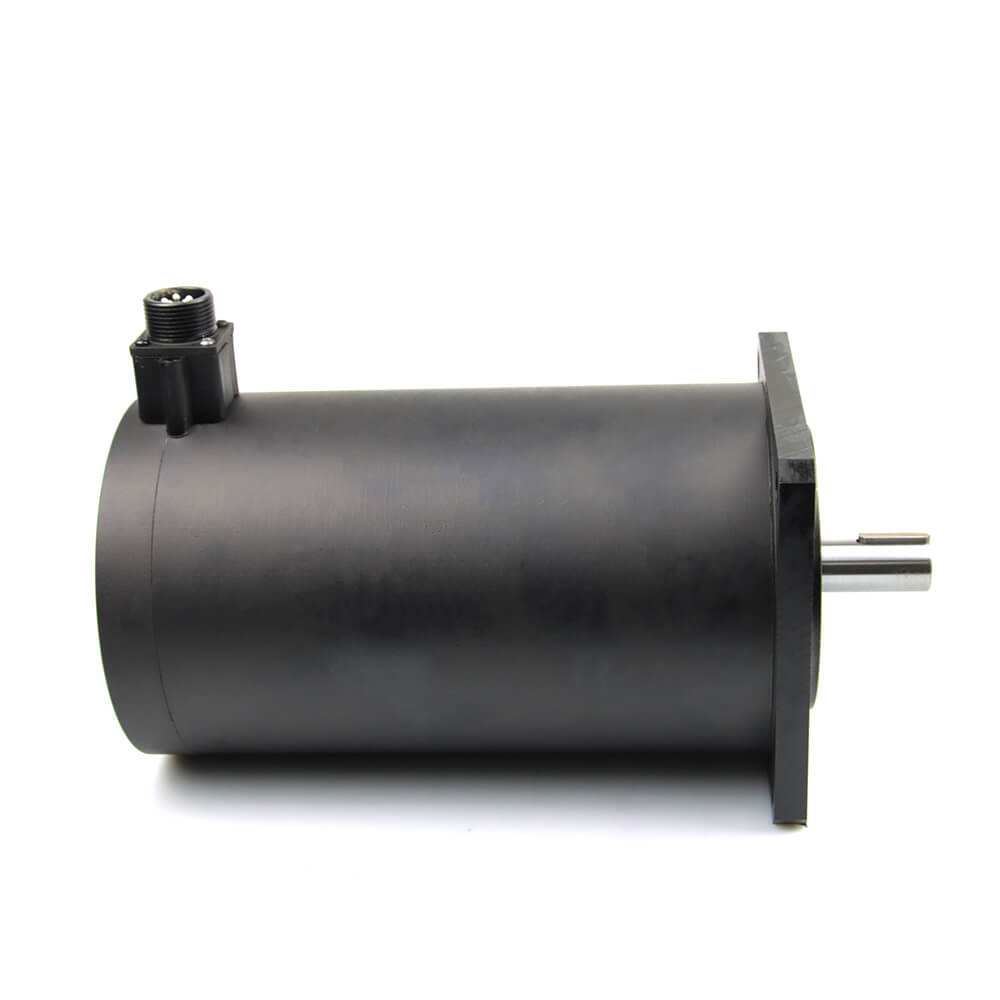

Jkongmotor Nema 52 Bipolar Hybrid Stepper Motor 1.8 or 1.2 Degree 80VDC - 325VDC 130 x 130mm 3A - 8A 4-Wires or 3 Wires

Type: Nema52 2 or 3 Phase Bipolar Stepper Motor

Current: 3A - 8A

Motor Length: 173mm - 285mm

Customized: Connectors, Gearbox, Encoder, Brake, Lead Screw...

  • Nema 52 Stepper Motor

  • JKONGMOTOR

  • Open Loop Motors

  • Nema52 (130mm)

  • 3wires, 4wires

  • 2 phase, 3 phase

  • 1.2°, 1.8°

  • 10 Pcs

Availability:
Inquire

General Specifications：

Item Specifications
Step Angle 1.8° or 1.2°
Temperature Rise 80℃max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100 MΩ Min. ,500VDC
Dielectric Strength 1000VAC for 1minute


1.8 Degree Nema 52 130mm Bipolar Stepper Motor Electrical Specifications:

Model No. Operating Voltage Rated Current Resistance Inductance Holding Torque Noload Frequency Starting Frequency Mass Motor Length
VDC A Ω mH N.m No. g.cm Kg mm
JK130HS173-6004 80~325 6 0.75 12.6 25 25000 2300 13.3 173
JK130HS229-6004 80~325 6 0.83 13.2 30 25000 2300 18 229
JK130HS257-7004 80~325 7 0.73 11.7 40 23000 2200 19 257
JK130HS285-7004 80~325 7 0.66 10 50 23000 2200 22.5 285

Note: Above only for representative products, products of special request can be made according to the customer request.


1.2 Degree Nema 52 3 Phase Stepper Motor Electrical Specifications:

Model No. Operating Voltage Rated Current Resistance Inductance Holding Torque Noload Frequency Starting Frequency Mass Motor Length
VDC A Ω mH N.m No. g.cm Kg mm
JK130H3P173 80~325 5 0.68 9.2 25 20000 2600 13.3 173
JK130H3P229 80~325 5 0.94 14.8 30 20000 2500 17.8 229
JK130H3P257 80~325 3 1.71 23.6 40 18000 2500 20 257
JK130H3P285 80~325 6 1.18 19.4 50 18000 2500 22.5 285

Note: Above only for representative products, products of special request can be made according to the customer request.


Wires Connection:

2Phase Wires Connection:

A+
 A- B+ B-
Black Green Red Blue

3Phase Wires Connection:

U
 V W
Red Yellow Green



Nema 52 Bipolar Stepper Motor Dimension:

nema 52 stepper motor

Hybrid Stepper Motor Optional Parts：

Connectors, Gearbox, Encoder, Brake, Integrated Driver...


Customized Service:

步进电机金属带轮

Metal Pulleys

步进电机塑料带轮

Plastic Pulley

步进电机齿轮

Gear

步进电机定制

Shaft Pin

步进电机厂家

Threaded Shaft

步进电机直销

Panel Mount


步进电机工厂直销

Hollow Shaft

步进电机厂家直销

Threaded Shaft

步进电机促销

Panel Mount

步进电机工厂

Single Flat

步进电机批发

Dual Flat

步进电机直销厂家

Key Shaft


Hybrid Stepper Motor Customized Service:

stepper motor manufacturer

Cables

42mm gearbox stepper motor manufacturer

Flanges

86mm stepper motor manufacturer

Shaft

china stepper motor manufacturer

Lead Screw Rod

oem hybrid stepper motor manufacturer

Encoders


stepper motor china manufacturer

Brakes

stepper motor manufacturer in china

Gearboxes

stepper motor driver manufacturer

Motor Kits

3d stepper motor manufacturer

Integrated Drivers

12v stepper motor manufacturer

More Customized



1.8° Nema 52 2D Stepper Motor Drawings:

Suitable Drivers:

JK3M2207 Stepper Motor Driver
