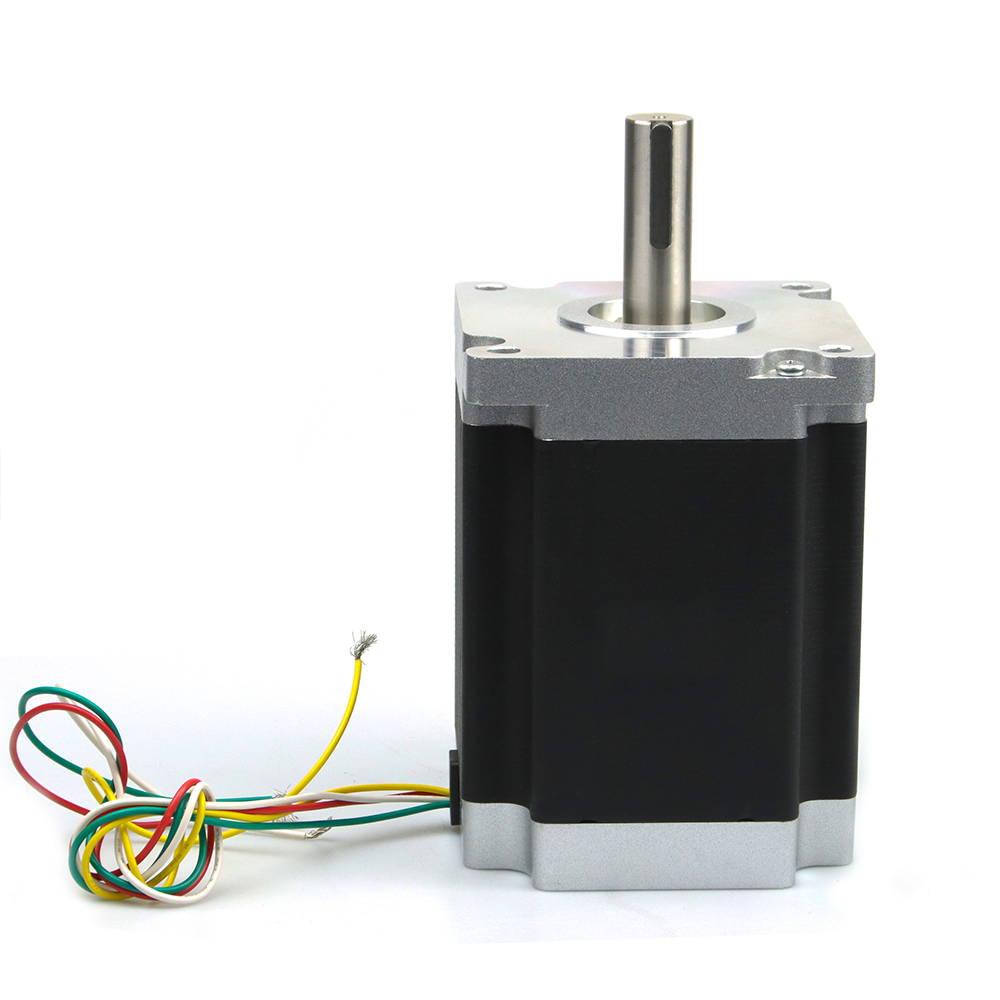

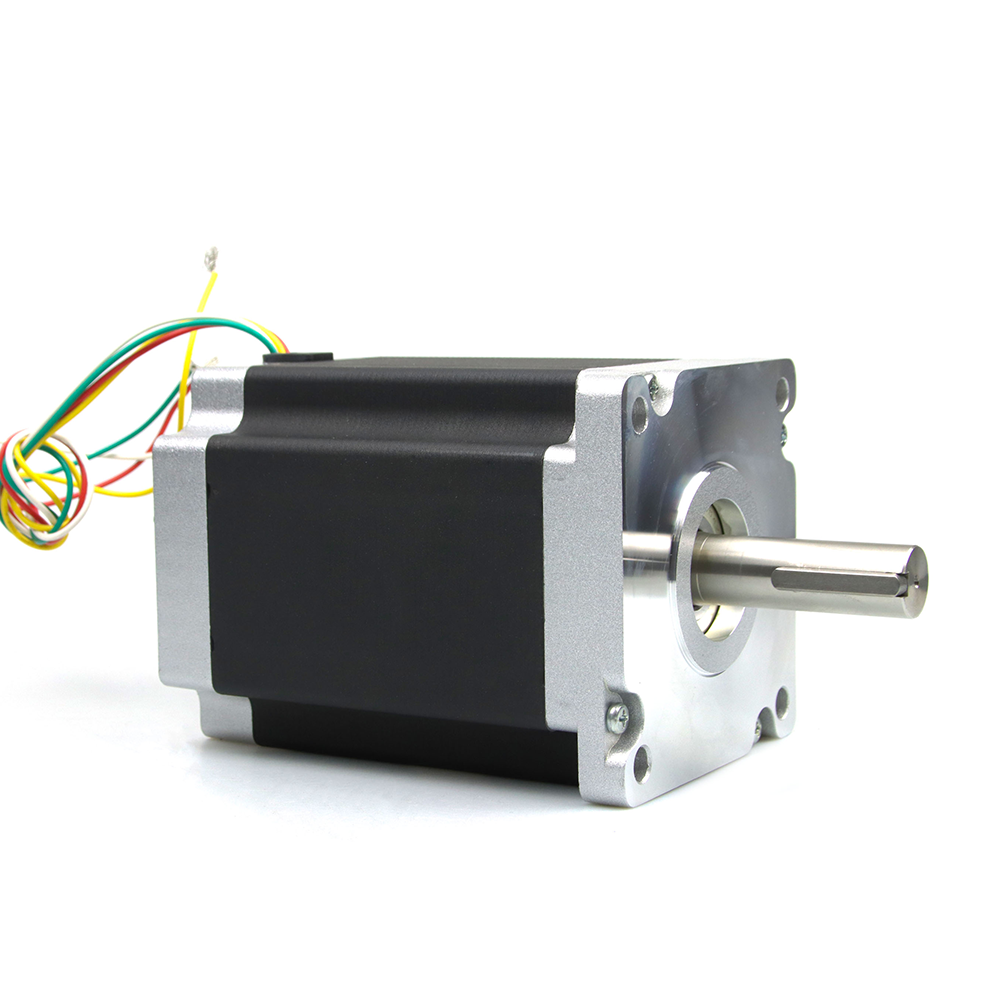

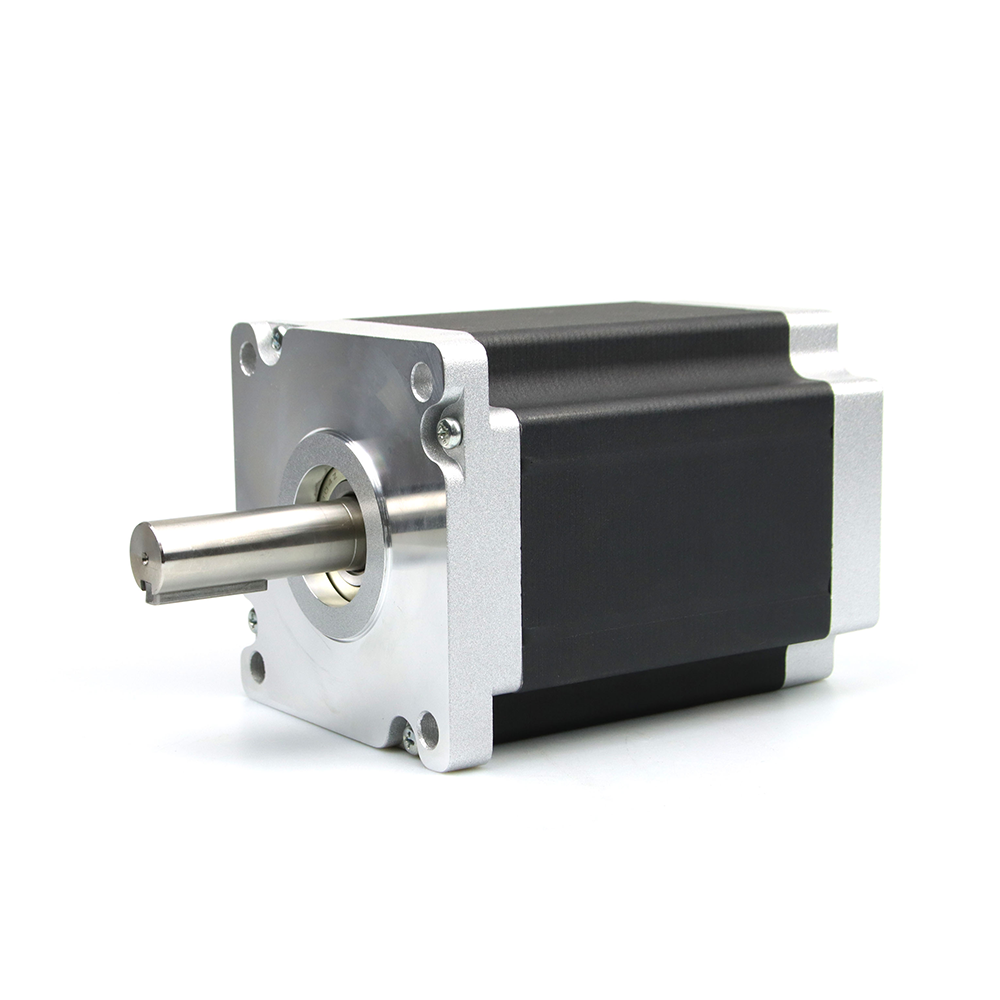

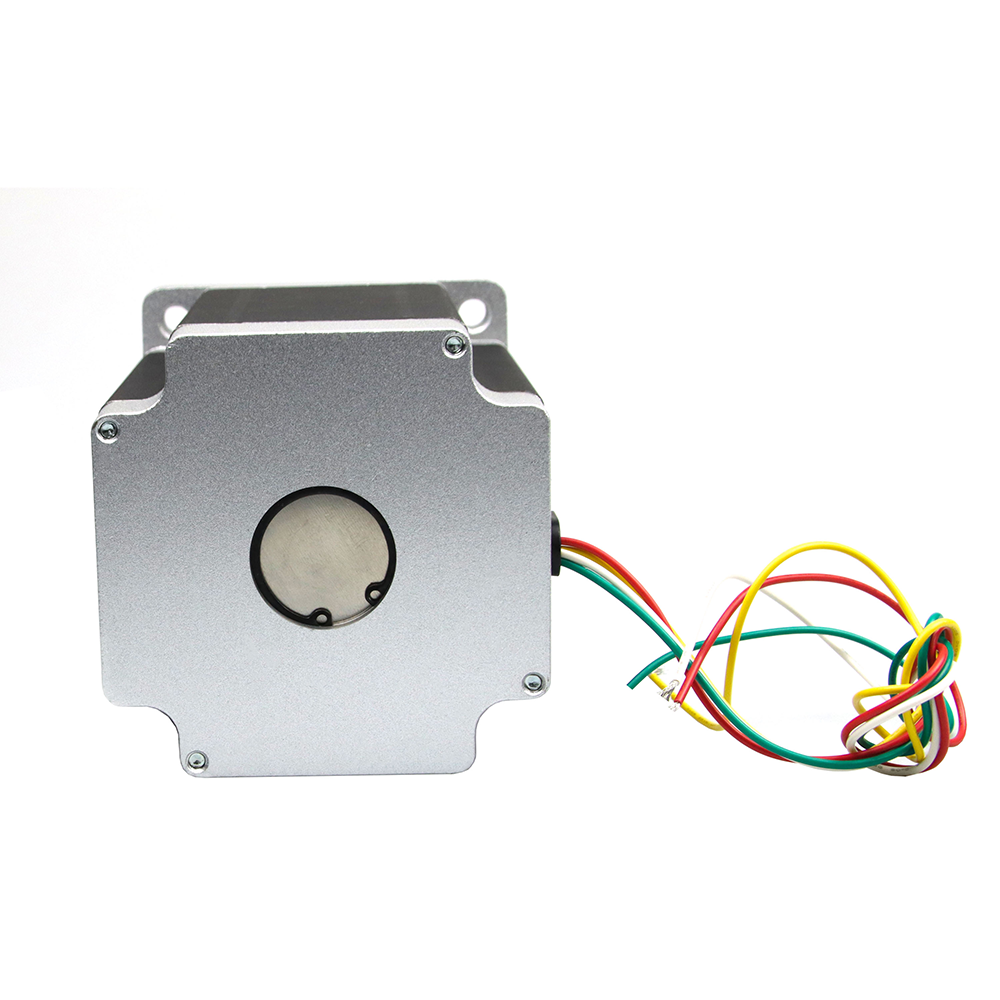

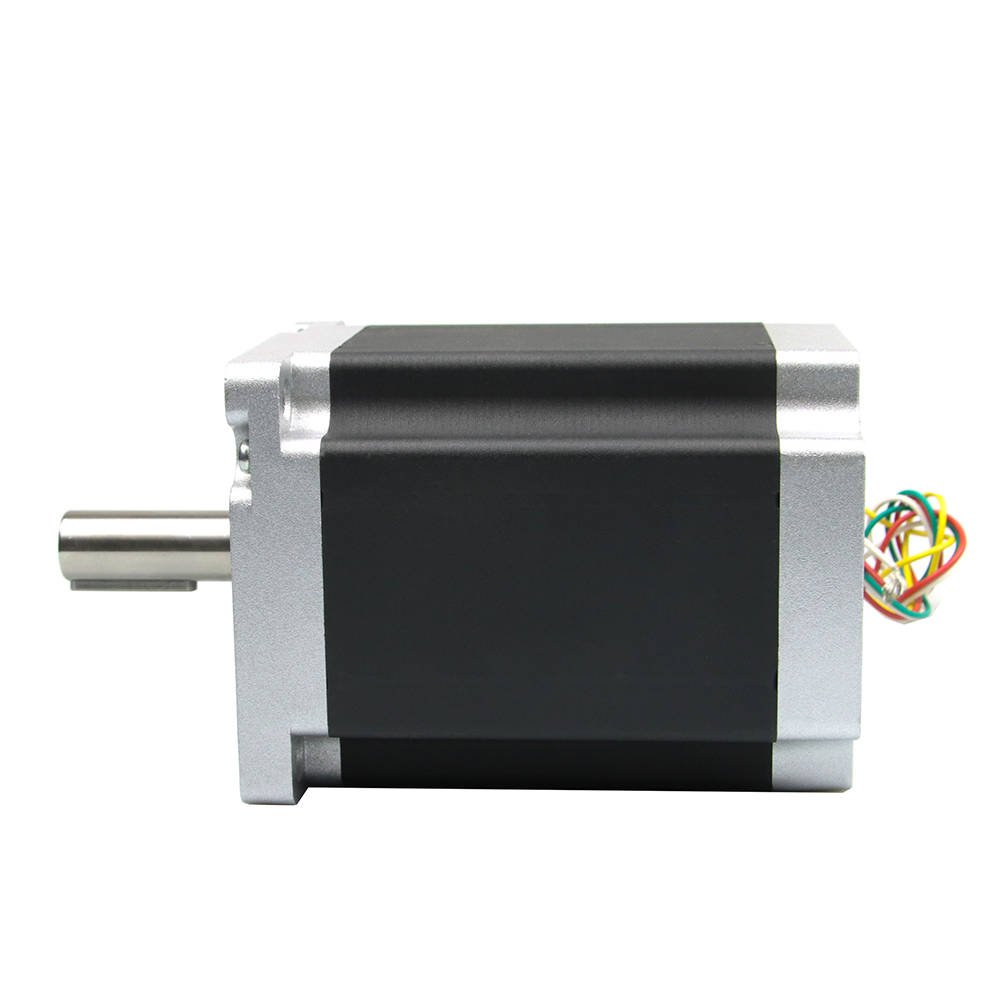

Nema 42 JK110HS165-6004 Hybrid Stepper Motor 1.8 Degree 24N.m (3398.69oz.in) 110x110x165mm 6.0A 4 Wires

Type: Nema42 Hybrid Bipolar Stepper Motor

Current: 6.0A

Resistance: 0.9Ω

Rated Torque: 24N.m(3398.69oz.in)

  • JK110HS165-6004

  • JKONGMOTOR

  • Open Loop Motors

  • Nema42 (110mm)

  • 4wires

  • 2 phase

  • 1.8°

  • 10 Pcs

Availability:
Inquire

Jkongmotor Nema 42 bipolar hybrid stepper motor (JK110HS165-6004) with step angle 1.8deg and size 110x110x165mm. It has 4 wires, 6.0A, 0.9Ω 14mH and with holding torque 24N.m(3398.69oz.in). For more different stepper motors requirements (such as gearbox, brake, encoder, or drivers), please contact us!!!


Electrical Specifications：

  • Type: 2 Phase Nema 42 bipolar hybrid stepper motor

  • Model Name: JK110HS165-6004

  • Phase: 2

  • Step Angle: 1.8 degree

  • Current: 6.0A

  • Resistance: 0.9Ω±0.1(20℃)

  • Inductance: 14mH±20%(1kHz 1V RMS)

  • Holding Torque: 24N.cm (3398.69oz.in)

  • Insulation Class: B(130°); 80K Max.

  • Optional Parts: Gearbox, Encoder, Brake, Integrated Driver...


Physical Specifications:

  • Frame Size: Nema 42 ( 110 x 110mm)

  • Body Length: 165mm

  • Shaft Diameter: 19mm

  • Shaft Length: 55mm


Wires Connection:

A+
 A- B+ B-
Black Green Red Blue


Nema 42 Stepper Motor Electrical Specification

Electrical Specification
Product Type
 / Nema 42 Bipolar Hybrid Stepper Motor
Model Name / JK110HS165-6004
Phase phase 2
Step Angle ° 1.8
Current A 6.0
Resistance Ω 0.9
Inductance mH 14
Rated Torque(N.m) N.m 24
Holding Torque(oz.in) oz.in 3398.69
Bipolar/Unipolar / Bipolar
Insulation Class / B
Detent Torque kg.cm 6.6
Rotor Inertia g.cm2 12800


Nema 42 Step Motor Physical Specification

Physical Specification
Frame Size mm Nema 42 (110 x 110)
Output Shaft Type / Key Shaft
Shaft Diameter mm 19
Shaft Length mm 55
Body Length
 mm 165
Single Shaft /Dual Shaft / Single Shaft
No. of Leads / 4
Leads Length mm 400
Weight Kg 9.1




Nema 42 Stepper Motor Dimension:

nema 42 hybrid stepper motor

Hybrid Stepper Motor Optional Parts：

Connectors, Gearbox, Encoder, Brake, Integrated Driver...


Custommized Service:

步进电机金属带轮

Metal Pulleys

步进电机塑料带轮

Plastic Pulley

步进电机齿轮

Gear

步进电机定制

Shaft Pin

步进电机厂家

Threaded Shaft

步进电机直销

Panel Mount


步进电机工厂直销

Hollow Shaft

步进电机厂家直销

Threaded Shaft

步进电机促销

Panel Mount

步进电机工厂

Single Flat

步进电机批发

Dual Flat

步进电机直销厂家

Key Shaft


2D Stepper Motor Drawings:


Suitable Drivers Manual:

JK2M2283 Stepper Motor Driver
