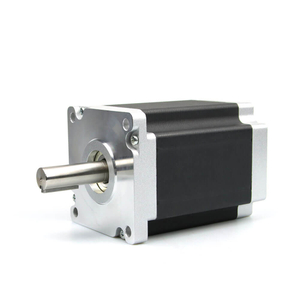

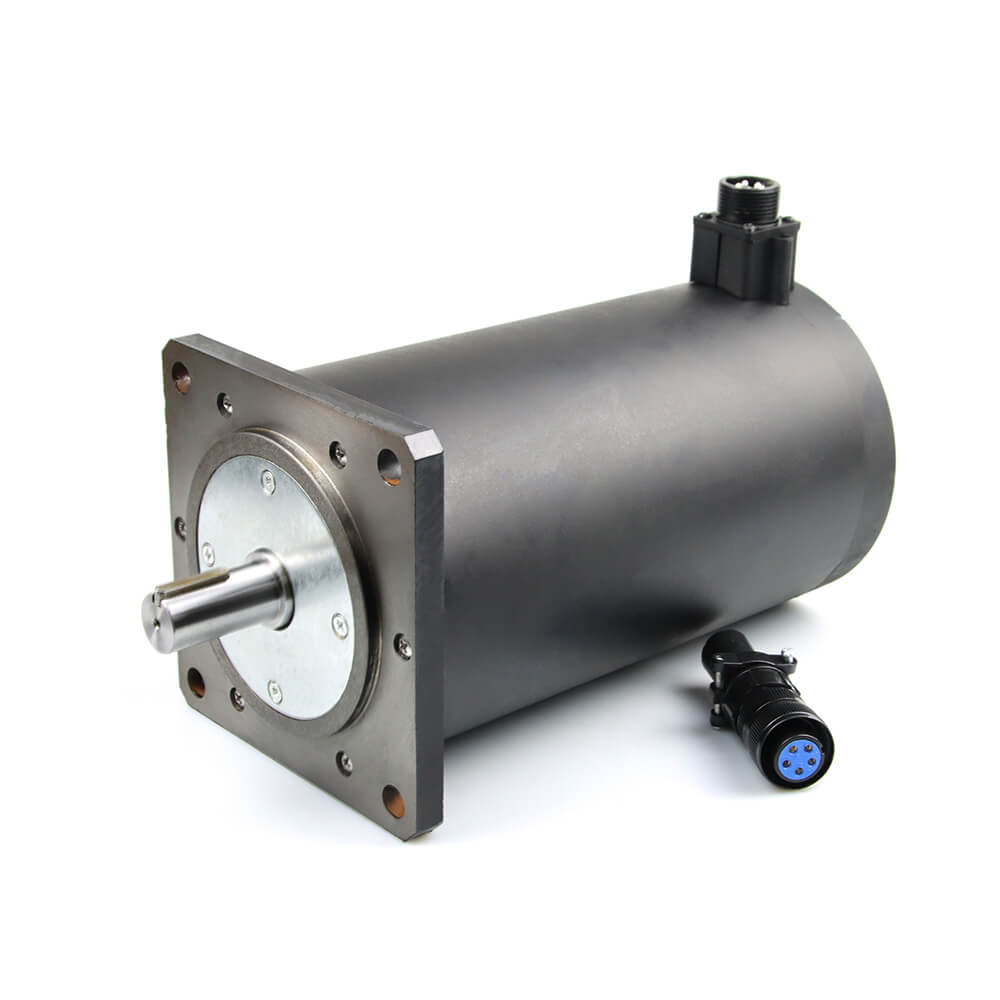

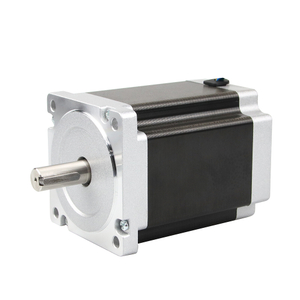

Nema 52 JK130HS229-6004 Hybrid Stepper Motor 1.8 Degree 30N.m (4248.35oz.in) 130x130x229mm 6.0A 4 Wires

Jkongmotor Nema 52 bipolar hybrid stepper motor (JK130HS229-6004) with step angle 1.8deg and size 130x130x229mm. It has 4 wires, 6.0A, 0.83Ω 13.2mH and with holding torque 30N.m(4248.35oz.in). For more different stepper motors requirements (such as gearbox, brake, encoder, or integrated motors), please contact us!!!

Electrical Specifications：

• Type: 2 Phase Nema 52 bipolar hybrid stepper motor

• Model Name: JK130HS229-6004

• Phase: 2

• Step Angle: 1.8 degree

• Current: 6.0A

• Resistance: 0.83Ω±0.1(20℃)

• Inductance: 13.2mH±20%(1kHz 1V RMS)

• Holding Torque: 30N.cm (4248.35oz.in)

• Insulation Class: B(130°); 80K Max.

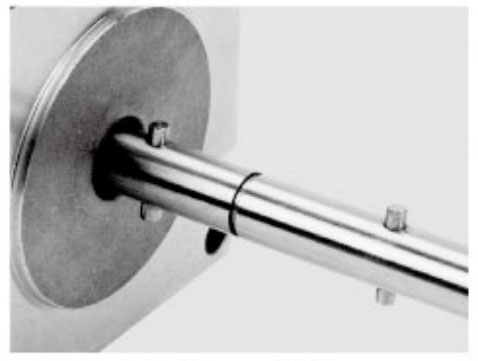

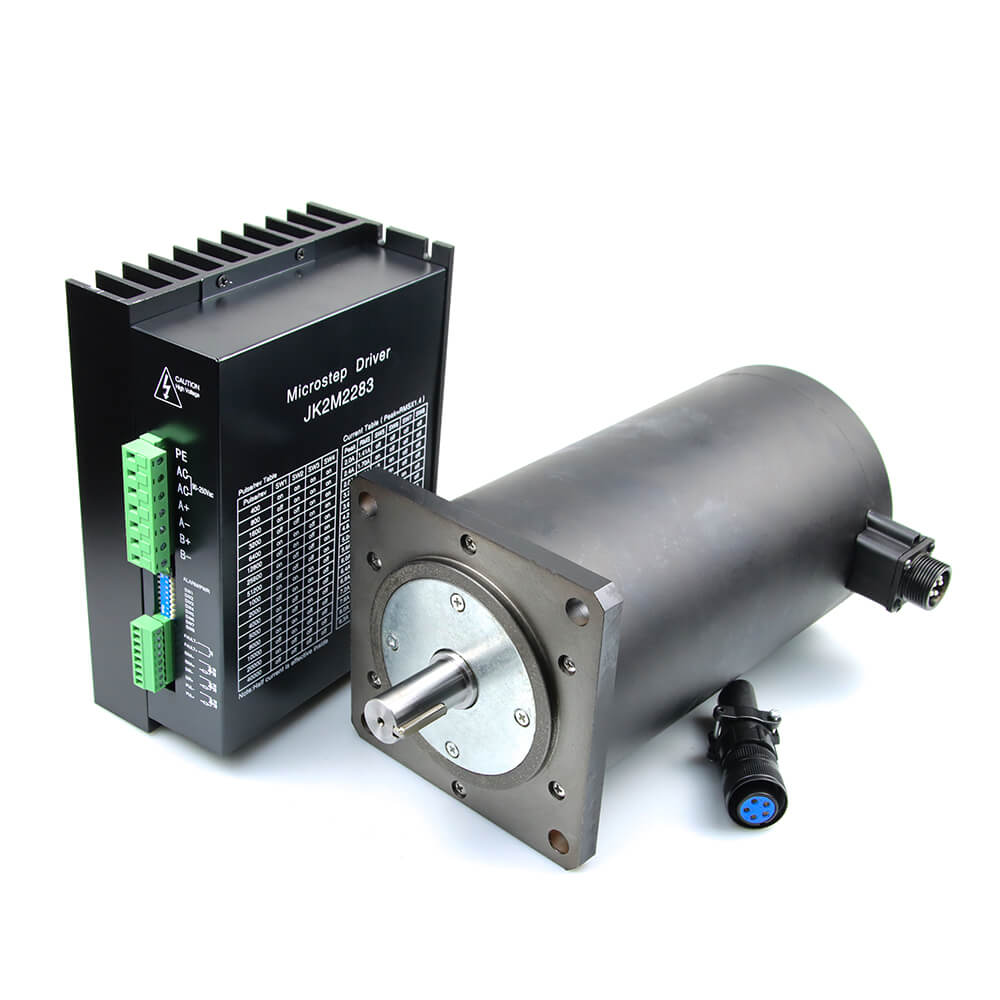

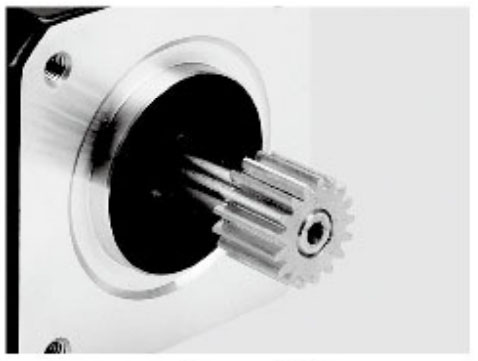

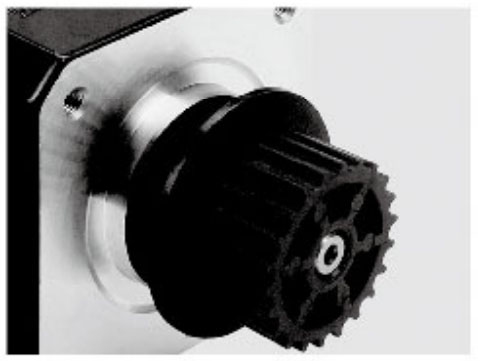

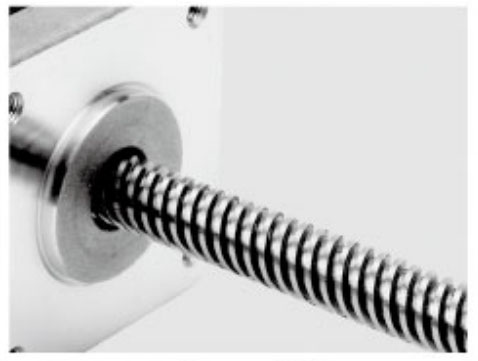

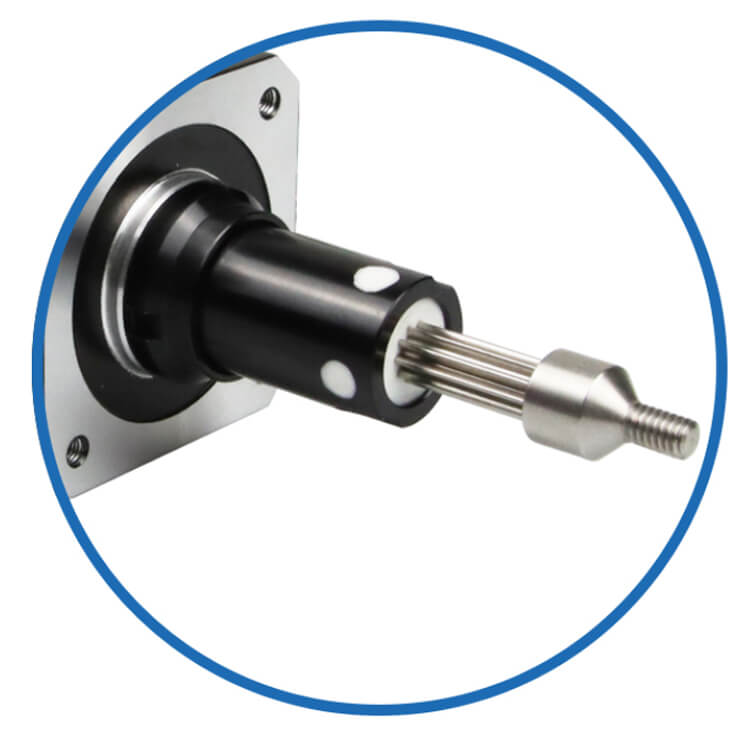

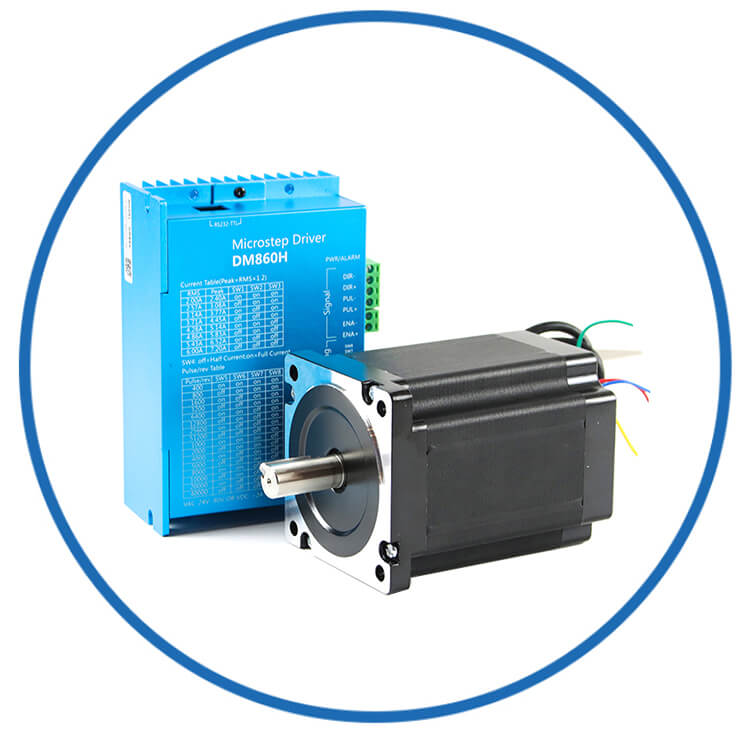

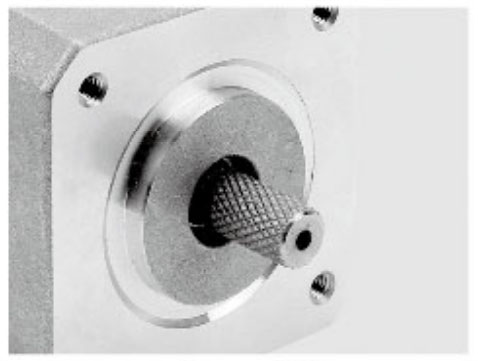

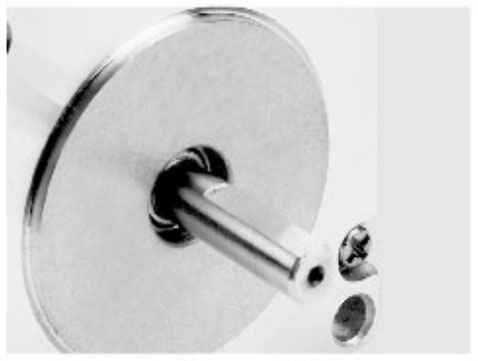

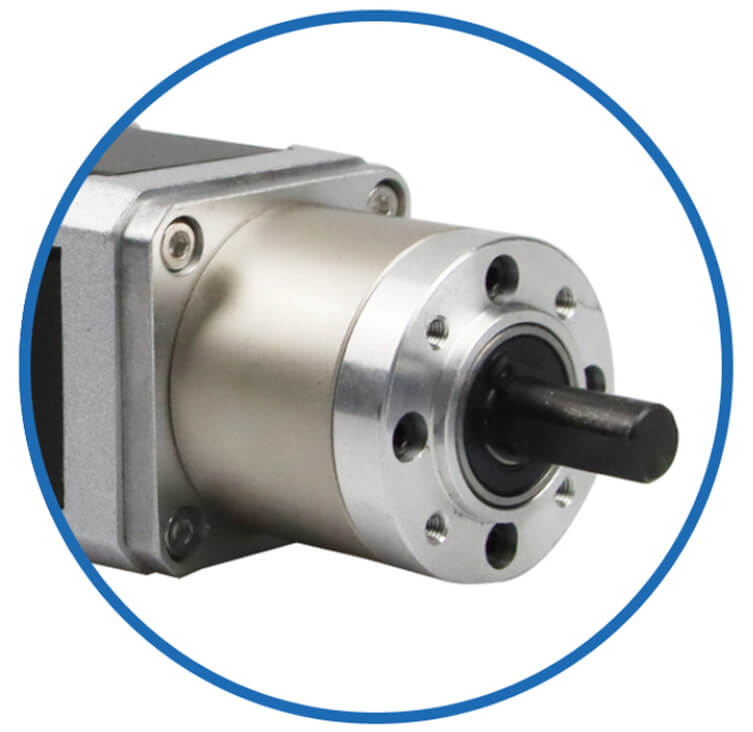

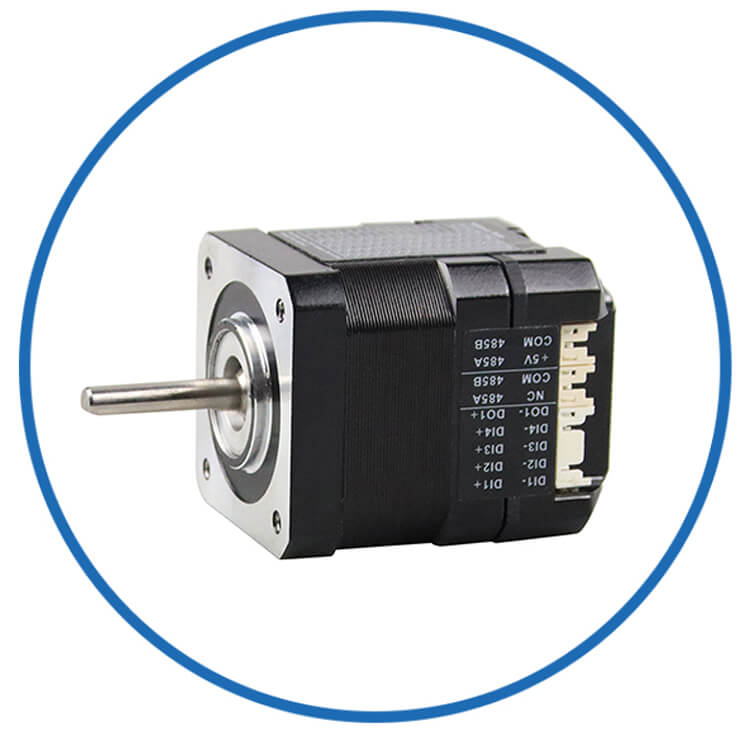

• Optional Parts: Gearbox, Encoder, Brake, Integrated Driver...

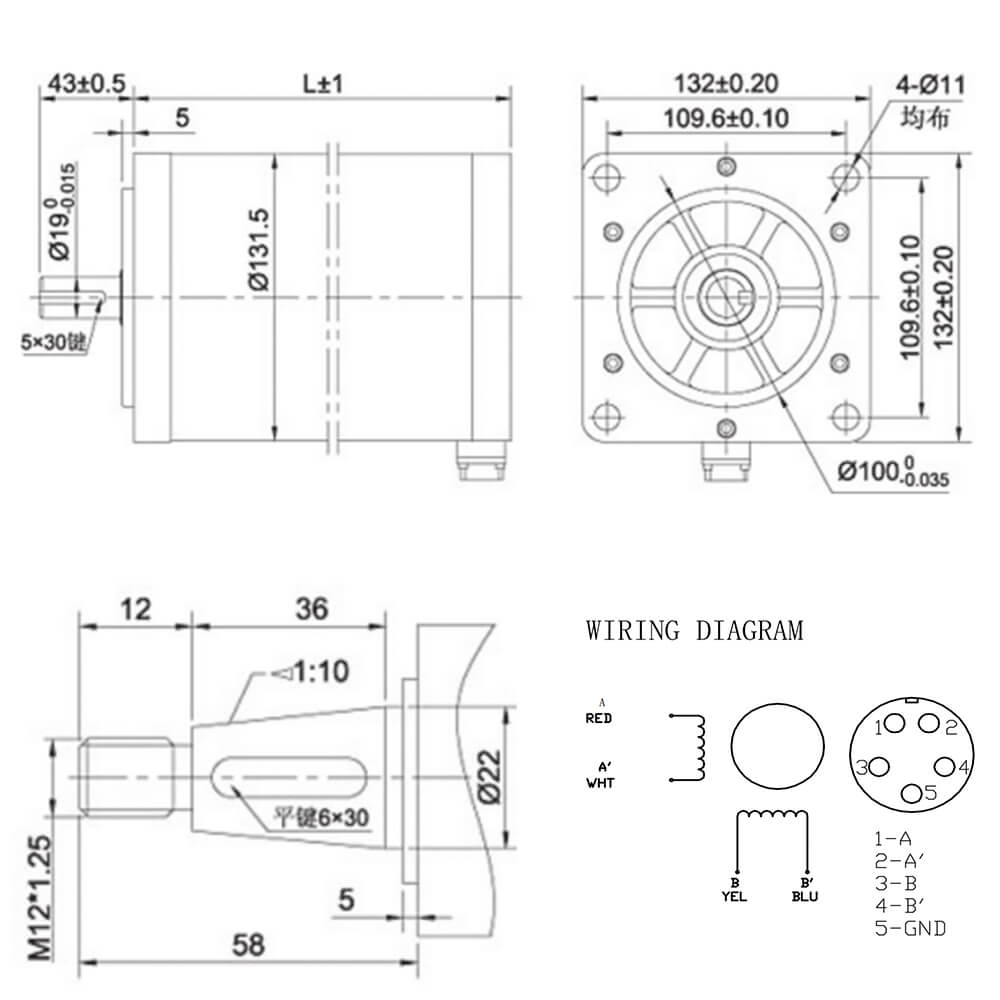

Physical Specifications:

• Frame Size: Nema 52 ( 130 x 130mm)

• Body Length: 229mm

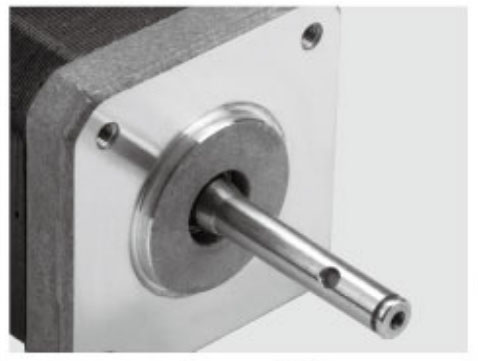

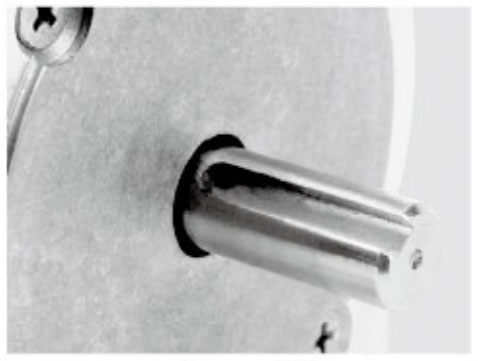

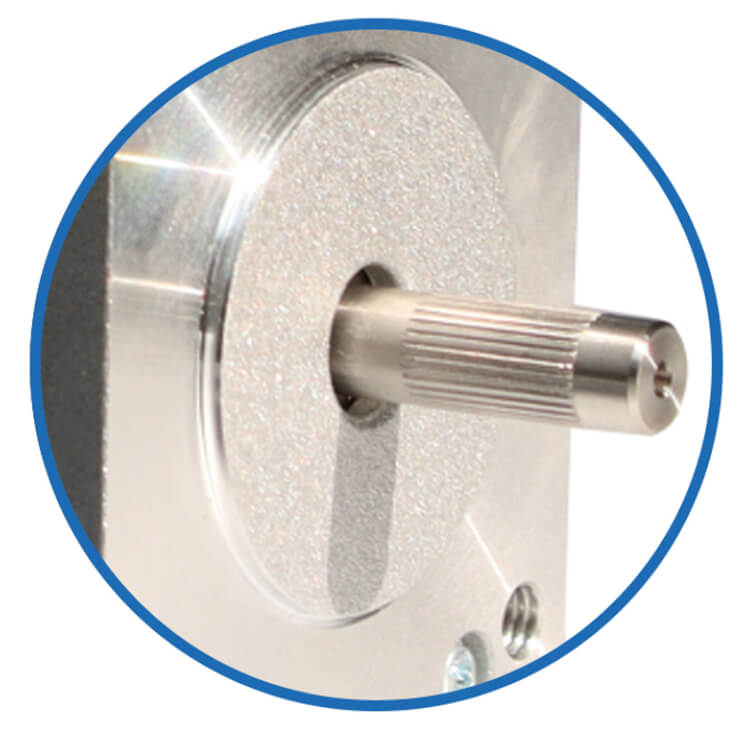

• Shaft Diameter: 19mm

• Shaft Length: 43mm


Wires Connection:
