Nema 17 JK42BLS04 Square Head 4000rpm 24V 0.25N.m 105W 6.3A Ф42x42x100mm Brushless Bldc Dc Motor

Type: 42mm 24V 105W Brushless Dc Motor

Phase: 3
Poles: 8
Rated Torque: 0.25N.m
Rated Current: 6.3A

Body Length: 100mm
Customized Parts: Motors, Gearboxes, Encoders, Brakes, Integrated Drivers...

Model:
JK42BLS04
Brand:
Jkongmotor
Rated Speed:
4000rpm
Bldc Poles:
8 poles
Bldc Motor Size:
Nema17 (42mm)
Rated Voltage:
24V
MOQ:
10 Pcs


Availability:



Inquire

Jkongmotor Nema 17 24v brushless dc motor (JK42BLS04) with 4000Rpm speed and size 42x42x100mm. It has 8 wires (3 wires for motors, 5 wires for hallsensor), 0.25N.m 6.3A and 105W. For more different bldc motors requirements (such as gearbox, brake, encoder, or integrated motors), please contact us!!!

Electrical Specifications：

Type: Nema 17 24v 42mm brushless dc motor
Model Name: JK42BLS04
Number of Phase: 3
Number of Poles: 8
Rated Speed: 4000Rpm
Rated Torque: 0.25N.m
Rated Current: 6.3A
Rated Power: 105W
Peak Torque: 0.75N.m
Peak Current: 20A
Back E.M.F: 4.3V/Krpm
Torque Constant: 0.041N.m/A
Rotor Inertia: 96g.cm2
Insulation Class: B
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength: 500VAC for 1 Minute
Suitable Driver: BLD120 / BLD300
Optional Parts: Gearbox, Encoder, Brake, Integrated Driver...

Physical Specifications:

Frame Size: Nema 17 ( 42 x 42mm)
Body Length: 100mm
Shaft Diameter: 5mm
Number of Leads: 8
Leads Length: 300mm
Sensor: Hall Sensor
Weight: 0.8kg

Wires Connection:

Bldc Motors Wires			Hall Sensor Wires
U	V	W	+5VDC	GND	Hu	Hv	Hw
Yellow	Green	Blue	Red	Black	Yello	Green	Blue

dc brushless motor brushless motor dc 12v brushless motor 3 phase brushless motor brushless motor lawn mower small brushless motor 24v brushless motor brushless motor dc 12v dc 24v brushless motor mini brushless motor

Related Products

Nema 52 JK130BLS227-4700 Square Head 3000rpm 310V 15N.m 4.7KW 3000W 19.44A Ф130x130x227mm Brushless BLDC Dc Motor With Hall Sensor

Nema 52 JK130BLS195-4700 Square Head 3000rpm 310V 15N.m 4.7KW 3000W 19.44A Ф130x130x195mm Brushless BLDC Dc Motor Without Hall Sensor

Nema 52 JK130BLS227-3000 Square Head 3000rpm 310V 10N.m 3KW 3000W 12.9A Ф130x130x227mm Brushless BLDC Dc Motor With Hall Sensor

Nema 52 JK130BLS195-3000 Square Head 3000rpm 310V 10N.m 3KW 3000W 12.9A Ф130x130x195mm Brushless BLDC Dc Motor Without Hall Sensor

Nema 52 JK130BLS187-2400 Square Head 3000rpm 310V 8N.m 2.4KW 2400W 10.22A Ф130x130x155mm Brushless BLDC Dc Motor With Hall Sensor

Nema 52 JK130BLS155-2400 Square Head 3000rpm 310V 8N.m 2.4KW 2400W 10.22A Ф130x130x155mm Brushless BLDC Dc Motor Without Hall Sensor

Nema 52 JK130BLS157-1800 Square Head 3000rpm 310V 6N.m 1.8KW 1800W 7.66A Ф130x130x157mm Brushless BLDC Dc Motor Without Hall Sensor

Nema 52 JK130BLS125-1800 Square Head 3000rpm 310V 6N.m 1.8KW 1800W 7.66A Ф130x130x125mm Brushless BLDC Dc Motor Without Hall Sensor

Nema 52 JK130BLS137-1200 Square Head 3000rpm 310V 4N.m 1.2KW 1200W 5.11A Ф130x130x137mm Brushless BLDC Dc Motor With Hall Sensor

Nema 52 JK130BLS105-1200 Square Head 3000rpm 310V 4N.m 1.2KW 1200W 5.11A Ф130x130x105mm Brushless BLDC Dc Motor Without Hall Sensor

Nema 23 57BLF Square Head Brushless BLDC DC Motor 57x57mm 36V 3 Phase

Nema 42 110BLS Square Head Brushless BLDC DC Motor 3000rpm 110x110mm 310V 3 Phase

Nema 34 86BLS Square Head Brushless BLDC DC Motor 3000rpm 86x86mm 48V 3 Phase

80BLS Round Head Brushless BLDC DC Motor 3000rpm 80x80mm 48V 3 Phase

Nema 24 60BLS Square Head Brushless BLDC DC Motor 60x60mm 48V 3 Phase

Nema 23 57BLS Round Head Brushless BLDC DC Motor 57x57mm 36V 3 Phase

Nema 17 42BLS Square Head Brushless BLDC DC Motor 42x42mm 24V 3 Phase

Nema 17 42BL Round Head Brushless BLDC DC Motor 42x42mm 3 Phase

Jkongmotor 33BL Round Head Brushless BLDC DC Motor 33x33mm 3 Phase 4-Wires

Jkongmotor 36mm 2-Phase Bipolar Hybrid Stepping Motor 0.9 Degree 36x36mm 0.3A - 0.425A 4-Wires

General Specifications
Item	Specification
Winding type	Delt
Hall effect angle	120 degree electrical angle
Shaft run out	0.025mm
Radial play	0.02mm@450g
End play	0.08mm@450g
Max.radial force	28N@20mm from the flange
Max. axial force	10N
Insulation class	Class B
Dielectric Strength	500VDC for one minute
Insulation Resistance	100MΩ Min., 500VDC

Nema 17 JK42BLS04 Square Head 4000rpm 24V 0.25N.m 105W 6.3A Ф42x42x100mm Brushless Bldc Dc Motor

Electrical Specifications：

Physical Specifications:

Wires Connection:

24V Nema 17 Brushless Dc Motor General Specifications:

General Specifications

Nema 17 Dc Brushless Motor Electrical Specification:

Nema17 24V Bldc Motor Dimension:

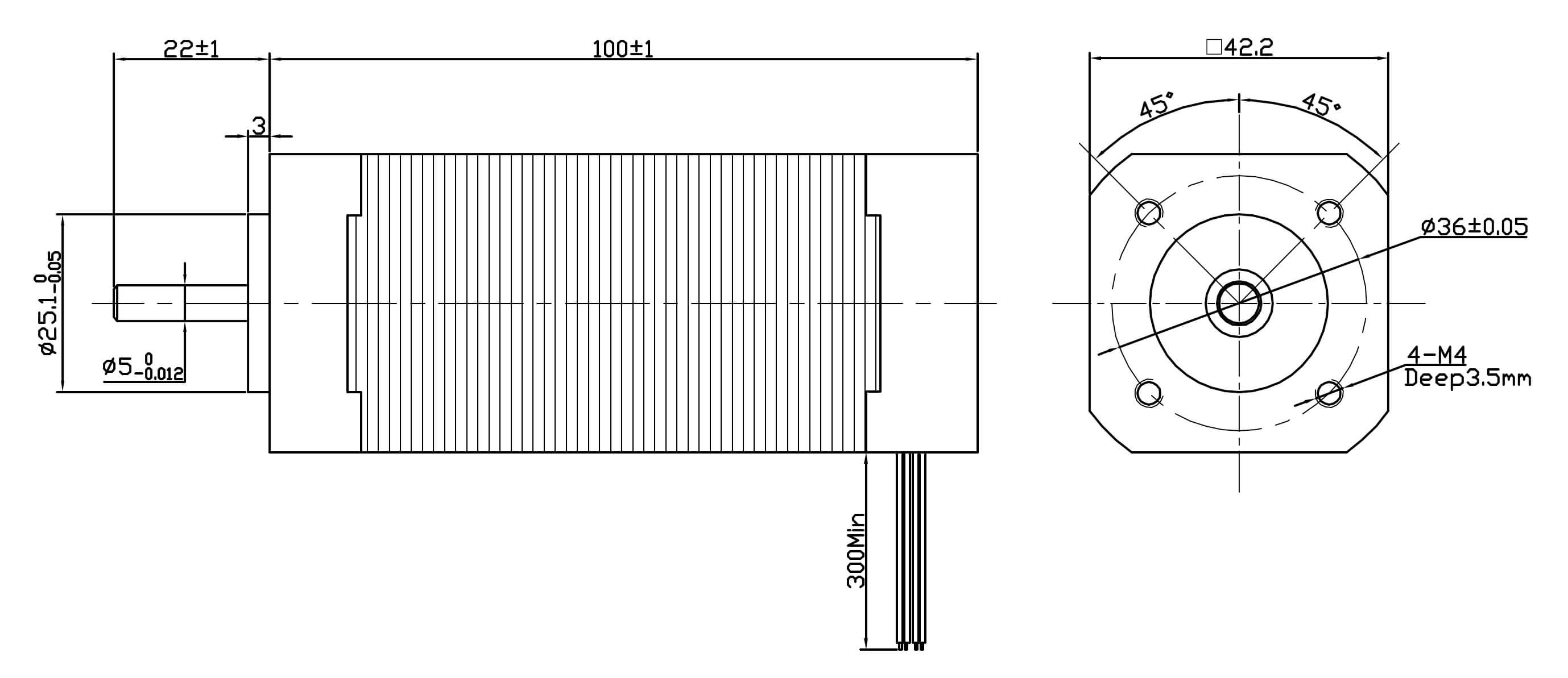

JK42BLS04 Drawing：
