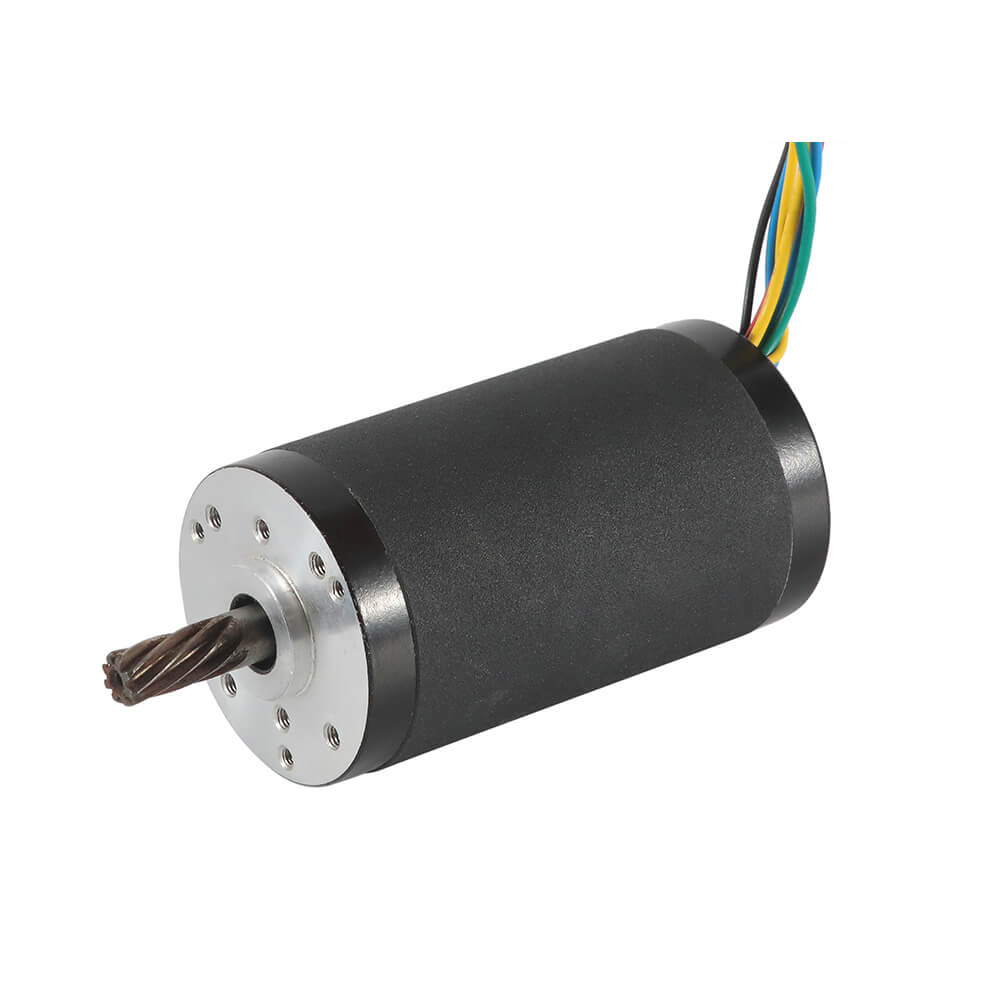

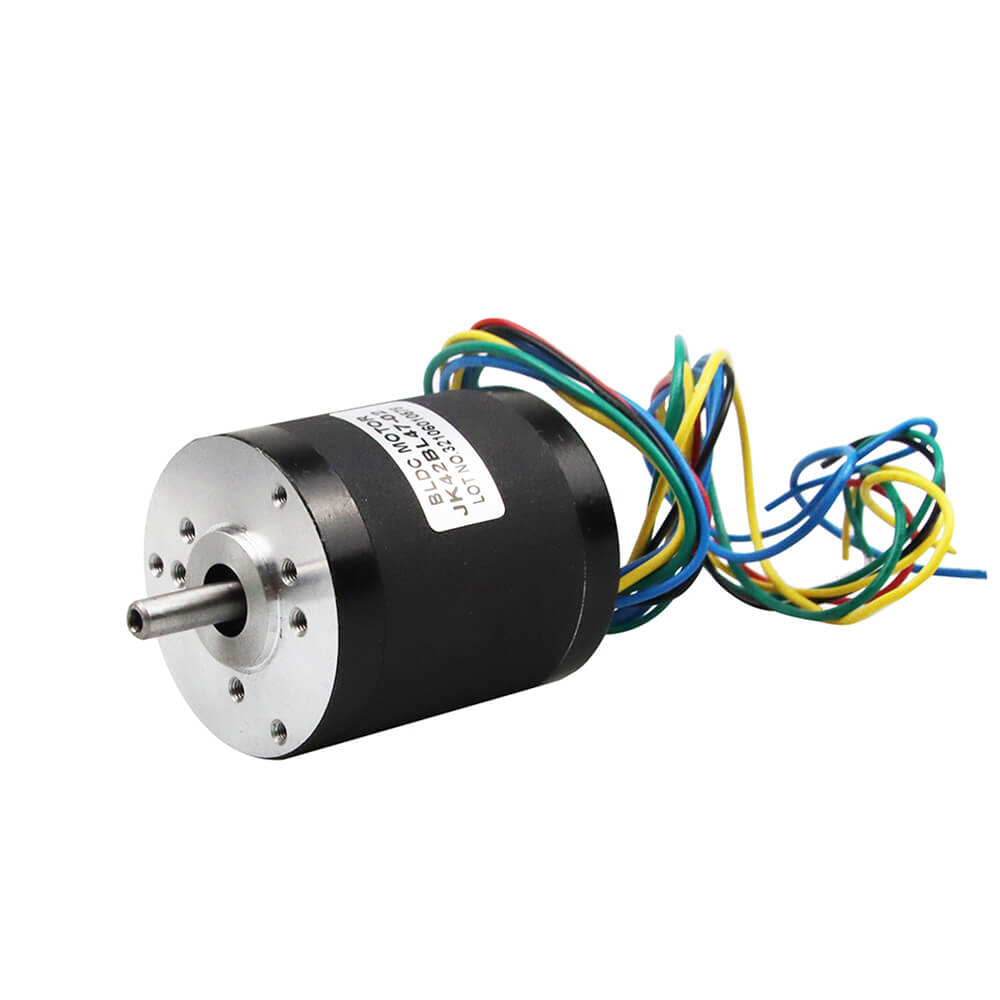

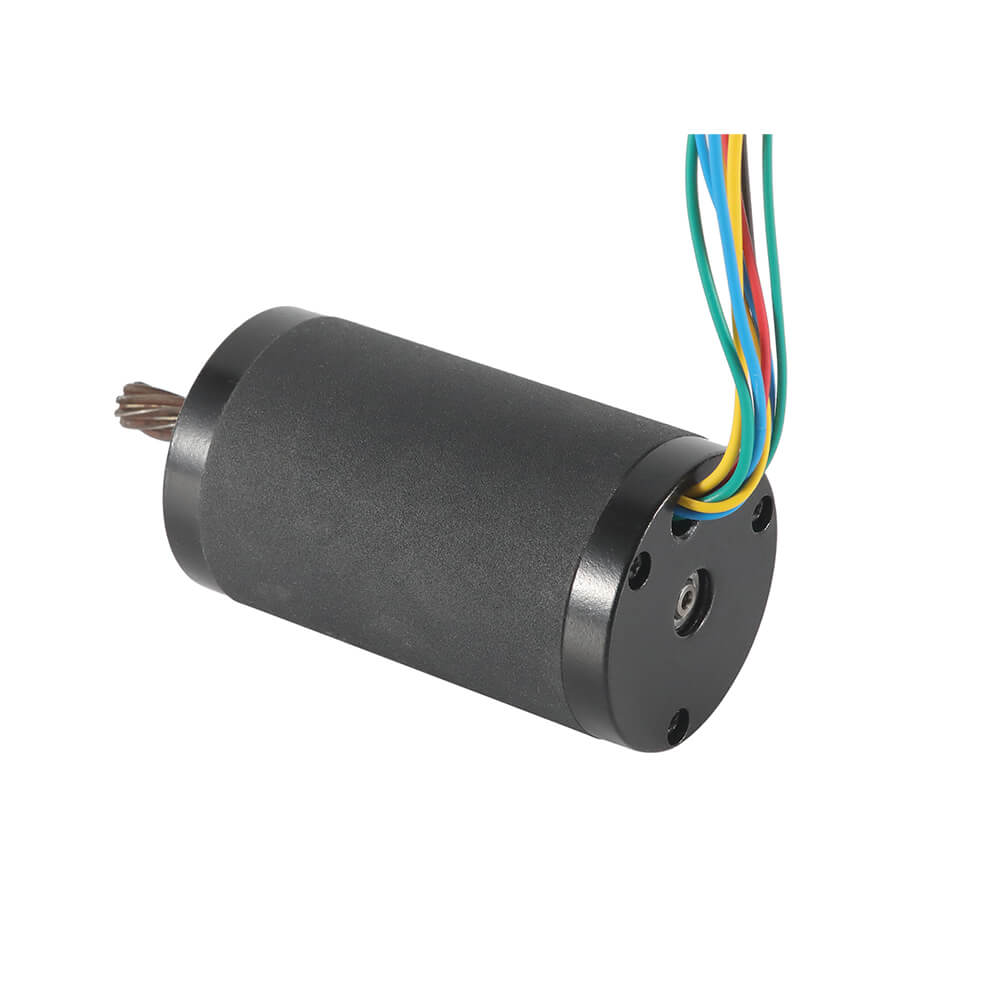

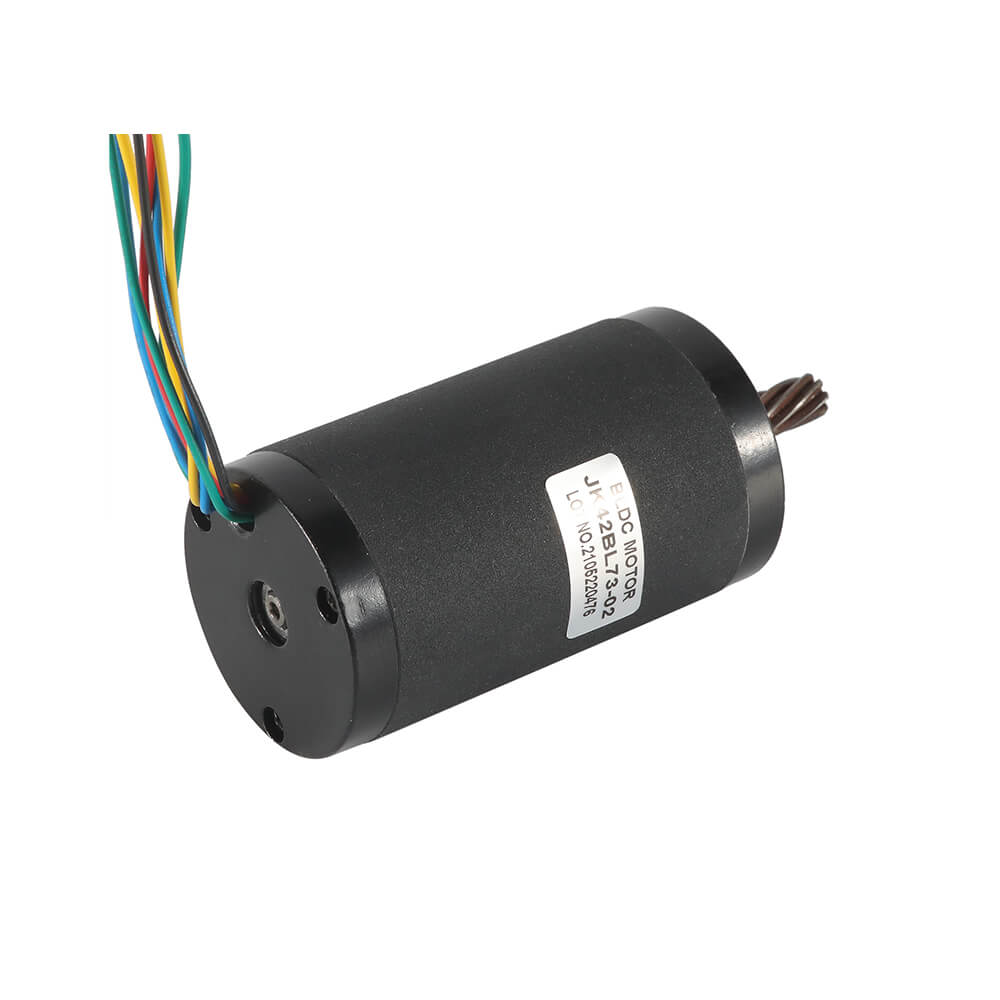

Nema 17 JK42BL60 Round Head 4000rpm 36V 80mN.m 32W 5A Ф42x42x60mm Brushless BLDC Dc Motor

Jkongmotor Nema 17 36v round head brushless bldc dc motor (JK42BL60) with 4000Rpm speed and size 42x42x60mm. It has 8 wires (3 wires for motors, 5 wires for hallsensor), 80mN.m 5A and 32W. For more different bldc motors requirements (such as gearbox, brake, encoder, or integrated motors), please contact us!!!

Electrical Specifications：

• Type: Nema 17 36v 42mm round brushless dc motor

• Model Name: JK42BL60

• Number of Phase: 3

• Number of Poles: 8

• Rated Speed: 4000Rpm

• Rated Torque: 80mN.m

• Rated Power: 32W

• Peak Torque: 240mN.m

• Peak Current: 5A

• Torque Constant: 38.5mN.m/A

• Rotor Inertia: 33g.cm2

• Insulation Class: B


• Insulation Resistance: 100MΩ Min @500VDC

• Dielectric Strength: 500VAC for 1 Minute

• Suitable Driver: BLD120


• Optional Parts: Gearbox, Encoder, Brake...


Physical Specifications:

• Frame Size: Nema 17 ( 42 x 42mm)

• Body Length: 60mm

• Shaft Diameter: 5mm

• Number of Leads: 8

• Leads Length: 300mm

• Sensor: Hall Sensor

• Weight: 0.35kg
