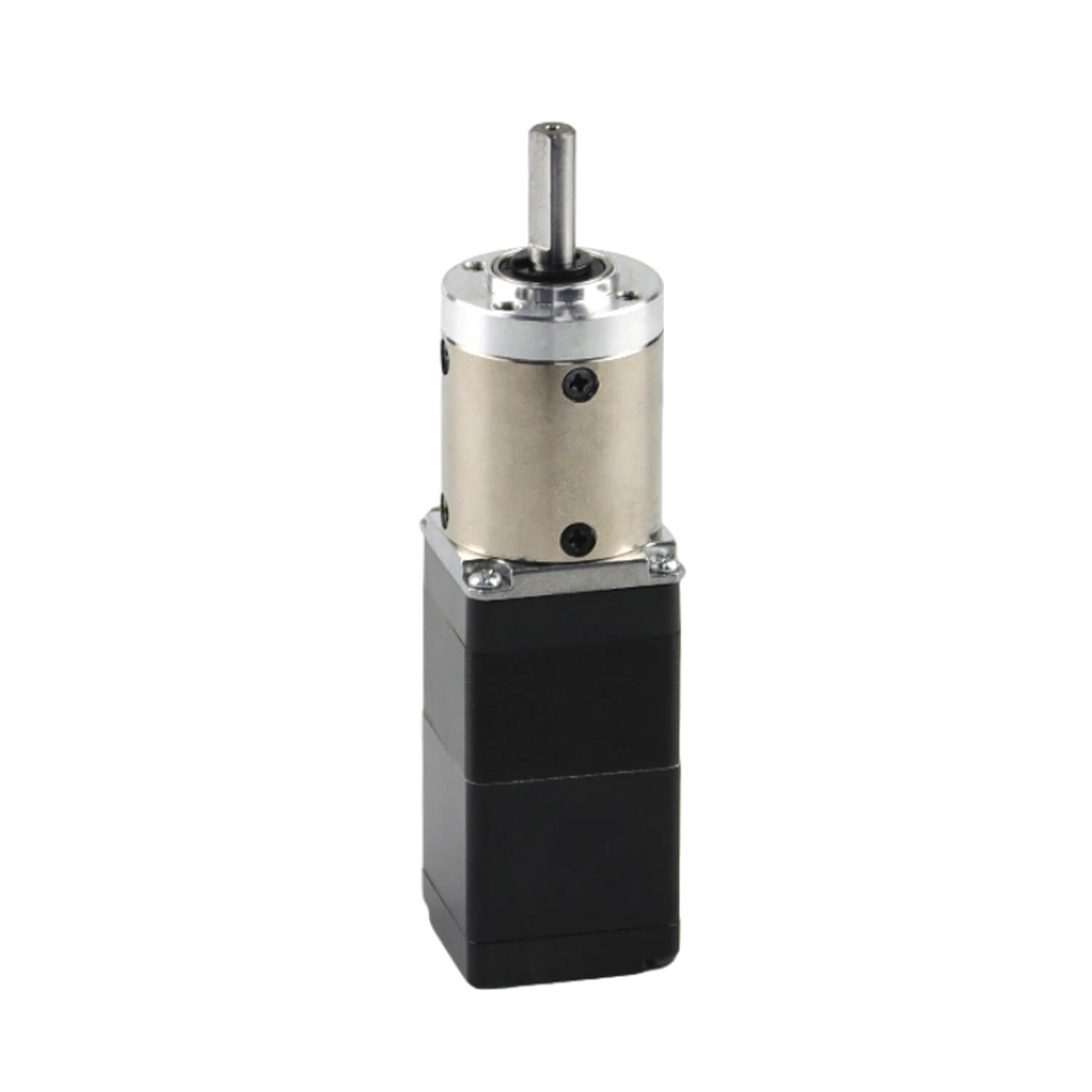

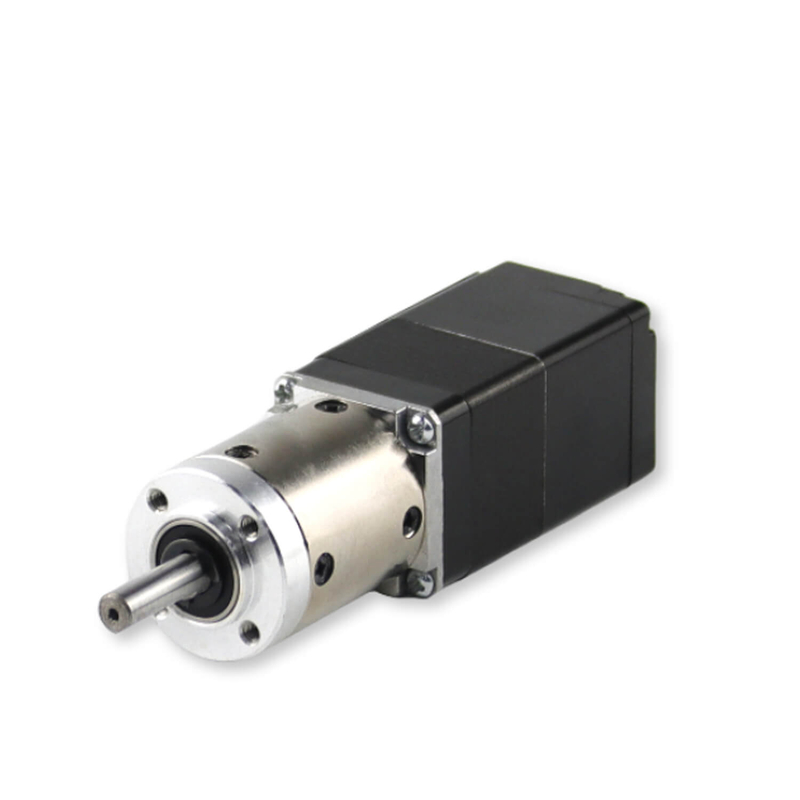

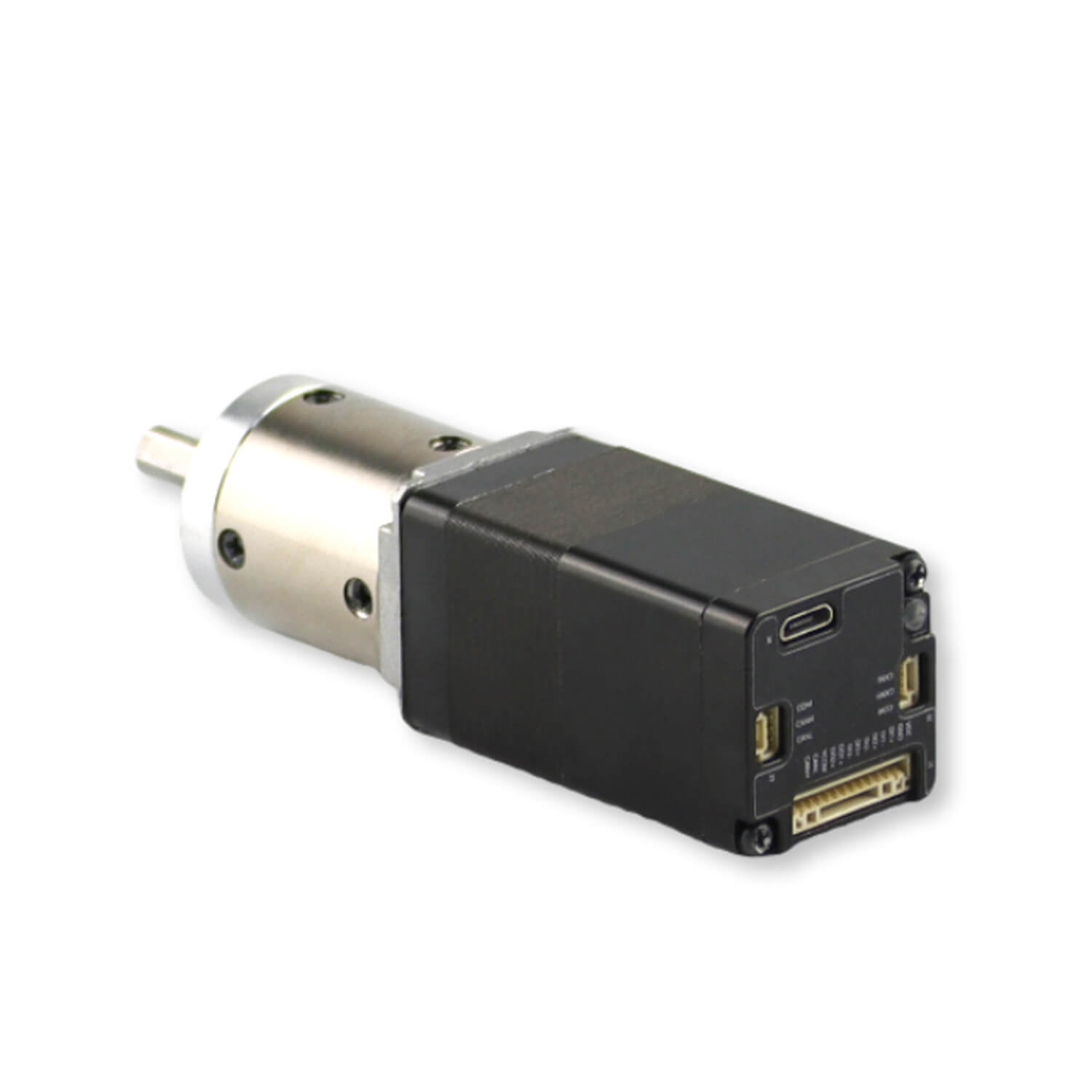

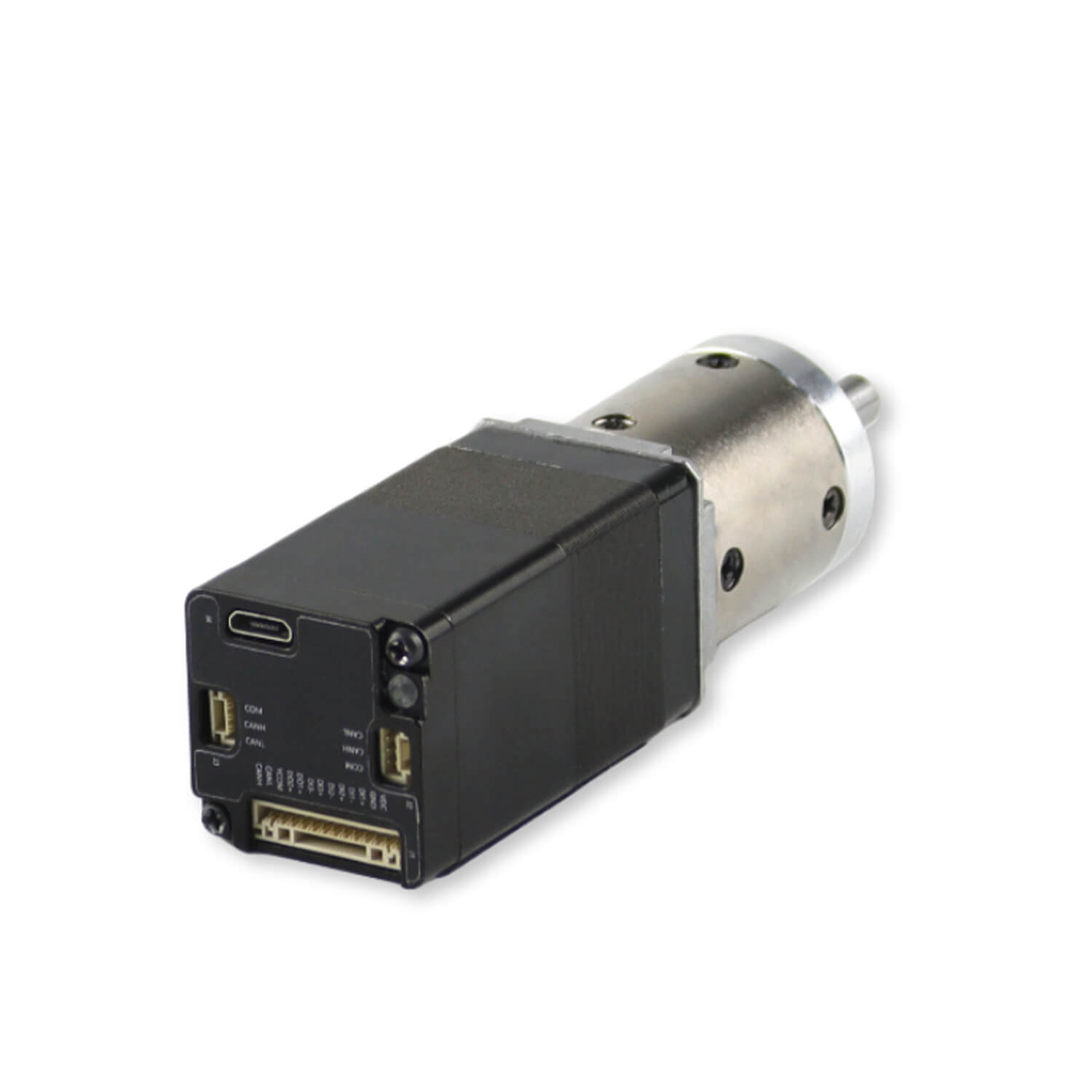

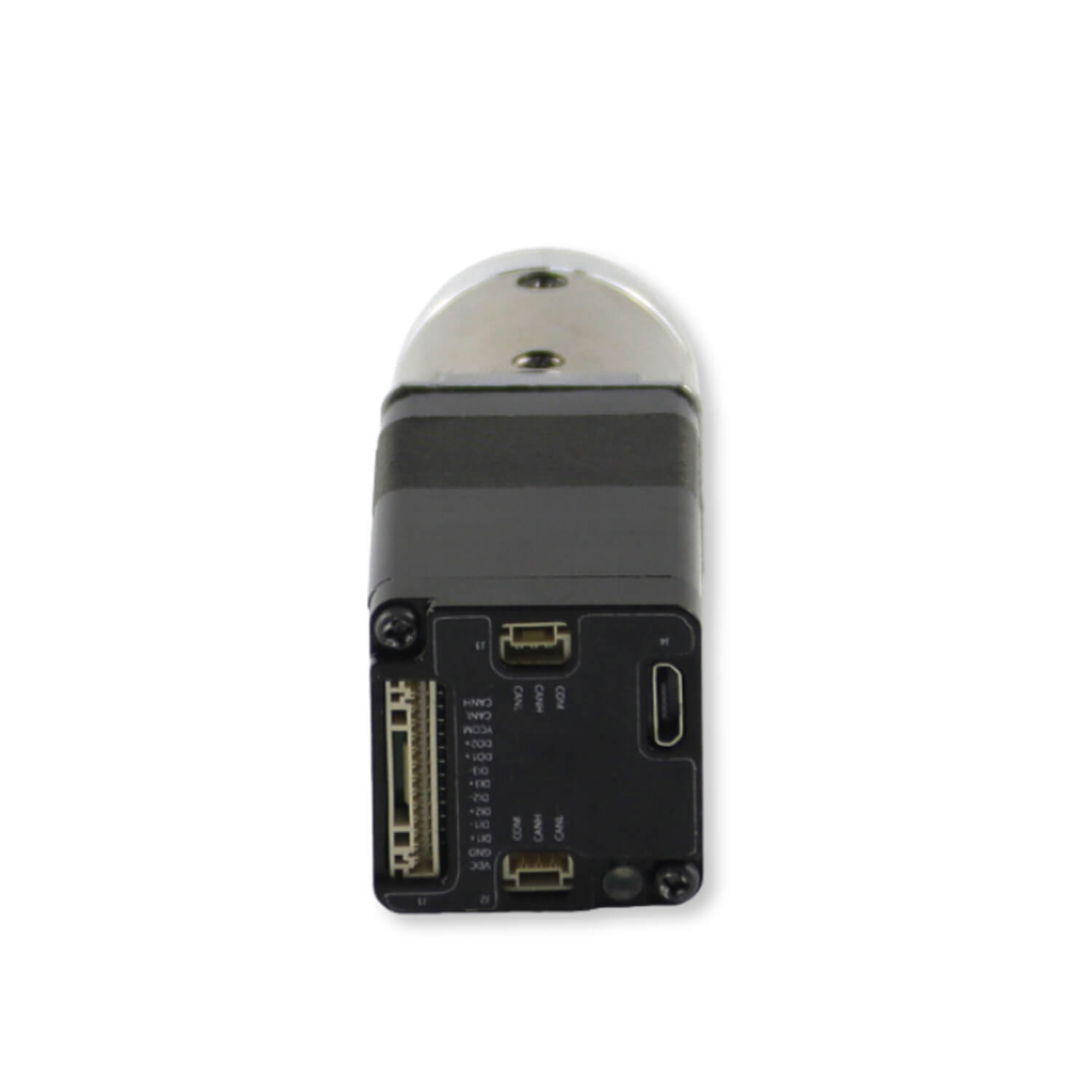

Nema 11 JKISC28-C1A3 Planetary Geared Integrated Stepper Servo Motor with Planetary Gearbox

Jkongmotor nema 11 JKISC28-C1A3 28x28x48.1mm Planetary Gear integrated stepper servo motor with CANopen control 1.8Degree 1.0A 2.8Ω 1.8 mH 0.065N.m with 1000ppr / 17bit / 15bit integrated driver. For more different integrated servo motor requirements please contact us!!!

Electrical Specifications：

• Type: Nema11 Planetary Geared Integrated stepper motor

• Model Name: JKISC28-C1A3

• Phase: 2

• Step Angle: 1.8 degree

• Current: 1.0A

• Resistance: 2.8Ω±10%(20℃)

• Inductance: 1.8mH±20%(1kHz 1V RMS)

• Holding Torque: 0.065Nm(9.20oz.in)

• Encoder: 1000ppr / 17Bit / 15Bit

• Control Method: CANopen (RS485, Pulse optional)

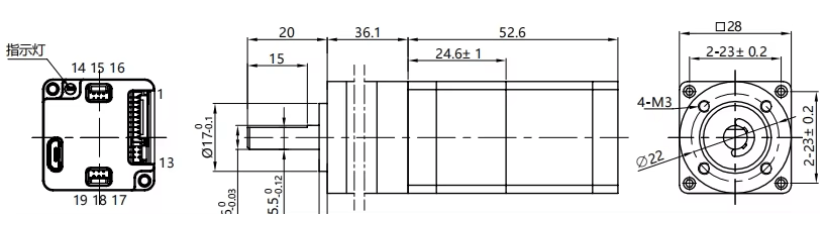

Physical Specifications:

• Frame Size: Nema 11 (28 x 28mm)

• Body Length: 48.1mm

• Shaft Diameter: 6mm

• Shaft Length: 20mm





Integrated Stepper Servo Motors Features:

• Cortex-M4 core high-performance 32-bit micro controller

• The highest pulse response frequency can reach 200KHz


• Built in protection function, effectively ensuring the safe use of the device


• Intelligent current regulation to reduce vibration, noise, and heat generation

• Adopting low internal resistance MOS, the heating is reduced by 30% compared to ordinary products

• Voltage range: DC12V-36V

• Integrated design with integrated drive motor, easy installation, small footprint, and simple wiring

• Equipped with anti reverse connection function


Communication method:

• Pulse type

• RS485 MOdbus RTU network type

• CANopen network type





Protection level:

Waterproof type: IP30, IP54, IP65, optional

28mm Integrated Stepper Servo Motors Usage:

Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese medicine ingredient industry, etc
