How to Choose the Right Drive Motor for Your AGV?

Introduction: Why AGV Drive Motor Selection Determines System Performance

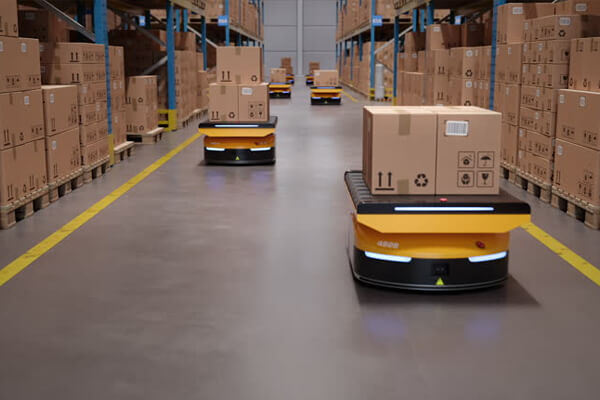

Automated Guided Vehicles (AGVs) have become a critical component in modern smart factories, warehouses, logistics centers, and manufacturing environments. As companies continue to pursue higher automation efficiency, reduced labor costs, and more flexible material handling solutions, AGVs are replacing traditional manual transportation methods.

However, the performance of an AGV system depends heavily on one core component: the drive motor.

The drive motor directly affects an AGV’s load capacity, acceleration, positioning accuracy, energy efficiency, operating stability, and service life. Selecting an unsuitable motor can lead to problems such as insufficient torque, unstable movement, excessive heat generation, reduced battery life, and frequent maintenance.

For AGV manufacturers and system integrators, choosing the right motor is not simply about selecting a motor with higher power. A reliable AGV motion system requires a comprehensive evaluation of:

• Vehicle weight and payload

• Required driving speed

• Wheel diameter

• Floor conditions

• Acceleration requirements

• Continuous operating time

• Battery voltage

• Communication requirements

• Environmental protection level

• Motor control accuracy

Among various motor technologies, integrated BLDC motors, integrated DC servo motors, and geared servo motors have become increasingly popular choices for AGV drive systems because they provide high efficiency, compact structure, precise control, and easy integration.

This guide explains how to select the right AGV drive motor, including key selection factors and practical calculation formulas.

Understanding AGV Drive System Requirements

Automated Guided Vehicles (AGVs) are designed to move materials, products, and equipment autonomously within industrial environments. Unlike traditional transportation systems, AGVs must achieve reliable movement while operating continuously under changing loads, different floor conditions, and complex navigation requirements. Therefore, the drive system becomes one of the most critical parts of an AGV, directly influencing its load capacity, motion stability, energy efficiency, and overall service life.

A well-designed AGV drive system requires more than simply selecting a motor with sufficient power. The motor, gearbox, controller, encoder, and mechanical transmission structure must work together to achieve precise and efficient movement.

For AGV manufacturers and automation solution providers, understanding the key requirements of a drive system is essential when selecting the right AGV drive motor solution.

1. High Torque Capability for Material Handling Applications

The primary function of an AGV is transporting materials, which means the drive system must generate enough torque to move both the vehicle weight and the payload.

Compared with stationary automation equipment, AGVs face more demanding operating conditions because they need to:

• Start and stop frequently

• Carry variable loads

• Accelerate and decelerate smoothly

• Overcome floor resistance

• Operate on ramps or uneven surfaces

During acceleration, the motor requires significantly higher torque than during normal running. If the selected motor does not provide sufficient torque, the AGV may experience:

• Slow startup response

• Motor overheating

• Reduced battery efficiency

• Loss of motion accuracy

• Premature component failure

For this reason, AGV manufacturers commonly select geared BLDC motors, integrated DC servo motors, or integrated servo motors with planetary gearboxes to achieve high torque output within a compact design.

2. Precise Speed Control and Smooth Motion Performance

Modern AGVs require accurate and stable movement to ensure safe navigation and efficient operation.

A high-performance AGV drive system must control:

• Traveling speed

• Acceleration and deceleration

• Direction changes

• Stopping accuracy

• Wheel synchronization

Poor speed control can cause:

• Mechanical vibration

• Wheel slipping

• Positioning errors

• Navigation deviations

This is especially important for applications such as:

• Warehouse robots

• Smart factory AGVs

• Autonomous mobile robots (AMRs)

• Assembly line transportation systems

To achieve smooth motion, many AGV systems use closed-loop servo motors with encoder feedback. Unlike open-loop systems, closed-loop motors continuously monitor actual motor position and speed, automatically correcting errors during operation.

3. Compact Structure and Easy System Integration

Space inside an AGV is limited. The drive system must deliver high performance while maintaining a compact mechanical design.

Traditional motor solutions often require multiple separate components:

• DC or BLDC motor

• External motor driver

• Encoder module

• Additional wiring

• Control cabinet

This increases:

• Installation complexity

• Internal space requirements

• Wiring costs

• Potential failure points

For this reason, more AGV OEM manufacturers are adopting integrated motor solutions.

An integrated AGV motor combines the motor, driver, and feedback system into a single compact unit.

Key advantages include:

• Reduced wiring requirements

• Faster installation

• Smaller control system design

• Improved reliability

• Easier maintenance

Integrated BLDC motors and integrated DC servo motors are becoming increasingly popular because they simplify AGV development while improving overall system performance.

4. High Energy Efficiency for Battery-Powered Operation

Most AGVs operate using rechargeable batteries, making energy efficiency a major consideration.

A motor with low efficiency consumes more electrical energy, resulting in:

• Shorter operating time

• More frequent charging

• Reduced productivity

• Higher operating costs

An efficient AGV drive motor should provide:

• High conversion efficiency

• Low heat generation

• Stable performance during long operation

• Optimized power consumption

Brushless DC motors (BLDC motors) are widely used in AGV applications because they offer:

• Higher efficiency compared with brushed motors

• Longer service life

• Lower maintenance requirements

• Excellent speed regulation performance

For battery-powered mobile robots, motor efficiency directly impacts daily operation costs and system availability.

5. Strong Reliability for Continuous Operation

Industrial AGVs often operate for long periods, sometimes running:

• Multiple shifts per day

• 16–24 hours continuously

• In demanding factory environments

Therefore, the drive system must provide excellent durability.

Important reliability factors include:

Thermal Performance

The motor must effectively manage heat generated during:

• Continuous operation

• Heavy loading

• Frequent acceleration

Poor thermal performance can reduce motor lifetime and cause unexpected downtime.

Mechanical Durability

The drive system should withstand:

• Repeated starting cycles

• Shock and vibration

• Heavy payload changes

• Long-term mechanical stress

High-quality gearboxes, bearings, and motor structures are essential for industrial AGV applications.

Environmental Protection

Depending on the application, AGV motors may need protection against:

• Dust

• Oil contamination

• Humidity

• Temperature variations

Common requirements include:

• IP54 protection

• IP65 waterproof protection

• Higher protection levels for harsh environments

6. Accurate Feedback and Communication Capability

Modern AGVs rely on intelligent control systems. The drive motor must communicate effectively with the vehicle controller.

Common feedback and communication requirements include:

• Encoder feedback

• Hall sensors

• CAN communication

• RS485 communication

• Pulse control

• Speed and position feedback

A motor with advanced feedback capability allows the AGV controller to:

• Monitor operating conditions

• Adjust speed dynamically

• Improve navigation accuracy

• Detect abnormal conditions

This is especially important for high-end AGVs used in smart factories and automated logistics systems.

7. Optimized Wheel and Gearbox Matching

The motor cannot be selected independently from the mechanical structure.

The correct drive system requires matching:

• Motor speed

• Gear ratio

• Wheel diameter

• Vehicle weight

• Required traveling speed

For example:

A motor with high RPM but low torque may require a gearbox to achieve the necessary wheel torque.

A planetary gearbox is commonly selected for AGV applications because it provides:

• High torque density

• Compact size

• High transmission efficiency

• Low backlash

• Excellent load capability

Proper motor and gearbox matching ensures:

• Smooth acceleration

• Stable operation

• Lower energy consumption

• Longer component life

8. Customization Capability for Different AGV Designs

AGV manufacturers often develop different vehicle platforms for specific industries. A standard motor may not always meet every application requirement.

Common customization needs include:

• Custom shaft dimensions

• Special mounting flanges

• Different voltage options

• Customized connectors

• Encoder configurations

• Communication protocols

• Integrated brake solutions

A professional AGV motor supplier should provide OEM and ODM customization capabilities to help manufacturers optimize their vehicle design.

Conclusion

The AGV drive system is the foundation of vehicle performance. Selecting the right motor requires a complete evaluation of torque, speed, efficiency, control accuracy, mechanical structure, and operating environment.

A reliable AGV drive system should deliver:

• High torque for heavy loads

• Precise speed and position control

• High energy efficiency

• Compact integration

• Long-term reliability

• Flexible customization capability

As AGV applications continue expanding into smart factories, warehouses, and autonomous logistics, advanced integrated BLDC motors and integrated servo motors will play an increasingly important role in improving automation performance and operational efficiency.

Jkongmotor Customized Servo Motor Motions

One-Stop Integrated DC Servo Motor Solution Provider

What Functions Does an AGV Drive Motor Need?

1. High Torque Output for Heavy Loads

The most important requirement for an AGV motor is sufficient torque.

Unlike simple conveyor systems, AGVs must frequently:

• Start from a stationary position

• Accelerate with heavy loads

• Climb ramps

• Overcome floor friction

• Change direction

A motor with insufficient torque will cause:

• Slow acceleration

• Motor overheating

• Increased energy consumption

• Reduced operating reliability

For AGV applications, geared motors and servo motors are commonly preferred because they provide higher output torque at lower speeds.

2. Precise Speed Control and Smooth Motion

AGVs require smooth and predictable movement to ensure navigation accuracy.

Poor motor control can create:

• Wheel slip

• Positioning errors

• Navigation deviation

• Mechanical vibration

Modern AGV systems commonly use motors with:

• Encoder feedback

• Closed-loop control

• Integrated drivers

• Speed regulation capability

An integrated servo motor combines the motor, driver, and control electronics into one compact unit, reducing wiring complexity and improving system reliability.

3. Compact Design and Easy Installation

AGV internal space is limited. A traditional motor system usually requires:

• Motor

• External driver

• Controller wiring

• Encoder cable

• Power cable

This increases:

• Installation time

• Cabinet size

• Potential failure points

Integrated motors simplify the structure by combining multiple components into one solution.

Advantages include:

• Smaller installation footprint

• Reduced wiring

• Easier maintenance

• Faster system integration

This is one reason many AGV OEM manufacturers prefer integrated BLDC motors and integrated DC servo motors.

4. High Efficiency for Battery-Powered Operation

Most AGVs operate using batteries. Therefore, motor efficiency directly impacts operating time.

A high-efficiency motor can provide:

• Longer working cycles

• Lower battery consumption

• Reduced charging frequency

• Lower operating costs

Brushless DC motors (BLDC motors) are widely used in AGVs because they offer:

• High efficiency

• Long lifetime

• Low maintenance

• Excellent speed control

Compared with brushed motors, BLDC motors eliminate brush wear and provide more stable long-term operation.

Key Parameters for Choosing an AGV Drive Motor

1. Calculate Required Driving Force

The first step is calculating the force required to move the AGV.

The basic formula is:

F = m × a + Ff + Fg

Where:

• F = Required driving force (N)

• m = Total AGV mass including payload (kg)

• a = Acceleration (m/s⊃2;)

• Ff = Rolling resistance force (N)

• Fg = Gradient resistance force (N)

2. Calculate Rolling Resistance

Rolling resistance depends on:

• Wheel material

• Floor condition

• Wheel size

• Load distribution

Formula:

Ff = m × g × μ

Where:

• μ = Rolling resistance coefficient

• g = Gravity acceleration (9.81 m/s⊃2;)

Example:

An AGV weighs:

• Vehicle weight: 200 kg

• Payload: 300 kg

• Total mass: 500 kg

• Rolling coefficient: 0.02

Rolling resistance:

Ff = 500 × 9.81 × 0.02

Ff ≈ 98N

3. Calculate Required Motor Torque

After determining driving force, motor torque can be calculated.

Formula:

T = F × r

Where:

• T = Wheel torque (Nm)

• F = Driving force (N)

• r = Wheel radius (m)

Example:

If:

• Required force = 200N

• Wheel radius = 0.05m

Torque:

T = 200 × 0.05

T = 10Nm

The motor must provide at least this torque after considering gearbox efficiency.

4. Consider Gear Ratio Selection

AGVs usually require:

• Low speed

• High torque

However, motors naturally provide higher speed and lower torque.

A gearbox solves this problem.

Gear ratio formula:

Gear Ratio = Motor Speed / Required Wheel Speed

Example:

Motor speed:

3000 RPM

Required wheel speed:

300 RPM

Gear ratio:

3000 / 300 = 10:1

A 10:1 gearbox reduces speed while increasing output torque.

Common gearbox options include:

• Planetary gearbox

• Spur gearbox

• Worm gearbox

For AGV applications, planetary gearboxes are widely selected because of:

• High torque density

• High efficiency

• Compact structure

• Strong load capacity

5. Calculate Required Motor Power

Motor power can be calculated using:

P = T × ω

or:

P(kW) = Torque(Nm) × Speed(RPM) / 9550

Example:

Torque:

10Nm

Speed:

300RPM

Power:

P = 10 × 300 / 9550

P ≈ 0.31kW

Therefore, a motor rated around 300W would be suitable, considering safety factors.

Why AGV Manufacturers Prefer Integrated Servo Motors

With the rapid development of smart factories, automated warehouses, and intelligent logistics systems, Automated Guided Vehicles (AGVs) are becoming a key solution for improving material handling efficiency. As AGV technology continues to evolve, manufacturers are facing higher requirements for motion performance, system integration, reliability, and cost optimization.

The drive system is one of the most important components that determines AGV performance. While traditional solutions using separate motors, drivers, and controllers were widely adopted in the past, more AGV manufacturers are now choosing integrated servo motors as their preferred drive solution.

An integrated servo motor combines the motor, servo driver, encoder, and control electronics into a compact unit. This design provides significant advantages in terms of installation efficiency, motion accuracy, energy consumption, and system reliability, making it especially suitable for modern AGV and AMR applications.

1. Simplified System Design and Reduced Wiring Complexity

One of the biggest challenges in AGV development is managing the limited internal space while maintaining reliable electrical connections.

Traditional AGV drive systems usually require multiple independent components:

• Servo motor

• External servo drive

• Encoder cable

• Power cable

• Communication wiring

• Additional control cabinet space

This creates several challenges:

• More complicated wiring layouts

• Longer installation time

• Higher assembly costs

• Increased risk of wiring errors

• More potential failure points

Integrated servo motors solve these problems by combining multiple components into one compact structure.

For AGV manufacturers, this means:

• Fewer cables inside the vehicle

• Smaller electrical cabinets

• Faster assembly processes

• Easier maintenance

• Improved overall system reliability

This compact design is particularly valuable for small AGVs and AMRs where every millimeter of internal space is important.

2. Higher Motion Accuracy for Autonomous Navigation

AGVs rely on precise movement to follow navigation paths, avoid obstacles, and position accurately at loading and unloading points.

A traditional motor system may experience control delays due to communication between separate components. Integrated servo motors improve motion response by combining the motor and control system into one optimized unit.

Key performance advantages include:

• Faster response time

• More accurate speed regulation

• Better low-speed stability

• Improved positioning accuracy

• Smoother acceleration and deceleration

With built-in encoder feedback, integrated servo motors can continuously monitor:

• Motor position

• Rotation speed

• Operating conditions

The controller can then make real-time adjustments to maintain accurate movement.

This capability is especially important for applications such as:

• Warehouse picking robots

• Manufacturing AGVs

• Autonomous mobile robots

• Intelligent production lines

3. Higher Torque Density for Heavy Load Transportation

AGVs are often required to transport heavy materials while maintaining a compact vehicle structure.

The drive motor must provide sufficient torque to handle:

• Heavy payloads

• Frequent starts and stops

• Acceleration requirements

• Inclined surfaces

• Uneven floor conditions

Integrated servo motors are often combined with planetary gearboxes to achieve higher torque output in a smaller package.

Advantages include:

• High torque-to-size ratio

• Strong overload capability

• Compact mechanical design

• Stable operation under heavy loads

Compared with conventional motor systems, integrated servo solutions allow AGV manufacturers to design smaller vehicles without sacrificing performance.

4. Improved Energy Efficiency for Battery-Powered AGVs

Most AGVs operate using rechargeable batteries, making energy efficiency a critical factor.

A motor with poor efficiency can significantly reduce:

• Operating hours

• Transportation capacity per charge

• Production efficiency

Integrated servo motors improve energy utilization through:

• Efficient brushless motor technology

• Optimized control algorithms

• Accurate power management

• Reduced energy loss

Compared with traditional brushed motors, brushless DC servo motors provide:

• Higher efficiency

• Lower maintenance requirements

• Longer service life

• Better thermal performance

For AGV manufacturers, improved motor efficiency means longer operation cycles and reduced charging frequency.

5. Easier Installation and Faster Product Development

AGV manufacturers often need to develop customized vehicles for different industries, including:

• Automotive manufacturing

• Electronics production

• Warehousing

• Pharmaceutical logistics

• Food processing

A modular integrated servo motor solution allows engineers to simplify mechanical and electrical design.

Instead of selecting and matching multiple components, manufacturers can integrate a complete drive solution.

Benefits include:

• Shorter development cycles

• Reduced engineering workload

• Faster prototype testing

• Easier product upgrades

This is especially valuable for AGV OEM companies that need to quickly launch different vehicle models.

6. Better Reliability in Industrial Environments

Industrial AGVs often operate continuously in demanding environments. The drive system must withstand:

• Long operating hours

• Frequent acceleration cycles

• Mechanical vibration

• Dust and humidity

• Temperature fluctuations

Integrated servo motors improve reliability by reducing the number of external connections.

Fewer components mean:

• Lower failure probability

• Easier troubleshooting

• Less maintenance

• Longer system lifetime

For applications requiring continuous operation, such as smart factories and automated warehouses, reliability directly affects productivity.

7. Flexible Communication and Intelligent Control

Modern AGVs are becoming more intelligent. They need to communicate with:

• Central control systems

• Navigation platforms

• Fleet management software

• Industrial networks

Advanced integrated servo motors support various control methods, including:

• CAN communication

• RS485 communication

• Pulse and direction control

• Digital input/output control

These communication capabilities allow AGVs toModern AGVs are becoming more intelligent. They need to communicate with:

• Central control systems

• Navigation platforms

• Fleet management software

• Industrial networks

Advanced integrated servo motors support various control methods, including:

• CAN communication

• RS485 communication

• Pulse and direction control

• Digital input/output control

These communication capabilities allow AGVs to achieve:

• Real-time monitoring

• Intelligent speed adjustment

• Fault detection

• Remote diagnostics

As factories move toward Industry 4.0, intelligent motor control becomes increasingly important.

8. Reduced Total System Cost

Although integrated servo motors may have a higher initial component cost compared with basic motors, they often reduce the total cost of an AGV system.

Cost advantages include:

Lower Installation Cost

Reduced wiring and fewer components decrease assembly time.

Lower Maintenance Cost

Integrated systems reduce troubleshooting complexity.

Reduced Design Cost

Engineers spend less time integrating separate components.

Improved Productivity

Higher reliability reduces downtime.

Therefore, many AGV manufacturers evaluate motors based on total lifecycle cost, rather than only the initial purchase price.

9. Customization Options for AGV OEM Manufacturers

Different AGV platforms have different requirements. Professional motor suppliers often provide customized integrated servo motor solutions.

Common customization options include:

• Different voltage ratings

• Customized shaft dimensions

• Special mounting designs

• Various encoder resolutions

• Planetary gearbox integration

• Brake options

• Communication protocol customization

This flexibility allows AGV manufacturers to optimize the motor according to:

• Vehicle size

• Payload requirements

• Speed range

• Operating environment

10. Future Development Trend of AGV Drive Systems

As AGVs and AMRs become more advanced, future drive systems will require:

• Higher integration

• Smaller size

• Greater intelligence

• Better energy efficiency

• More precise control

Integrated servo motors are well positioned to support these trends because they combine mechanical, electrical, and control technologies into a single solution.

Future AGV applications will increasingly rely on intelligent integrated drive systems for:

• Autonomous logistics

• Smart manufacturing

• Flexible production

• Human-machine collaboration

Conclusion: Integrated Servo Motors Provide the Ideal Drive Solution for Modern AGVs

For AGV manufacturers, choosing the right drive system directly impacts vehicle performance, reliability, and market competitiveness.

Integrated servo motors have become a preferred choice because they provide:

• Compact design

• Simplified wiring

• High torque output

• Precise motion control

• Excellent energy efficiency

• Improved reliability

• Flexible customization

As the demand for intelligent automation continues to grow, integrated servo motors will remain a key technology for next-generation AGVs and AMRs, helping manufacturers create faster, smarter, and more reliable autonomous transportation solutions.

How to Choose Between BLDC Motor and Servo Motor for AGV Applications

Selecting the right drive motor is one of the most important decisions when designing an Automated Guided Vehicle (AGV). The motor directly affects the vehicle’s traveling speed, load capacity, positioning accuracy, battery efficiency, operating stability, and service life.

For most AGV manufacturers, two common motor technologies are considered:

• Brushless DC Motors (BLDC Motors)

• Servo Motors (including integrated DC servo motors and integrated servo drive motors)

Both motor types offer excellent advantages, but they are designed for different performance requirements. Choosing the right solution depends on the AGV’s application, control requirements, payload, operating environment, and cost targets.

This guide explains the differences between BLDC motors and servo motors for AGV applications and provides practical selection criteria for OEM manufacturers and system integrators.

Understanding AGV Motion Requirements Before Selecting a Motor

Before comparing BLDC motors and servo motors, it is important to understand what an AGV drive system needs.

An AGV motor must provide:

• High starting torque for heavy loads

• Smooth acceleration and deceleration

• Stable low-speed operation

• High energy efficiency

• Reliable continuous operation

• Accurate speed control

• Compact installation dimensions

Unlike industrial machines with fixed positions, AGVs are mobile systems that constantly start, stop, accelerate, and change direction.

Therefore, the ideal motor must balance:

• Torque output

• Speed control

• Efficiency

• Cost

• Integration complexity

BLDC Motor for AGV Applications

A Brushless DC motor (BLDC motor) is an electronically commutated motor that uses permanent magnets and electronic controllers instead of mechanical brushes.

BLDC motors are widely used in AGVs because they provide:

• High efficiency

• Long operating life

• Low maintenance requirements

• Compact structure

• Excellent speed performance

For many standard AGV platforms, BLDC motors provide an effective balance between performance and cost.

Advantages of BLDC Motors in AGV Systems

1. High Efficiency and Long Battery Life

Battery consumption is a major concern for AGV manufacturers.

BLDC motors typically provide higher efficiency compared with brushed motors because they eliminate brush friction and electrical losses.

Benefits include:

• Longer operating time per charge

• Reduced battery size requirements

• Lower operating costs

• Less heat generation

This makes BLDC motors especially suitable for:

• Warehouse transportation AGVs

• Delivery robots

• Mobile platforms

• Light-duty logistics robots

2. Compact Size and High Power Density

AGVs often have limited installation space. BLDC motors offer excellent power density, allowing manufacturers to design smaller vehicles.

Combined with a gearbox, BLDC motors can provide:

• Higher output torque

• Smaller mechanical footprint

• Flexible installation options

For example, a 24V BLDC geared motor can provide sufficient torque for compact AGVs while maintaining efficient battery operation.

3. Lower Cost Compared with Servo Systems

Cost control is important for many AGV applications.

Compared with complete servo systems, BLDC motors usually require:

• Lower initial investment

• Simpler control systems

• Easier maintenance

For AGVs that do not require extremely high positioning accuracy, BLDC motors can provide excellent performance at a competitive cost.

Limitations of BLDC Motors for AGV Applications

Although BLDC motors have many advantages, they may not be suitable for all AGV applications.

1. Limited Position Control Accuracy

Standard BLDC motors typically focus on speed control rather than precise positioning.

Without advanced feedback systems, they may have limitations in:

• Position accuracy

• Synchronization

• Dynamic response

For applications requiring millimeter-level positioning, servo motors are usually preferred.

2. Lower Dynamic Response

AGVs requiring rapid acceleration, frequent direction changes, or precise motion control may require servo technology.

Examples include:

• Robotic transport platforms

• High-speed sorting AGVs

• Manufacturing process AGVs

Servo Motor for AGV Applications

A servo motor is a closed-loop motion control system that combines:

• Motor

• Encoder feedback

• Servo controller

• Advanced control algorithms

Servo motors continuously monitor actual movement and automatically adjust operation to maintain accurate speed and position.

For advanced AGV applications, servo motors provide superior motion performance.

Advantages of Servo Motors in AGV Systems

1. Precise Position and Speed Control

The biggest advantage of servo motors is accurate closed-loop control.

With encoder feedback, servo motors can continuously detect:

• Position deviation

• Speed changes

• Load variations

The controller can immediately compensate for errors.

This provides:

• Higher positioning accuracy

• Better repeatability

• Smooth movement

• Improved navigation performance

Servo motors are ideal for AGVs used in:

• Smart factories

• Automated assembly lines

• Precision logistics systems

2. Excellent Dynamic Performance

Servo motors provide faster response during:

• Acceleration

• Deceleration

• Direction changes

• Load variation

This is important for AGVs that need:

• Rapid movement

• Precise stopping

• Frequent path changes

For example, AMRs operating in crowded environments require fast and accurate motion adjustment to avoid obstacles.

3. Strong Overload Capability

AGVs often experience temporary overload conditions during:

• Starting with heavy loads

• Climbing ramps

• Sudden acceleration

Servo motors can provide higher short-term torque output, improving system reliability.

Advantages include:

• Better load handling

• Faster recovery from disturbances

• More stable operation

BLDC Motor vs Servo Motor for AGV Applications

When Should You Choose a BLDC Motor or an Integrated Servo Motor for AGV Applications?

Selecting the right motor is one of the most important decisions in AGV (Automated Guided Vehicle) design. The drive motor directly affects the vehicle’s load capacity, movement accuracy, battery efficiency, operating speed, reliability, and overall system cost.

Although BLDC motors and integrated servo motors are both widely used in AGV and AMR applications, they are designed for different performance requirements.

A BLDC motor is often preferred for applications that require high efficiency, reliable transportation, and cost-effective operation, while an integrated servo motor is better suited for AGVs that require precise motion control, high dynamic response, and intelligent communication capabilities.

Understanding the differences between these two motor solutions helps AGV OEM manufacturers select the most suitable drive system for their specific application.

When Should You Choose a BLDC Motor for AGV Applications?

A Brushless DC Motor (BLDC motor) is an efficient, compact, and reliable motor solution commonly used in mobile robots and automated transportation equipment.

BLDC motors use electronic commutation instead of mechanical brushes, providing:

• High efficiency

• Long service life

• Low maintenance

• Compact size

• Stable continuous operation

For many AGV applications, especially those focused on transportation rather than precision positioning, BLDC motors provide an excellent balance between performance and cost.

1. Choose a BLDC Motor When Cost Efficiency Is a Priority

For many AGV manufacturers, controlling the total system cost is an important consideration.

Compared with complete servo systems, BLDC motors generally offer:

• Lower motor cost

• Simpler control architecture

• Easier installation

• Reduced maintenance requirements

They are ideal for AGVs where the main purpose is moving materials from one location to another without requiring extremely high positioning accuracy.

Typical applications include:

• Warehouse transport AGVs

• Factory logistics carts

• Delivery robots

• Mobile inspection robots

• Service robots

In these applications, the priority is usually:

Reliable movement + long operating time + reasonable cost

rather than ultra-high motion accuracy.

2. Choose a BLDC Motor for Long Continuous Operation

Battery efficiency is critical for AGVs because most vehicles operate using rechargeable batteries.

A high-efficiency BLDC motor helps improve:

• Operating time per charge

• Energy utilization

• Battery lifetime

• Overall operating efficiency

BLDC motors are especially suitable for AGVs that:

• Run continuously for many hours

• Travel long distances

• Perform repetitive transportation tasks

For example, a warehouse AGV operating several shifts per day benefits from the low energy consumption and excellent thermal performance of BLDC technology.

3. Choose a BLDC Motor for Medium-Speed Transportation Applications

Many AGVs do not require extreme acceleration or positioning accuracy. They mainly need:

• Stable traveling speed

• Reliable torque output

• Smooth forward and reverse movement

A BLDC motor combined with a gearbox can provide:

• Higher output torque

• Lower operating speed

• Better load capability

Common configurations include:

• 24V BLDC geared motors

• 48V BLDC geared motors

• BLDC motors with planetary gearboxes

These solutions are widely used for:

• Indoor logistics AGVs

• Material handling vehicles

• Autonomous carts

4. Choose a BLDC Motor When Motion Accuracy Requirements Are Moderate

Not every AGV requires servo-level positioning.

If the vehicle mainly depends on:

• Magnetic navigation

• QR code navigation

• Laser navigation

• Basic path tracking

and does not require precise mechanical positioning, a BLDC motor can usually satisfy the requirements.

Suitable applications include:

• Transportation between production areas

• Warehouse movement

• Simple material transfer

When Should You Choose an Integrated Servo Motor for AGV Applications?

An integrated servo motor combines:

• Motor

• Servo driver

• Encoder

• Control electronics

• Communication interface

into one compact solution.

Unlike traditional BLDC motor systems, integrated servo motors provide closed-loop control, allowing the AGV controller to monitor and adjust motor performance in real time.

This makes them ideal for advanced AGV and AMR applications requiring higher intelligence and precision.

1. Choose an Integrated Servo Motor When High Positioning Accuracy Is Required

The biggest advantage of an integrated servo motor is precise motion control.

With encoder feedback, the system can continuously monitor:

• Actual position

• Rotation speed

• Torque changes

and automatically correct errors.

This provides:

• Accurate stopping

• Better repeatability

• Reduced positioning deviation

• Smooth low-speed movement

Integrated servo motors are recommended for AGVs used in:

• Smart factories

• Automated assembly lines

• Semiconductor production

• Precision manufacturing logistics

2. Choose an Integrated Servo Motor for High Dynamic Response

Some AGVs require frequent changes in movement conditions.

Examples include:

• Rapid acceleration

• Emergency stopping

• Quick direction changes

• Obstacle avoidance

These applications require motors with fast response capability.

Integrated servo motors provide:

• Faster acceleration response

• Better speed regulation

• Improved load adaptation

• More stable motion performance

This is especially important for AMRs (Autonomous Mobile Robots) operating in dynamic environments where paths and obstacles change constantly.

3. Choose an Integrated Servo Motor for Heavy-Duty AGVs

Heavy-load AGVs require high torque and excellent control performance.

Examples:

• Automotive manufacturing AGVs

• Heavy material transportation vehicles

• Factory pallet-moving robots

Integrated servo motors can provide:

• Higher overload capability

• Better torque control

• More stable operation under changing loads

When combined with a planetary gearbox, they deliver high torque density while maintaining a compact size.

4. Choose an Integrated Servo Motor When Space Is Limited

Modern AGV designs require smaller and smarter vehicle structures.

Traditional drive systems often include:

• Motor

• External driver

• Encoder

• Multiple cables

This increases installation space requirements.

Integrated servo motors reduce system complexity by combining multiple components into one unit.

Advantages include:

• Smaller electrical cabinet

• Reduced wiring

• Easier mechanical design

• Faster assembly

For compact AGVs and AMRs, this integration provides a significant advantage.

5. Choose an Integrated Servo Motor for Intelligent AGV Systems

Industry 4.0 and smart factory applications require AGVs to communicate with advanced control systems.

Integrated servo motors often support:

• CAN communication

• RS485 communication

• Pulse control

• Digital I/O

• Real-time feedback

This enables:

• Intelligent motion control

• Remote monitoring

• Fault diagnosis

• Fleet management integration

For manufacturers developing next-generation autonomous robots, integrated servo motors provide better scalability.

BLDC Motor vs Integrated Servo Motor for AGV Selection Comparison

Practical Selection Guide for AGV Manufacturers

Choose a BLDC Motor If Your AGV Needs:

✔ Cost-effective transportation solution

✔ Long battery operation time

✔ Stable traveling speed

✔ Medium load handling

✔ Simple control requirements

✔ Large-scale production with cost sensitivity

Typical examples:

• Warehouse transport AGVs

• Delivery robots

• Factory logistics carts

Choose an Integrated Servo Motor If Your AGV Needs:

✔ High positioning accuracy

✔ Precise speed control

✔ Fast acceleration response

✔ Heavy-load operation

✔ Advanced communication functions

✔ Compact integrated design

Typical examples:

• Industrial AGVs

• AMRs

• Smart factory robots

• Precision logistics systems

Conclusion: Selecting the Right AGV Motor Depends on Application Requirements

There is no single motor solution that fits every AGV design. The best choice depends on the vehicle’s performance requirements, operating environment, and cost objectives.

A BLDC motor is an excellent choice for AGVs focused on:

• Efficient transportation

• Long operation time

• Reliable performance

• Cost optimization

An integrated servo motor is the better choice for AGVs requiring:

• High precision

• Intelligent control

• Fast response

• Advanced automation capability

As AGV and AMR technology continues to evolve, more manufacturers are adopting integrated servo motor solutions because they provide higher integration, improved motion control, and greater flexibility for future automation systems. For high-performance AGV platforms, integrated servo motors are becoming a key technology for achieving smarter, faster, and more reliable autonomous mobility.

Key Questions to Ask Before Selecting an AGV Motor

Before choosing between a BLDC motor and servo motor, AGV designers should evaluate:

1. What Is the Maximum Load Capacity?

Calculate:

• Vehicle weight

• Payload weight

• Acceleration requirements

Higher loads usually require higher torque capability.

2. What Level of Position Accuracy Is Required?

Choose:

• BLDC motor for basic movement control

• Servo motor for precise positioning

3. How Frequently Does the AGV Start and Stop?

Frequent acceleration cycles require:

• Higher torque

• Faster response

• Better control performance

Servo motors are usually better in these situations.

4. What Is the Operating Time?

For battery-powered systems, evaluate:

• Daily operating hours

• Charging frequency

• Energy consumption

High-efficiency BLDC motors can be advantageous for long-running applications.

Conclusion: Selecting the Right Motor Depends on AGV Performance Requirements

Both BLDC motors and servo motors are excellent choices for AGV drive systems, but they serve different application needs.

Choose a BLDC motor when your AGV requires:

• High efficiency

• Cost-effective operation

• Reliable transportation

• Simple speed control

Choose a servo motor when your AGV requires:

• High positioning accuracy

• Fast dynamic response

• Advanced motion control

• Heavy-duty performance

For next-generation AGV and AMR applications, integrated servo motors combine the advantages of compact design, intelligent control, and high-performance motion, making them an increasingly preferred solution for OEM manufacturers seeking reliable and scalable automation systems.

Important Factors AGV OEM Buyers Should Evaluate Before Selecting a Motor Supplier

For AGV OEM buyers, choosing an integrated motor supplier is not just about finding a motor with the right voltage or power rating. The real question is:

Can the motor supplier provide a reliable motion solution that fits your AGV design, improves vehicle performance, and supports your future product development?

A good AGV motor supplier should understand the complete application — from load requirements and driving conditions to control systems and mechanical integration.

At Jkongmotor, we work closely with AGV and AMR manufacturers to provide integrated BLDC motor solutions that combine the motor, driver, and feedback system into one compact package. This helps OEM customers simplify their design, reduce wiring complexity, and develop more reliable automated vehicles.

1. Start With Understanding Your AGV Application, Not Just Motor Specifications

One common mistake when selecting an AGV motor is focusing only on basic parameters such as voltage, speed, and power.

In real AGV applications, motor selection depends on many factors, including:

• Vehicle weight

• Maximum payload

• Required driving speed

• Acceleration and braking requirements

• Wheel diameter

• Operating hours

• Floor conditions

• Battery voltage

• Navigation accuracy

• Working environment

For example, a small warehouse robot transporting lightweight packages and an industrial AGV carrying automotive parts may both use 24V or 48V systems, but their motor requirements are completely different.

A professional integrated motor supplier should help evaluate:

• Required torque

• Continuous load capability

• Peak load conditions

• Gear ratio selection

• Thermal performance

At Jkongmotor, we focus on understanding the complete AGV system before recommending a motor solution. This allows OEM customers to choose a motor that performs reliably in real working conditions, not just on paper.

2. Choose an Integrated Motor Solution to Simplify AGV Design

Traditional AGV drive systems usually require multiple separate components:

• BLDC motor

• External motor driver

• Encoder

• Additional wiring

• Control cabinet

While this approach can work, it creates several challenges:

• More complicated installation

• Larger electrical space requirements

• More cables inside the vehicle

• More potential connection failures

• Longer development time

This is why more AGV manufacturers are moving toward integrated BLDC motors and integrated servo motor solutions.

An integrated motor combines:

• Brushless DC motor

• Motor driver

• Encoder feedback

• Control electronics

into one compact unit.

For AGV OEM manufacturers, this means:

Less Wiring, Faster Assembly

A simplified wiring structure reduces installation time and makes vehicle assembly easier.

Smaller Vehicle Design

A compact motor solution gives engineers more flexibility to optimize:

• Battery placement

• Mechanical structure

• Vehicle size

Easier Troubleshooting

With fewer external components, maintenance becomes faster and system reliability improves.

Jkongmotor’s integrated BLDC motor solutions are designed to help AGV manufacturers reduce system complexity while achieving stable motion performance.

3. Evaluate Torque Performance, Not Only Motor Power

For AGV applications, torque is often more important than power.

An AGV motor needs enough torque to handle:

• Vehicle weight

• Payload changes

• Starting from zero speed

• Ramp climbing

• Frequent acceleration and stopping

A motor that has enough rated power but insufficient torque may still experience:

• Slow acceleration

• Motor overheating

• Reduced battery efficiency

• Poor driving performance

When selecting an integrated motor, AGV OEM buyers should carefully check:

• Rated torque

• Peak torque

• Speed range

• Overload capability

• Gearbox matching

Jkongmotor provides different integrated BLDC motor options for AGV applications, including compact solutions and higher-power models designed for heavier loads.

For example:

• IDC60 series integrated BLDC motors are suitable for compact and medium-load AGV platforms.

• IDC80 series integrated BLDC motors provide higher output capability for applications requiring stronger driving force.

The correct motor selection depends on the complete AGV design, not simply choosing the highest power model.

4. Check Motion Control Capability and Feedback Accuracy

Modern AGVs are becoming smarter. They need smoother movement, better navigation accuracy, and more stable operation.

A reliable AGV drive motor should provide:

• Accurate speed control

• Stable low-speed operation

• Smooth acceleration and deceleration

• Reliable feedback signals

For applications requiring higher accuracy, encoder feedback is essential.

With closed-loop control, the motor can continuously monitor:

• Actual speed

• Motor position

• Operating conditions

and automatically adjust performance.

This helps AGVs achieve:

• More accurate stopping

• Better path tracking

• Reduced vibration

• Improved navigation performance

For advanced AGV and AMR applications, integrated servo motor technology provides significant advantages compared with basic open-loop drive solutions.

5. Make Sure the Motor Supports Your AGV Control System

AGV manufacturers often use different control architectures depending on their vehicle design.

Before choosing a supplier, OEM buyers should confirm communication compatibility.

Important communication options include:

• CAN communication

• RS485 communication

• Pulse and direction control

• Digital input/output

A flexible motor supplier should be able to support different integration requirements.

At Jkongmotor, integrated motor solutions can be customized according to different AGV control systems, helping customers achieve easier integration with their existing controllers and software platforms.

6. Look for OEM and ODM Customization Capability

Every AGV manufacturer has different mechanical and electrical requirements.

A standard motor may not always fit perfectly into a customized AGV design.

Common customization requirements include:

Mechanical Customization

Such as:

• Shaft dimensions

• Mounting flange design

• Gearbox configuration

• Brake installation

• Cable direction

Electrical Customization

Such as:

• Voltage options

• Connector types

• Encoder selection

• Communication interfaces

Performance Customization

Such as:

• Speed adjustment

• Torque optimization

• Acceleration settings

• Protection functions

A supplier with strong OEM and ODM capability can help AGV manufacturers reduce development time and improve product competitiveness.

Jkongmotor specializes in customized motor solutions for automation equipment manufacturers, providing flexible configurations according to different application needs.

7. Consider Gearbox Integration for Higher Torque Applications

Most AGVs require:

• Low traveling speed

• High wheel torque

However, motors usually operate at higher speeds, so a gearbox is often required.

A properly matched gearbox can improve:

• Output torque

• Driving stability

• Load capability

Common gearbox options include:

• Planetary gearbox

• Spur gearbox

• Worm gearbox

For AGV applications, planetary gearboxes are widely used because they provide:

• High torque density

• Compact size

• High efficiency

• Strong mechanical durability

An integrated motor with gearbox options allows AGV designers to create a more compact and reliable drive system.

8. Check Protection Level and Reliability for Industrial Environments

AGVs may operate in different environments:

• Clean factories

• Warehouses

• Manufacturing workshops

• Dusty production areas

Therefore, motor reliability is critical.

Important factors include:

• IP protection rating

• Operating temperature range

• Vibration resistance

• Thermal design

• Component quality

For industrial AGVs operating continuously, a motor should provide stable performance under long working cycles.

Jkongmotor integrated BLDC motor solutions are designed for industrial automation applications where reliability and consistent performance are essential.

9. Evaluate Supplier Manufacturing Experience and Quality Control

For AGV OEM manufacturers, supplier stability is extremely important.

Before choosing a motor supplier, consider:

• Manufacturing experience

• Production capacity

• Quality inspection process

• Product consistency

• Technical support capability

A reliable supplier should have strict testing procedures, including:

• Motor performance testing

• Load testing

• Temperature testing

• Aging tests

This ensures that every motor delivered to the production line meets expected performance requirements.

10. Choose a Supplier That Can Support Your Long-Term Development

AGV products often go through multiple development stages:

• Prototype testing

• Engineering validation

• Small-batch production

• Mass production

During this process, motor requirements may change.

A good supplier should provide support with:

• Motor selection

• Sample testing

• Technical documentation

• Parameter adjustment

• Production scaling

At Jkongmotor, we work with OEM customers throughout the development process, helping optimize integrated motor solutions from initial design to mass production.

Why AGV OEM Manufacturers Choose Jkongmotor Integrated BLDC Motors

For modern AGV and AMR manufacturers, the ideal motor solution should provide:

✔ Compact integrated design

✔ High torque output

✔ Efficient battery operation

✔ Accurate motion control

✔ Flexible customization

✔ Reliable industrial performance

Jkongmotor integrated BLDC motors combine motor technology, drive electronics, and feedback control into one optimized solution, helping AGV manufacturers create smarter, more efficient, and more competitive automation equipment.

Conclusion: Choosing the Right Integrated Motor Supplier Is a Key Step for AGV Success

Selecting an integrated motor supplier is not only a purchasing decision — it is a long-term technology partnership.

AGV OEM buyers should evaluate:

• Application understanding

• Motor performance

• Control capability

• Customization ability

• Manufacturing quality

• Technical support

A supplier like Jkongmotor can help AGV manufacturers overcome motion system challenges by providing customized integrated BLDC motor solutions designed for real-world automation applications.

As AGVs and AMRs continue to evolve toward higher intelligence and greater efficiency, choosing the right integrated motor partner will become increasingly important for building reliable next-generation autonomous vehicles.

Future Trends of AGV Drive Motor Technology

AGV technology is moving toward:

• Higher integration

• Smaller motor sizes

• Greater intelligence

• More precise control

• Better energy efficiency

Future AGV motors will increasingly integrate:

• Smart communication

• Real-time monitoring

• Advanced feedback systems

• AI-based predictive maintenance

Integrated servo motor solutions will continue becoming the preferred choice for next-generation AGV and AMR manufacturers.

Conclusion: Selecting the Right AGV Drive Motor Requires System-Level Evaluation

Choosing an AGV drive motor requires more than selecting a motor based on power rating. A successful motor selection must consider torque, speed, load capacity, battery efficiency, control accuracy, and environmental conditions.

The correct motor solution should provide:

• Sufficient torque for payload handling

• Smooth and precise movement

• High efficiency for battery operation

• Compact integration

• Reliable long-term performance

For AGV OEM manufacturers, integrated BLDC motors and integrated servo motors with customized configurations provide an effective solution for improving vehicle performance, reducing development complexity, and achieving reliable automation.

By using the correct calculation methods and selecting the right motor technology, AGV designers can build safer, more efficient, and more competitive automated transportation systems.

Frequently Asked Questions

1. What type of motor is best for AGV applications?

The best motor for an AGV depends on the vehicle’s load capacity, speed requirements, control accuracy, operating environment, and budget. Integrated BLDC motors and integrated servo motors are commonly used for AGV drive systems because they provide high efficiency, compact design, and reliable motion control.

For standard material handling AGVs, an integrated BLDC motor is often a cost-effective choice due to its high efficiency, long service life, and low maintenance requirements. For advanced AGVs and AMRs requiring precise positioning, fast response, and intelligent control, an integrated servo motor is usually the better solution.

2. Why do AGV manufacturers use integrated BLDC motors?

AGV manufacturers use integrated BLDC motors because they combine the motor, driver, and control electronics into a compact solution, reducing system complexity.

The main advantages include:

• Reduced wiring and installation time

• Smaller control cabinet requirements

• Higher energy efficiency for battery-powered AGVs

• Reliable continuous operation

• Lower maintenance requirements

• Easier system integration

Integrated BLDC motors are especially suitable for warehouse AGVs, logistics robots, delivery robots, and autonomous mobile platforms that require efficient and reliable transportation.

3. What is the difference between BLDC motors and servo motors for AGVs?

The main difference between BLDC motors and servo motors is the level of motion control.

A BLDC motor is mainly designed for efficient speed control and continuous operation. It is suitable for AGVs that require reliable transportation and moderate positioning accuracy.

A servo motor uses closed-loop feedback with an encoder to provide precise control of speed, position, and torque. It is better suited for AGVs requiring:

• High positioning accuracy

• Fast acceleration and deceleration

• Precise stopping

• Dynamic obstacle avoidance

In simple terms:

BLDC motors focus on efficient movement, while servo motors focus on precise motion control.

4. How do I calculate torque requirements for an AGV motor?

AGV motor torque requirements depend on vehicle weight, payload, acceleration, wheel size, and operating conditions.

The basic calculation formula is:

Motor Torque (Nm) = Driving Force (N) × Wheel Radius (m)

The required driving force can be calculated by considering:

• Vehicle mass

• Acceleration force

• Rolling resistance

• Incline resistance

AGV manufacturers should also consider a safety factor to handle starting loads, uneven surfaces, and temporary overload conditions.

A professional motor supplier can help optimize motor selection based on the complete AGV mechanical design.

5. What communication options are available for AGV integrated motors?

Modern AGV integrated motors support different communication methods depending on the control system requirements.

Common communication options include:

• CANopen / CAN communication

• RS485 communication

• Pulse and direction control

• Digital input and output control

• Analog speed control

The right communication method depends on the AGV controller, PLC system, and overall automation architecture.

Flexible communication capability allows integrated motors to be easily adapted to different AGV and AMR platforms.

6. Can AGV motors be customized for OEM projects?

Yes. Professional AGV motor suppliers provide OEM and ODM customization services to meet different vehicle requirements.

Common customization options include:

• Motor voltage customization

• Torque and speed optimization

• Shaft and mounting design

• Gearbox integration

• Encoder selection

• Brake configuration

• Connector customization

• Communication protocol adjustment

Customized integrated motor solutions help AGV manufacturers improve vehicle performance while reducing development time.

7. Why choose an integrated motor instead of separate motor and driver systems?

Integrated motors simplify AGV system design by combining the motor, driver, and feedback components into one unit.

Compared with separate motor and driver systems, integrated motors provide:

• Less wiring complexity

• Smaller installation space

• Faster assembly

• Reduced failure points

• Easier maintenance

• Improved system reliability

For AGV OEM manufacturers, integrated motors can shorten development cycles and make the final vehicle more compact and efficient.

8. What factors should AGV manufacturers consider when selecting an integrated motor supplier?

AGV manufacturers should evaluate more than just motor specifications. Important factors include:

• AGV application experience

• Motor performance capability

• Torque and speed range

• Customization ability

• Quality control process

• Technical support

• Production capacity

A reliable integrated motor supplier should understand AGV motion requirements and provide a complete solution rather than only supplying a standard motor.

9. Are integrated BLDC motors suitable for heavy-duty AGV applications?

Yes, integrated BLDC motors can be used for heavy-duty AGV applications when properly matched with the correct gearbox, torque rating, and control system.

For heavier loads, AGV manufacturers typically consider:

• Higher power motors

• Higher torque output

• Planetary gearbox integration

• Closed-loop control options

• Enhanced thermal performance

The motor selection should be based on the total vehicle load, required acceleration, and operating environment.

10. Why are integrated servo motors becoming more popular in AGV and AMR systems?

Integrated servo motors are becoming increasingly popular because AGV and AMR systems are becoming smarter and require higher motion performance.

They provide:

• Accurate position feedback

• Faster response

• Better low-speed stability

• Improved navigation accuracy

• Intelligent communication capability

As industries move toward smart factories and autonomous logistics, integrated servo motors help AGV manufacturers create more compact, precise, and reliable mobile robots.

Looking for a reliable integrated motor solution for your AGV or AMR project?

Jkongmotor provides customized integrated BLDC motor and servo motor solutions designed for automated guided vehicles, mobile robots, and intelligent logistics systems. With flexible OEM/ODM customization, optimized torque performance, compact integrated design, and professional technical support, we help AGV manufacturers build more efficient, reliable, and competitive motion systems.

Whether you need a 24V or 48V integrated motor, high-torque geared motor, encoder feedback solution, or customized drive system, our engineering team can help you select and optimize the right motor for your application.

Contact Jkongmotor today to discuss your AGV motor requirements and develop a motion solution that fits your vehicle design.
