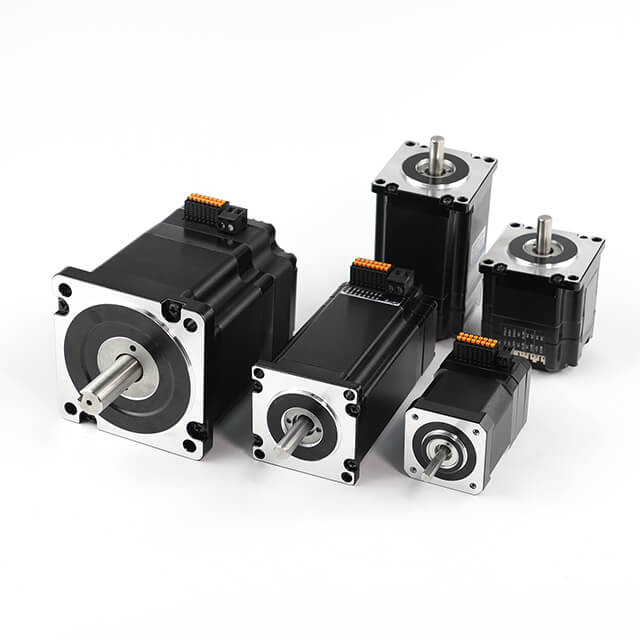

A closed-loop stepper motor is an advanced type of stepper motor system that integrates a feedback mechanism—typically an encoder—to continuously monitor the motor's position, speed, and direction. Unlike traditional open-loop stepper motors, which operate without feedback and assume the motor reaches each commanded position, closed-loop systems verify and correct the motor's actual performance in real time.
A closed-loop stepper motor operates on the same basic principle as a traditional stepper motor, but with one key difference — it includes a feedback system, typically an encoder, that continuously monitors the motor's actual position and speed. This feedback allows the motor controller to make real-time corrections, ensuring accurate movement, stable operation, and zero missed steps.
Let's break down how it works step by step:
The process begins when the motion controller or PLC (Programmable Logic Controller) sends a command signal to the stepper motor driver.
This signal specifies:
The number of steps (or rotation angle) the motor must move,
The direction of rotation, and
The speed of the movement.
Each step corresponds to a specific degree of rotation (e.g., 1.8° for a standard 200-step motor).
The motor driver interprets the incoming command and energizes the motor coils in a specific sequence.
By controlling the polarity and timing of the current in these coils, the driver moves the rotor step by step.
In a closed-loop system, the driver also regulates the current dynamically, supplying more power when higher torque is needed and reducing it when the load is lighter. This ensures efficient operation and lower heat generation.
An encoder, mounted on the rear shaft of the motor, continuously measures:
The exact position of the rotor,
The rotation direction, and
The speed of the shaft.
It sends this data as feedback signals to the motor driver in real time.
The motor driver acts as the system's “brain.”
It constantly compares the commanded position (from the controller) with the actual position (from the encoder feedback).
If the motor lags, overshoots, or deviates due to a change in load or friction, the driver instantly adjusts the current and phase timing to correct the error.
This closed feedback loop allows the system to self-correct without losing synchronization or accuracy.
If an external force resists the motor's movement or increases its load, the closed-loop driver detects the difference between the desired and actual positions.
It automatically increases the current to generate more torque until the correct position is reached.
Once the load normalizes, the driver reduces current again to prevent overheating and maintain efficiency.
Thanks to continuous feedback, the closed-loop stepper motor achieves:
Smooth acceleration and deceleration,
Reduced vibration and noise, and
Improved positioning accuracy, even at higher speeds.
This makes it ideal for applications where precision and reliability are critical, such as CNC machines, robotic arms, and 3D printers.
A closed-loop stepper motor works by combining precise step control with real-time feedback correction. The encoder constantly monitors the motor's movement, and the driver automatically adjusts performance to match the target position.
This closed feedback mechanism ensures no missed steps, higher torque efficiency, and greater accuracy, making it a superior choice for modern motion control systems.
A closed-loop stepper motor system consists of several critical components that work together to provide precise, efficient, and stable motion control. Each component plays a specific role in ensuring that the motor operates smoothly, maintains accuracy, and corrects any errors in real time. Below are the key components and their functions explained in detail.
The stepper motor is the central mechanical component of the system.
It converts electrical pulses into precise mechanical movement, with each pulse corresponding to a small rotation (or “step”) of the motor shaft.
Constructed with a stator (stationary part) containing coils and a rotor (moving part) with permanent magnets.
Moves in discrete steps, typically 1.8° per step for standard models.
Provides high positioning accuracy without needing a gearbox in many applications.
In a closed-loop configuration, the stepper motor's movement is continuously monitored and adjusted based on feedback from the encoder, ensuring it never loses synchronization.
The encoder is a feedback sensor mounted on the motor shaft. It measures the rotational position, speed, and direction of the motor in real time.
There are two main types of encoders used:
Incremental Encoders: Provide relative position feedback by generating a series of pulses as the motor rotates.
Absolute Encoders: Provide the exact shaft position even when the power is turned off.
Sends continuous feedback signals to the motor driver.
Allows the system to detect and correct any positional errors instantly.
Ensures no missed steps, improved torque control, and smoother motion.
Without an encoder, a stepper motor runs “open-loop” — assuming it reaches its target position, even if it doesn't.
The motor driver, sometimes called the closed-loop driver or motion controller, is the brain of the system. It interprets control commands from the host controller and regulates the motor's electrical current based on encoder feedback.
Receives motion commands (step, direction, and enable signals).
Compares the commanded position with the actual feedback from the encoder.
Adjusts current, voltage, and phase timing dynamically to correct errors.
Prevents overheating by supplying only the required current.
The driver is what makes the system “closed-loop,” since it performs real-time correction to maintain accurate positioning and speed.
The power supply provides the necessary electrical energy to both the motor and the driver.
Closed-loop stepper systems typically use DC power supplies, but the voltage and current ratings depend on the motor's size and application.
Supplies stable and sufficient current for high torque performance.
Ensures consistent power delivery during acceleration and deceleration phases.
Protects the system against overvoltage or short circuits (in advanced models).
A clean, regulated power source is essential for reliable and stable motor operation.
The controller (or motion control system) acts as the command center of the entire setup.
It generates motion profiles — such as step counts, direction, speed, and acceleration — and sends them to the driver.
PLCs (Programmable Logic Controllers)
Microcontrollers (like Arduino, STM32, or Raspberry Pi)
Industrial motion control software
In complex automation systems, the controller can also communicate with multiple drivers over networks like CANopen, Modbus, or Ethernet, ensuring synchronized motion among multiple axes.
Some closed-loop stepper systems include advanced communication interfaces for programming and monitoring.
RS-485 / Modbus RTU: For industrial automation integration.
CANopen / EtherCAT: For high-speed communication with other devices.
USB or Serial Interface: For PC-based setup and tuning.
These interfaces allow engineers to configure parameters, monitor performance, and diagnose errors efficiently.
| Component | Function |
|---|---|
| Stepper Motor | Converts electrical pulses into precise rotational motion. |
| Encoder | Provides real-time feedback on position and speed. |
| Motor Driver | Compares command and feedback, correcting errors dynamically. |
| Power Supply | Delivers stable electrical energy to the system. |
| Controller | Sends motion commands to control position, speed, and direction. |
| Communication Interface | Enables advanced configuration and monitoring. |
Together, these components form a high-performance closed-loop stepper motor system capable of precise, efficient, and smooth motion control.
The encoder feedback ensures accuracy, the driver maintains synchronization, and the controller provides intelligent command signals — resulting in a smart, self-correcting motion system ideal for automation, robotics, CNC, and precision machinery applications.
Closed-loop stepper motors are revolutionizing motion control systems across industries such as robotics, automation, CNC machining, and medical equipment. These advanced motors combine the precision of stepper technology with the feedback control of servo systems, ensuring higher torque, accuracy, and efficiency. Below, we highlight the top 25 closed-loop stepper motor manufacturers in the United States, detailing their profiles, main products, and key advantages.
Founded in 1978 and headquartered in Watsonville, California, Applied Motion Products is a leading innovator in motion control solutions, specializing in stepper and servo systems.
Closed-loop stepper motors
Integrated motor drives
CANopen and Ethernet-compatible motion controllers
Applied Motion Products is renowned for high-performance hybrid stepper motors and advanced closed-loop control technology that delivers smooth motion, reduced heat generation, and precise torque control.
Located in Anaheim, California, Anaheim Automation has been a trusted closed loop stepper motor manufacturer of motion control products since 1966.
Closed-loop stepper motor systems
Servo motors and controllers
Planetary gearboxes and drives
The company offers cost-effective yet high-quality solutions, with customizable closed-loop systems for industrial automation, 3D printing, and robotics applications.
A subsidiary of the global Oriental Motor Co., Ltd., this closed loop stepper motor company has a strong presence in Torrance, California.
Closed-loop stepper motors (AlphaStep Series)
Brushless DC motors
AC motors and linear actuators
Their AlphaStep closed-loop stepper motors are famous for combining stepper simplicity with servo-like precision, ensuring quiet operation and high responsiveness.
A leading closed loop stepper motor manufacturer founded in 1987 in Morgan Hill, California, Lin Engineering is known as “The Step Motor Specialists.”
Hybrid stepper motors
Closed-loop systems
Integrated motion solutions
Lin Engineering provides low-noise, high-torque motors tailored to custom specifications, ensuring excellent reliability and precision in automation and medical equipment.
With over 100 years of motion innovation, Kollmorgen, based in Radford, Virginia, is a leading closed loop stepper motor manufacturer in advanced motion control systems.
Closed-loop stepper motors
AKM servo motors
Drives and automation software
Kollmorgen motors feature exceptional torque density, reliability, and real-time feedback systems, ideal for robotics and aerospace applications.
Moons' Industries is a leading closed loop stepper motor manufacturer and operates globally with a U.S. headquarters in Chicago, Illinois, delivering advanced motion control solutions.
Closed-loop stepper motors
Linear actuators
Integrated motion systems
Moons' products are known for precision engineering, efficient control, and intelligent feedback systems that ensure optimal performance under dynamic loads.
Jkongmotor is a professional supplier of motion control components, including closed-loop stepper systems.
Closed-loop stepper motors and drivers
NEMA stepper motors
CNC-compatible motion controllers
Jkongmotor stands out for competitive pricing, large inventory, and fast global delivery for both industrial and educational use.
A leading closed loop stepper motor manufacturer based in Terryville, Connecticut, AMCI is a specialized manufacturer of motion control and automation components.
Integrated stepper motor drives
Closed-loop control systems
PLC-compatible modules
AMCI is a leading closed loop stepper motor manufacturer and provides seamless PLC integration, rugged designs, and real-time diagnostics, making their systems ideal for harsh industrial environments.
A globally recognized leader headquartered in Cleveland, Ohio, Parker Hannifin delivers precision motion and control technologies.
Closed-loop stepper motors
Servo drives and controllers
Linear motion systems
Parker offers durable, high-performance systems optimized for industrial automation, aerospace, and medical applications.
A leading closed loop stepper motor manufacturer located in Rochester, New York, Teknic is known for its advanced motion control innovations.
ClearPath integrated servo and stepper systems
Closed-loop hybrid stepper motors
Teknic's ClearPath-SD line combines the benefits of stepper and servo systems, delivering whisper-quiet operation and superior torque efficiency.
A leading closed loop stepper motor manufacturer based in Marlborough, Connecticut, this division of Schneider Electric focuses on motion control technologies.
Closed-loop stepper drives
MDrive integrated motor systems
Servo control solutions
Their MDrive integrated motors are renowned for compact design, precise control, and easy integration into automation networks.
Leadshine USA, a leading closed loop stepper motor manufacturer based in California, provides innovative motion control products tailored for automation industries.
Closed-loop stepper systems
Digital servo drives
Motion controllers
Leadshine offers robust, high-accuracy, and cost-effective solutions, popular among CNC and 3D printing manufacturers.
A leading closed loop stepper motor manufacturer based in Austin, Texas, NI is known for its advanced testing and motion control systems.
Motion controllers
Closed-loop stepper control modules
Real-time feedback systems
NI's systems ensure seamless integration with LabVIEW software, providing superior flexibility and precision in automation setups.
Trinamic, with U.S. operations in Texas, is a leading closed loop stepper motor manufacturer and specializes in intelligent motion control semiconductors and modules.
Closed-loop stepper drivers
Motor control ICs
Evaluation kits for developers
Trinamic is known for high-efficiency drive algorithms and silent operation technology, ideal for compact automation systems.
A leading closed loop stepper motor manufacturer headquartered in Ontario with U.S. operations, Electromate distributes advanced motion control components.
Closed-loop stepper motors
Servo and robotic actuators
Precision drives and controls
Electromate's strength lies in custom-engineered solutions and partnerships with top-tier manufacturers.
A leading closed loop stepper motor manufacturer based in Cumming, Georgia, AutomationDirect is a well-known supplier of industrial automation components. Since 1994, the company has grown into one of the leading online distributors of motion control and automation equipment in the United States.
Closed-loop stepper motor systems
Programmable logic controllers (PLCs)
AC drives and power supplies
Industrial sensors and accessories
AutomationDirect is recognized for competitive pricing, comprehensive online resources, and fast delivery. Their closed-loop stepper systems offer high torque, smooth operation, and precise motion control, making them ideal for small-scale and industrial automation applications.
A leading closed loop stepper motor manufacturer headquartered in Winfield, Kansas, ServoCity specializes in modular motion systems for hobbyists, educational institutions, and industrial automation projects.
Closed-loop stepper motor kits
Servo motors and controllers
Robotics building systems
Actobotics motion components
ServoCity stands out for its modular design approach, enabling easy integration of closed-loop stepper motors into custom-built robots and automation projects. Their Actobotics system provides unmatched flexibility for prototyping and engineering applications.
A leading closed loop stepper motor manufacturer founded in 1905 and located in Chicago, Illinois, Bodine Electric Company has over a century of experience in motion control innovation.
Hybrid and closed-loop stepper motors
Gearmotors and DC motors
AC and brushless DC drives
Bodine is known for compact, energy-efficient designs and long-lasting reliability. Their closed-loop stepper motors deliver smooth, vibration-free performance, particularly suited for automation and medical device industries.
BesFoc Motor is a global motion solutions provider specializing in precision-engineered motor systems.
Closed-loop stepper and servo motors
Integrated motion drives
Linear actuators and gear motors
BesFoc offers custom-engineered closed-loop systems optimized for demanding environments. Their motors feature low noise, high torque density, and superior feedback control, making them ideal for robotics and industrial automation.
Operating from Plymouth, Michigan, Johnson Electric is a global leading closed loop stepper motor manufacturer in electric motor and motion subsystem solutions.
Closed-loop hybrid stepper motors
Brushless DC motors
Motion subsystems and actuators
Johnson Electric emphasizes energy efficiency, precision control, and compact design. Their closed-loop systems are widely used in automotive, medical, and industrial automation applications, ensuring optimal motion accuracy and durability.
A leading closed loop stepper motor manufacturer located in Mount Prospect, Illinois, GAM Enterprises has over 30 years of experience in motion control and mechanical engineering.
Precision gearboxes
Closed-loop stepper motor systems
Couplings and linear mounting kits
GAM combines German engineering precision with American manufacturing excellence. Their closed-loop motion products are known for tight control, low backlash, and superior mechanical performance across automation and robotics sectors.
A leading closed loop stepper motor manufacturer headquartered in West Chester, Pennsylvania, Portescap is a leading provider of miniature motor technologies for precision motion applications.
Closed-loop stepper motors
Miniature brushless DC motors
Linear actuators and gear motors
Portescap is renowned for miniaturized yet powerful designs, offering high efficiency, low noise, and compact form factors ideal for medical devices, aerospace, and laboratory automation.
A leading closed loop stepper motor manufacturer based in St. Louis, Missouri, Nidec Motion Control is part of the global Nidec Corporation, a pioneer in precision motor technologies.
High-torque closed-loop stepper motors
Brushless DC and AC motors
Motion controllers and encoders
Nidec's closed-loop systems feature robust torque output, superior speed regulation, and long operational life. Their motors are engineered for heavy-duty industrial and automotive applications requiring precise motion control.
A leading closed loop stepper motor manufacturer located in Hawthorne, New Jersey, ServoTek Products has been manufacturing motion control components since 1966, serving aerospace, defense, and automation industries.
Tachometers and encoders
Closed-loop feedback control systems
Stepper motor accessories
ServoTek's products deliver high signal accuracy and durable feedback mechanisms essential for maintaining closed-loop control precision. They are trusted for their custom engineering and reliability in mission-critical systems.
LeanMotor designs and manufactures compact motion control solutions for OEM and industrial use.
Closed-loop stepper controllers
Servo and stepper motor drivers
Programmable motion control modules
LeanMotor excels in miniaturized, high-performance motion controllers that are easy to program and integrate. Their closed-loop systems provide smooth motion, low resonance, and superior position accuracy for compact automation equipment.
Closed-loop stepper motors combine the precise positioning capability of traditional stepper motors with the real-time feedback control of servo systems. This hybrid design provides a powerful balance of accuracy, efficiency, and reliability, making them a preferred choice in modern automation and robotics. Below are the key advantages explained in detail:
In traditional open-loop stepper systems, the motor assumes it has reached its target position — but without feedback, it can lose steps under heavy load or acceleration.
A closed-loop system eliminates this problem by using an encoder to constantly monitor the motor's position. If the rotor lags or overshoots, the driver automatically adjusts the current and phase to bring it back on track.
✅ Result: 100% positional accuracy and no lost motion, even under variable load conditions.
Closed-loop stepper motors dynamically control the current supplied to the motor windings.
During acceleration or under increased load, the driver automatically boosts the current to provide extra torque. At higher speeds, feedback ensures that the motor maintains synchronization and stability.
✅ Result: More torque at high RPM, smoother acceleration, and faster motion compared to open-loop systems.
Open-loop stepper motors constantly draw full rated current, even when idle or lightly loaded, leading to excess heat and wasted energy.
Closed-loop stepper systems intelligently adjust current based on real-time torque demand — supplying power only when needed.
✅ Result: Cooler operation, lower energy consumption, and longer motor lifespan.
Because of continuous feedback and real-time error correction, closed-loop stepper motors operate with less vibration, resonance, and noise.
This makes them ideal for applications where smooth motion and low acoustic levels are important, such as in medical devices, laboratory instruments, and camera systems.
✅ Result: Whisper-quiet motion with minimal mechanical wear.
One of the greatest strengths of a closed-loop system is its self-correcting ability.
When disturbances or overloads occur, the encoder instantly detects the deviation, and the driver compensates by increasing torque or adjusting phase timing.
✅ Result: Real-time correction and consistent performance under changing conditions.
Because the driver has precise feedback from the encoder, it can safely and accurately accelerate or decelerate the motor without losing synchronization.
This allows for shorter cycle times, improved motion response, and higher throughput in production or automation systems.
✅ Result: Enhanced productivity and responsiveness.
Feedback monitoring ensures the system instantly detects any mechanical obstruction, overload, or system fault.
The motor driver can respond by reducing power, stopping motion, or triggering an alarm signal to prevent damage.
✅ Result: Greater operational safety, especially in industrial environments.
Closed-loop stepper motors offer many of the benefits of servo systems—like feedback control, high speed, and precision—but at a lower cost and simpler setup.
They don't require tuning, complex programming, or expensive encoders typical of servo systems.
✅ Result: Servo-like performance in a compact, affordable package.
The closed-loop design ensures that the motor always operates within its optimal performance range.
By supplying current only when required and reducing losses from missed steps, these systems achieve greater overall efficiency and lower maintenance requirements.
✅ Result: Better performance-to-power ratio and long-term reliability.
Many modern closed-loop systems feature smart drivers with communication interfaces (e.g., RS-485, CANopen, Modbus).
These allow engineers to monitor position, speed, temperature, and load conditions in real time.
✅ Result: Easier troubleshooting, predictive maintenance, and optimized system performance.
| Advantage | Description |
|---|---|
| No Missed Steps | Feedback ensures exact position accuracy. |
| Higher Torque & Speed | Dynamic current control delivers superior torque. |
| Energy Efficient | Reduced power consumption and heat generation. |
| Smooth Motion | Low vibration and quiet operation. |
| Self-Correcting | Automatically compensates for load variations. |
| Fast Response | Improved acceleration and motion control. |
| Safe & Reliable | Monitors overloads and prevents damage. |
| Servo-like Precision | Comparable to servo systems at a lower cost. |
| High Efficiency | Optimized performance across varying loads. |
| Smart Monitoring | Built-in feedback diagnostics and reporting. |
Closed-loop stepper motors provide the perfect blend of accuracy, power, and efficiency. By combining real-time feedback with advanced control, they overcome the limitations of traditional open-loop systems — offering no missed steps, higher torque, smoother motion, and greater reliability.
These advantages make them ideal for CNC machines, robotics, packaging systems, 3D printers, and automated assembly lines, where precision and performance are critical.
Closed-loop stepper motors combine the precision of traditional stepper motors with the intelligence and stability of servo systems, making them highly versatile across various industries. Their ability to deliver accurate positioning, high torque, smooth motion, and automatic error correction makes them ideal for applications where both reliability and performance are crucial.
Below are the most common and impactful applications of closed-loop stepper motors across different sectors.
In CNC (Computer Numerical Control) machines such as milling machines, lathes, routers, and laser cutters, closed-loop stepper motors ensure precise tool positioning and smooth motion control.
Because feedback from the encoder prevents missed steps, these motors maintain dimensional accuracy even under varying cutting loads or speed changes.
Maintains consistent cutting accuracy and surface finish quality
Reduces vibration and tool wear
Prevents part rejection due to step loss
Common Uses: CNC routers, engraving machines, plasma cutters, and automated drilling systems.
In robotic systems, closed-loop stepper motors provide the balance between servo-like responsiveness and stepper-level precision. Their real-time feedback enables precise joint positioning and stable motion control—crucial for robotic arms and autonomous systems.
High torque at low speed ensures steady joint movement
Error correction for reliable repeatability
Smooth motion for delicate operations (e.g., pick-and-place tasks)
Common Uses: Industrial robotic arms, collaborative robots (cobots), mobile robots, and assembly automation systems.
In 3D printing, precise motion control directly impacts the print quality, resolution, and repeatability. Closed-loop stepper motors deliver smoother and more accurate layer positioning while reducing noise and heat.
Consistent extrusion and accurate layer deposition
Reduced step loss during long prints
Quieter operation and improved print surface finish
Common Uses: Industrial 3D printers, multi-material printers, and resin-based precision printing systems.
In medical and scientific instruments, precision and reliability are paramount. Closed-loop stepper motors are used in devices that require fine motion control and feedback accuracy, ensuring smooth operation without the risk of overheating or vibration.
Precise control for fluid handling and dosing systems
Stable operation for microscopy and imaging systems
Silent performance suitable for clinical environments
Common Uses: Syringe pumps, centrifuges, X-ray positioning systems, and automated analyzers.
In packaging and labeling applications, synchronization between conveyors, rollers, and print heads is critical. Closed-loop stepper motors maintain exact speed and position synchronization, even under changing loads or rapid acceleration.
Accurate label placement and cutting control
Real-time correction for variable packaging speeds
Energy-efficient operation under continuous duty
Common Uses: Label applicators, sealing machines, filling systems, and carton erectors.
The textile industry requires fast yet controlled movement of threads and fabrics. Closed-loop stepper motors provide steady torque, precise speed control, and low vibration, which are essential for consistent fabric quality.
Prevents thread breakage due to smooth acceleration
Maintains pattern alignment during high-speed weaving
Reduced maintenance from cooler motor operation
Common Uses: Automated looms, knitting machines, and embroidery systems.
In digital printing, plotting, and scanning systems, closed-loop stepper motors ensure exact positioning of print heads or scanning mechanisms. The feedback mechanism prevents misalignment and guarantees uniform image quality.
High-speed precision movement
Smooth operation for accurate color registration
Automatic correction for any missed steps
Common Uses: Large-format printers, barcode printers, scanners, and industrial inkjet machines.
Closed-loop stepper motors are widely used in automated conveyor belts and material handling equipment, providing efficient motion control without requiring complex servo systems.
Stable motion at variable speeds
Load compensation to maintain uniform speed
Low heat generation for continuous-duty operation
Common Uses: Assembly line conveyors, sorting systems, automated warehouses, and palletizers.
The semiconductor and electronics industries demand micron-level accuracy in motion control. Closed-loop stepper motors meet these demands by providing ultra-precise positioning and stable operation.
Zero-step loss for high-precision component placement
Reduced vibration for sensitive operations
Fast and accurate motion in compact spaces
Common Uses: PCB drilling, SMT pick-and-place machines, wafer handling systems, and testing equipment.
Closed-loop stepper motors are used in camera gimbals, optical zoom systems, and automated surveillance equipment to achieve precise and smooth movement.
Accurate tracking and positioning control
Quiet motion, ideal for video stabilization
High repeatability in pan, tilt, and zoom operations
Common Uses: Security cameras, telescopes, and microscope stages.
In food automation, closed-loop stepper motors drive mechanisms like dispensers, cutters, conveyors, and packaging systems, providing clean, reliable motion with precise control.
Sanitary and smooth operation
Energy-efficient torque control
Minimal downtime due to automatic correction
Common Uses: Portioning systems, filling machines, labeling, and wrapping equipment.
For aerospace systems, where precision and reliability are mission-critical, closed-loop stepper motors ensure stable control even under extreme conditions.
Accurate actuation for control surfaces and sensors
Stable feedback control under high vibration
Compact and durable design for harsh environments
Common Uses: Satellite mechanisms, antenna positioners, and UAV gimbal control.
The closed-loop stepper motor is a cornerstone of modern motion control — combining precision, reliability, and efficiency. From CNC machining to medical instruments and robotics, these motors enable accurate, smooth, and energy-efficient performance in nearly every automation field.
In the world of motion control systems, choosing between closed-loop and open-loop stepper motors can make a significant difference in performance, precision, and efficiency. Both types of motors serve crucial roles in industrial automation, robotics, CNC machinery, and 3D printing — but understanding their functional differences, advantages, and best-use scenarios is essential for optimal system design.
In an open-loop configuration, the controller → driver → motor sequence operates independently of performance feedback. Each step pulse from the controller energizes the motor coils sequentially, generating a magnetic field rotation that drives the rotor.
While this process offers simplicity, the absence of monitoring means that any deviation from expected behavior (such as inertia or mechanical resistance) results in position errors.
A closed-loop stepper adds an encoder at the motor's rear shaft. The encoder sends position feedback signals to the controller, forming a control loop. The system compares the desired position with actual position data and automatically adjusts current or speed to correct discrepancies.
This feedback mechanism allows error-free motion, even under sudden load changes, and enables faster acceleration and deceleration profiles.
| Feature | Open-Loop Stepper Motor | Closed-Loop Stepper Motor |
|---|---|---|
| Feedback | None | Encoder or sensor-based |
| Accuracy | Moderate (possible step loss) | High (automatic correction) |
| Torque | Constant but can stall | High and adaptive |
| Speed | Limited at high torque | Sustained at higher speeds |
| Efficiency | Constant power draw | Variable power draw (load-based) |
| Heat Generation | High | Lower due to current optimization |
| Cost | Lower | Higher (due to sensors and drivers) |
| Complexity | Simple wiring | Advanced setup required |
| Application | Low-precision or low-load systems | High-precision or dynamic systems |
The application requires basic motion control.
Load variations are minimal.
Cost sensitivity is a priority.
Slight positional errors are tolerable.
Used in 3D printers, light CNC routers, or camera sliders.
High accuracy and torque are required.
The system experiences variable loads or rapid changes in direction.
Heat and efficiency must be optimized.
Industrial automation, robotics, or precision cutting machines demand stable, real-time feedback.
While closed-loop stepper motors come with a higher initial cost, they offer long-term savings through improved efficiency, reduced downtime, and extended lifespan. On the other hand, open-loop systems remain the best choice for low-cost and low-complexity setups where performance demands are moderate.
Modern control technology allows the integration of hybrid stepper systems, combining open-loop simplicity with closed-loop precision. These systems can switch between open and closed modes, optimizing performance and energy consumption depending on the load.
Such smart stepper drivers are increasingly adopted in CNC machines, pick-and-place equipment, and automation lines, where adaptive performance is crucial.
The decision between closed-loop vs. open-loop stepper motors depends on your application's precision, load dynamics, and budget.
If your goal is high accuracy, efficient performance, and reliability, a closed-loop system is the superior choice. However, for cost-sensitive projects where simplicity and predictable motion suffice, an open-loop system remains a practical option.
By understanding their core differences and strengths, engineers can design motion systems that perfectly balance cost, control, and performance.
These top 25 closed-loop stepper motor manufacturers in the United States represent the best in innovation, engineering precision, and performance reliability. From large-scale industrial automation to compact robotics, these companies deliver solutions that drive the future of motion control technology.
The U.S. closed-loop stepper motor market is thriving, with each manufacturer contributing unique technologies and engineering expertise. Whether you're building a CNC machine, robotic arm, or automated conveyor, these manufacturers deliver precision, reliability, and smart control features that meet the most demanding motion requirements.
