Nema 17 JK42BLS02 Square Head 4000rpm 24V 0.125N.m 52.5W 3.3A Ф42x42x61mm Brushless Bldc Dc Motor

Type: 42mm 24V 52.5W Brushless Dc Motor

Phase: 3
Poles: 8
Rated Torque: 0.125N.m
Rated Current: 3.3A

Body Length: 61mm
Customized Parts: Motors, Gearboxes, Encoders, Brakes, Integrated Drivers...

Model:
JK42BLS02
Brand:
Jkongmotor
Rated Speed:
4000rpm
Bldc Poles:
8 poles
Bldc Motor Size:
Nema17 (42mm)
Rated Voltage:
24V
MOQ:
10 Pcs


Availability:



Inquire

Jkongmotor Nema 17 24v brushless dc motor (JK42BLS02) with 4000Rpm speed and size 42x42x61mm. It has 8 wires (3 wires for motors, 5 wires for hallsensor), 0.125N.m 3.3A and 52.5W. For more different bldc motors requirements (such as gearbox, brake, encoder, or integrated motors), please contact us!!!

Electrical Specifications：

Type: Nema 17 24v 42mm brushless dc motor
Model Name: JK42BLS02
Number of Phase: 3
Number of Poles: 8
Rated Speed: 4000Rpm
Rated Torque: 0.125N.m
Rated Current: 3.3A
Rated Power: 52.5W
Peak Torque: 0.38N.m
Peak Current: 10.6A
Back E.M.F: 4.2V/Krpm
Torque Constant: 0.04N.m/A
Rotor Inertia: 48g.cm2
Insulation Class: B
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength: 500VAC for 1 Minute
Suitable Driver: BLD120
Optional Parts: Gearbox, Encoder, Brake, Integrated Driver...

Physical Specifications:

Frame Size: Nema 17 ( 42 x 42mm)
Body Length: 61mm
Shaft Diameter: 5mm
Number of Leads: 8
Leads Length: 300mm
Sensor: Hall Sensor
Weight: 0.45kg

Wires Connection:

Bldc Motors Wires			Hall Sensor Wires
U	V	W	+5VDC	GND	Hu	Hv	Hw
Yellow	Green	Blue	Red	Black	Yello	Green	Blue

42mm bldc motor brushless motor bldc electric motor bldc nema 17 bldc electric motor rc bldc motor bldc servo motor 3 phase bldc motor bldc brushless motor high torque bldc motor bldc motor manufacturer

Related Products

Nema 52 JK130BLS227-4700 Square Head 3000rpm 310V 15N.m 4.7KW 3000W 19.44A Ф130x130x227mm Brushless BLDC Dc Motor With Hall Sensor

Nema 52 JK130BLS195-4700 Square Head 3000rpm 310V 15N.m 4.7KW 3000W 19.44A Ф130x130x195mm Brushless BLDC Dc Motor Without Hall Sensor

Nema 52 JK130BLS227-3000 Square Head 3000rpm 310V 10N.m 3KW 3000W 12.9A Ф130x130x227mm Brushless BLDC Dc Motor With Hall Sensor

Nema 52 JK130BLS195-3000 Square Head 3000rpm 310V 10N.m 3KW 3000W 12.9A Ф130x130x195mm Brushless BLDC Dc Motor Without Hall Sensor

Nema 52 JK130BLS187-2400 Square Head 3000rpm 310V 8N.m 2.4KW 2400W 10.22A Ф130x130x155mm Brushless BLDC Dc Motor With Hall Sensor

Nema 52 JK130BLS155-2400 Square Head 3000rpm 310V 8N.m 2.4KW 2400W 10.22A Ф130x130x155mm Brushless BLDC Dc Motor Without Hall Sensor

Nema 52 JK130BLS157-1800 Square Head 3000rpm 310V 6N.m 1.8KW 1800W 7.66A Ф130x130x157mm Brushless BLDC Dc Motor Without Hall Sensor

Nema 52 JK130BLS125-1800 Square Head 3000rpm 310V 6N.m 1.8KW 1800W 7.66A Ф130x130x125mm Brushless BLDC Dc Motor Without Hall Sensor

Nema 52 JK130BLS137-1200 Square Head 3000rpm 310V 4N.m 1.2KW 1200W 5.11A Ф130x130x137mm Brushless BLDC Dc Motor With Hall Sensor

Nema 52 JK130BLS105-1200 Square Head 3000rpm 310V 4N.m 1.2KW 1200W 5.11A Ф130x130x105mm Brushless BLDC Dc Motor Without Hall Sensor

Nema 23 57BLF Square Head Brushless BLDC DC Motor 57x57mm 36V 3 Phase

Nema 42 110BLS Square Head Brushless BLDC DC Motor 3000rpm 110x110mm 310V 3 Phase

Nema 34 86BLS Square Head Brushless BLDC DC Motor 3000rpm 86x86mm 48V 3 Phase

80BLS Round Head Brushless BLDC DC Motor 3000rpm 80x80mm 48V 3 Phase

Nema 24 60BLS Square Head Brushless BLDC DC Motor 60x60mm 48V 3 Phase

Nema 23 57BLS Round Head Brushless BLDC DC Motor 57x57mm 36V 3 Phase

Nema 17 42BLS Square Head Brushless BLDC DC Motor 42x42mm 24V 3 Phase

Nema 17 42BL Round Head Brushless BLDC DC Motor 42x42mm 3 Phase

Jkongmotor 33BL Round Head Brushless BLDC DC Motor 33x33mm 3 Phase 4-Wires

Jkongmotor 36mm 2-Phase Bipolar Hybrid Stepping Motor 0.9 Degree 36x36mm 0.3A - 0.425A 4-Wires

General Specifications
Item	Specification
Winding type	Delt
Hall effect angle	120 degree electrical angle
Shaft run out	0.025mm
Radial play	0.02mm@450g
End play	0.08mm@450g
Max.radial force	28N@20mm from the flange
Max. axial force	10N
Insulation class	Class B
Dielectric Strength	500VDC for one minute
Insulation Resistance	100MΩ Min., 500VDC

Nema 17 JK42BLS02 Square Head 4000rpm 24V 0.125N.m 52.5W 3.3A Ф42x42x61mm Brushless Bldc Dc Motor

Electrical Specifications：

Physical Specifications:

Wires Connection:

24V Nema 17 Brushless Dc Motor General Specifications:

General Specifications

Nema 17 24V Dc Brushless Motor Electrical Specification:

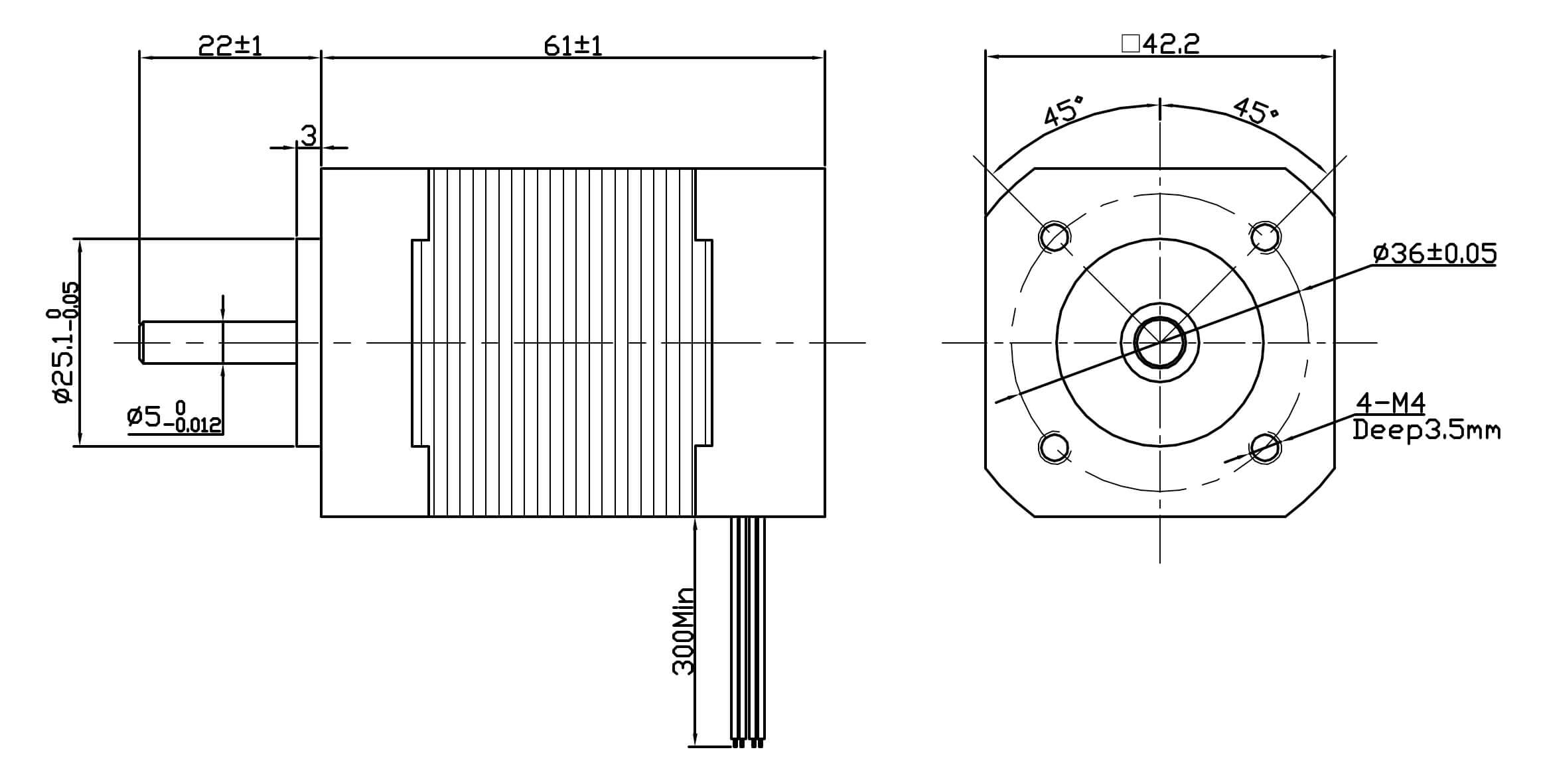

Nema17 24V Bldc Motor Dimension:
