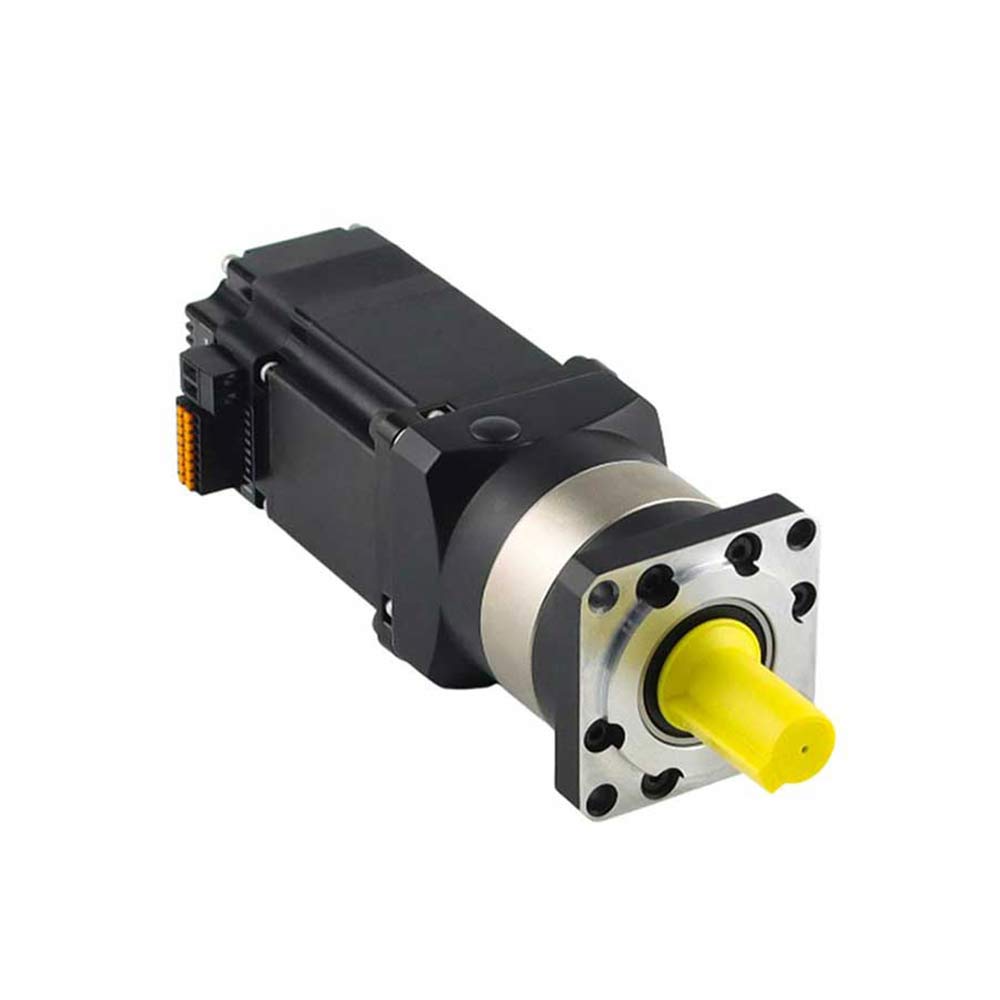

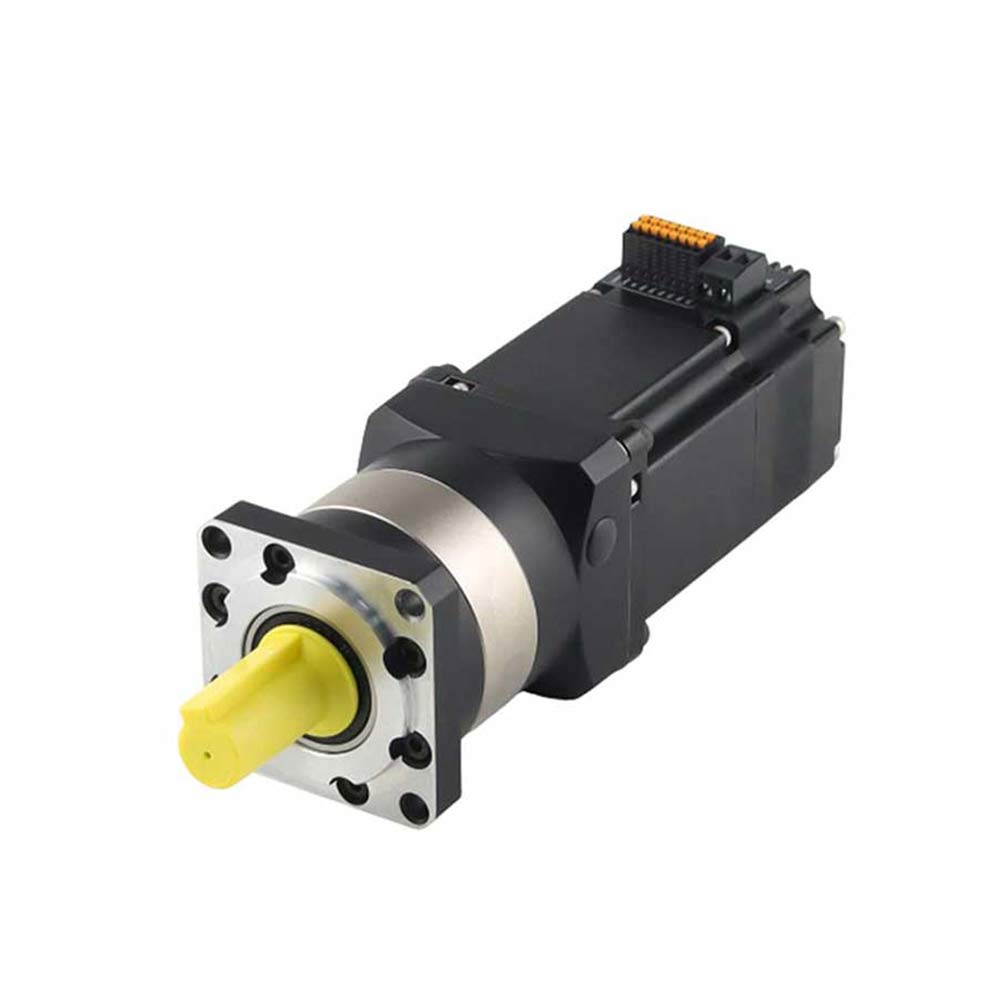

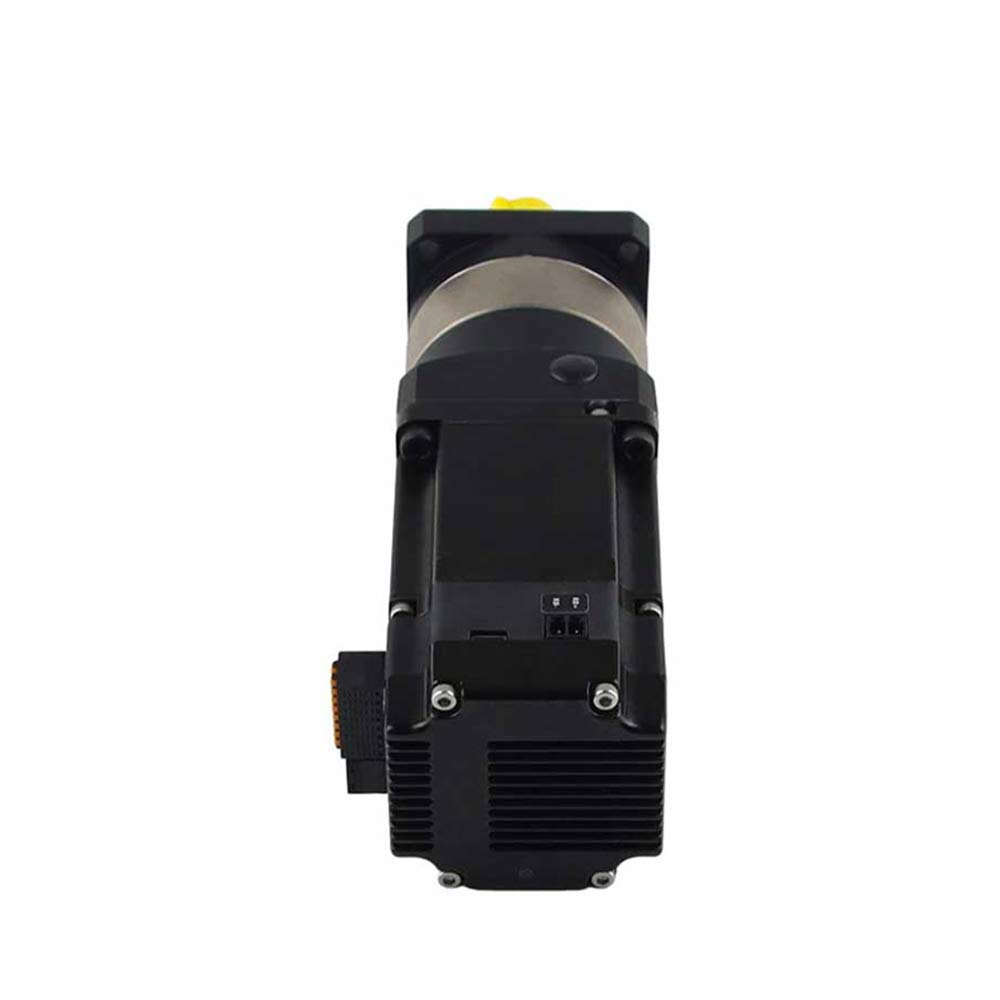

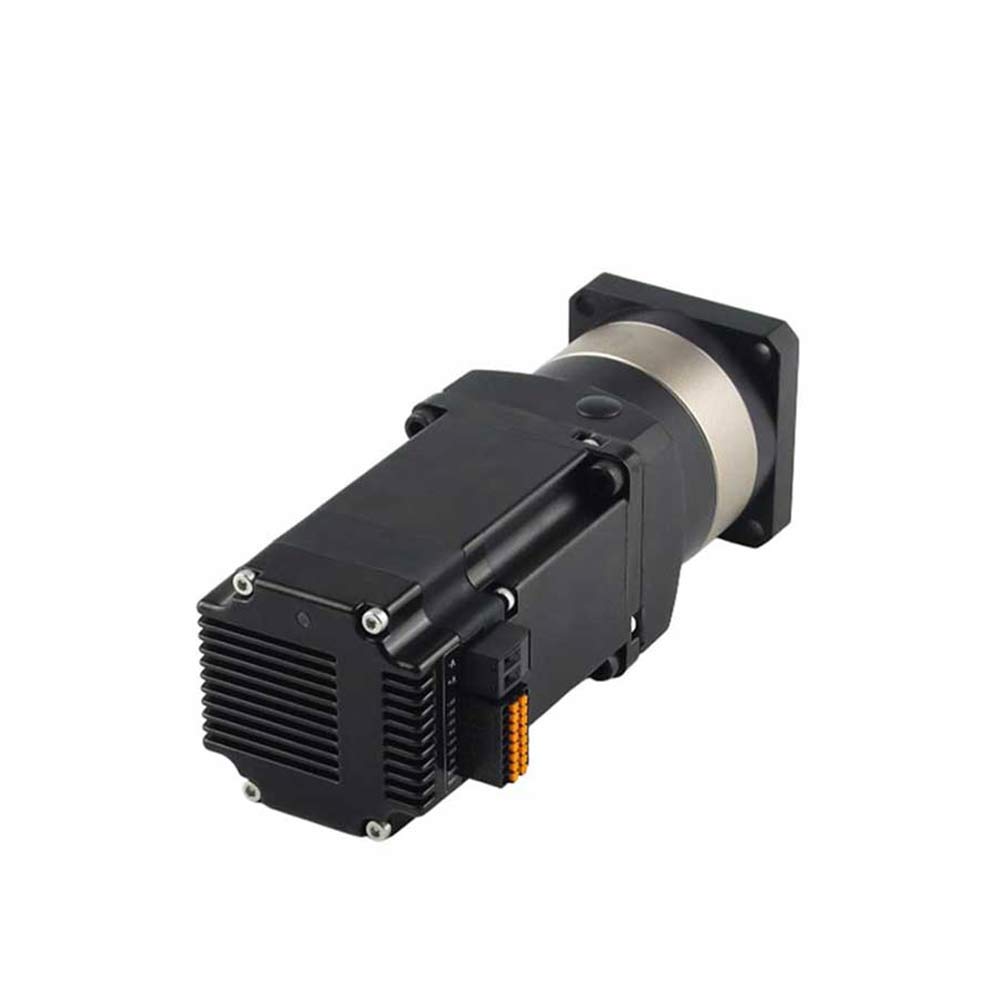

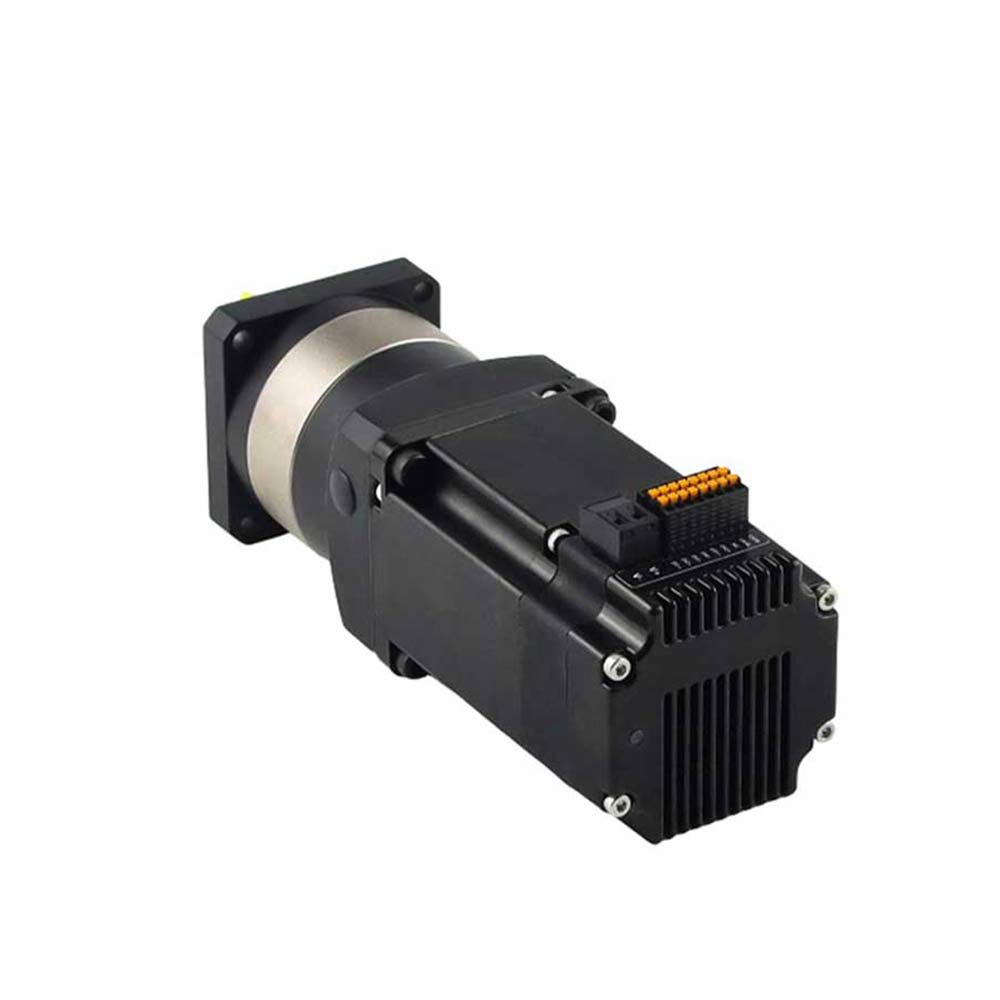

JKIDC80-R148A1 V2 Series Planetary Geared Integrated BLDC Dc Servo Motor with RS485 Control

Jkongmotor JKIDC80-R148A1 80x80x155mm integrated brushless dc servo motor with RS485 control 750W 48V/72V 3000Rpm 2.4N.m with 17bit/15bit/1000PPR integrated driver. For more different integrated servo motor requirements please contact us!!!

Electrical Specifications：

• Model Name: JKIDC80-R148A1 integrated brushless dc servo motor with planetary gearbox

• Phase: 3

• Poles: 4

• Rated Power: 750W

• Rated Voltage: 48V/72V

• Rated Speed: 3000±10%RPM

• Rated Current: 19A/12A

• Rated Torque: 2.4Nm(339.86oz.in)

• Encoder: 17Bit

• Control Method: RS485 (Pluse, CANopen optional)





Physical Specifications:

• Frame Size: 80x80mm

• Body Length: 155mm




 Integrated Brushless Dc Servo Motors Features:

• Adopting a new 32-bit M4+core with 120M or 240M main frequency

• Stable torque characteristics from low to high speeds, with high speed and precision

• Equipped with brake resistor interface to prevent damage to the electromechanical braking system

• Wide speed range, low temperature rise, and high efficiency

• Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor

• Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions

• Configure a 17 bit single turn absolute encoder




Communication method:

• Pulse type

• RS485 MOdbus RTU network type

• CANopen network type





Protection level:

Waterproof type: IP30, IP54, IP65, optional

80mm Integrated Brushless Dc Servo Motors Usage:

Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese medicine ingredient industry, etc
