80mm Round Head JK80BLS04 3000rpm 48V 1.4N.m 440W 10.5A Ф80x80x138mm Brushless Bldc Dc Motor

Jkongmotor 80mm 48v 4poles round head brushless dc motor (JK80BLS04) with 3000Rpm speed and size 80x80x138mm. It has 8 wires (3 wires for motors, 5 wires for hallsensor), 1.4N.m 10.5A and 440W. For more different bldc motors requirements (such as gearbox, brake, encoder, or integrated motors), please contact us!!!

Electrical Specifications：

• Type: 48v 80mm round head brushless dc motor

• Model Name: JK80BLS04

• Number of Phase: 3

• Number of Poles: 4

• Rated Speed: 3000Rpm

• Rated Torque: 1.4N.m

• Rated Current: 10.5A

• Rated Power: 440W

• Peak Torque: 4.2N.m

• Peak Current: 31.5A

• Back E.M.F: 13V/Krpm

• Torque Constant: 0.124N.m/A

• Rotor Inertia: 840g.cm2

• Insulation Class: B


• Insulation Resistance: 100MΩ Min @500VDC

• Dielectric Strength: 500VAC for 1 Minute

• Suitable Driver: BLD750


• Optional Parts: Gearbox, Encoder, Brake, Integrated Driver...

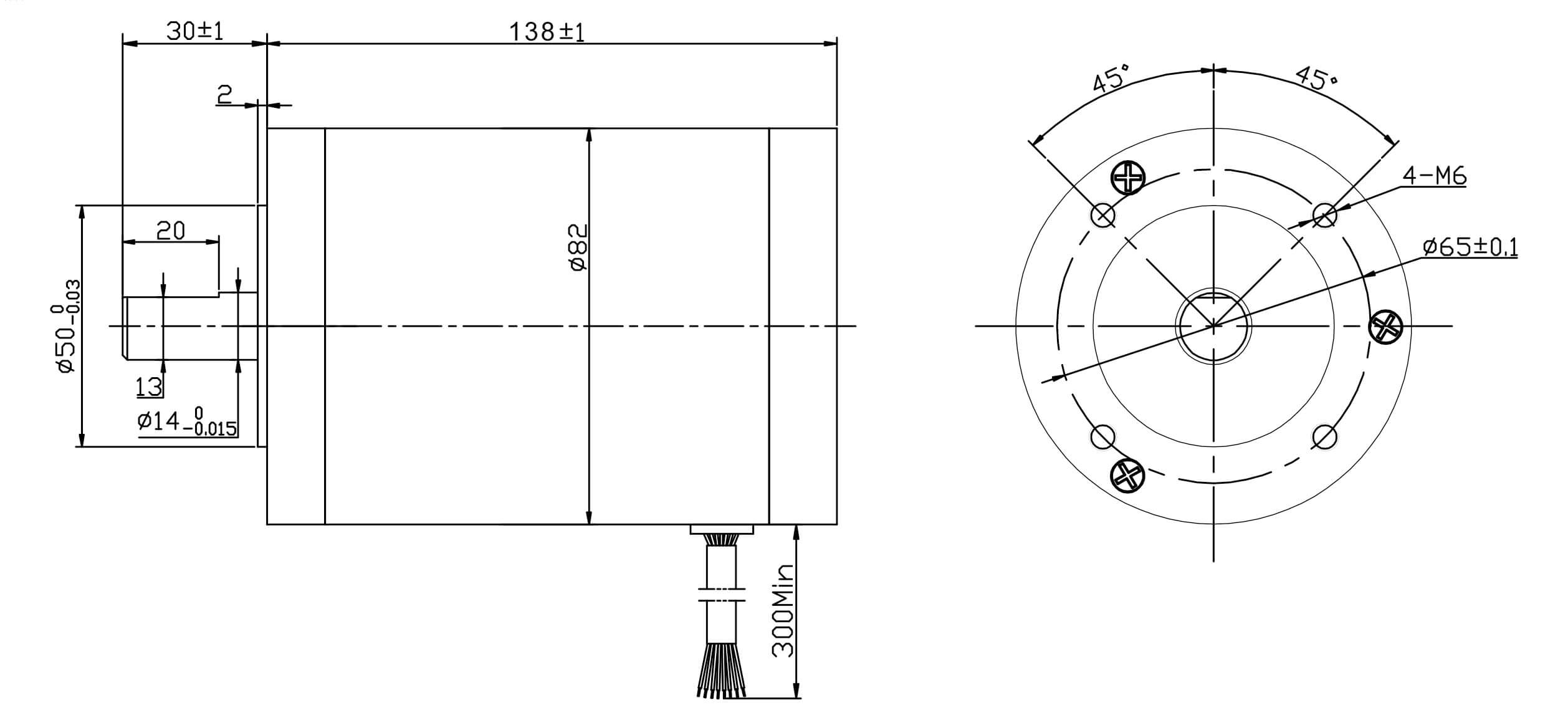

Physical Specifications:

• Frame Size: 80x80mm

• Body Length: 138mm

• Shaft Diameter: 14mm

• Number of Leads: 8

• Leads Length: 300mm

• Sensor: Hall Sensor

• Weight: 3.2kg

Wires Connection:
