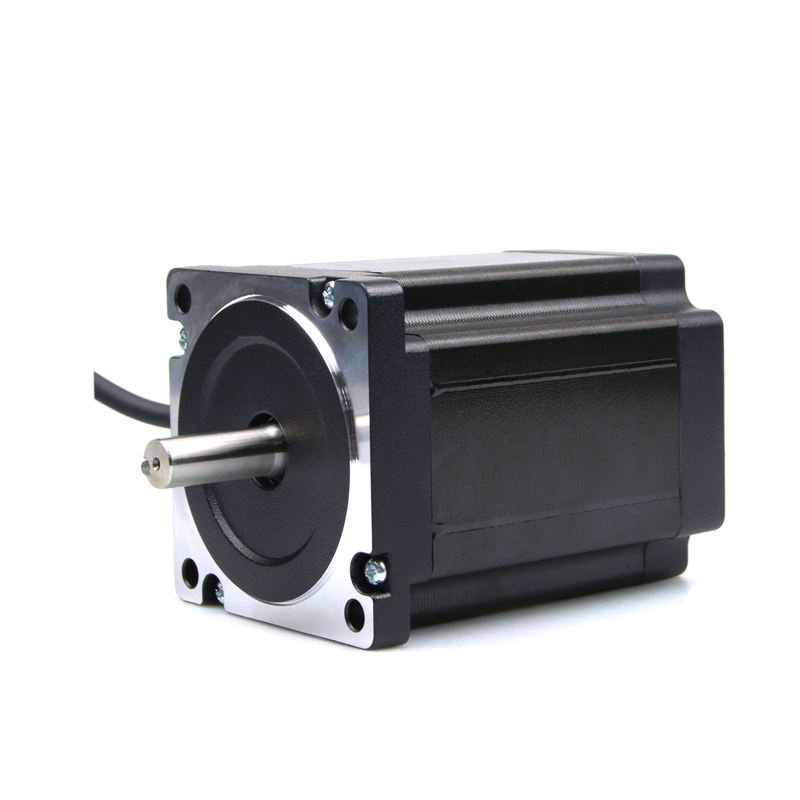

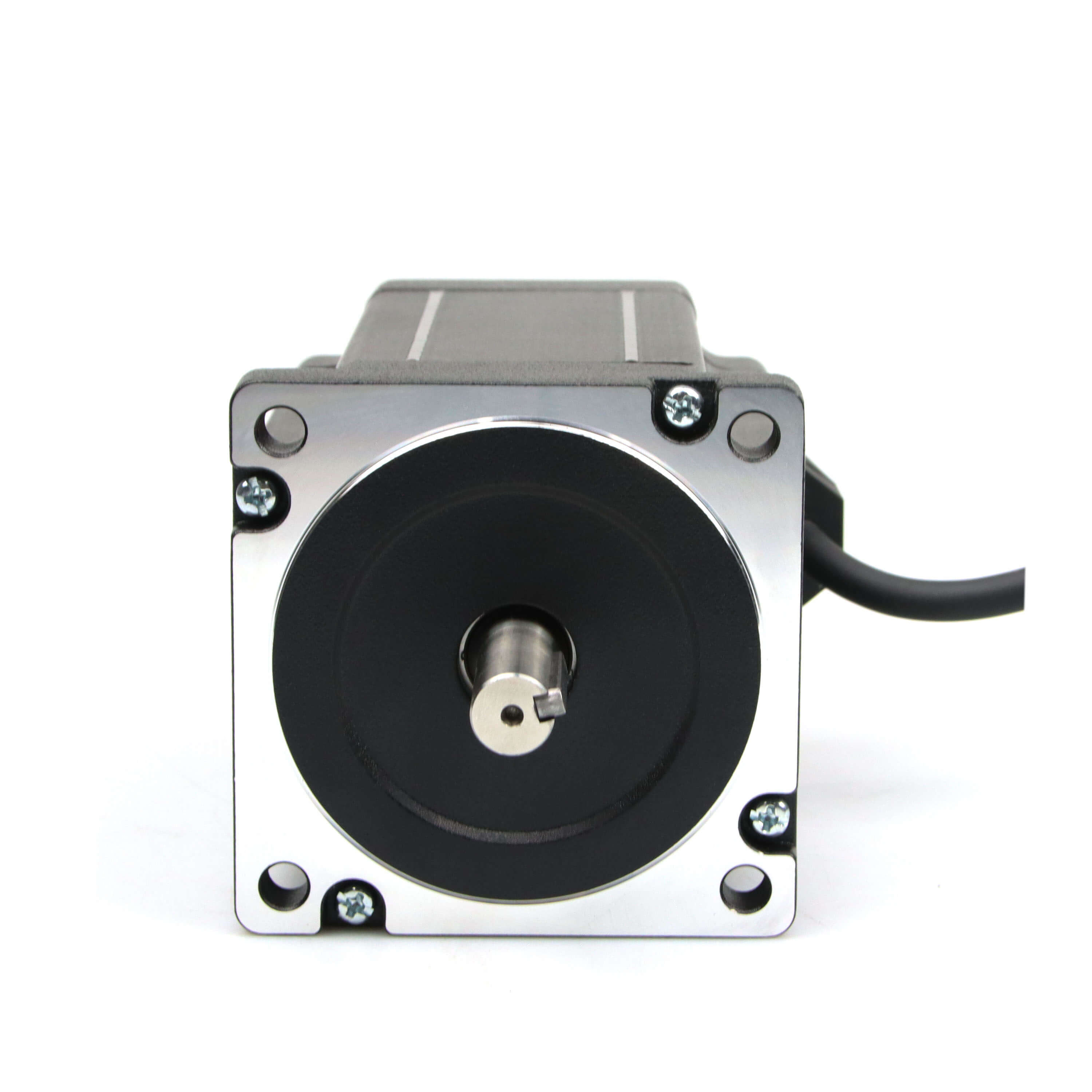

Nema 34 JK86H3P65-3006 3-Phase Hybrid Stepper Motor 1.2 Degree 2N.m (283.22oz.in) 86x86x65mm 3.0A 6-Wires

Type: Nema34 3-Phase Hybrid Stepper Motor

Current: 3.0A

Resistance: 0.5Ω

Rated Torque: 2N.m(283.22oz.in)

  • JK86H3P65-3006

  • JKONGMOTOR

  • Open Loop Motors

  • Nema34 (86mm)

  • 6wires

  • 3 phase

  • 1.2°

  • 10 Pcs

Availability:
Inquire

Jkongmotor Nema 34 3-phase hybrid stepper motor (JK86H3P65-3006) with step angle 1.2deg and size 86x86x65mm. It has 6 wires, 3.0A, 0.5Ω 1.6mH and with holding torque 2N.m(283.22oz.in). For more different stepper motors requirements (such as gearbox, brake, encoder, or integrated motors), please contact us!!!


Electrical Specifications：

  • Type: Nema34 3-phase hybrid stepper motor

  • Model Name: JK86H3P65-3006

  • Phase: 3

  • Step Angle: 1.2 degree

  • Current: 3.0A

  • Resistance: 0.5Ω±0.1(20℃)

  • Inductance: 1.6mH±20%(1kHz 1V RMS)

  • Holding Torque: 2N.cm (283.22oz.in)

  • Insulation Class: B(130°); 80K Max.

  • Optional Parts: Gearbox, Encoder, Brake, Integrated Driver...


Physical Specifications:

  • Frame Size: Nema 34 ( 86 x 86mm)

  • Body Length: 65mm

  • Shaft Diameter: 9.5mm

  • Shaft Length: 30mm


Wires Connection:

U
 V W
Red Yellow Blue


Nema 34 3 Phase Stepper Motor Electrical Specification:

Electrical Specification
Product Type
 / Nema 34 3 Phase Hybrid Stepper Motor
Model Name / JK86H3P65-3006
Phase phase 3
Step Angle ° 1.2
Current A 3.0
Resistance Ω 0.5
Inductance mH 1.6
Rated Torque(N.m) N.m 2
Holding Torque(oz.in) oz.in 283.22
Insulation Class / B
Rotor Inertia g.cm2 1100


Nema34 Stepper Motors Physical Specification:

Physical Specification
Frame Size mm Nema 34 (86 x 86)
Output Shaft Type / D-cut Shaft
Shaft Diameter mm 9.5
Shaft Length mm 30
Body Length
 mm 65
Single Shaft /Dual Shaft / Single Shaft
No. of Leads / 6
Leads Length mm 300
Weight Kg 1.65

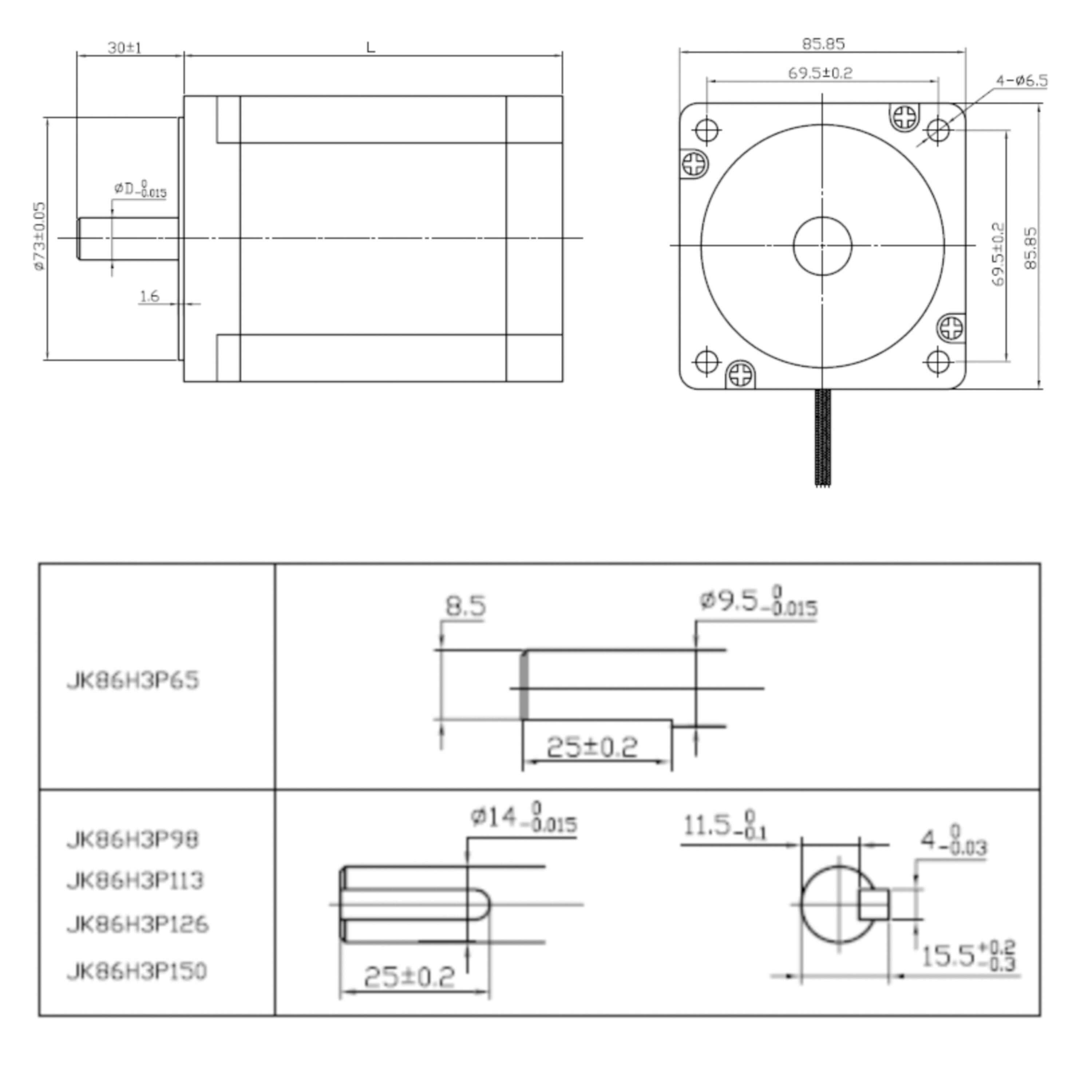

Nema 34 Stepper Motor Dimension:

图纸


Hybrid Stepper Motor Optional Parts：

Connectors, Gearbox, Encoder, Brake, Integrated Driver...
