Current: 5.5A
Resistance: 0.68Ω

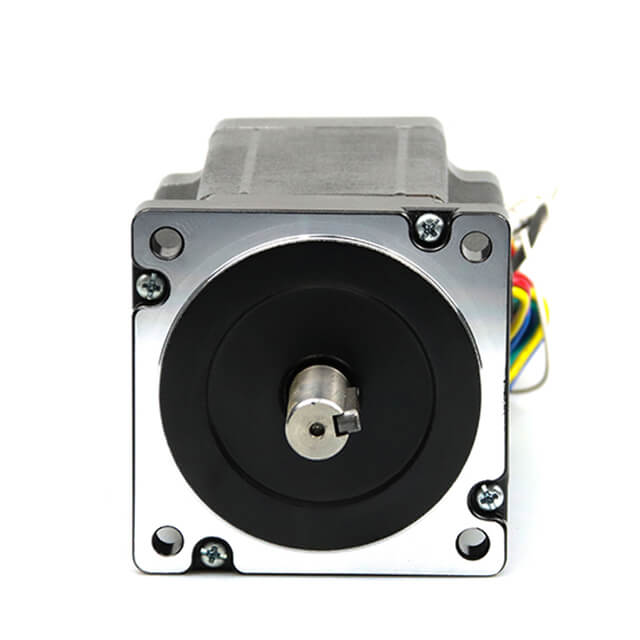

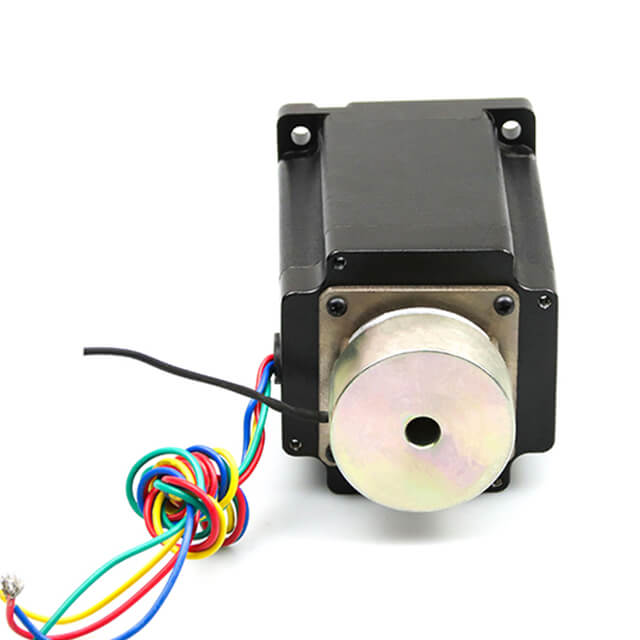

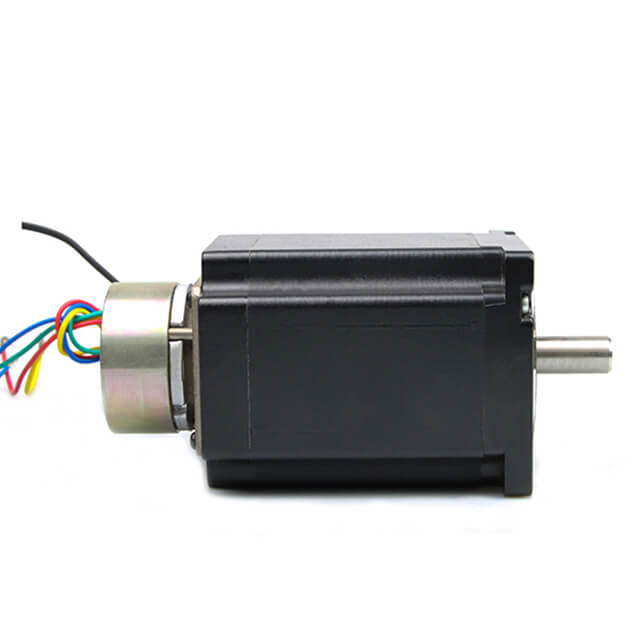

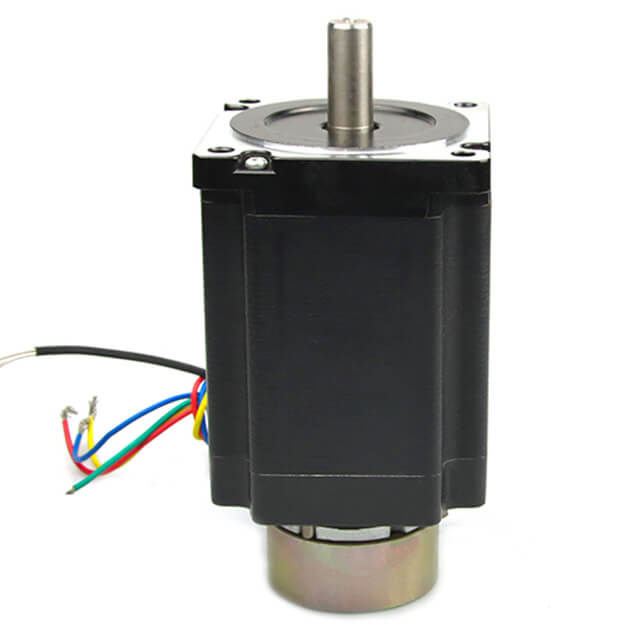

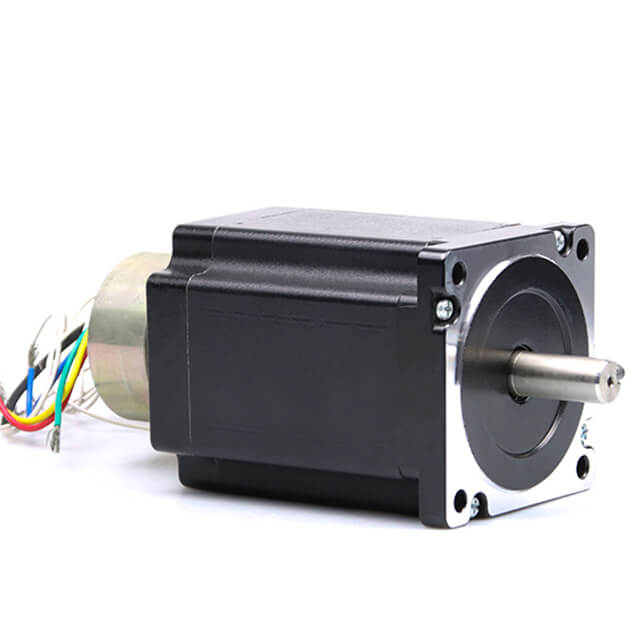

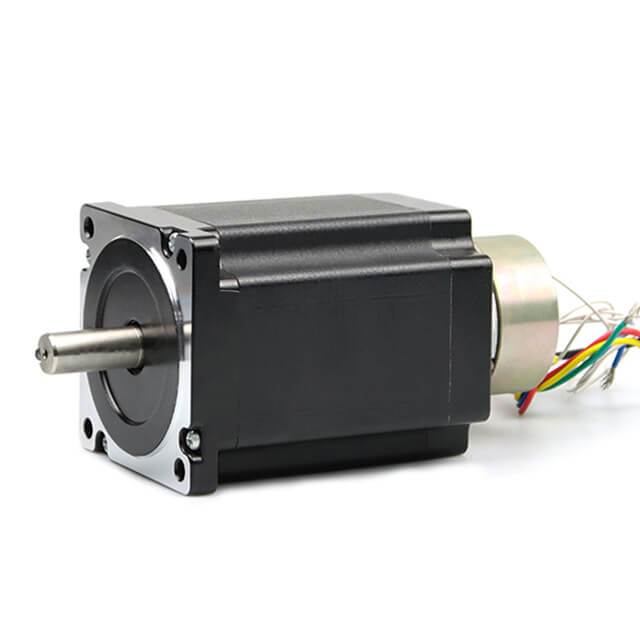

JK110HS99-5504BK28 with Brake
JKONGMOTOR
Brake Motors
Nema42 (110mm)
4wires
2 phase
1.8°
10 Pcs
| Electrical Specification | ||
| Product Type | / | Nema 42 Bipolar Hybrid Stepper Motor |
| Model Name | / | JK110HS99-5504 |
| Phase | phase | 2 |
| Step Angle | ° | 1.8 |
| Current | A | 5.5 |
| Resistance | Ω | 0.9 |
| Inductance | mH | 12 |
| Rated Torque(N.m) | N.m | 11.2 |
| Holding Torque(oz.in) | oz.in | 1586.05 |
| Bipolar/Unipolar | / | Bipolar |
| Insulation Class | / | B |
| Detent Torque | kg.cm | 3 |
| Rotor Inertia | g.cm2 | 5500 |

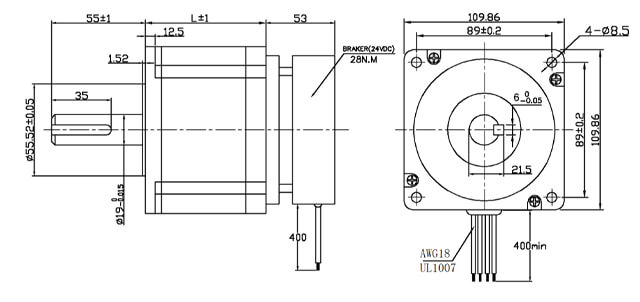

| Physical Specification | ||
| Frame Size | mm | Nema 42 (110 x 110) |
| Output Shaft Type | / | Key Shaft |
| Shaft Diameter | mm | 19 |
| Shaft Length | mm | 55 |
| Body Length | mm | 99 |
| Single Shaft /Dual Shaft | / | Single Shaft |
| No. of Leads | / | 4 |
| Leads Length | mm | 400 |
| Weight | Kg | 5 |
| Electrical Specification | ||
| Product Type | / | Nema 42 Bipolar Hybrid Stepper Motor |
| Model Name | / | JK110HS99-5504 |
| Phase | phase | 2 |
| Step Angle | ° | 1.8 |
| Current | A | 5.5 |
| Resistance | Ω | 0.9 |
| Inductance | mH | 12 |
| Rated Torque(N.m) | N.m | 11.2 |
| Holding Torque(oz.in) | oz.in | 1586.05 |
| Bipolar/Unipolar | / | Bipolar |
| Insulation Class | / | B |
| Detent Torque | kg.cm | 3 |
| Rotor Inertia | g.cm2 | 5500 |
| Physical Specification | ||
| Frame Size | mm | Nema 42 (110 x 110) |
| Output Shaft Type | / | Key Shaft |
| Shaft Diameter | mm | 19 |
| Shaft Length | mm | 55 |
| Body Length | mm | 99 |
| Single Shaft /Dual Shaft | / | Single Shaft |
| No. of Leads | / | 4 |
| Leads Length | mm | 400 |
| Weight | Kg | 5 |
