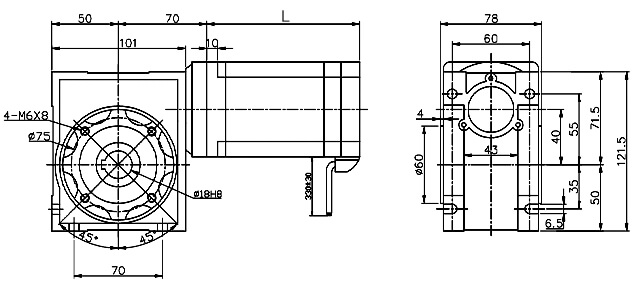

JK86BLS125 with Worm Gearbox
Jkongmotor
3000rpm
8 poles
Nema34 (86mm)
48V
10 Pcs
General Specifications | |
| Item | Specification |
| Winding type | Delt |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm@450g |
| End play | 0.08mm@450g |
| Max.radial force | 220N@20mm from the flange |
| Max. axial force | 60N |
| Insulation class | Class B |
| Dielectric Strength | 500VDC for one minute |
| Insulation Resistance | 100MΩ Min., 500VDC |
| Electrical Specification | ||
| Model | / | JK86BLS125 |
| Phase | / | 3 |
| Poles | / | 8 |
| Rated Voltage | vdc | 48 |
| Rated Speed | rpm | 3000 |
| Rated Torque | N.m | 2.1 |
| Rated Current | A | 18 |
| Rated Power | W | 660 |
| Peak Torque | N.m | 6.3 |
| Peak Current | A | 54 |
| Back E.M.F | V/Krpm | 13.5 |
| Torque Constant | N.m/A | 0.13 |
| Rotor Inertia | g.cm2 | 2400 |
| Body Length | mm | 138.5 |
| Weight | kg | 4 |
| Sensor | / | Honey-well |
| Insulation Class | / | B |
| Insulation Class | / | IP30 |
| Storage Temperature | ℃ | -25～+70℃ |
| Operating Temperature | ℃ | -15～+50℃ |
| Working Humidity | RH | 85% RH or less (no condensation) ≤85% RH |
| Working Environment | / | Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust |
| Altitude | m | 1000 meters or less |
General Specifications | |
| Item | Specification |
| Winding type | Delt |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm@450g |
| End play | 0.08mm@450g |
| Max.radial force | 220N@20mm from the flange |
| Max. axial force | 60N |
| Insulation class | Class B |
| Dielectric Strength | 500VDC for one minute |
| Insulation Resistance | 100MΩ Min., 500VDC |
| Electrical Specification | ||
| Model | / | JK86BLS125 |
| Phase | / | 3 |
| Poles | / | 8 |
| Rated Voltage | vdc | 48 |
| Rated Speed | rpm | 3000 |
| Rated Torque | N.m | 2.1 |
| Rated Current | A | 18 |
| Rated Power | W | 660 |
| Peak Torque | N.m | 6.3 |
| Peak Current | A | 54 |
| Back E.M.F | V/Krpm | 13.5 |
| Torque Constant | N.m/A | 0.13 |
| Rotor Inertia | g.cm2 | 2400 |
| Body Length | mm | 138.5 |
| Weight | kg | 4 |
| Sensor | / | Honey-well |
| Insulation Class | / | B |
| Insulation Class | / | IP30 |
| Storage Temperature | ℃ | -25～+70℃ |
| Operating Temperature | ℃ | -15～+50℃ |
| Working Humidity | RH | 85% RH or less (no condensation) ≤85% RH |
| Working Environment | / | Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust |
| Altitude | m | 1000 meters or less |
Key Shaft
