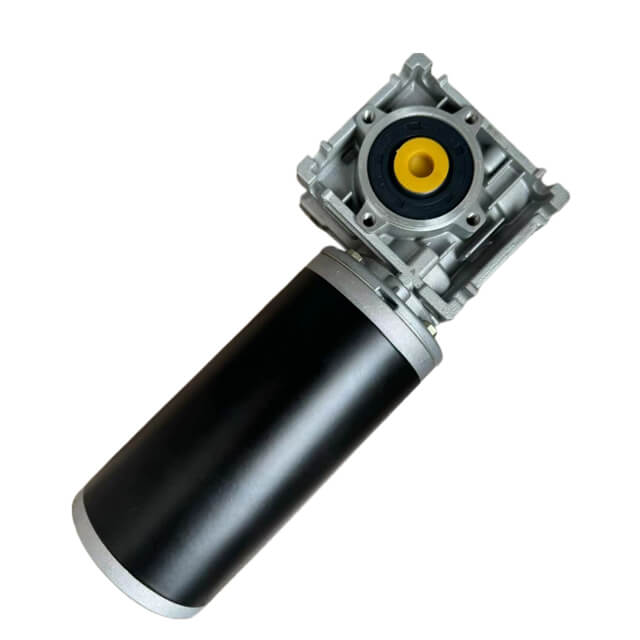

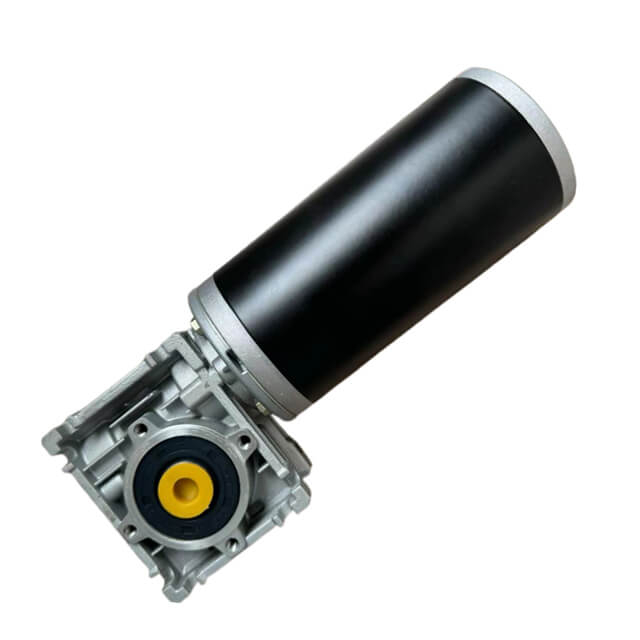

80ZYT Series JK80ZYT04L Geared Brushed DC Motor with Worm Gearbox 1500Rpm 1.3N.m 12.5A 204.1W 80x80x175mm

Jkongmotor 24V 80ZYT Series Worm Gear brushed dc motor (JK80ZYT04L) with 1500Rpm speed and size 80x80x160mm. It has 2 wires,1.3N.m and 204.1W. For more different dc brush motors requirements (such as gearbox, brake, encoder, or other parts), please contact us!!!

Electrical Specifications：

• Type: 24V 1500Rpm Worm Gear Brushed Dc Motor

• Model Name: JK80ZYT04L with Worm gearbox

• Rated Voltage: 24V (Option for 12v up to 220vdc)

• Rated Speed: 1500Rpm

• No Load Speed: 2000Rpm


• Rated Torque:1.3N.m

• Rated Power: 204.1W

• Protection Level: IP50 （Option for IP54)

• Optional Parts: Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations, EMI/RFI Suppression Circuit, Thermal Protection, High Temperature Class H Insulation...





Gearbox Specifications:

• Gearbox Type: NMRV030 Worm Gearbox

• Gear Ratio: 5 / 10 / 15 / 20 / 25 / 30 / 40 / 50 / 50 / 60 / 80

• Efficiency: 90% / 85% / 85% / 80% / 75% / 75% / 70% / 65% / 60% / 55% / 50%

• No Load Speed: 400  / 266  / 200  / 133 / 100 / 80 / 66 / 50 / 40 / 33 / 25

• Rated Speed: 300  / 200  / 150  / 100 / 75 / 60 / 50 / 37 / 30 / 25 / 18

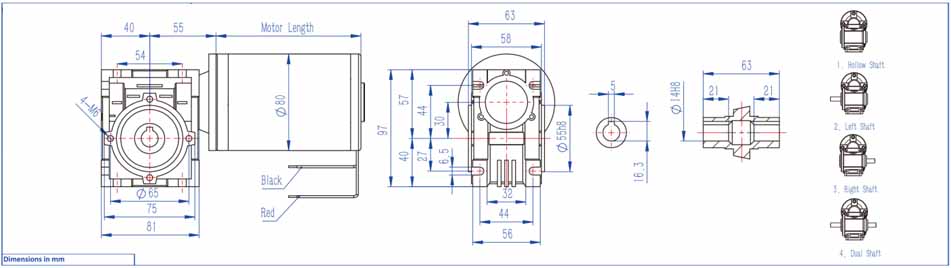

Physical Specifications:

• Frame Size: 80 x 80mm

• Body Length: 175mm

• Number of Leads: 2

• Leads Length: 300mm

• Weight: 4.0kg
