63ZYT Series JK63ZYT01A Geared Brushed DC Motor with Worm Gearbox 3100Rpm 0.15N.m 2.8A 50W 63x63x95mm

Jkongmotor 24V 63ZYT Series Worm Gear brushed dc motor (JK63ZYT01A) with 3100Rpm speed and size 63x63x95mm. It has 2 wires, 0.15N.m and 50W. For more different dc brush motors requirements (such as gearbox, brake, encoder, or other parts), please contact us!!!

Electrical Specifications：

• Type: 24V 31000Rpm Worm Gear Brushed Dc Motor

• Model Name: JK63ZYT01A with Worm gearbox

• Rated Voltage: 24V (Option for 12v up to 220vdc)

• Rated Speed: 3100Rpm

• No Load Speed: 3600Rpm


• Rated Torque: 0.15N.m

• Rated Power: 50W

• Protection Level: IP50 (optional for IP54)

• Optional Parts: Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations, EMI/RFI Suppression Circuit, Thermal Protection, High Temperature Class H Insulation...

Gearbox Specifications:

• Gearbox Type: Worm Gearbox

• Gear Ratio: 10 / 15 / 30

• Efficiency:  65% / 55% / 45%

• Continuous Torque: Up to 1000 (Metallic Gears); Up to 700 (Non-Metallic Gears)

• Gearbox Weight:0.4KG

• Axial Load: 300N

• Radial Load: 350N

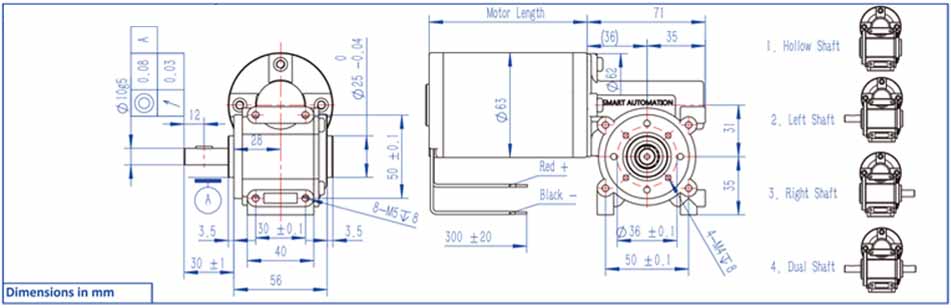

Physical Specifications:

• Frame Size: 63 x 63mm

• Body Length: 95mm

• Number of Leads: 2

• Leads Length: 300mm

• Weight: 1.0kg
