Every logistics facility has unique spatial constraints and processing demands. Choosing the right drive system requires a deep look at both mechanical technical specs and long-term business goals.

To handle the extreme item volume peaks during e-commerce shopping festivals, the conveyor speed must perfectly synchronize with diverting mechanisms like steerable wheels or pusher splitters. To guarantee rapid dynamic response and high-precision sorting, look for motors adopting an advanced 32-bit M4+ core (120MHz/240MHz main frequency) combined with a high-resolution 17-bit absolute encoder (up to 131,072 pulses per revolution).

• Jkongmotor Advantage: This premium configuration ensures stable, smooth torque characteristics from low to high speeds. Its excellent high-frequency response eliminates speed fluctuations, completely preventing package slippage or sorting reset lags during high-speed routing (such as wheel diverting or pop-up sorting). This ensures a sorting accuracy rate of up to 99.99% under peak throughput.

Automated sorting lines must process a massive variety of parcels every day, ranging from ultra-lightweight, thin plastic e-commerce mailers and irregular shapes to heavy-duty cardboard boxes weighing dozens of kilograms. This poses a severe challenge to the motor’s overload capacity and dynamic torque adjustment.

• Jkongmotor Advantage: Jkongmotor DC servo motors feature an excellent wide speed ratio and high overload multiplier (typically up to 3x instantaneous overload). Integrated with intelligent self-adaptive algorithms, the system automatically detects load inertia variations in real-time. No matter how drastically the load on the conveyor belt changes, the system compensates current within microseconds to maintain a constant belt speed, perfectly accommodating frequent, variable, and continuous heavy-load startups.

Modern logistics centers treat floor space as a premium commodity. Conveyor systems often utilize multi-tier, three-dimensional intersecting layouts, leaving extremely limited space for motor installations. Traditional split solutions (separate motor and drive) not only consume massive space but also require tedious cabling prone to electromagnetic interference (EMI).

• Jkongmotor Advantage: To address this pain point, Jkongmotor has specially launched its Integrated DC Servo Motor series (seamlessly combining the servo motor, 17-bit encoder, and low-voltage servo drive into one single unit). The ultra-compact structural design drastically cuts space consumption and eliminates long cable connections between the motor and drive, significantly boosting anti-interference capabilities. It supports multiple industrial bus protocols including CANopen, Modbus, and EtherCAT, making multi-axis distributed control and flexible system integration simpler and more efficient.

In automated sorting conveyor lines, unexpected downtime caused by motor failures translates directly into severe financial losses for logistics operators. Therefore, when evaluating the Total Cost of Ownership (TCO), the maintenance-free lifecycle of the motor and its resistance to harsh industrial environments are critical.

• Jkongmotor Advantage: Jkongmotor DC servo motors adopt a heavy-duty, fully sealed design, with core products achieving an IP rating of IP65 or higher to completely isolate dust, paper debris, and moisture commonly found in warehouses. Built with premium bearings and a low-heat-generation electromagnetic design, the motors run reliably during 24x7 continuous, high-load operations with an extended lifespan. This delivers a truly maintenance-free lifecycle, helping you significantly minimize long-term operational TCO.

A leading intralogistics system integrator required a high-performance, distributed driving solution to upgrade their next-generation steering matrix line. The design constraints and functional requirements were strictly specified across three dimensions:

• Mechanical Constraints & Space Optimization: The individual swivel wheel mechanisms are mounted tightly underneath the conveyor bed. Traditional separate motor and drive architectures cause complex wiring harnesses and severe space congestion. An integrated motor-drive design was mandatory to allow direct-coupling or low-backlash planetary synchronization.

• Functional Performance & Precision Targets: The steering mechanism must adjust its angle between -45°, 0°, and +45° within 150ms to seamlessly match line speeds up to 2.5m/s. Angular deviation must remain within ±0.5° under unequal distribution load or high inertia friction to avoid package slippage. It must continuously handle parcel weights ranging from 0.2kg to 35kg, requiring high peak torque capacity during instant directional redirection.

• Bus Communication & Topology Requirements: The master controller (PLC) must broadcast position commands synchronously to dozens of steering nodes via a low-jitter, high noise-immunity communication bus supporting decentralized cabling topologies.

To satisfy these rigorous criteria, Jkongmotor deployed the IDC60-24V 200W 1.91N.m CANopen integrated brushless servo motor. This product natively unifies a 200W high-density brushless DC motor, a 17-bit magnetic absolute encoder, and a compact digital servo drive into a singular IP65-protected chassis.

• Analysis: Evaluated swivel wheel inertia ratio under max payload (35kg) and base friction.
• Calculation: Calculated a peak torque of 1.45N.m during a 150ms directional pivot.
• Selection: Deployed a 200W IDC60 motor. Its 1.91N.m peak rating provides a 31.7% safety margin to prevent thermal saturation.

• Form Factor: Used an integrated design, eliminating separate drive cabinets.
• Topology: Daisy-chained IDC60 units directly beneath conveyor modules via shielded twisted-pair CAN lines.
• EMI Control: Implemented targeted grounding structures to suppress interference from nearby AC roller motors.

• Protocol: Mapped CiA 402 object dictionary entries for rapid cyclic execution.
• Tuning: Configured a split-loop PID structure for precise control.
• Motion Profile: Programmed internal velocity/acceleration parameters for smooth S-curve trajectories, minimizing gear wear.

• Stress Test: Conducted a continuous 72-hour trial simulating peak-season sorting.
• Outcome: Verified performance and thermal stability under high-frequency cycling.

• Safety Protection: Upgraded to Gen-2 integrated motors featuring built-in thermal protection to prevent burnouts under abnormal loads.
• Ruggedized Interfaces: Standardized on high-reliability VH 3.96 connectors and streamlined the cable to 4 wires to enhance vibration resistance.

By merging a high-performance brushless motor, servo drive, encoder, and optional precision gearbox into a single, compact housing, Jkongmotor delivers a true all-in-one mechatronic solution. This centralized architecture drastically reduces the machine footprint and eliminates external driver cabinets. By removing complex wiring between the motor and drive, it effectively isolates electromagnetic interference (EMI) and minimizes potential points of failure. Featuring plug-and-play architecture with flexible plug or aviation connectors, this space-saving design shortens assembly time, accelerates factory deployment, and simplifies troubleshooting for system integrators.

Engineered for demanding low-speed, high-torque applications, Jkongmotor integrated geared DC motors can be configured with premium planetary, right-angle, or worm gearboxes. This rigid transmission configuration provides massive torque output while maintaining an ultra-compact profile. Operating on safe low-voltage DC power (24V, 36V, 48V, or 72V), these brushless motors eliminate internal friction and brush wear. The durable, highly efficient construction ensures an outstanding lifespan of up to 20,000 hours, maximizing equipment uptime and drastically lowering the total cost of ownership (TCO) for continuous 24/7 material handling.

To ensure seamless integration with host PLCs and motion controllers, Jkongmotor supports multiple industrial communication protocols, including Pulse control, RS485 Modbus, and CANopen. Built on a highly versatile modular ecosystem, our motors offer extensive OEM/ODM customization options. Customers can tailor motor frames (42mm to 86mm), output power (up to 1000W), specific gear ratios, special shafts, or integrated electromagnetic brakes. This exceptional scalability allows your automation systems—such as AGV/AMR mobile robots, CNC machinery, and packaging equipment—to expand smoothly and adapt to complex industrial environments.

Driven by a high-performance 32-bit microprocessor core, Jkongmotor integrated servo motors feature intelligent real-time monitoring and advanced predictive maintenance capability. The system continuously tracks critical telemetry—including actual speed, position, current, and internal temperature—while providing robust built-in protection against overcurrent, overvoltage, and overheating. Enhanced by optional IP65-rated waterproof sealed construction and an integrated 24V/48V electromagnetic brake for instant emergency stops, it prevents unexpected hardware damage, eliminates costly operational downtime, and guarantees a highly secure working environment.

Omnichannel retail and e-commerce fulfillment hubs process an erratic mix of merchandise, ranging from flexible polybags and apparel to oversized, rigid boxes. Jkongmotor’s intelligent drive systems utilize advanced dual-channel encoder feedback to dynamically adjust to real-time load variances.

• Industry-Specific Solution: Real-time adaptive torque control loops that automatically adjust current and force based on instantaneous tracking resistance on multi-classification loop sorters.
• Key Business Value: Drastically reduces item slippage, mis-sorting rates, and mechanical track jams, ensuring seamless 24/7 routing during peak shopping surges.

Within modern smart factories, sorting is an intermediate process essential for routing raw materials, work-in-progress (WIP) components, and finished goods between robotic work cells. Our intelligent servo motors natively support leading industrial fieldbus protocols, including EtherCAT, CANopen, and Modbus RTU.

• Industry-Specific Solution: Real-time, deterministic communication capabilities that allow direct, jitter-free interfacing with centralized master PLCs.
• Key Business Value: Enables perfectly synchronized multi-axis motion control, allowing production lines to achieve precise part orientation, automated rejection routing, and intelligent error-detection.

In food processing and beverage packaging, automated conveyors and sorting lines must endure brutal cleaning regimes without experiencing component corrosion or electrical failure. Jkongmotor’s drive solutions are engineered with high-grade, corrosion-resistant housings and IP69K-rated enclosures to withstand high-pressure, high-temperature washdown procedures.

• Industry-Specific Solution: Integrated drive designs utilizing specialized chemical-resistant sealing technologies that eliminate moisture ingress, fully supporting FDA-compliant operations.
• Key Business Value: Prevents fluid leaks and motor oxidation, ensuring open food conveyor lines remain entirely free from microbial contamination risks.

Global express couriers and national postal networks operate under punishing, dust-heavy conditions where unplanned conveyor downtime results in massive delivery backlogs and financial penalties. Our integrated servo motors for cross-belt sorters and sliding shoe sorters are explicitly optimized for extreme acceleration/deceleration profiles.

• Industry-Specific Solution: Ruggedized dual-row bearings combined with advanced passive cooling fins to handle endless tilt-tray and pop-up wheel sorting cycles without heat degradation.
• Key Business Value: Extends the Mean Time Between Failures (MTBF) under heavy duty cycles, providing high-volume couriers with a significantly lower Total Cost of Ownership (TCO).

The medical supply chain leaves zero margin for error, requiring absolute sorting accuracy and ultra-clean operating conditions to protect fragile glass vials, blister packs, and vaccine kits. Jkongmotor's integrated smart drives deliver sub-millimeter positioning precision to eliminate aggressive impacts or jarring vibrations during high-speed routing.

• Industry-Specific Solution: Built exclusively using low-particle-emission materials that seamlessly integrate into ISO-certified cleanroom environments (up to Class 100).
• Key Business Value: Supports flawless synchronization with optical vision-inspection and barcode-scanning systems, ensuring strict adherence to global pharmaceutical serialization mandates.

The automotive supply chain and heavy manufacturing sectors require automated sorting of heavy powertrain components, machined metal castings, and sub-assemblies. These environments expose motion control systems to metal shavings, ambient oil mist, and high-shock loads.

• Industry-Specific Solution: High-torque brushless drive systems equipped with permanent magnet electromagnetic brakes to secure massive structural loads during emergency stops.
• Key Business Value: Provides the necessary holding torque and mechanical ruggedness to route heavy industrial components safely, protecting downstream robotic cells from structural damage.

Are you ready to start designing?

Customizing Your Conveyor System to Your Needs

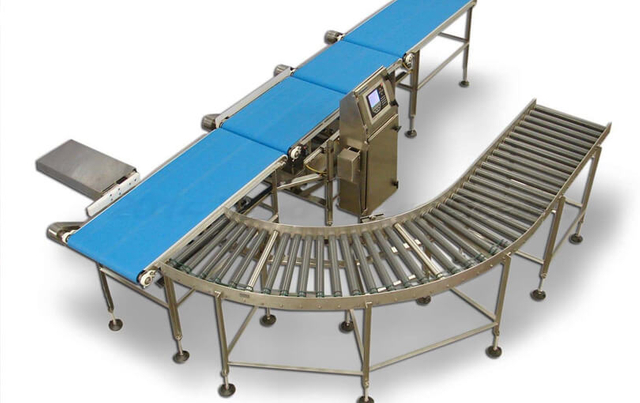

A one-size-fits-all conveyor rarely maximizes efficiency. True optimization happens when you customize the hardware. This includes upgrading to heavy-duty motorized roller systems for heavy payloads, adding inline weighing scales, or deploying jkongmotor's customizable integrated drive-brakes for space-saving layouts and high-speed start-stop positioning.
