S2M-80SVT03230 AC Servo Motor
JKONGMOTOR

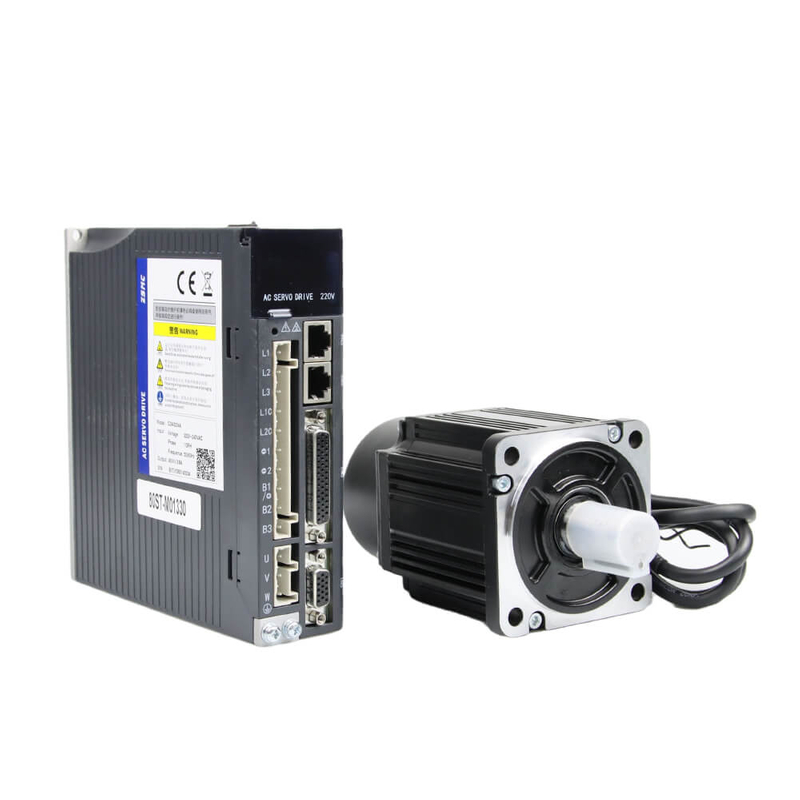

Jkongmotor S2 series IP65 waterproof ac servo motor kit (S2M-80SVT03230) with 220V and 1000W. It has 3000rpm,4.2A, and holding torque is 3.18N.m. Brakes are optional for this ac servo motor, and together with 2500PPR Encoder. For more different ac or dc servo motors requirements (such as motors, gearbox, brake or encoder), please contact us!!!
| Motor Model | Unit | S2M-80SVT03230 |
| Rated power | KW | 1.0 |
| Rated voltage | V | 220 |
| Rated current | A | 4.2 |
| Rated speed | rpm | 3000 |
| Holding torque | N.m | 3.18 |
| Peak torque | N.m | 9.54 |
| Voltage constant | V/1000r/min | 42 |
| Torque coefficient | N.m/A | 0.757 |
| Rotor inertia | Kg.m2 | 2.17x10⁻⁴ |
| Line-Line Resistance | Ω | 1.95 |
| Line-Line Inductance | mH | 9.6 |
| Mechanical time-constant | Ms | 4.8 |
| Weight | Kg | |
| Insulation class | Class | Class F |
| Safety class | IP | IP65 |
| Environmental Conditions Temperature ℃ | Temperature -20℃ ~ +40℃ Humidity Below 90%RH No dewing | |
