Current: 2.8/3.0A
Motor Length: 51mm/56mm/76mm/82mm/100mm/112mm
Customized: Connectors, Gearbox, Encoder, Brake, Lead Screw, Integrated Driver...

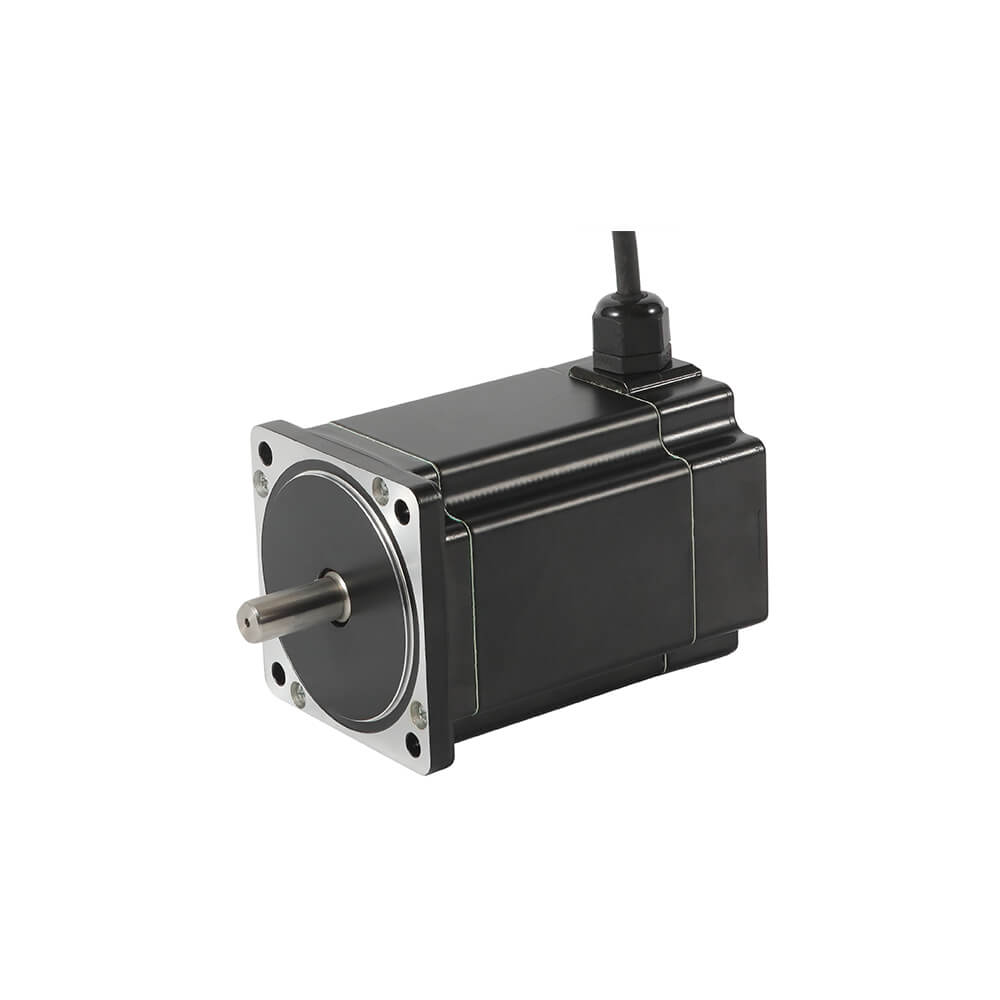

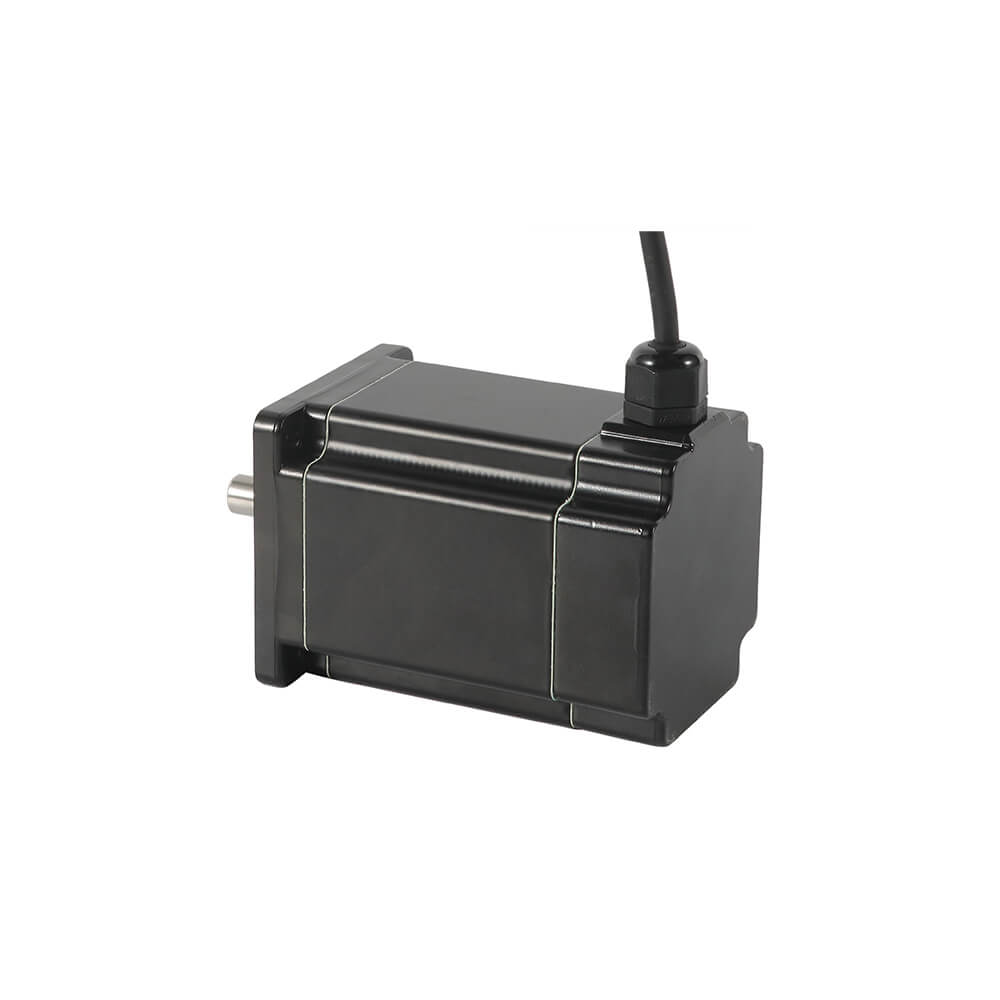

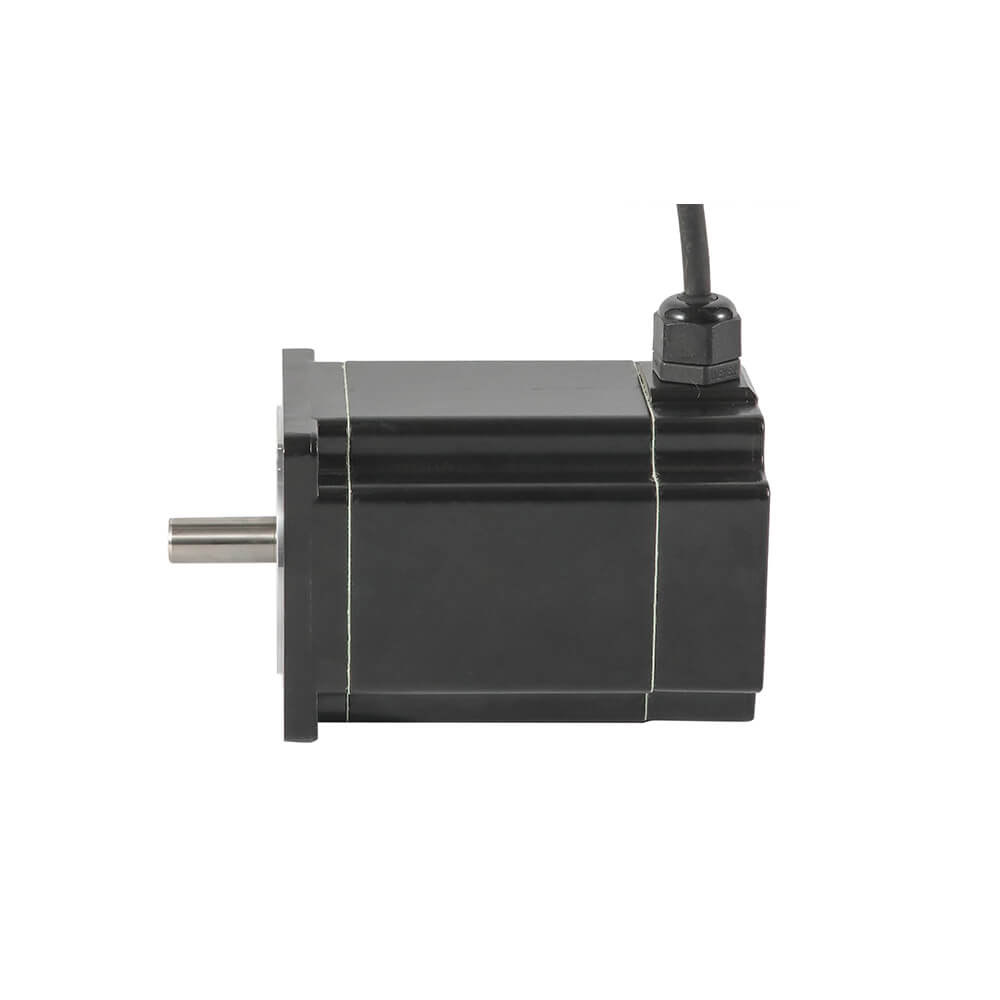

Nema 23 Waterproof Stepper Motor
JKONGMOTOR
Waterproof Motors
Nema23 (57mm)
4wires
2 phase
1.8°
10 Pcs
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 75N (20mm from the flange) |
| Max. axial force | 15N |
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm2 | Kg | |
| JK57HSW51-2804 | 1.8 | 51 | 2.8 | 0.83 | 2.2 | 1.0 | 4 | 300 | 230 | 0.59 |
| JK57HSW56-2804 | 1.8 | 56 | 2.8 | 0.9 | 3.0 | 1.2 | 4 | 350 | 280 | 0.68 |
| JK57HSW76-2804 | 1.8 | 76 | 2.8 | 1.1 | 3.6 | 1.89 | 4 | 600 | 440 | 1.1 |
| JK57HSW82-3004 | 1.8 | 82 | 3.0 | 1.2 | 4.0 | 2.1 | 4 | 1000 | 600 | 1.1 |
| JK57HSW100-3004 | 1.8 | 100 | 3.0 | 0.75 | 3.0 | 2.8 | 4 | 1100 | 700 | 1.3 |
| JK57HSW112-3004 | 1.8 | 112 | 3.0 | 1.6 | 7.5 | 3.0 | 4 | 1200 | 800 | 1.4 |
Note: Above only for representative products, products of special request can be made according to the customer request.
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 75N (20mm from the flange) |
| Max. axial force | 15N |
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm2 | Kg | |
| JK57HSW51-2804 | 1.8 | 51 | 2.8 | 0.83 | 2.2 | 1.0 | 4 | 300 | 230 | 0.59 |
| JK57HSW56-2804 | 1.8 | 56 | 2.8 | 0.9 | 3.0 | 1.2 | 4 | 350 | 280 | 0.68 |
| JK57HSW76-2804 | 1.8 | 76 | 2.8 | 1.1 | 3.6 | 1.89 | 4 | 600 | 440 | 1.1 |
| JK57HSW82-3004 | 1.8 | 82 | 3.0 | 1.2 | 4.0 | 2.1 | 4 | 1000 | 600 | 1.1 |
| JK57HSW100-3004 | 1.8 | 100 | 3.0 | 0.75 | 3.0 | 2.8 | 4 | 1100 | 700 | 1.3 |
| JK57HSW112-3004 | 1.8 | 112 | 3.0 | 1.6 | 7.5 | 3.0 | 4 | 1200 | 800 | 1.4 |
Note: Above only for representative products, products of special request can be made according to the customer request.
