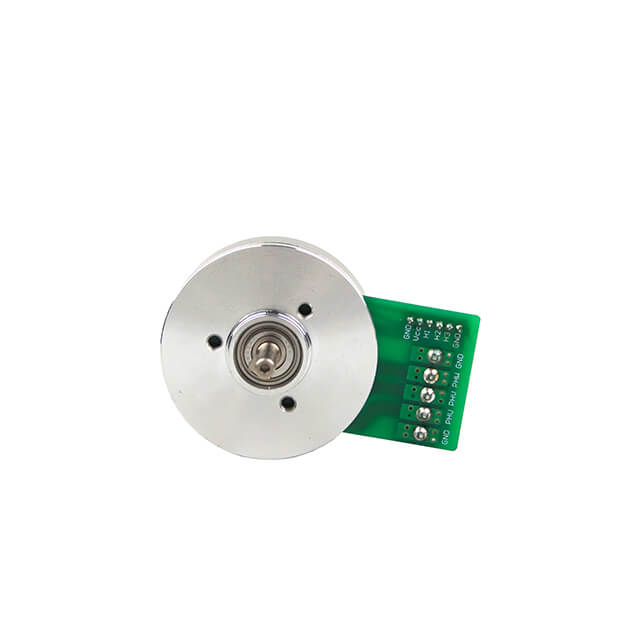

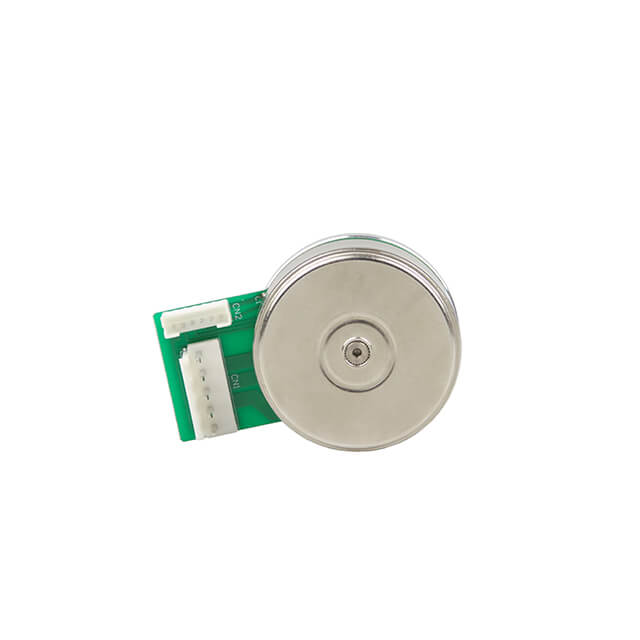

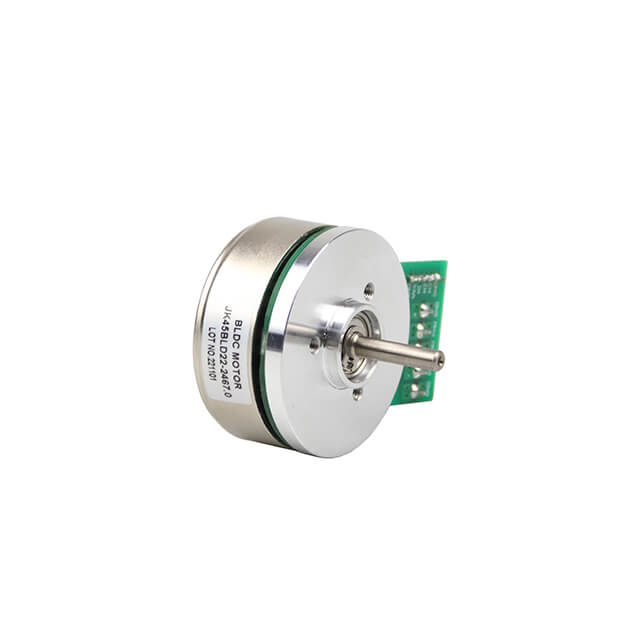

JK45BLW18-24V-6530A Outer Rotor Brushless BLDC Dc Motor 4.8A 30W 0.15N.m

Type: JK45BLW18-24V-6530A Outer Rotor Brushless BLDC DC Motor

Rated voltage：24V

Rated Current：4.8A

Rated Power : 30W

  • JK45BLW18-24V-6530A

  • Jkongmotor

  • 10 Pcs

Availability:
Inquire

24V JK45BLW18-24V-6530A Outer Rotor Brushless Motor Electrical Specifications:

Model Phase No Poles No Shaft Dia Rated Voltage Max Current Inductance Length Resistance Rated Power Max Torque Weight
Phase Poles mm V A mH mm Ω W N.m Kg
JK45BLW18-24V-6530A 3 16 4 24 4.8 0.59 18 1.42 30 0.15 0.08


24V JK45BLW18-24V-6530A Outer Runner Bldc Motor Dimension:

JK43BLW Outer Rotor Brushless Dc Motor

3 Phase Brushless Dc Motor Optional Parts：

Motor, Gearbox, Encoder, Brake, Integrated Driver...


Customized Service:

步进电机金属带轮

Metal Pulleys

步进电机塑料带轮

Plastic Pulley

步进电机齿轮

Gear

步进电机定制

Shaft Pin

步进电机厂家

Threaded Shaft

步进电机直销

Panel Mount

步进电机工厂直销

Hollow Shaft

步进电机厂家直销

Threaded Shaft

步进电机促销

Panel Mount

步进电机工厂

Single Flat

步进电机批发

Dual Flat

步进电机直销厂家

Key Shaft


Other Customized Parts of Bldc Motors：

brushless dc motor

Cables

brushless dc motor customized

Flange

brushless dc motor basics

Shaft

brushless dc motor controller 36v

Screw Rod

outter runner bldc motor

Outter Runner

coreless dc motor manufacturer

Coreless Dc Motors

bldc motor with worm gearbox

Worm Gearbox

brushless dc geared motor

Common Gear

brushless dc motor with planetary gearbox

Planetary Gear

bldc motor with brake

Brake

integrated brushless dc motor

Built-in Driver

brushless dc motor drivers

Drivers


24V JK45BLW18-24V-6530A Outer Rotor Brushless Dc Motor Drawing:


Suitable Drivers Manual:
