Home / Products Centre / Brushless Dc Motors / Brushless Dc Motor / Outer Rotor Bldc Motor / JK43BLW30-24V-100 Outer Rotor Brushless BLDC Dc Motor Φ43*30 1.0A 60W 0.5N.m

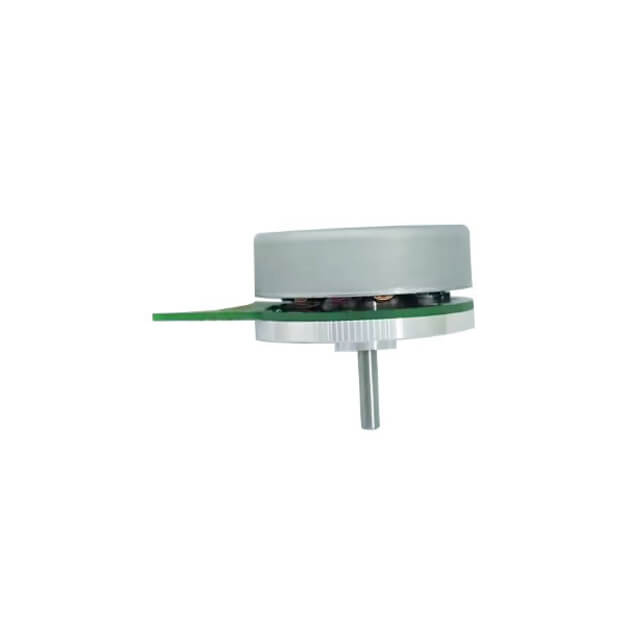

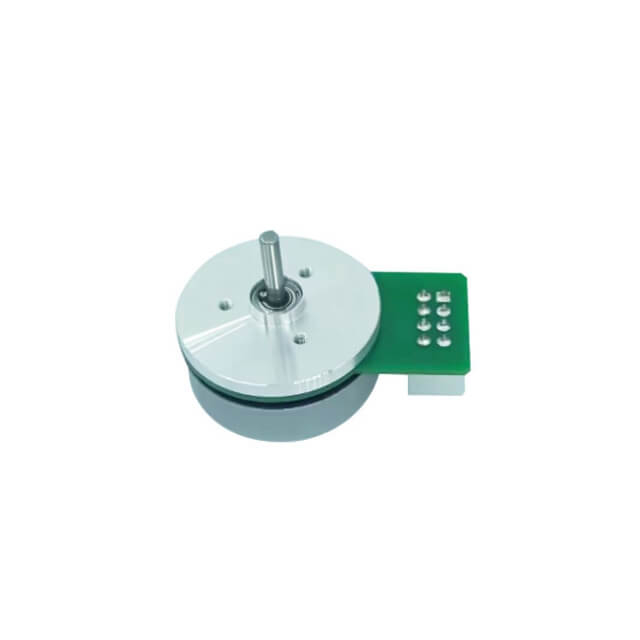

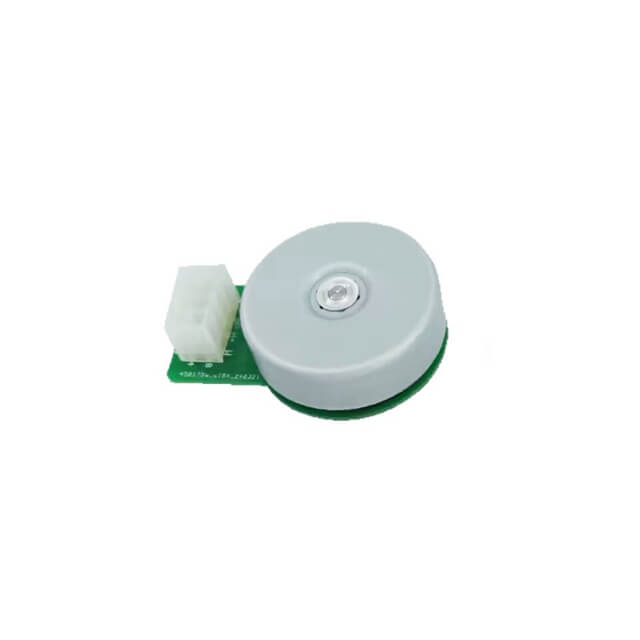

JK43BLW30-24V-100 Outer Rotor Brushless BLDC Dc Motor Φ43*30 1.0A 60W 0.5N.m

Type: JK43BLW30-24V-100 Outer Rotor Brushless BLDC DC Motor

Dimension (without shaft): Φ43*30mm

Rated voltage：24V

Rated Speed：2000 Rpm

Rated Current：1.0A

Rated Power : 60W

Model:
JK43BLW30-24V-100
Brand:
Jkongmotor
MOQ:
10 Pcs


Availability:



Inquire

24V JK43BLW30-24V-100 Outer Rotor Brushless Motor Electrical Specifications:

Model	Driver	Dimension(Without Shaft)	Rated Voltage	Rated Speed	Rated Current	Rated Power	Holding Torque
Model	/	mm	V	Rpm	A	W	N.m
JK43BLW30-24V-100	None	Φ43*30	24	2000	1.0	60	0.5

outer rotor bldc motor outer rotor brushless dc motor outer rotor bldc motor supplier outer rotor bldc motor manufacturer 24v outer rotor bldc motor 24v outer rotor brushless dc motor 16 poles bldc motor 3phase brushless dc motor outer runner bldc motor outer runner brushless dc motor

Related Products

JK36BLWD20-24V-300 Outer Rotor Brushless BLDC Dc Motor Φ36*20 3.0A 80W 0.2N.m

JK110BLW90-24V-4000 Outer Rotor Brushless BLDC Dc Motor Φ110x110x90 5.0A 120W 5N.m

JK84BLWD30-36V-500 Outer Rotor Brushless BLDC Dc Motor Φ80x30 5.0A 120W 5N.m

JK84BLW30-24V-500 Outer Rotor Brushless BLDC Dc Motor Φ80x30 5.0A 120W 5N.m

JK84BLWD45-24V-500 Outer Rotor Brushless BLDC Dc Motor Φ80x30 5.0A 120W 5N.m

JK84BLWD30-24V-500-03 Outer Rotor Brushless BLDC Dc Motor Φ80x30 5.0A 120W 5N.m

JK84BLWD30-24V-500-02 Outer Rotor Brushless BLDC Dc Motor Φ80x30 5.0A 120W 5N.m

JK84BLWD30-24V-500-01 Outer Rotor Brushless BLDC Dc Motor Φ80x30 5.0A 120W 5N.m

JK84BLW30-24V-600 Outer Rotor Brushless BLDC Dc Motor Φ80x30 6.0A 150W 5N.m

JK60BLWD40-24V-200 Outer Rotor Brushless BLDC Dc Motor Φ60* 40 2.0A 40W 0.5N.m

JK60BLWD40-24V-080 Outer Rotor Brushless BLDC Dc Motor Φ60* 40 0.8A 20W 0.5N.m

JK60BLWD40-24V-500 Outer Rotor Brushless BLDC Dc Motor Φ60* 40 5.0A 120W 1.8N.m

JK60BLW40-24V-400 Outer Rotor Brushless BLDC Dc Motor Φ60* 40 4.0A 100W 1.5N.m

JK60BLWD40-24V-300-02 Outer Rotor Brushless BLDC Dc Motor Φ60* 40 3.0A 60W 0.5N.m

JK60BLWD40-24V-300-01 Outer Rotor Brushless BLDC Dc Motor Φ60* 40 3.0A 100W 1.8N.m

JK60BLWD25-12V-250 Outer Rotor Brushless BLDC Dc Motor Φ60* 25 2.5A 30W 0.5N.m

JK60BLWD25-12V-200 Outer Rotor Brushless BLDC Dc Motor Φ60* 25 2.0A 30W 0.5N.m

JK60BLWD25-24V-250 Outer Rotor Brushless BLDC Dc Motor Φ60* 25 2.5A 60W 1.0N.m

JK60BLW25-24V-600 Outer Rotor Brushless BLDC Dc Motor Φ60* 25 6A 150W 1.8N.m

JK60BLWD20-12V-300 Outer Rotor Brushless BLDC Dc Motor 2A 50W 0.7N.m

JK43BLW30-24V-100 Outer Rotor Brushless BLDC Dc Motor Φ43*30 1.0A 60W 0.5N.m

24V JK43BLW30-24V-100 Outer Rotor Brushless Motor Electrical Specifications:

24V JK43BLW30-24V-100 Outer Rotor Brushless Motor Electrical Specifications:

24V JK43BLW30-24V-100 Outer Runner Bldc Motor Dimension:

24V JK43BLW30-24V-100 Outer Runner Bldc Motor Dimension:

3 Phase Brushless Dc Motor Optional Parts：

Customized Service:

Other Customized Parts of Bldc Motors：

3 Phase Brushless Dc Motor Optional Parts：

Customized Service:

Other Customized Parts of Bldc Motors：

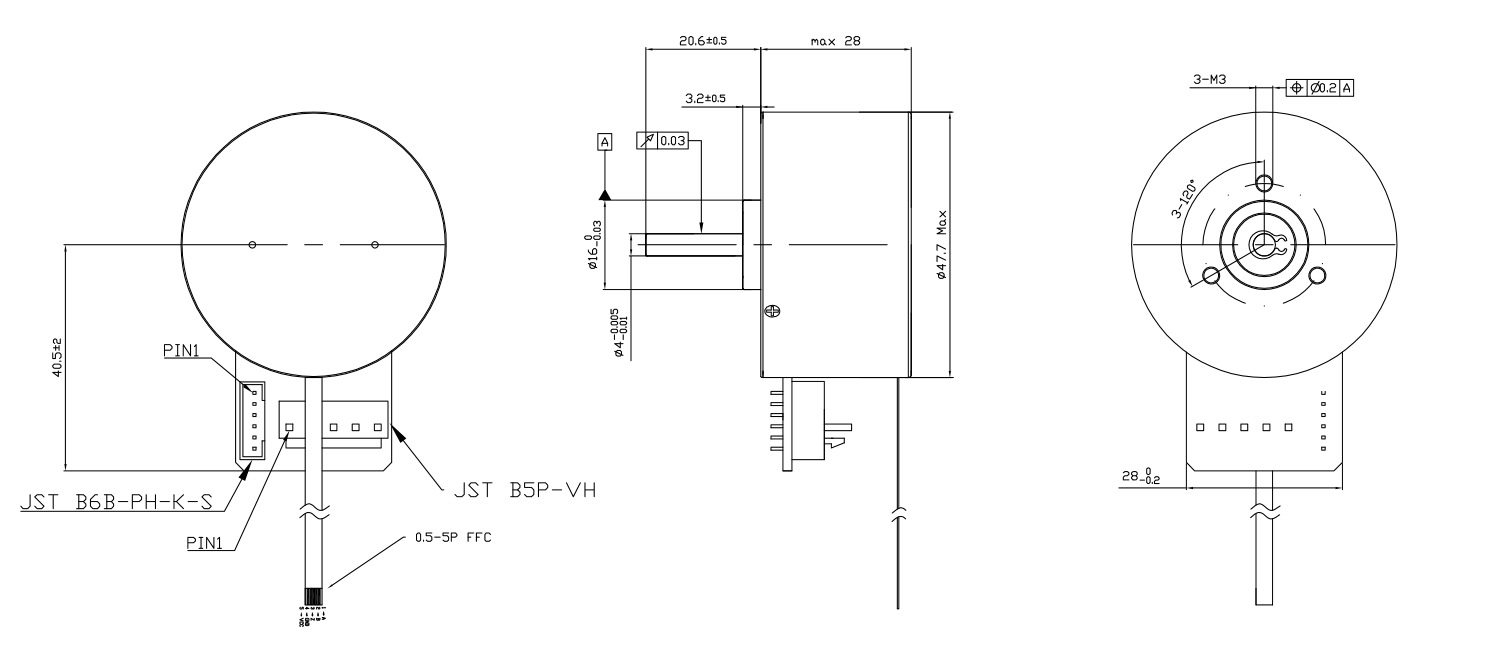

24V JK43BLW30-24V-100 Outer Rotor Brushless Dc Motor Drawing:
