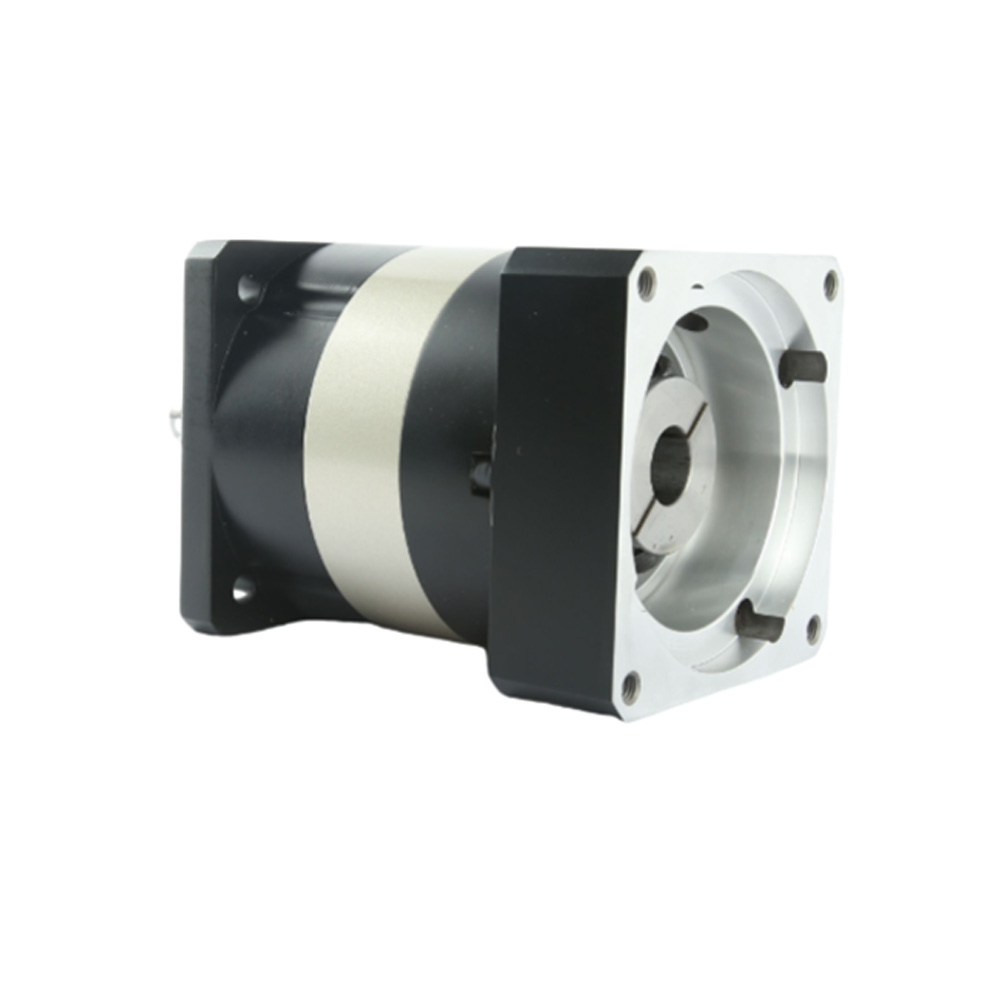

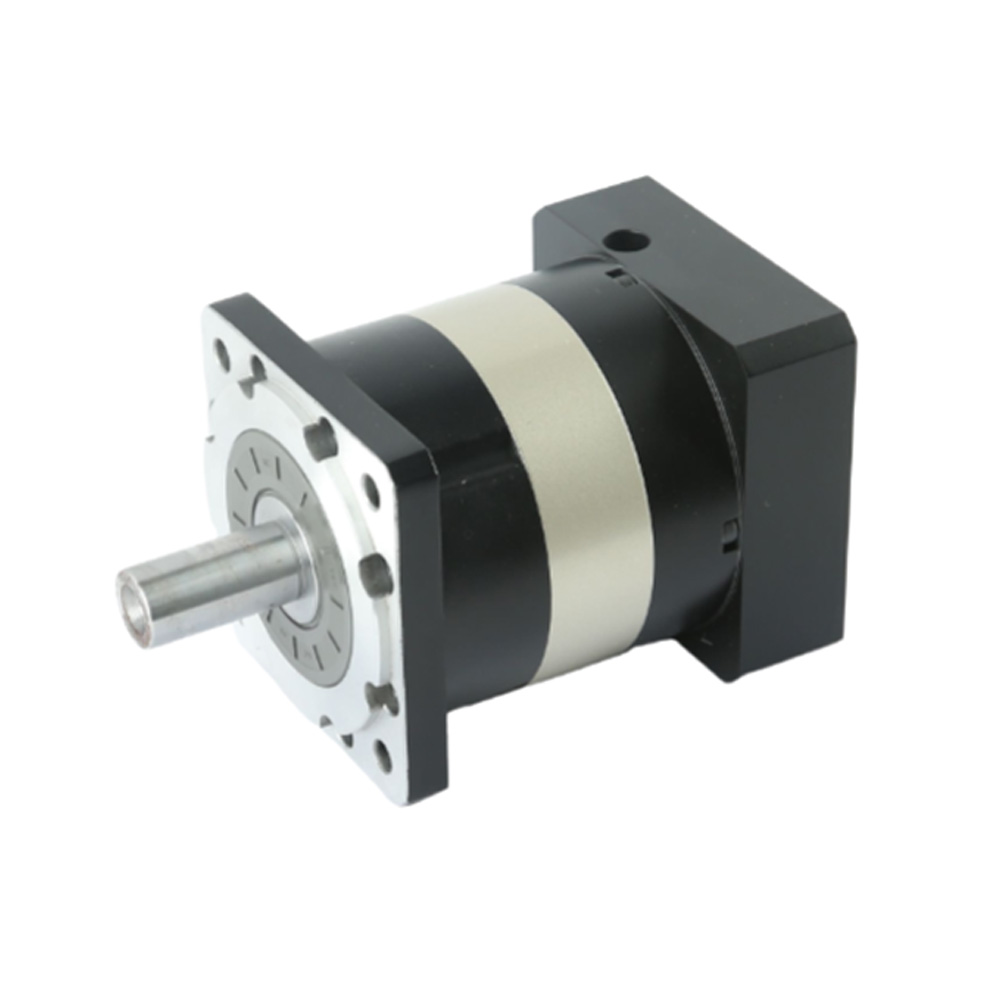

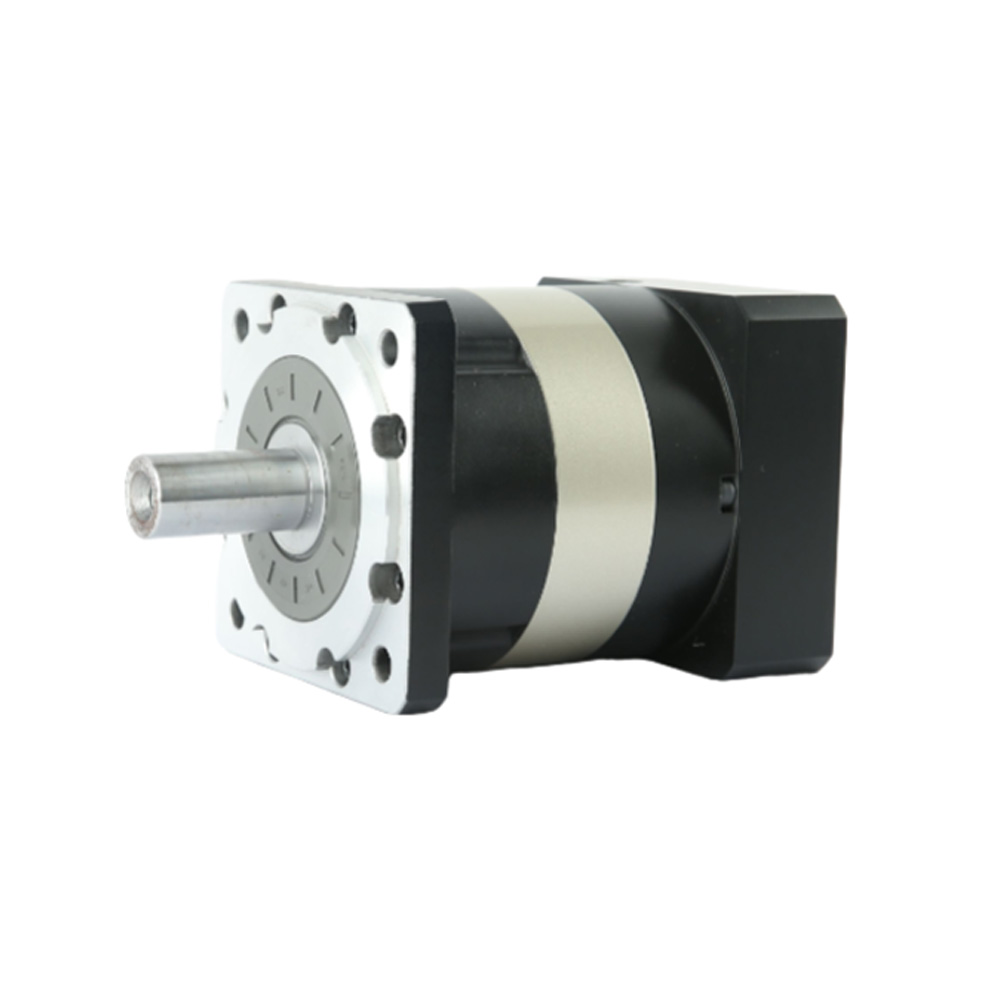

JK-PLF120 Series High Precision Planetary Gearbox for Nema 110 Bldc Motor

Type: JK-PLF120 Series High Precision Planetary Gearbox
Rated Torque: 200N.m - 600N.m

Model:
JK-PLF120 High Precision Planetary Gearbox
Brand:
JKONGMOTOR
MOQ:
10 Pcs


Availability:



Inquire

This is a 310V square brushless DC motor with PLF120 gearbox. The overall cylindrical body is more suitable for installation in specific situations.
It is the perfect solution for motion control applications that require high torque, high precision, maximum efficiency and compact structure, such as medical equipment, robotics and other industrial applications, etc.

Gearbox Specifications:

Model: PLF120 Series
Gearbox Type: Planetary Gearbox
Efficiency: 96% / 94%/ 90%
Backlash: ≤10 arcmin - 18 arcmin
Rated Torque: 105N.m - 300N.m
Shaft Maximum Axial Load: 1350N
Shaft Maximum Radial Load: 1600N
Rated Input Speed: 3500rpm
Max Input Speed: 6000rpm
Average Life Span: ＞20000h
Noise: ≤65dB
Protection Level: iP65

planetary gearbox gearbox bldc motor nema 42 planetary gearbox gear ratio planetary gearbox manufacturers nema 42 planetary geared bldc motor planetary gear bldc motor planetary gear bldc motor manufacturer planetary reduction gearbox industrial planetary gearbox geared bldc motors

Related Products

JK-PLF80 Series High Precision Planetary Gearbox for 80 / 86mm Bldc Motor Gear Ratio: 3/4/5/7/10/12/15/16/20/25/28/35:1

JK-PLF60 Series High Precision Planetary Gearbox for Nema 23 24 Bldc Motor Gear Ratio: 3/4/5/7/10/16/20/25/28/30/35/40/50/70/100:1

JK-HPS90 Series High Precision Planetary Gearbox for Nema 34 Stepper & Bldc Motor Gear Ratio: 4/5/7/10/16/20/25/28/35/40/50/70:1

JK-HPS60 Series High Precision Planetary Gearbox for Nema 23 24 Stepper & Bldc Motor & Integrated Servo Motor Gear Ratio: 4/5/7/10/16/20/25/28/35/40/50/70:1

JK-HPR60 Series High Precision Planetary Gearbox for Nema 23 24 Stepper & Bldc Motor & Integrated Servo Motor Gear Ratio: 4/5/7/10/16/20/25/28/35/40/50/70:1

JK-HPR60 Series High Precision Planetary Gearbox for Nema 23 24 Stepper & Bldc Motor Gear Ratio: 3/4/5/7/10/16/20/25/28/30/35/40/50/70/100:1

JK-HPS60 Series High Precision Planetary Gearbox for Nema 23 24 Stepper & Bldc Motor Gear Ratio: 3/4/5/7/10/16/20/25/28/30/35/40/50/70/100:1

JK-HPS42 Series High Precision Planetary Gearbox for Nema 17 Stepper & Bldc Motor Gear Ratio: 4/5/7/10/16/20/25/28/35/40/50/70:1

JK-HPR42 Series High Precision Planetary Gearbox for Nema 17 Stepper & Bldc Motor Gear Ratio: 3/4/5/7/10/15/16/20/25/28/30/35/40/50/70/100:1

Stage	Ⅰ Stage		Ⅱ Stage		Ⅲ Stage
Ratio	3、4、5、7、10		12、15、16、20、25、28、35、40、50、70、100		64、80、100、120、125、140、175、200、250、280、350、400、500、700、1000
	A	B	A	B	A	B
Length (mm)	86	212	118	244	150	276
Rated Speed (rpm)	3500		3500		3500
Max Speed (rpm)	6000		6000		6000
Max. radial force (N)	1600		1600		1600
Max. axial force (N)	1350		1350		1350
No-load Torque (N.m)	1.3		0.6		0.6
Efficiency (%)	96		94		90
Backlash (arcmin)	≤10		≤15		≤18
Noise (dB)	≤65		≤65		≤65
Weight (kg)	1.1		1.3		1.5
Working Lifetime (h)	＞20000 （Continuous operating life halved）
Torsional rigidity (Nm/arcmin)	15
Lubrication Method	Long-term
Rotation Direction	Input/Output Syntropy
Protection Class	IP65
Mounting Position	Arbitrarily

Ratio（i）	Ⅰ Stage					Ⅱ Stage
Ratio（i）	3	4	5	7	10	12	15	16	20	25	28	35	40	50	70	100
Rated output torque (Nm）	105	230	220	160	100	105	105	260	260	245	260	245	260	245	195	110
Max Output torque (Nm）	210	460	440	320	200	210	210	520	520	490	520	490	520	490	390	220
Rotor Interia（kg.cm² )	2.63	1.79	1.53	1.41	1.30	2.63	2.63	1.75	1.50	1.49	1.30	1.30	1.30	1.30	2.57	1.30
Ⅲ Stage
Ratio（i）	64	80	100	120	125	140	175	200	250	280	350	400	500	700	1000
Rated output torque (Nm）	300	300	300	300	265	300	265	300	265	300	265	300	265	235	125
Max Output torque (Nm）	600	600	600	600	530	600	530	600	530	600	530	600	530	470	250
Rotor Interia（kgcm² )	0.076	0.064	0.075	0.064	0.064	0.064	0.064	0.064	0.064	0.064	0.064	0.064	0.064	0.064	0.064

Stage	Ⅰ Stage		Ⅱ Stage		Ⅲ Stage
Ratio	3、4、5、7、10		12、15、16、20、25、28、35、40、50、70、100		64、80、100、120、125、140、175、200、250、280、350、400、500、700、1000
	A	B	A	B	A	B
Length (mm)	86	212	118	244	150	276
Rated Speed (rpm)	3500		3500		3500
Max Speed (rpm)	6000		6000		6000
Max. radial force (N)	1600		1600		1600
Max. axial force (N)	1350		1350		1350
No-load Torque (N.m)	1.3		0.6		0.6
Efficiency (%)	96		94		90
Backlash (arcmin)	≤10		≤15		≤18
Noise (dB)	≤65		≤65		≤65
Weight (kg)	1.1		1.3		1.5
Working Lifetime (h)	＞20000 （Continuous operating life halved）
Torsional rigidity (Nm/arcmin)	15
Lubrication Method	Long-term
Rotation Direction	Input/Output Syntropy
Protection Class	IP65
Mounting Position	Arbitrarily

Ratio（i）	Ⅰ Stage					Ⅱ Stage
Ratio（i）	3	4	5	7	10	12	15	16	20	25	28	35	40	50	70	100
Rated output torque (Nm）	105	230	220	160	100	105	105	260	260	245	260	245	260	245	195	110
Max Output torque (Nm）	210	460	440	320	200	210	210	520	520	490	520	490	520	490	390	220
Rotor Interia（kg.cm² )	2.63	1.79	1.53	1.41	1.30	2.63	2.63	1.75	1.50	1.49	1.30	1.30	1.30	1.30	2.57	1.30
Ⅲ Stage
Ratio（i）	64	80	100	120	125	140	175	200	250	280	350	400	500	700	1000
Rated output torque (Nm）	300	300	300	300	265	300	265	300	265	300	265	300	265	235	125
Max Output torque (Nm）	600	600	600	600	530	600	530	600	530	600	530	600	530	470	250
Rotor Interia（kgcm² )	0.076	0.064	0.075	0.064	0.064	0.064	0.064	0.064	0.064	0.064	0.064	0.064	0.064	0.064	0.064

JK-PLF120 Series High Precision Planetary Gearbox for Nema 110 Bldc Motor

Gearbox Specifications:

Gearbox Specifications:

JK-PLF120 Planetary Gearbox Specification:

JK-PLF120 Planetary Gearbox Specification:

JK-PLF120 Series Output Dimension:

JK-PLF120 Series Output Dimension:

Customized Service:

Customized Service:

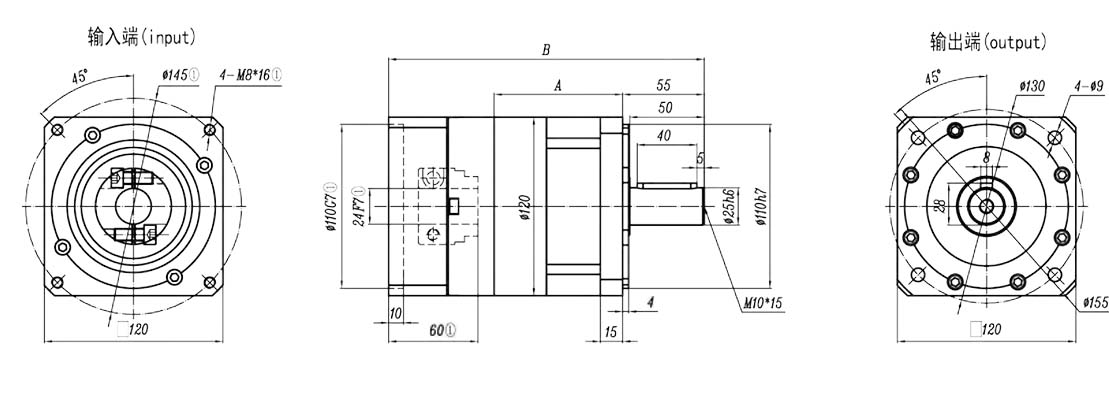

2D JK-PLF120 Series Planetary Gearbox Drawings:
