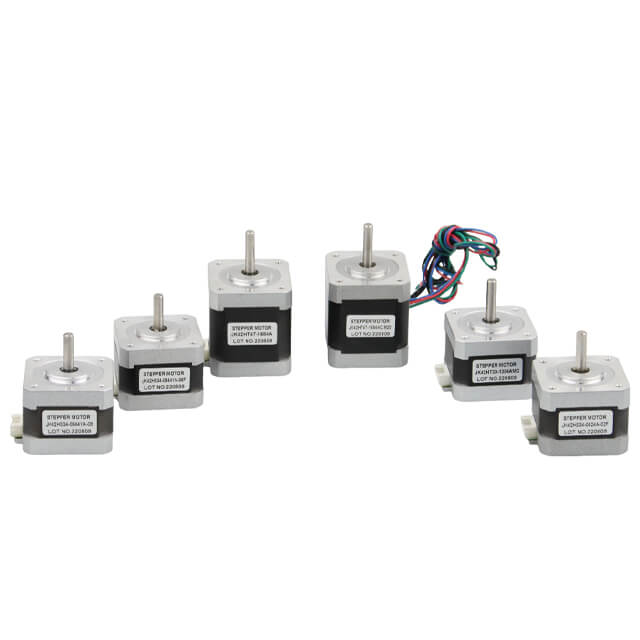

NEMA 17 stepper motor OEM ODM customized solutions are essential for milk analyzers, offering high precision, stable torque, microstepping accuracy, and flexible customization to ensure reliable fluid control, repeatability, and long-term performance in dairy testing equipment.
Why is NEMA 17 the Standard Choice for Automatic Milk Analyzers?
Automatic milk analyzers require precise liquid handling, stable motion control, and long-term reliability. Among various motor options, the NEMA 17 stepper motor has become a widely adopted standard due to its balanced performance, compact size, and cost efficiency.
Key Reasons NEMA 17 is Preferred
1. High Precision for Accurate Sampling
Automatic milk analyzers rely on precise dosing and fluid movement. NEMA 17 stepper motors provide accurate step control, ensuring consistent sample measurement and repeatable test results.
2. Compact Size for Integrated Equipment
Space-Saving Design
NEMA 17 motors have a standardized 42mm frame, making them ideal for compact analyzer designs where internal space is limited.
Easy Integration
Their standardized mounting dimensions simplify installation into pumps, valves, and robotic dispensing systems.
3. Stable Low-Speed Performance
Milk analyzers often require slow, controlled movements for fluid transfer. NEMA 17 motors deliver smooth torque at low speeds, minimizing vibration and improving measurement stability.
4. Cost-Effective for Mass Production
Affordable Without Compromising Performance
Compared to servo motors, NEMA 17 stepper motors offer a lower cost solution while still meeting accuracy requirements.
Ideal for OEM Manufacturing
Their wide availability and standardized design make them a preferred choice for large-scale production of milk analyzers.
5. Reliable and Low Maintenance
NEMA 17 motors have a simple structure with no brushes, reducing wear and maintenance needs. This is especially important for laboratory and dairy environments that require continuous operation.
6. Flexible Customization for Different Analyzer Designs
OEM/ODM Custom Options
Manufacturers can customize shaft type, wiring, torque, and even integrate drivers for specific analyzer requirements.
Compatibility with Multiple Mechanisms
They can be easily adapted to peristaltic pumps, syringe pumps, and linear motion systems used in milk testing equipment.
Typical Applications in Milk Analyzers
1. Peristaltic Pump Control
Ensures precise milk sampling and reagent dosing.
2. Syringe Pump Systems
Provides accurate liquid injection for testing procedures.
3. Sample Positioning Mechanisms
Controls probe movement and sample alignment.
Conclusion
NEMA 17 stepper motors have become the standard choice for automatic milk analyzers because they offer the ideal balance of precision, compact size, reliability, and cost. For manufacturers and OEM solution providers, they deliver consistent performance while supporting flexible customization for various dairy testing applications.
JK42HS34-0404 Stepper Motor Physical Specification:
Physical Specification
Frame Size
mm
Nema 17 (42 x 42)
Output Shaft Type
/
Round Shaft
Shaft Diameter
mm
5
Shaft Length
mm
24
Body Length
mm
34
Single Shaft /Dual Shaft
/
Single Shaft
No. of Leads
/
4
Leads Length
mm
300
Weight
Kg
0.22
Jkongmotor Stepper Motor Customized Solutions
Wires
Covers
Shafts
Lead Screw
Encoder
Brakes
Gearbox
Drivers
Built in Drivers
More Custom
Jkongmotor Stepper Motor Shaft Customized Solutions
Pulleys
Gears
Shaft Pins
Screw Shafts
Cross Drilled Shafts
Flats
Keys
Knurlings
Hobbing Shafts
Drivers
How Much Torque Does Your Milk Analyzer Really Need?
Choosing the right torque for a milk analyzer motor is critical for ensuring accurate liquid handling, stable operation, and long equipment life. Too little torque leads to missed steps or inconsistent sampling, while too much torque increases cost and power consumption.
Key Factors That Affect Torque Requirements
1. Pump Type and Load
Peristaltic Pumps
Require moderate torque due to tubing compression and fluid resistance.
Syringe Pumps
Need higher torque for precise pushing and pulling of liquid, especially at higher pressures.
2. Fluid Characteristics
Milk viscosity, temperature, and fat content can slightly affect resistance. Higher viscosity fluids require more torque for smooth flow control.
3. Speed vs Torque Trade-Off
Stepper motors deliver higher torque at low speeds, which is ideal for milk analyzers. However, increasing speed reduces available torque, so proper balance is important.
Using gear reduction or lead screws can reduce required motor torque while maintaining precision.
Typical Torque Range for Milk Analyzers
1. Standard Applications
0.3 – 0.6 Nm: Suitable for most peristaltic pump systems
2. Higher Load Systems
0.6 – 1.0 Nm: Required for syringe pumps or multi-channel analyzers
How to Select the Right Torque
1. Add a Safety Margin
Always choose a motor with 20–30% higher torque than the calculated requirement to avoid step loss.
2. Match with Driver and Power Supply
Ensure the motor driver provides sufficient current to achieve the rated torque.
3. Consider Customization
OEM/ODM Optimization
Motor parameters such as winding, shaft type, and integrated drivers can be customized to match specific analyzer designs.
Common Mistakes to Avoid
1. Undersizing the Motor
Leads to unstable operation and inaccurate test results.
2. Oversizing the Motor
Increases cost, heat, and energy consumption unnecessarily.
Conclusion
Most automatic milk analyzers typically require torque in the range of 0.3 to 1.0 Nm, depending on pump type and system design. Selecting the right torque ensures accurate measurements, reliable operation, and optimal system efficiency.
When selecting a NEMA 17 stepper motor, one of the most common questions is whether to choose a bipolar or unipolar type. The right choice depends on your application requirements, including torque, control complexity, and cost.
What’s the Difference Between Bipolar and Unipolar?
1. Bipolar Stepper Motors
Structure
Use two coils without center taps, requiring current to reverse direction through the windings.
Key Feature
Higher torque output due to full coil utilization.
2. Unipolar Stepper Motors
Structure
Include center-tapped windings, allowing simpler current flow without reversal.
Key Feature
Easier control but lower torque compared to bipolar motors.
Key Comparison Factors
1. Torque Performance
Bipolar Advantage
Provides 30–40% higher torque, making it ideal for applications like pumps and precision motion systems.
Unipolar Limitation
Lower torque due to partial coil usage.
2. Control Complexity
Bipolar Motors
Require more advanced drivers (H-bridge circuits).
Unipolar Motors
Simpler driver design, easier for basic applications or entry-level systems.
3. Efficiency and Heat
Bipolar motors are generally more efficient and deliver better performance per size, while unipolar motors may generate slightly less heat in simple setups.
4. Cost Consideration
Unipolar systems can be cheaper in terms of driver electronics, but bipolar motors are more commonly available and cost-effective in modern designs.
Which One is Better for Milk Analyzers?
1. Why Bipolar is Usually Preferred
Higher torque for pump control
Better precision and stability
Widely supported by modern drivers
2. When Unipolar Might Be Used
Low-End or Cost-Sensitive Designs
Suitable for simple or low-load applications where high torque is not required.
Quick Selection Guide
Choose Bipolar if You Need:
Higher torque
Better accuracy
Reliable continuous operation
Choose Unipolar if You Need:
Simpler control
Lower initial electronics cost
Basic performance
Conclusion
For most modern applications—especially automatic milk analyzers—bipolar NEMA 17 stepper motors are the better choice due to their higher torque, efficiency, and compatibility with advanced control systems. Unipolar motors remain an option for simpler, low-cost designs but are less commonly used in precision equipment.
How to Match the Rated Current with Your Driver Board?
Matching the rated current of your stepper motor with the driver board is essential for achieving stable performance, avoiding overheating, and extending system lifespan. Incorrect current settings can lead to missed steps or motor damage.
What is Rated Current?
1. Definition
Rated current refers to the maximum current each phase of the stepper motor is designed to handle safely under normal operating conditions.
2. Why It Matters
It directly affects motor torque, temperature rise, and overall efficiency.
Key Steps to Match Motor and Driver Current
1. Check the Motor Datasheet
Identify Phase Current
Look for the rated phase current (e.g., 1.5A/phase) in the motor specifications. This is the baseline for driver selection.
2. Select a Compatible Driver
Driver Current Range
Ensure the driver supports a current range equal to or slightly higher than the motor’s rated current.
Example
Motor: 1.5A/phase
Driver: 1.0–2.0A adjustable range → Suitable
3. Set the Output Current Correctly
Use Current Limiting (Vref or Software)
Adjust the driver’s current setting (via potentiometer or software) to match 80–100% of the rated current.
Why Not 100% Always?
Running at 80–90% reduces heat while maintaining sufficient torque for most applications.
Important Considerations
1. Heat Management
Higher current increases torque but also generates more heat. Ensure proper cooling (heatsinks or airflow).
2. Power Supply Compatibility
Voltage vs Current
A higher voltage supply improves high-speed performance, but current must still be limited to the motor’s rating.
3. Microstepping Settings
Microstepping improves smoothness but does not increase maximum torque. Proper current setting is still critical.
Common Mistakes to Avoid
1. Overdriving the Motor
Setting current above rated value may increase torque temporarily but can cause overheating and shorten motor life.
2. Undersetting the Current
Too low current results in insufficient torque, leading to missed steps or unstable operation.
3. Ignoring Driver Limits
Using a driver that cannot supply enough current will prevent the motor from reaching its full performance.
Quick Matching Guide
Recommended Practice
Set driver current to 80–100% of motor rated current
Choose a driver with 10–20% higher current capacity
Monitor temperature during operation
Conclusion
Properly matching the rated current with your driver board ensures optimal torque, stable motion, and long-term reliability. A well-balanced setup—neither overdriven nor underpowered—is key to achieving the best performance in stepper motor applications.
Does Step Angle (1.8° vs 0.9°) Affect the Precision of Milk Testing?
In automatic milk analyzers, precision is critical for accurate sampling and fluid control. One common question is whether choosing a 1.8° or 0.9° step angle in a NEMA 17 stepper motor significantly affects testing accuracy.
What Does Step Angle Mean?
1. Definition
Step angle refers to how much the motor shaft rotates per step.
1.8° motor → 200 steps per revolution
0.9° motor → 400 steps per revolution
2. Why It Matters
A smaller step angle means finer motion control, which can improve positioning resolution.
Key Differences Between 1.8° and 0.9°
1. Positioning Resolution
0.9° Advantage
Provides higher resolution, allowing finer control of fluid movement and positioning.
1.8° Reality
Still sufficient for most milk analyzer applications when combined with microstepping.
2. Smoothness of Operation
0.9° Motors
Offer smoother motion with less vibration, especially at low speeds.
1.8° Motors
Can achieve similar smoothness using microstepping drivers.
3. Torque Performance
1.8° Advantage
Generally delivers slightly higher torque, making it more suitable for pump-driven systems.
0.9° Trade-Off
May have slightly reduced torque due to increased step count.
Does It Really Impact Milk Testing Accuracy?
1. Fluid Control vs Motor Resolution
Milk analyzers rely more on consistent flow control than ultra-fine positioning. Factors like pump design and calibration often matter more than step angle.
2. Role of Microstepping
Key Insight
Modern drivers use microstepping (e.g., 1/16, 1/32), which significantly increases resolution even for 1.8° motors.
3. Practical Conclusion
In most real-world systems, the difference in step angle has limited impact on final test accuracy.
When Should You Choose 0.9°?
1. High-Precision Dosing Systems
Applications requiring extremely fine liquid control.
2. Low-Vibration Requirements
Sensitive measurement environments where smoother motion is critical.
When is 1.8° the Better Choice?
1. Standard Milk Analyzers
Provides a good balance of torque, cost, and performance.
2. Cost-Sensitive Designs
More widely available and typically more affordable.
Conclusion
While 0.9° stepper motors offer higher resolution, most automatic milk analyzers achieve sufficient precision with 1.8° motors combined with microstepping. For the majority of applications, system design and calibration have a greater impact on testing accuracy than step angle alone.
What Environmental Protection (IP Rating) Is Required for Dairy Testing Equipment?
Dairy testing equipment, such as milk analyzers, operates in environments exposed to moisture, splashes, cleaning chemicals, and occasional dust. Choosing the right IP (Ingress Protection) rating is essential to ensure reliability, hygiene compliance, and long service life.
What is an IP Rating?
1. Definition
IP rating indicates the level of protection a device has against solid particles (dust) and liquids (water).
2. Structure
First digit: Protection against solids (0–6)
Second digit: Protection against liquids (0–9)
Common IP Ratings for Dairy Equipment
1. IP54 – Basic Protection
Suitable For
Indoor lab environments
Minimal exposure to water
Limitation
Not ideal for washdown or high-humidity areas
2. IP65 – Recommended Standard
Why It’s Popular
Full protection against dust
Protection against low-pressure water jets
Typical Use
Most automatic milk analyzers
Equipment near processing lines
3. IP67 – High Protection
Features
Dust-tight
Protection against temporary immersion
When Needed
Harsh environments with frequent cleaning
Risk of accidental water exposure
Key Factors to Consider
1. Cleaning Process
Regular Washdowns
Require at least IP65 or higher
High-Pressure Cleaning
May require IP67-rated components
2. Installation Location
Laboratory Use
Lower IP ratings (IP54–IP65) are usually sufficient
Industrial Dairy Plants
Higher protection (IP65–IP67 or above) is recommended
3. Component-Level Protection
Not only the whole machine, but also motors, connectors, and drivers should meet appropriate IP ratings to avoid failure.
Common Mistakes to Avoid
1. Choosing Too Low IP Rating
Leads to water ingress, corrosion, and equipment failure
2. Over-Specifying Protection
Using IP67 unnecessarily increases cost without added benefit in low-risk environments
Conclusion
For most dairy testing equipment, IP65 is the standard choice, offering a good balance between protection and cost. In harsher or washdown environments, IP67 or IP69 may be required to ensure durability and compliance with hygiene standards.
Integrated Lead Screw or Standard Shaft: Which Is Better for Milk Samplers?
When selecting motion components for milk sampling systems, users often compare integrated lead screw stepper motors and standard shaft stepper motors. The choice impacts precision, hygiene, maintenance, and overall system efficiency.
What Is an Integrated Lead Screw Stepper Motor?
Definition and Structure
An integrated lead screw stepper motor combines the motor and linear motion mechanism into a single compact unit. The lead screw is directly built into the motor shaft, eliminating the need for external couplings.
Key Benefits for Milk Samplers
Higher positioning accuracy for precise liquid sampling
A standard shaft stepper motor uses a traditional rotating shaft that requires external components (e.g., couplings, lead screws, or belts) to convert rotary motion into linear motion.
Key Benefits for Milk Samplers
Flexible configuration for customized designs
Easier replacement of individual components
Lower initial motor cost
Key Comparison for Milk Sampling Applications
Precision and Repeatability
Integrated lead screw motors offer better repeatability due to fewer mechanical connections. This is critical for consistent milk volume sampling.
Hygiene and Cleanability
. This is critical for consistent milk volume sampling.
Hygiene and Cleanability
Integrated designs reduce exposed parts, making them easier to clean and more suitable for hygienic environments like dairy testing.
Standard shaft: More assembly work, higher maintenance due to multiple parts
Cost Consideration
Integrated: Higher upfront cost but lower long-term maintenance
Standard shaft: Lower initial cost but potentially higher lifecycle cost
Which One Should You Choose for Milk Samplers?
Choose Integrated Lead Screw If:
You need high precision and repeatability
Space is limited in the equipment
You want a compact, plug-and-play solution
Hygiene and reduced contamination risk are priorities
Choose Standard Shaft If:
You require flexible mechanical customization
Budget is limited at the initial stage
Your system design already includes external linear mechanisms
Conclusion
For most modern milk sampling systems, integrated lead screw stepper motors are the preferred choice due to their precision, compactness, and ease of maintenance. However, standard shaft motors remain suitable for highly customized or cost-sensitive projects.
How to Evaluate the Longevity and Reliability of a Stepper Motor Brand?
Choosing a reliable stepper motor brand is critical for long-term performance, reduced downtime, and lower maintenance costs. Here are the key factors Google users care most about when evaluating durability and reliability.
Check Product Quality and Design Standards
Materials and Manufacturing Process
High-quality stepper motor brands use premium bearings, magnets, and insulation materials to ensure longer service life.
What to Look For
High-grade copper windings
Durable bearings with long life cycles
Strong housing for heat dissipation
Precision machining and assembly
Evaluate Performance Specifications
Torque Stability and Accuracy
Reliable motors maintain consistent torque and step accuracy over time, even under continuous operation.
Thermal Performance
Efficient heat dissipation directly impacts motor lifespan and prevents early failure.
Key Indicators
Low temperature rise during operation
Stable performance under load
Minimal vibration and noise
Review Testing and Certification Standards
Quality Certifications
Trusted brands comply with international standards, which indicate consistent manufacturing quality.
Common Certifications
ISO quality management systems
CE certification for safety compliance
RoHS for environmental standards
Analyze Brand Reputation and Industry Experience
Market Presence
Brands with long industry experience are more likely to offer reliable and proven products.
Customer Feedback
User reviews and case studies reveal real-world performance and reliability.
What to Check
Industry applications (automation, medical, CNC)
Long-term client partnerships
Global export experience
Assess After-Sales Support and Warranty
Technical Support
Reliable brands provide strong engineering support and quick troubleshooting.
Warranty Policy
A longer warranty often reflects confidence in product durability.
Key Considerations
Availability of spare parts
Response time for support
Customization and OEM/ODM capabilities
Consider Application-Specific Reliability
Environmental Adaptability
Motors used in harsh environments (dust, humidity, temperature variation) must have proper protection ratings.
Important Factors
IP rating for protection
Resistance to corrosion or contamination
Suitability for continuous operation
Conclusion
Quick Evaluation Checklist
To ensure long-term reliability, choose a stepper motor brand that offers:
High-quality materials and precise manufacturing
Stable performance and good thermal control
Recognized certifications
Strong market reputation
Reliable after-sales support
Focusing on these factors helps minimize failure risks and ensures consistent performance in industrial applications.
A Pune-based company focused on motion control technologies, offering stepper motors and drives for industrial automation.
Main Products
NEMA 17 stepper motors
Digital stepper drives
Motion controllers
Advantages
Strong system integration capability
High efficiency motor performance
Reliable after-sales service
9. Sigma Robotic Systems
Company Profile
Operating from Chennai, Sigma Robotic Systems specializes in robotic motion components and automation equipment.
Main Products
NEMA 17 hybrid stepper motors
Robotic motion modules
Compact linear actuators
Advantages
Robotics-focused solutions
Compact and lightweight designs
Custom engineering services
10. Dynamic Drives & Systems
Company Profile
Based in Coimbatore, Dynamic Drives & Systems offers motion control products for textile, packaging, and automation industries.
Main Products
NEMA 17 stepper motors
Stepper motor drivers
Industrial automation components
Advantages
Industry-specific application knowledge
Durable and stable motor performance
Affordable pricing structure
India’s NEMA 17 stepper motor market includes both legacy manufacturers and modern OEM-focused suppliers, offering strong advantages in customization, cost efficiency, and industrial automation solutions.
FAQs of NEMA 17 Stepper Motor for Milk Analyzer (OEM ODM Customized)
1. What is the best nema 17 stepper motor for milk analyzer oem odm customized applications?
The best nema 17 stepper motor OEM ODM customized solution should offer high torque, 1.8° step angle precision, and microstepping capability to ensure accurate fluid control and repeatability in milk analyzers.
2. Why is torque important in nema 17 stepper motor oem odm customized milk analyzer design?
Torque determines the motor’s ability to handle viscous milk and drive pumps reliably. High-torque nema 17 stepper motor OEM ODM customized designs ensure stable fluid transfer and precise dosing performance.
3. How does microstepping improve nema 17 stepper motor oem odm customized accuracy?
Microstepping divides each step into smaller increments, enabling smoother motion and higher resolution, which is critical for precise reagent dosing and optical positioning in milk analyzers.
4. Can nema 17 stepper motor oem odm customized solutions support different milk analyzer structures?
Yes, manufacturers provide OEM ODM customized nema 17 stepper motors with options like gearbox integration, encoders, hollow shafts, or linear actuators to match different analyzer mechanisms.
5. What IP rating is required for nema 17 stepper motor oem odm customized dairy equipment?
Milk analyzers often require IP54–IP65 nema 17 stepper motor OEM ODM customized solutions to ensure protection against moisture, cleaning liquids, and dairy environments.
6. How to choose the right step angle for nema 17 stepper motor oem odm customized systems?
A standard 1.8° step angle is widely used, but higher microstepping resolutions are recommended for applications requiring ultra-precise dosing and optical alignment.
7. What customization options are available for nema 17 stepper motor oem odm customized projects?
OEM ODM services include custom shaft types, winding configurations, torque adjustments, connectors, and integrated drivers tailored to specific milk analyzer requirements.
8. Why is repeatability critical in nema 17 stepper motor oem odm customized milk analyzers?
High repeatability ensures consistent testing results across thousands of cycles, making nema 17 stepper motor OEM ODM customized solutions ideal for automated dairy testing systems.
9. Are closed-loop nema 17 stepper motor oem odm customized systems better for milk analyzers?
Closed-loop nema 17 stepper motor OEM ODM customized solutions with encoders improve positioning accuracy and prevent step loss, making them suitable for high-end analyzer equipment.
10. How does motor size selection affect nema 17 stepper motor oem odm customized performance?
Motor length (e.g., 34mm–60mm) impacts torque output and space compatibility. Proper sizing ensures optimal balance between compact design and performance.
