Stepper Motors

Stepper motors enable accurate positioning with ease. They are used in various types of equipment for accurate rotation angle and speed control using pulse signals. Stepper motors generate high torque with a compact body, and are ideal for quick acceleration and response.

Jkongmotor offers many solutions for a wide variety of applications:

Closed Loop Stepper Motors, 2-Phase Stepper Motors, 3-Phase Stepper Motors, or 4-Phase Stepper Motor
Geared, Encoder and Electromagnetic Brake options
AC or DC Input Stepper Motor Drivers
Integrated Stepper Servo Motor
Frame Sizes from 0.79 in. (20 mm) up to 5.12in. (130 mm)

If you need more details on any specific type or application, let me know!

Features:

Open-loop & closed-loop control, low cost
Suitable for low load precise start/stop
Commonly used in light load equipments
Optional gearbox, brakes, encoders, drives, and other customizations are available.

Jkongmotor's stepper motors are of stable quality, fast response time, can be precisely controlled, and at the same time competitively priced to give your equipment the most powerful performance!

Jkongmotor Stepper Motors:

Introductions of Stepper Motors:

Types of Stepper Motor
Stepper motors come in several distinct types, each engineered to meet specific performance requirements in terms of torque, precision, speed, and application suitability. The three main types of stepper motors are: Read More
Stepper Motor Modes of Operation
Stepper motors can operate in several different modes, each offering unique advantages in terms of precision, torque, smoothness, and speed. The most common modes of operation are Full Step, Half Step, and Microstepping. Understanding these modes is crucial when selecting a motor for a specific application. Read More
Applications of 2-Phase Stepper Motors
2-phase stepper motors are a go-to solution for countless industries due to their high precision, reliable motion control, and simple digital interface. These motors excel in systems where accurate, repeatable positioning is essential, often without the need for complex feedback mechanisms. From high-speed printing to delicate medical equipment, 2-phase stepper motors power a wide range of critical technologies. Read More

Features of Stepper Motors:

Stepper motors are known for their precise positioning, repeatable movement, and high torque at low speeds. They are also reliable and require little maintenance due to their brushless design. Stepper motors are also relatively inexpensive compared to other types of motors.

Below are the key features of stepper motors:

1. Precise Position Control

Stepper motors move in discrete steps, allowing for high-precision control of angular position without requiring feedback systems like encoders.

2. Open-Loop Operation

Stepper motors operate in an open-loop system, which means they don’t require feedback to determine the rotor’s position.

3. Excellent Torque at Low Speeds

Stepper motors deliver high torque at low rotational speeds, making them perfect for applications where slow, controlled movements are needed.

4. Holding Torque

When the stepper motor is powered but not rotating, it can hold its position firmly, even against external forces.

5. Simple and Cost-Effective Drive Electronics

Stepper motors can be driven by basic electronic controllers using digital pulses.

6. Repeatability

Because they always move a fixed step for each input pulse, stepper motors are highly repeatable.

7. Compatibility with Microstepping

Most stepper motors support microstepping, which divides each step into smaller increments.

8. Bidirectional Movement

They can rotate clockwise or counterclockwise with equal ease.

9. Wide Range of Sizes and Types

Available in various frame sizes, stepper motors can be matched to small and large-scale applications alike.

10. Immediate Start, Stop, and Reverse

Stepper motors respond instantly to input signals without the need for acceleration or deceleration phases.

11. No Tuning Required

Unlike servo motors, stepper motors do not require PID tuning or sophisticated setup procedures.

FAQs About OEM ODM Customized Stepper motors

1. What is a Stepper motor?

A stepper motor is a type of electric motor that moves in precise steps, allowing accurate position control using electrical pulse signals.

2. What are the main advantages of a stepping motor?

Stepping motors deliver accurate position control, high torque at low speeds, stable repeatability, and simple speed control without complex feedback systems.

3. What is the difference between a bipolar stepper motor and a unipolar stepper motor?

A bipolar stepper motor uses two coils and offers higher torque, while a unipolar stepper motor simplifies control with a center-tapped winding option.

4. Can Jkongmotor provide OEM ODM Customized stepper motor solutions?

Yes, Jkongmotor offers OEM ODM Customized services to tailor step motors to specific application needs including electrical, mechanical, and performance specifications.

5. What customization options are available for stepping motors?

Custom options include gearbox integration, brake, encoder, driver type, wiring configuration, and frame size adjustments.

6. Can I order a customized bipolar stepper motor with encoder?

Yes, encoder options can be added through OEM ODM Customized services for precise feedback and motion control.

7. Can the step motor frame size be customized?

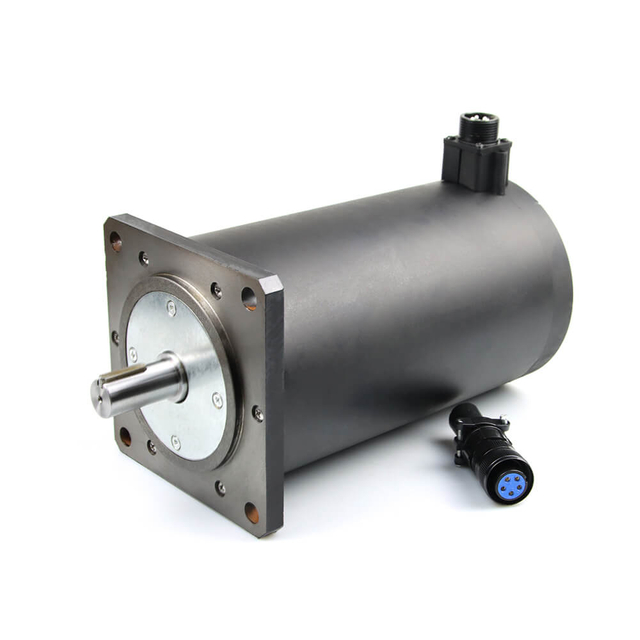

Jkongmotor supports a wide range of frame sizes from NEMA 8 up to NEMA 52, and specific sizes can be customized per project.

8. Is it possible to get a stepping motor with integrated driver?

Yes, integrated driver options can be provided as part of customization to simplify control and wiring.

9. Can built-in microstepping be specified for a step motor?

Custom microstepping drive options can be configured to improve motion smoothness and resolution.

10. Can the current and voltage specifications be customized?

Yes, electrical ratings such as current and voltage can be tailored through OEM ODM Customized services to match your system requirements.

11. Are geared step motors available from Jkongmotor?

Yes, stepping motors can be supplied with optional gearboxes integrated as part of customization.

12. How does customization improve stepping motor performance?

Custom designs allow optimization for torque, speed, heat dissipation, and mounting based on application needs.

13. Can the stepping motor lead wires and connectors be customized?

Yes, custom lead wires and connector types are part of OEM customization to match your assembly requirements.

14. Does Jkongmotor support closed loop stepper motor customization?

Yes, closed loop stepping motor systems with feedback can be designed as part of OEM ODM services.

15. Can the step motor torque be optimized for high load applications?

Yes, torque profiles can be improved with custom winding and magnet options under OEM ODM Customized services.

16. Are waterproof or environmental protection options available?

Environmental adaptations such as waterproof or sealed designs can be provided based on your application demands.

17. What industries commonly use stepper motors from Jkongmotor?

Stepper motors are widely used in automation, CNC machines, medical equipment, printers, textile machines, and robotics.

18. Can prototype stepping motors be developed before full production?

Yes, Jkongmotor supports prototyping and small batch production for validation before full OEM ODM Customized manufacturing.

19. How fast can customized step motors be delivered?

Lead times depend on customization complexity, but sample production usually takes about 7-15 days and full batch delivery around 15-35 days.

20. How do I request a customized stepper motor quote?

Provide application details such as required torque, speed, type (bipolar or unipolar), size, and special features to get a tailored OEM ODM Customized quote.
