External Ball Screw Linear Stepper Motor

Stepper motors enable accurate positioning with ease. They are used in various types of equipment for accurate rotation angle and speed control using pulse signals. Stepper motors generate high torque with a compact body, and are ideal for quick acceleration and response.

Jkongmotor offers many solutions for a wide variety of applications:

Closed Loop Stepper Motors, 2-Phase Stepper Motors, 3-Phase Stepper Motors, or 4-Phase Stepper Motor
Geared, Encoder and Electromagnetic Brake options
AC or DC Input Stepper Motor Drivers
Integrated Stepper Servo Motor
Frame Sizes from 0.79 in. (20 mm) up to 5.12in. (130 mm)

If you need more details on any specific type or application, let me know!

Features:

Direct Linear Motion Without Conversion Mechanisms
High-Precision Step Control
Compact and Low-Profile Design
Integrated Linear Guidance and Stability
High Thrust Output
Customizable Stroke Lengths
Robust Structural Design
Easy Mounting and Integration
Closed-Loop Control Compatibility
Energy-Efficient Operation

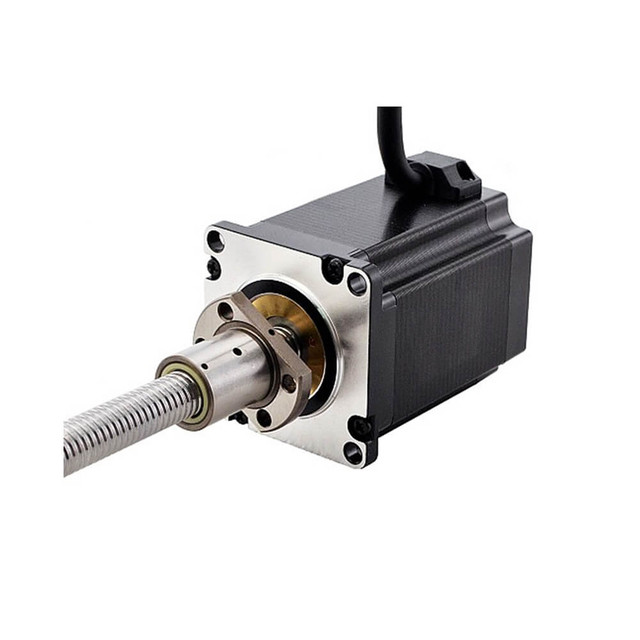

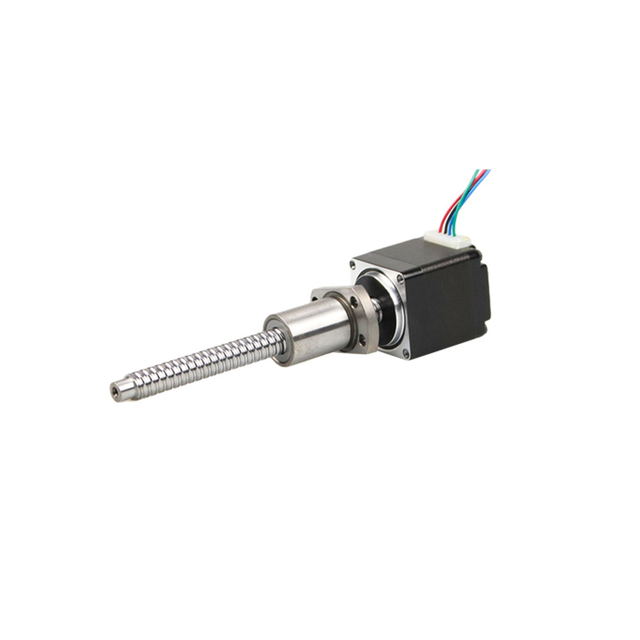

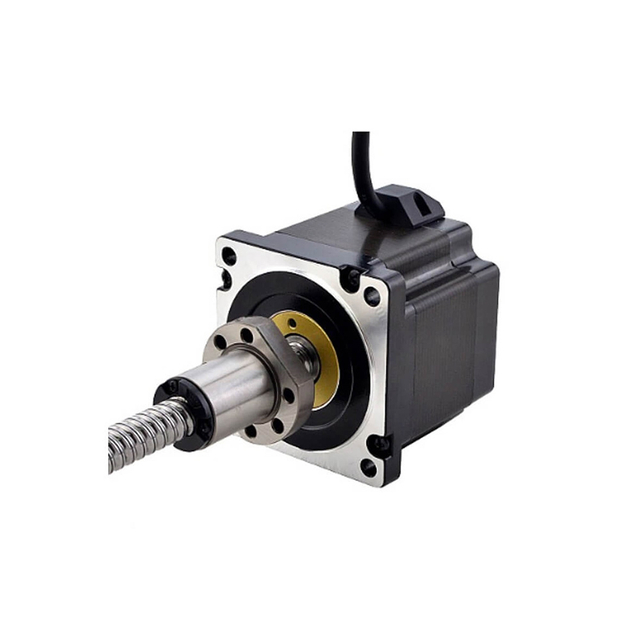

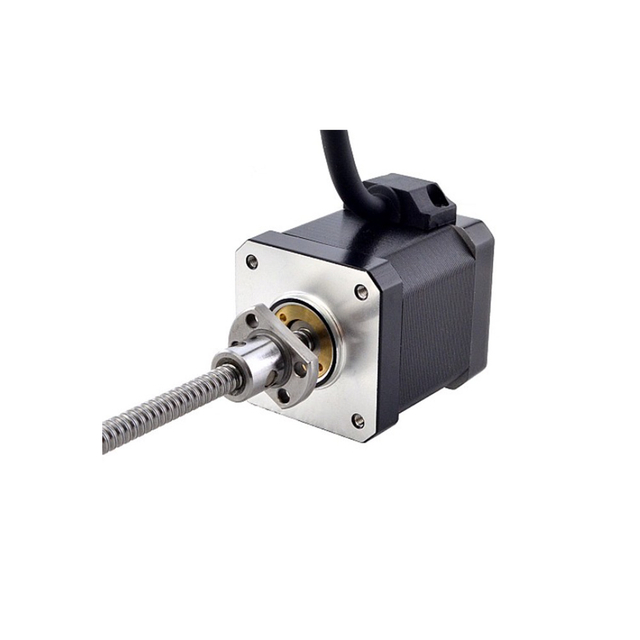

Jkongmotor External Ball Screw linear Stepper Motors:

Introductions of Ball Screw linear Stepper Motors:

Key Benefits of Ball Screw Linear Actuators: Superior Efficiency & Extended Lifespan Explained
In precision motion systems, ball screw linear actuators are widely recognized for their exceptional efficiency, reliability, and longevity. These actuators convert rotary motion into linear displacement using a rotating ball screw and recirculating ball bearings, providing smooth, accurate, and con Read More
How Does A Ball Screw Motor Work?
IntroductionIn the ever-evolving landscape of modern automation and engineering technologies, the ball screw motor stands out as a pivotal component in the machinery that drives efficiency and precision. At Jkongmotor, a leading high-tech enterprise established in 2011, we specialize in the producti Read More
What Is The Ball Screw Stepper Motor?
Introduction to JkongmotorEstablished in 2011, Jkongmotor is a high-tech enterprise specializing in the development, production, and sales of motors and motion control products. With a manufacturing capability exceeding 2 million motors annually, Jkongmotor has become a notable player in the industr Read More

Features of Stepper Motors:

Stepper motors are known for their precise positioning, repeatable movement, and high torque at low speeds. They are also reliable and require little maintenance due to their brushless design. Stepper motors are also relatively inexpensive compared to other types of motors.

Below are the key features of stepper motors:

1. Precise Position Control

Stepper motors move in discrete steps, allowing for high-precision control of angular position without requiring feedback systems like encoders.

2. Open-Loop Operation

Stepper motors operate in an open-loop system, which means they don’t require feedback to determine the rotor’s position.

3. Excellent Torque at Low Speeds

Stepper motors deliver high torque at low rotational speeds, making them perfect for applications where slow, controlled movements are needed.

4. Holding Torque

When the stepper motor is powered but not rotating, it can hold its position firmly, even against external forces.

5. Simple and Cost-Effective Drive Electronics

Stepper motors can be driven by basic electronic controllers using digital pulses.

6. Repeatability

Because they always move a fixed step for each input pulse, stepper motors are highly repeatable.

7. Compatibility with Microstepping

Most stepper motors support microstepping, which divides each step into smaller increments.

8. Bidirectional Movement

They can rotate clockwise or counterclockwise with equal ease.

9. Wide Range of Sizes and Types

Available in various frame sizes, stepper motors can be matched to small and large-scale applications alike.

10. Immediate Start, Stop, and Reverse

Stepper motors respond instantly to input signals without the need for acceleration or deceleration phases.

11. No Tuning Required

Unlike servo motors, stepper motors do not require PID tuning or sophisticated setup procedures.

FAQs About Ball Screw Linear Stepper Motor and Customization

1. What is a ball screw stepper motor?

A ball screw stepper motor combines a stepper motor with a ball screw mechanism to convert rotational motion into highly accurate linear motion.

2. What benefits does a linear stepper motor with ball screw provide?

It delivers high precision, minimal backlash, smooth motion, and excellent load capacity compared to traditional lead screw systems.

3. How does a stepper motor with ball screw improve positioning accuracy?

The ball screw’s low friction and precise threaded design enable micrometer-level positional accuracy and repeatability in linear motion.

4. Can Jkongmotor provide OEM ODM Customized ball screw stepper motor solutions?

Yes, Jkongmotor supports OEM ODM Customized services, tailoring motors to specific application needs including mechanical, electrical, and performance requirements.

5. What customization options are available for the ball screw mechanism?

Customers can customize screw length, lead, diameter, nut type, and stroke distance for optimal motion and load performance.

6. Can I choose different frame sizes for a linear stepper motor with ball screw?

Yes, ball screw linear stepper motors are available in multiple frame sizes from NEMA 8 up to NEMA 34 and can be tailored per project.

7. Can the ball screw lead be customized to change travel distance per revolution?

Yes, the ball screw lead can be configured through OEM ODM Customized services to meet your speed and travel accuracy needs.

8. Can the connectors and wiring of a ball screw stepper motor be customized?

Yes, lead wires, connectors, and termination types can be specified for ease of integration into your equipment.

9. Are integrated encoders available for feedback on a ball screw stepper motor?

Yes, encoders and feedback devices can be added to enhance position control and motion accuracy.

10. Can I request a waterproof or higher protection version of a ball screw motor?

Protection upgrades such as IP54 or IP65 are available as part of the OEM ODM Customized options for harsh environments.

11. What industries benefit from ball screw linear stepper motors?

These motors are ideal for automation, robotics, CNC machines, medical equipment, semiconductor manufacturing, and inspection systems.

12. Can I include integrated drivers with my stepper motor with ball screw?

Yes, built-in drivers or integrated electronics can be included to simplify wiring and control system design.

13. How does the ball screw stepper motor increase load capacity?

The ball screw’s recirculating ball bearings support higher axial loads and increased rigidity compared to sliding screw mechanisms.

14. Is vibration and noise reduced in a ball screw linear stepper motor?

Yes, the ball screw’s rolling motion and microstepping control reduce noise and vibration for smoother operation.

15. Can custom stroke lengths be specified for a ball screw stepper motor?

Yes, stroke length and effective travel distance can be customized to fit your application spacing and performance needs.

16. Are prototype and small batch custom motor runs supported?

Jkongmotor supports prototyping and small batch production before full OEM ODM Customized manufacturing.

17. Does customization extend to shaft diameter and type of stepper motor with ball screw?

Yes, shaft diameter and machining features can be specified to suit your mechanical setup.

18. How does a ball screw stepper motor compare to a lead screw stepper motor?

Ball screws typically provide higher efficiency, lower friction, greater load capacity, and smoother motion than lead screw systems.

19. Can closed-loop control be added to a ball screw linear stepper motor system?

Yes, systems can be configured for closed-loop feedback to enhance precision and dynamic response.

20. How do I request a customized ball screw stepper motor quote?

Provide your technical details such as load requirements, travel distance, screw lead, frame size, and environmental needs to Jkongmotor for a tailored OEM ODM Customized quote.
