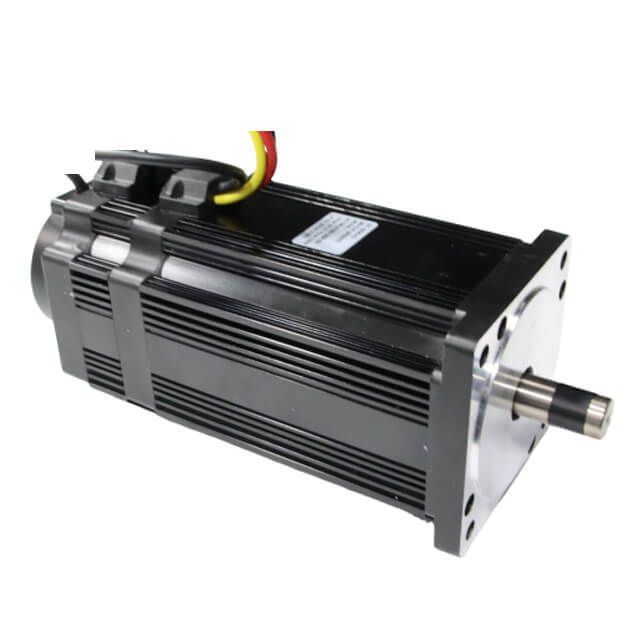

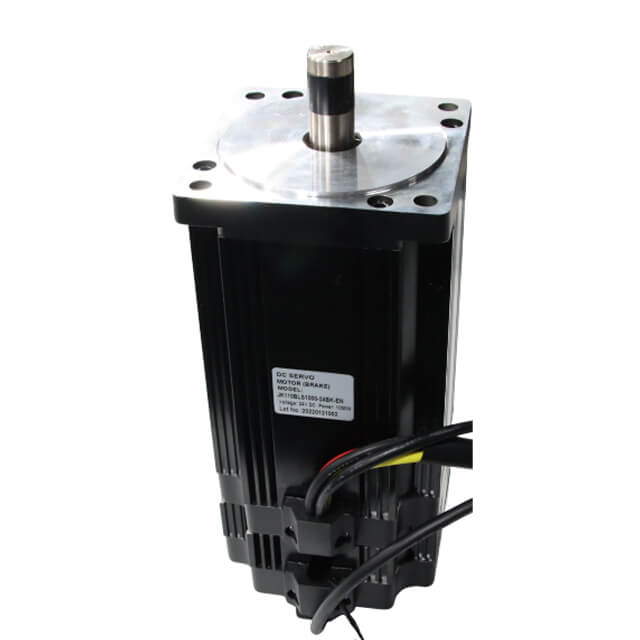

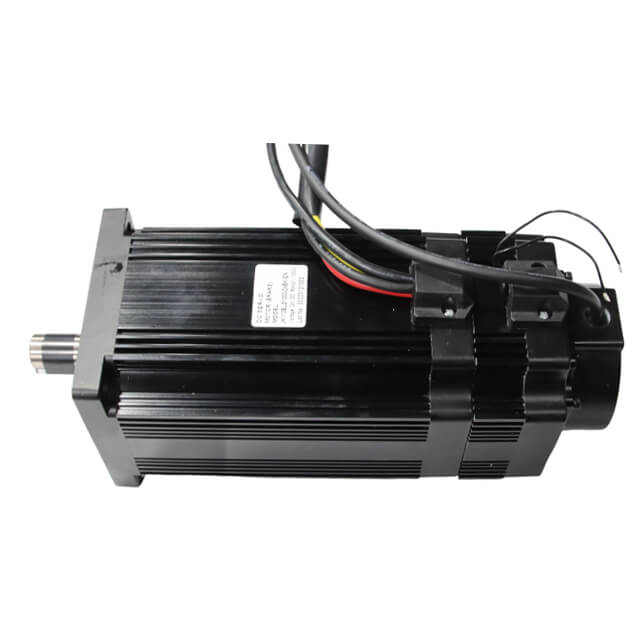

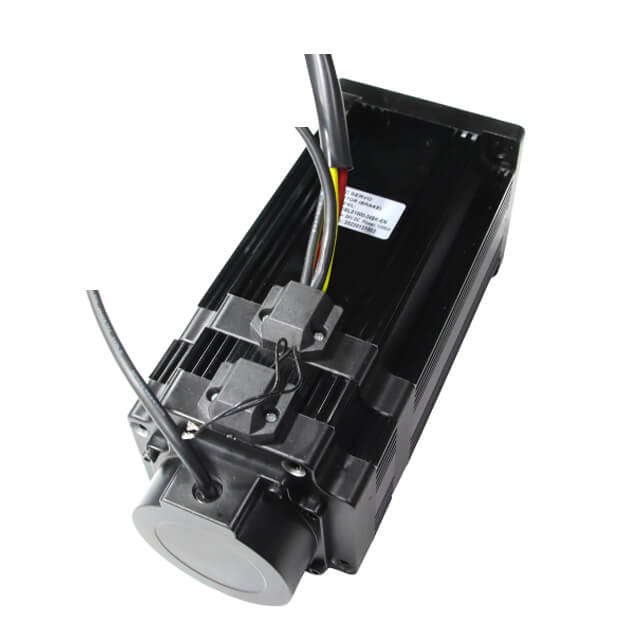

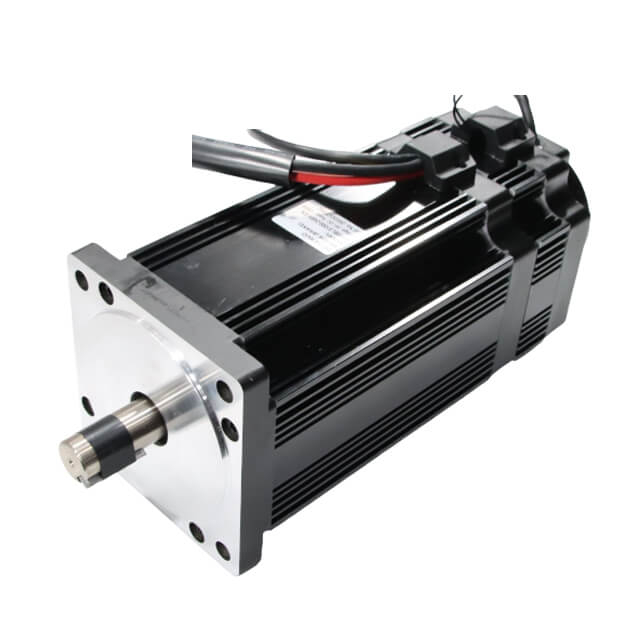

Nema 42 JK110BLS01 Round Head Brushless BLDC Dc Servo Motor 3000rpm 310V 1.65N.m 518W Ф110x110x83mm With 1000PPR Encoder

Type: 110mm 310V 518W Brushless Dc Servo Motor

Phase: 3
Poles: 8
Rated Torque: 1.65N.m

Body Length: 83mm
Customized Parts: Motors, Gearboxes, Encoders, Brakes, Integrated Drivers...

Model:
JK110BLS01 With Encoder
Brand:
Jkongmotor
Rated Speed:
3000rpm
Bldc Poles:
8 poles
Bldc Motor Size:
Nema42 (110mm)
Rated Voltage:
310V
MOQ:
10 Pcs


Availability:



Inquire

Jkongmotor 310v brushless bldc dc servo motor (JK110BLS01) with 3000Rpm speed and size 110x110x83mm , 1.65N.m and 518W. For more different bldc motors requirements (such as gearbox, brake, encoder, or integrated motors), please contact us!!!

Electrical Specifications：

Type: 310v 110mm brushless dc servo motor
Model Name: JK110BLS01
Number of Phase: 3
Number of Poles: 8
Rated Speed: 3000Rpm
Rated Torque: 1.65N.m
Rated Power: 310W
Torque Constant: 0.9N.m/A
Insulation Class: B
Optional Parts: Gearbox, Encoder, Brake, Integrated Driver...

Physical Specifications:

Frame Size: NEMA 42 ( 110 x 110mm)
Body Length: 83mm
Shaft Diameter: 14mm
Number of Leads: 4
Leads Length: 300mm
Sensor: Hall Sensor
Encoder: 1000PPR
Weight: 3.3kg

Wires Connection:

Bldc Motors Wires			Hall Sensor Wires
U	V	W	+5VDC	GND	Hu	Hv	Hw
Yellow	Green	Blue	Red	Black	Yello	Green	Blue

Encoder Wires Connection:

Vcc-Encoder Voltage (+5V)	EGND-Encoder Grand（0V)	EA-Encoder A phase input	EB-Encoder B phase input	EZ-Encoder Z phase input
RED	BLACK	GREEN	BLUE	YELLOW

brushless servo motor brushless motor bldc electric motor bldc nema 34 bldc electric motor bldc motor with encoder bldc servo motor 3 phase bldc motor brushless motor with encoder high torque bldc motor bldc motor manufacturer

Related Products

Nema 42 JK110BLS04 Round Head Brushless BLDC Dc Servo Motor 3000rpm 310V 6.6N.m 2073W Ф110x110x173mm With 1000PPR Encoder

Nema 42 JK110BLS03 Round Head Brushless BLDC Dc Servo Motor 3000rpm 310V 5.0N.m 1570W Ф110x110x143mm With 1000PPR Encoder

Nema 42 JK110BLS02 Round Head Brushless BLDC Dc Servo Motor 3000rpm 310V 3.3N.m 1036W Ф110x110x113mm With 1000PPR Encoder

Nema 34 JK86BLS125 Round Head Brushless BLDC Dc Servo Motor 3000rpm 48V 2.1N.m 660W Ф86x86x138.5mm With 1000PPR Encoder

Nema 34 JK86BLS98 Round Head Brushless BLDC Dc Servo Motor 3000rpm 48V 1.4N.m 440W Ф86x86x111.5mm With 1000PPR Encoder

Nema 34 JK86BLS84 Round Head Brushless BLDC Dc Servo Motor 3000rpm 48V 1.05N.m 330W Ф86x86x98mm With 1000PPR Encoder

Nema 34 JK86BLS71 Round Head Brushless BLDC Dc Servo Motor 3000rpm 48V 0.7N.m 220W Ф86x86x84.5mm With 1000PPR Encoder

Nema 34 JK86BLS58 Round Head Brushless BLDC Dc Servo Motor 3000rpm 48V 0.35N.m 110W Ф86x86x71mm With 1000PPR Encoder

JK80BLS04 Round Head Brushless BLDC Dc Servo Motor 3000rpm 48V 1.4N.m 440W Ф80x80x138mm With 1000PPR Encoder

JK80BLS03 Round Head Brushless BLDC Dc Servo Motor 3000rpm 48V 1.05N.m 330W Ф80x80x118mm With 1000PPR Encoder

JK80BLS02 Round Head Brushless BLDC Dc Servo Motor 3000rpm 48V 0.7N.m 220W Ф80x80x98mm With 1000PPR Encoder

JK80BLS01 Round Head Brushless BLDC Dc Servo Motor 3000rpm 48V 0.35N.m 110W Ф80x80x78mm With 1000PPR Encoder

Nema 24 JK60BLS04 Square Head Brushless BLDC Dc Servo Motor 3000rpm 48V 1.2N.m 377W Ф60x60x141mm With 1000PPR Encoder

Nema 24 JK60BLS03 Square Head Brushless BLDC Dc Servo Motor 3000rpm 48V 0.9N.m 283W Ф60x60x120mm With 1000PPR Encoder

Nema 24 JK60BLS02 Square Head Brushless BLDC Dc Servo Motor 3000rpm 48V 0.6N.m 188W Ф60x60x99mm With 1000PPR Encoder

Nema 24 JK60BLS01 Square Head Brushless BLDC Dc Servo Motor 3000rpm 48V 0.3N.m 6.5W Ф60x60x78mm With 1000PPR Encoder

Nema 17 JK42BL93 Round Head Brushless BLDC Dc Servo Motor 6300rpm 24V 115mN.m 76W Ф42x42x93mm With 1000PPR Encoder

Nema 17 JK42BL85 Round Head Brushless BLDC Dc Servo Motor 4000rpm 24V 150mN.m 62W Ф42x42x85mm With 1000PPR Encoder

Nema 17 JK42BL60 Round Head Brushless BLDC Dc Servo Motor 4000rpm 36V 80mN.m 32W Ф42x42x60mm With 1000PPR Encoder

Nema 17 JK42BL30 Round Head Brushless BLDC Dc Servo Motor 3500rpm 24V 18mN.m 6.5W Ф42x42x30mm With 1000PPR Encoder

General Specifications
Item	Specification
Winding type	Delt
Hall effect angle	120 degree electrical angle
Shaft run out	0.025mm
Radial play	0.02mm@450g
End play	0.08mm@450g
Max.radial force	300N@20mm from the flange
Max. axial force	70N
Insulation class	Class B
Dielectric Strength	500VDC for one minute
Insulation Resistance	100MΩ Min., 500VDC

Nema 42 JK110BLS01 Round Head Brushless BLDC Dc Servo Motor 3000rpm 310V 1.65N.m 518W Ф110x110x83mm With 1000PPR Encoder

Electrical Specifications：

Physical Specifications:

Wires Connection:

Encoder Wires Connection:

310V Nema 42 110mm Bldc Motor General Specifications:

General Specifications

110mm Dc Brushless Motor Electrical Specification:

NEMA 42 110MM 310V Bldc Dc Servo Motor Dimension:

3 Phase Brushless Dc Motor Optional Parts：

Customized Shaft Service:

Other Customized Parts of Bldc Motors：

310V Nema 42 Brushless Dc Servo Motor Drawing:

Related Products

Electrical Specification
Model	/	JK110BLS01
Phase	/	3
Poles	/	8
Rated Voltage	vdc	310
Rated Speed	rpm	3000
Rated Torque	N.m	1.65
Rated Current	A	1.5
Rated Power	W	518
Torque Constant	N.m/A	0.9
Body Length	mm	83
Weight	kg	3.3
Sensor	/	Honey-well
Encoder	/	1000PPR
Insulation Class	/	B
Insulation Class	/	IP30
Storage Temperature	℃	-25～+70℃
Operating Temperature	℃	-15～+50℃
Working Humidity	RH	85% RH or less (no condensation) ≤85% RH
Working Environment	/	Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust
Altitude	m	1000 meters or less
