Current: 1.33A
Resistance: 2.1Ω

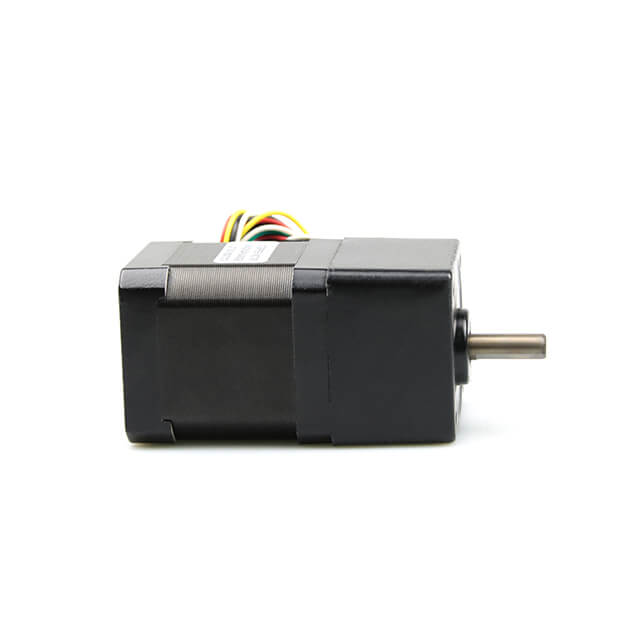

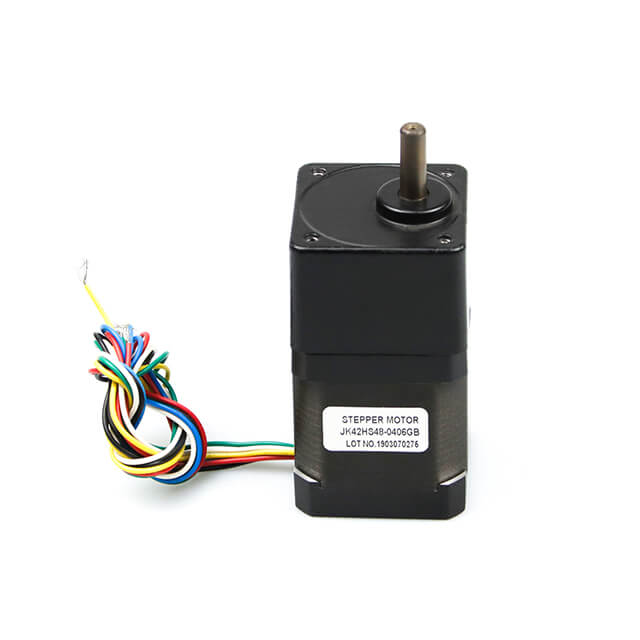

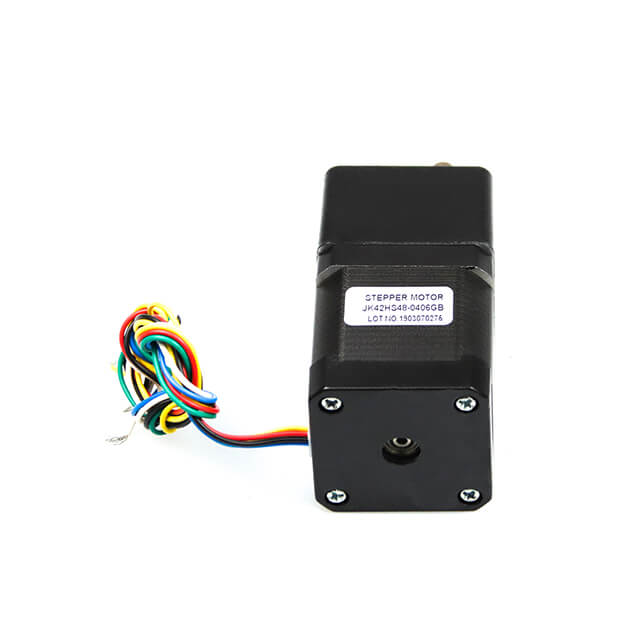

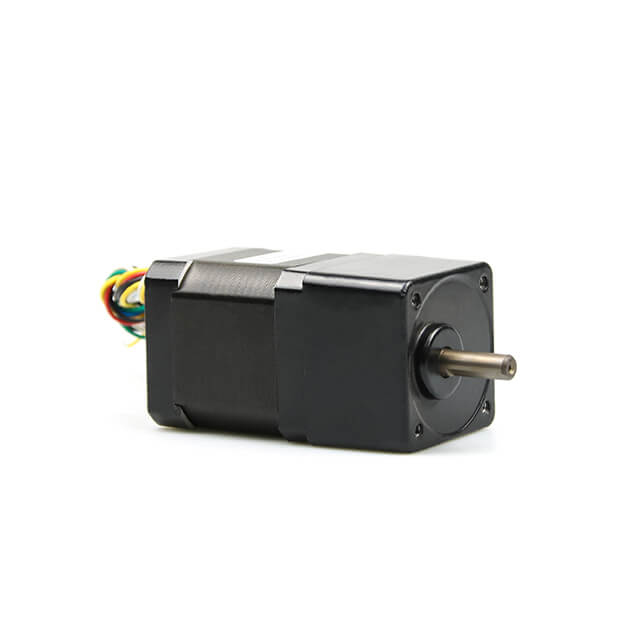

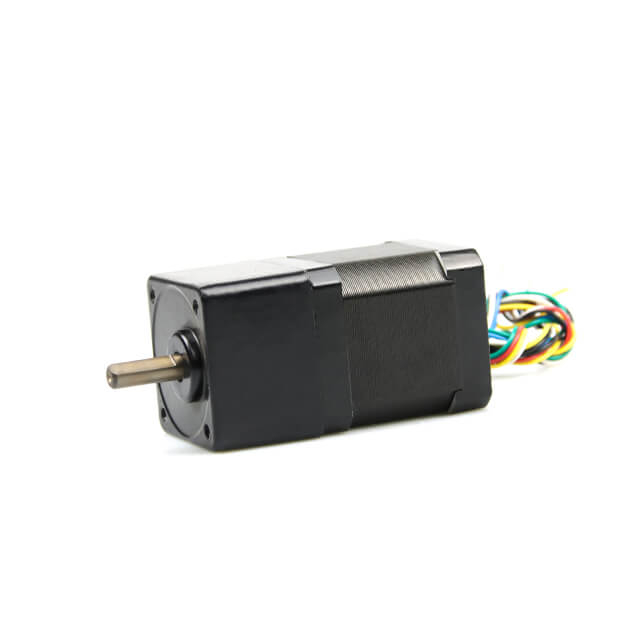

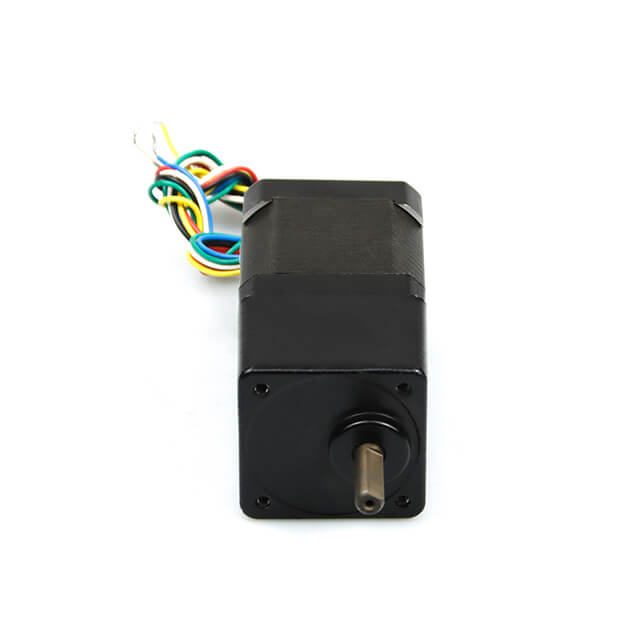

JK42HS34-1334 with Spur Gearbox
JKONGMOTOR
Gearbox Motors
Nema17 (42mm)
4wires
2 phase
1.8°
10 Pcs
| Electrical Specification | ||
| Product Type | / | 2 Phase Hybrid Stepping Motor |
| Model Name | / | JK42HS34-1334 |
| Phase | phase | 2 |
| Step Angle | ° | 1.8 |
| Current | A | 1.33 |
| Resistance | Ω | 2.1 |
| Inductance | mH | 2.5 |
| Rated Torque(N.m) | N.m | 0.26 |
| Holding Torque(oz.in) | oz.in | 36.82 |
| Bipolar/Unipolar | / | Bipolar |
| Insulation Class | / | B |
| Detent Torque | g.cm | 120 |
| Rotor Inertia | g.cm2 | 34 |

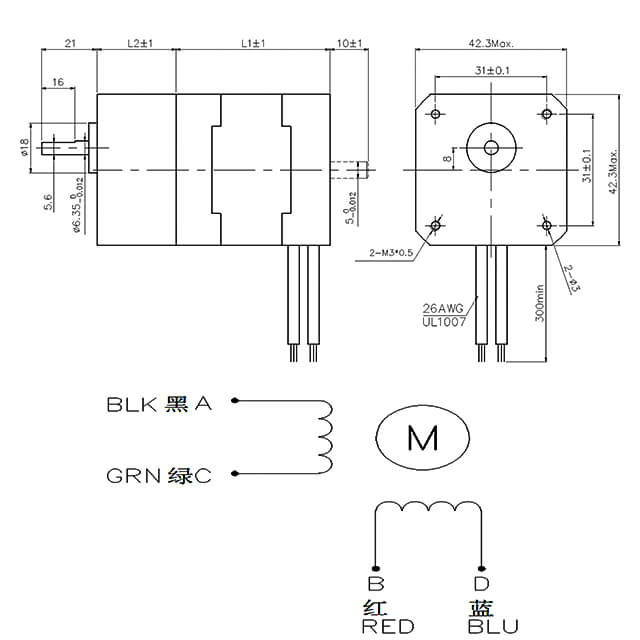

| Physical Specification | ||
| Frame Size | mm | Nema 17 (42 x 42) |
| Output Shaft Type | / | Round Shaft |
| Shaft Diameter | mm | 5 |
| Shaft Length | mm | 24 |
| Body Length | mm | 34 |
| Single Shaft /Dual Shaft | / | Single Shaft |
| No. of Leads | / | 4 |
| Leads Length | mm | 300 |
| Weight | Kg | 0.22 |
| Electrical Specification | ||
| Product Type | / | 2 Phase Hybrid Stepping Motor |
| Model Name | / | JK42HS34-1334 |
| Phase | phase | 2 |
| Step Angle | ° | 1.8 |
| Current | A | 1.33 |
| Resistance | Ω | 2.1 |
| Inductance | mH | 2.5 |
| Rated Torque(N.m) | N.m | 0.26 |
| Holding Torque(oz.in) | oz.in | 36.82 |
| Bipolar/Unipolar | / | Bipolar |
| Insulation Class | / | B |
| Detent Torque | g.cm | 120 |
| Rotor Inertia | g.cm2 | 34 |
| Physical Specification | ||
| Frame Size | mm | Nema 17 (42 x 42) |
| Output Shaft Type | / | Round Shaft |
| Shaft Diameter | mm | 5 |
| Shaft Length | mm | 24 |
| Body Length | mm | 34 |
| Single Shaft /Dual Shaft | / | Single Shaft |
| No. of Leads | / | 4 |
| Leads Length | mm | 300 |
| Weight | Kg | 0.22 |
