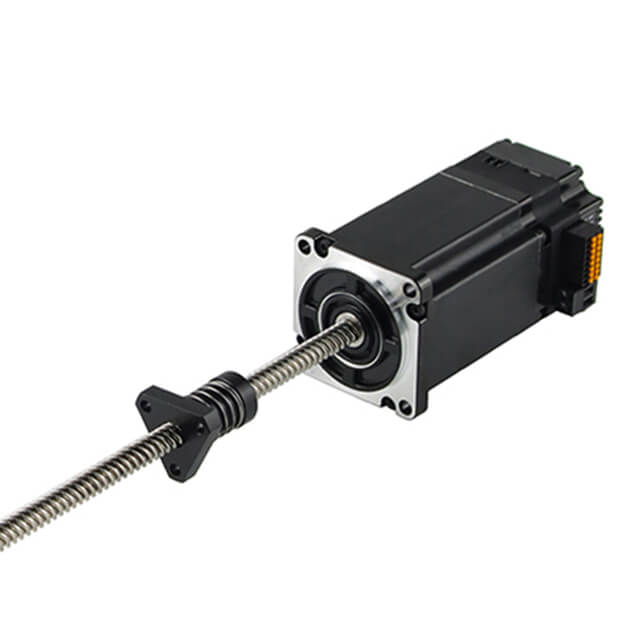

Integrated Linear Stepper Motor with External Lead Screw

Jkongmotor integrated drive+motors combine step motor and drive components into one compact unit. These integrated steppers provide a space-saving design that minimizes wiring and reduces costs compared to separate motor and drive components.



Features of stepper closed-loop servo all-in-one machine:

  • Cortex-M4 core high-performance 32-bit microcontroller
  • The highest impulse response frequency can reach 200KHz
  • Built-in protection functions effectively ensure the safe use of the device
  • Intelligently adjust current to reduce vibration, noise and heat
  • Using low internal resistance MOS, the heat generation is 30% lower than that of ordinary products.
  • Voltage range: DC12V ~ DC36V
  • The integrated design of the drive motor is easy to install, takes up little space, and has simple wiring.
  • With anti-reverse connection function


Control method:

  • pulse type
  • RS485-Modbus-RTU network type
  • CANopen network type


Protection level:

  • Waterproof type: IP30 IP54 IP65 optional

Features：

  • External Ball Screw / T-type Lead Screw
  • Size covers nema 11 17 23 34
  • Integrated linear motor / Split linear motor
  • Direct Linear Motion Without Mechanical Conversion Precise Step-Based
  • Positioning High Repeatability and Reliability
  • Compact, Integrated Designs
  • Excellent Low-Speed Torque Microstepping and Smooth Motion
  • High Acceleration and Response Time
  • Open-Loop Operation with Optional Closed-Loop Feedback
nema 17 stepper motor with ball screw

ISS42 Nema17 42mm Integrated Stepper Servo Motor with Externa Lead Screw

  • NEMA17 intelligent linear stepper motors, combining integrated stepper servo motors and high precision screws for accuracy and convenience.
  • Bus communication optional pulse, RS485, CANopen and other communication versions.
  • Motor parameters: 1.8°, 1.3A ~ 1.7A, 0.22Nm ~ 0.8Nm
  • Optional configuration: Gearbox, brake...
Series Model Shaft Type Control Method Step Angle Phase Current Phase Resistance Rated Torque Body Length Integrated Encoder
(1.8°) (A) (Ω) (Nm) L(mm)
ISS42-0.22Nm JKISS42-P01A External T-type Lead Screw pulse 1.8 1.3 2.1 0.22 54 1000ppr/17bit
JKISS42-R01A External T-type Lead Screw RS485
JKISS42-C01A External T-type Lead Screw CANopen
ISS42-0.42Nm JKISS42-P02A External T-type Lead Screw pulse 1.8 1.68 1.65 0.42 60 1000ppr/17bit
JKISS42-R02A External T-type Lead Screw RS485
JKISS42-C02A External T-type Lead Screw CANopen
ISS42-0.55Nm JKISS42-P03A External T-type Lead Screw pulse 1.8 1.68 1.65 0.55 68 1000ppr/17bit
JKISS42-R03A External T-type Lead Screw RS485
JKISS42-C03A External T-type Lead Screw CANopen
ISS42-0.8Nm JKISS42-P04A External T-type Lead Screw pulse 1.8 1.7 3 0.8 80 1000ppr/17bit
JKISS42-R04A External T-type Lead Screw RS485
JKISS42-C04A External T-type Lead Screw CANopen
Nema 17 External Lead Screw Specification:
Screw Diameter Screw Lead Screw Pitch Travel Per Step Screw Diameter Screw Lead Screw Pitch Travel Per Step
mm mm mm mm mm mm mm mm
Tr5 1 1 0.005 Tr8 8 2 0.04
2 1 0.01 10 2 0.05
Tr6 2 1 0.01 12 2 0.06
4 1 0.02 14 2 0.07
6 1 0.03 Tr10 2 2 0.01
12 2 0.06 3 1.5 0.015
Tr8 1 1 0.005 4 2 0.02
2 2 0.01 8 2 0.04
3 1.5 0.015 10 2 0.05
4 2 0.02 12 2 0.06
nema 23 linear stepper motor

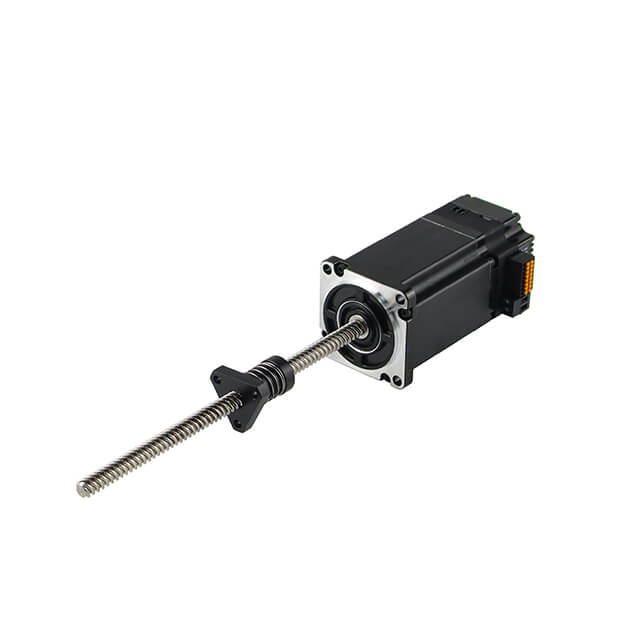

ISS57 Nema23 57mm Integrated Linear Stepper Servo Motor with External Lead Screw

  • NEMA23 intelligent linear stepper motors, combining integrated stepper servo motors and high precision screws for accuracy and convenience.
  • Bus communication optional pulse, RS485, CANopen and other communication versions.
  • Motor parameters: 1.8°, 2A ~ 4.2A, 0.55Nm ~ 3N.m
  • Optional configuration: Gearbox, brake...
Series Model Shaft Type Control Method Step Angle Phase Current Phase Resistance Rated Torque Body Length Integrated Encoder
(1.8°) (A) (Ω) (Nm) L(mm)
ISS57-0.55Nm JKISS57-P01A External T-type Lead Screw pulse 1.8 2 1.4 0.55 65 1000ppr/17bit
JKISS57-R01A External T-type Lead Screw RS485
JKISS57-C01A External T-type Lead Screw CANopen
ISS57-1.2Nm JKISS57-P02A External T-type Lead Screw pulse 1.8 2.8 0.9 1.2 80 1000ppr/17bit
JKISS57-R02A External T-type Lead Screw RS485
JKISS57-C02A External T-type Lead Screw CANopen
ISS57-1.89Nm JKISS57-P03A External T-type Lead Screw pulse 1.8 2.8 1.1 1.89 100 1000ppr/17bit
JKISS57-R03A External T-type Lead Screw RS485
JKISS57-C03A External T-type Lead Screw CANopen
ISS57-2.2Nm JKISS57-P04A External T-type Lead Screw pulse 1.8 3 1.2 2.2 106 1000ppr/17bit
JKISS57-R04A External T-type Lead Screw RS485
JKISS57-C04A External T-type Lead Screw CANopen
ISS57-2.8Nm JKISS57-P05A External T-type Lead Screw pulse 1.8 4.2 0.75 2.8 124 1000ppr/17bit
JKISS57-R05A External T-type Lead Screw RS485
JKISS57-C05A External T-type Lead Screw CANopen
ISS57-3N.m JKISS57-P06A External T-type Lead Screw pulse 1.8 4.2 0.9 3 136 1000ppr/17bit
JKISS57-R06A External T-type Lead Screw RS485
JKISS57-C06A External T-type Lead Screw CANopen
Nema 23 External Lead Screw Specification:
Screw Diameter Screw Lead Screw Pitch Travel Per Step Screw Diameter Screw Lead Screw Pitch Travel Per Step
mm mm mm mm mm mm mm mm
Tr8 0.5 0.5 0.0025 Tr9.525 0.635 0.635 0.003175
2 2 0.01 1.27 1.27 0.00635
4 2 0.02 1.5875 1.5875 0.0079375
8 2 0.04 2.54 2.54 0.0127
12 2 0.06 5.08 2.54 0.0254
20 2.5 0.1 6.35 3.175 0.03175
Tr10 2 2 0.01 10.16 1.12 0.0508
4 2 0.02 12.7 3.175 0.0635
10 2 0.05 25.4 3.175 0.127
12 3 0.06
