Does Jkongmotor offer OEM/ODM services for integrated linear motor solutions?

Yes, Jkongmotor provides full OEM/ODM services for integrated linear motor solutions, including mechanical design, electrical specifications, control methods, and application-specific customization.

What is the lead time for customized integrated linear motors?

Customized integrated linear motors typically ship in 7–15 days for samples and 15–25 days for bulk production, depending on order volume and specifications.

What types of integrated linear stepper motors are available?

Integrated linear stepper motors include external linear, captive, non-captive, and belt-driven designs to meet different stroke, load, and speed requirements.

What linear transmission mechanisms can be customized?

Customization options include lead screws for precision and cost efficiency, ball screws for high efficiency and load capacity, and belt drives for high-speed, long-stroke motion.

Can integrated linear motors support closed-loop control and encoder feedback?

Yes, integrated linear motors can support closed-loop control with encoder feedback for higher positioning accuracy and real-time motion correction.

What voltage range and control interfaces do integrated linear motors support?

Integrated linear motors typically operate on DC 12V–36V and support pulse control, RS485 Modbus-RTU, and CANopen communication interfaces.

Can the motor driver be integrated into the linear motor body?

Yes, integrated drive and motor linear units are available to reduce wiring, save installation space, and simplify system integration.

Are protection levels and environmental customizations available?

Yes, integrated linear motors can be customized with IP30, IP54, or IP65 protection levels and sealing solutions for harsh industrial environments.

What frame sizes are supported for integrated linear stepper motors?

Integrated linear stepper motors are available in NEMA 8, 11, 17, 23, 24, and 34 frame sizes.

What applications are integrated linear stepper motors suitable for?

They are widely used in medical devices, semiconductor equipment, CNC machines, 3D printers, industrial automation systems, robotics, and high-speed positioning applications.

Home / Products Centre / Integrated Servo Motor / Integrated Linear Stepper Motor / Integrated External Lead Screw

Integrated Linear Stepper Motor with External Lead Screw

Jkongmotor integrated drive+motors combine step motor and drive components into one compact unit. These integrated steppers provide a space-saving design that minimizes wiring and reduces costs compared to separate motor and drive components.

Features of stepper closed-loop servo all-in-one machine:

Cortex-M4 core high-performance 32-bit microcontroller
The highest impulse response frequency can reach 200KHz
Built-in protection functions effectively ensure the safe use of the device
Intelligently adjust current to reduce vibration, noise and heat
Using low internal resistance MOS, the heat generation is 30% lower than that of ordinary products.
Voltage range: DC12V ~ DC36V
The integrated design of the drive motor is easy to install, takes up little space, and has simple wiring.
With anti-reverse connection function

Control method:

pulse type
RS485-Modbus-RTU network type
CANopen network type

Protection level:

Waterproof type: IP30 IP54 IP65 optional

Features：

External Ball Screw / T-type Lead Screw
Size covers nema 11 17 23 34
Integrated linear motor / Split linear motor
Direct Linear Motion Without Mechanical Conversion Precise Step-Based
Positioning High Repeatability and Reliability
Compact, Integrated Designs
Excellent Low-Speed Torque Microstepping and Smooth Motion
High Acceleration and Response Time
Open-Loop Operation with Optional Closed-Loop Feedback

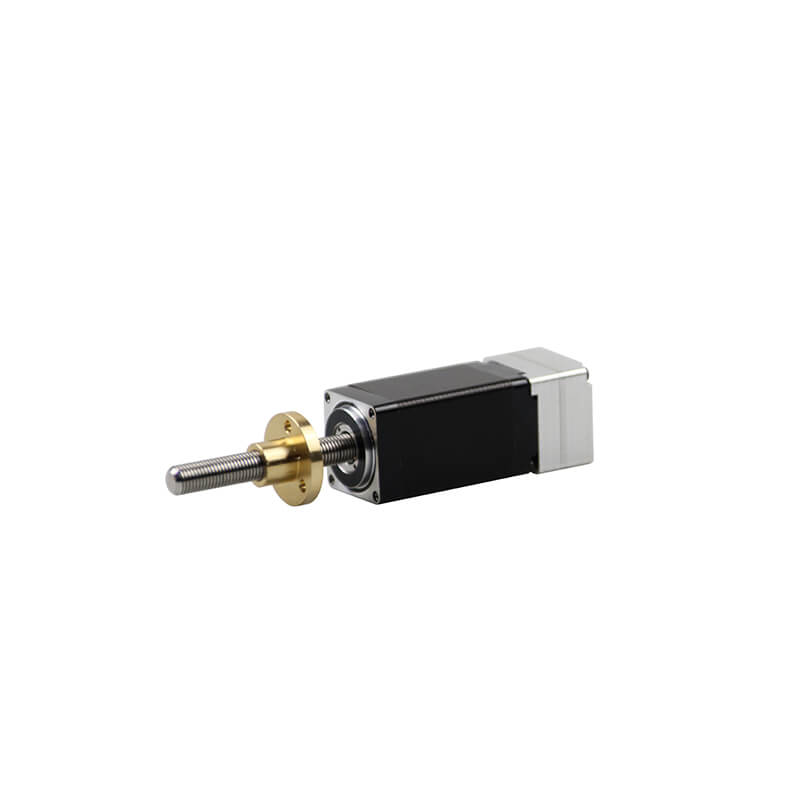

nema 11 linear stepper motor with built in driver

ISS28 Nema11 28mm Integrated Linear Stepper Servo Motor with Externa Lead Screw

The latest generation of precision control integrated stepper servo motor adopts high-resolution magnetic encoder design, and the encoder supports single-turn absolute value mode. Optional pulse control, analog control. Bus communication optional pulse, RS485, CANopen and other communication versions.
Motor parameters: 1.8°, 0.67A ~ 1.0A, 0.065Nm ~ 0.12Nm
Optional configuration: Gearbox, brake, linear motions...

Series

V2 Series

Control Method

Shaft Type

Step Angle

Phase Current

Phase Resistance

Phase Inductance

Rated Torque

Body Length

Weight

Insulation Class

Integrated Encoder

(°）

（A)

(Ω)

(mH)

(N.m)

(mm)

(Kg)

ISC28-0.065Nm

JKISC28-P1A3

Pulse

External T-type Lead Screw

1.8

2.8

1.8

0.065

48.1

0.13

1000ppr/17bit/15bit

JKISC28-R1A3

RS485

JKISC28-C1A3

CANopen

ISC28-0.095Nm

JKISC28-P2A3

Pulse

External T-type Lead Screw

1.8

0.67

6.8

5.5

0.095

0.17

1000ppr/17bit/15bit

JKISC28-R2A3

RS485

JKISC28-C2A3

CANopen

ISC28-0.12Nm

JKISC28-P3A3

Pulse

External T-type Lead Screw

1.8

0.67

8.8

0.12

0.22

1000ppr/17bit/15bit

JKISC28-R3A3

RS485

JKISC28-C3A3

CANopen

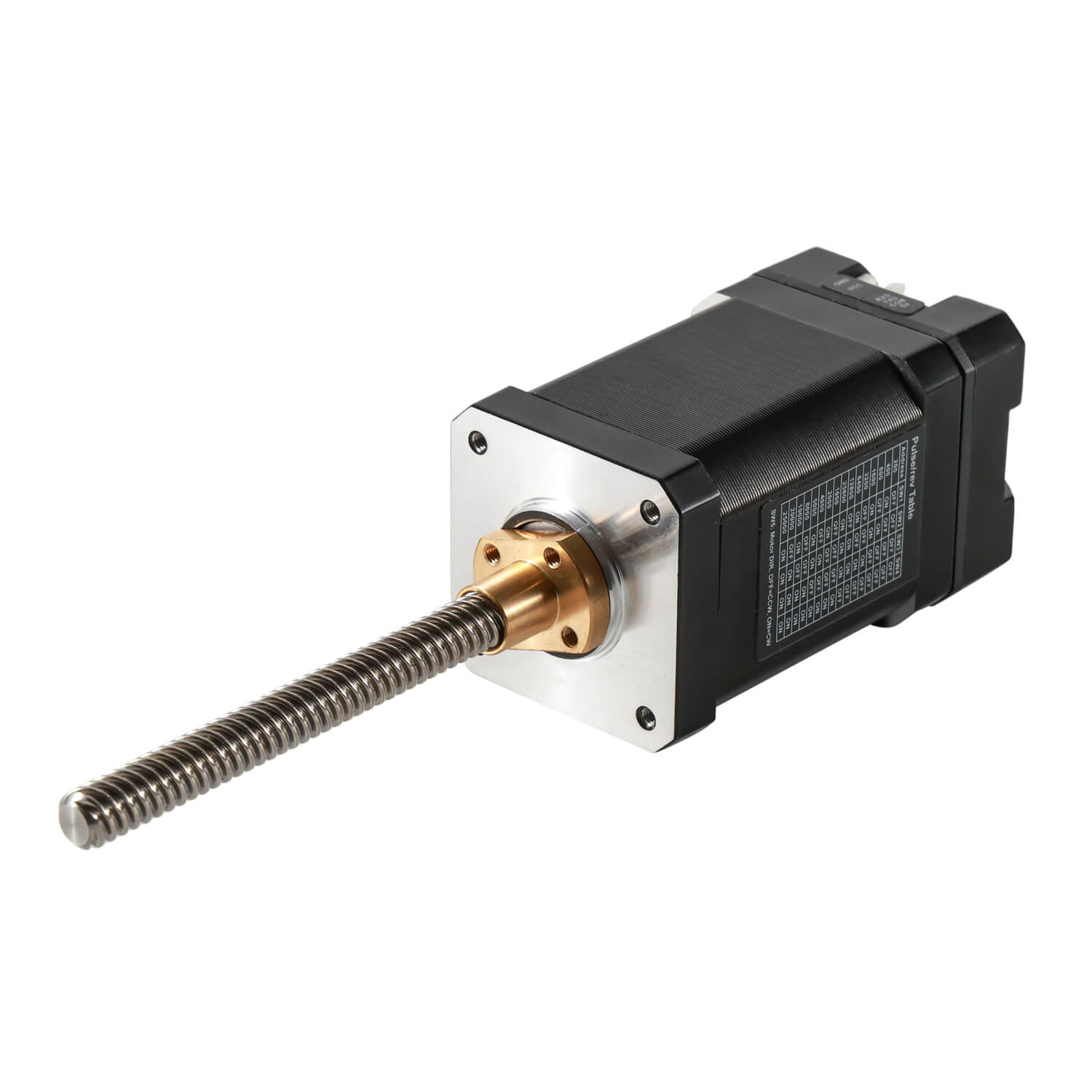

nema 17 linear stepper motor with built in driver

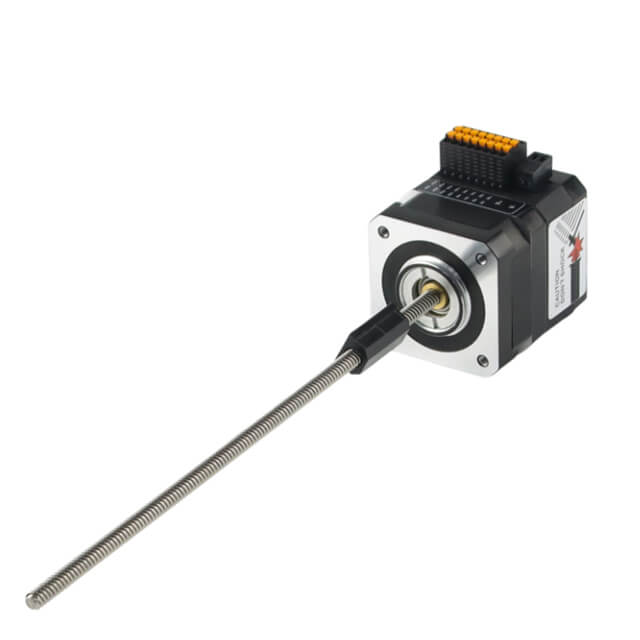

ISS42 Nema17 42mm Integrated Stepper Servo Motor with Externa Lead Screw

NEMA17 intelligent linear stepper motors, combining integrated stepper servo motors and high precision screws for accuracy and convenience.
Bus communication optional pulse, RS485, CANopen and other communication versions.
Motor parameters: 1.8°, 1.3A ~ 1.7A, 0.22Nm ~ 0.8Nm
Optional configuration: Gearbox, brake...

Series

V1 Series

V2 Series

Control Method

Shaft Type

Step Angle

Phase Current

Phase Resistance

Phase Inductance

Rated Torque

Body Length

Weight

Insulation Class

Integrated Encoder

(1.8°)

(A)

(Ω)

(mH)

(Nm)

L(mm)

(Kg)

ISS42-0.22Nm

JKISS42-P01A

JKISC42-P1A3

Pulse

External T-type Lead Screw

1.8

1.33

2.1

2.5

0.26

0.28

1000ppr/17bit/15bit

JKISS42-R01A

JKISC42-R1A3

RS485

JKISS42-C01A

JKISC42-C1A3

CANopen

ISS42-0.42Nm

JKISS42-P02A

JKISC42-P2A3

Pulse

External T-type Lead Screw

1.8

1.68

1.65

2.8

0.42

0.34

1000ppr/17bit/15bit

JKISS42-R02A

JKISC42-R2A3

RS485

JKISS42-C02A

JKISC42-C2A3

CANopen

ISS42-0.55Nm

JKISS42-P03A

JKISC42-P3A3

Pulse

External T-type Lead Screw

1.8

1.68

1.65

2.8

0.5

68.5

0.44

1000ppr/17bit/15bit

JKISS42-R03A

JKISC42-R3A3

RS485

JKISS42-C03A

JKISC42-C3A3

CANopen

ISS42-0.8Nm

JKISS42-P04A

JKISC42-P4A3

Pulse

External T-type Lead Screw

1.8

1.7

3.0

6.2

0.73

80.5

0.61

1000ppr/17bit/15bit

JKISS42-R04A

JKISC42-R4A3

RS485

JKISS42-C04A

JKISC42-C4A3

CANopen

Nema 17 External Lead Screw Specification:
Screw Diameter	Screw Lead	Screw Pitch	Travel Per Step	Screw Diameter	Screw Lead	Screw Pitch	Travel Per Step
mm	mm	mm	mm	mm	mm	mm	mm
Tr5	1	1	0.005	Tr8	8	2	0.04
Tr5	2	1	0.01		10	2	0.05
Tr6	2	1	0.01		12	2	0.06
	4	1	0.02		14	2	0.07
	6	1	0.03	Tr10	2	2	0.01
	12	2	0.06		3	1.5	0.015
Tr8	1	1	0.005		4	2	0.02
	2	2	0.01		8	2	0.04
	3	1.5	0.015		10	2	0.05
	4	2	0.02		12	2	0.06

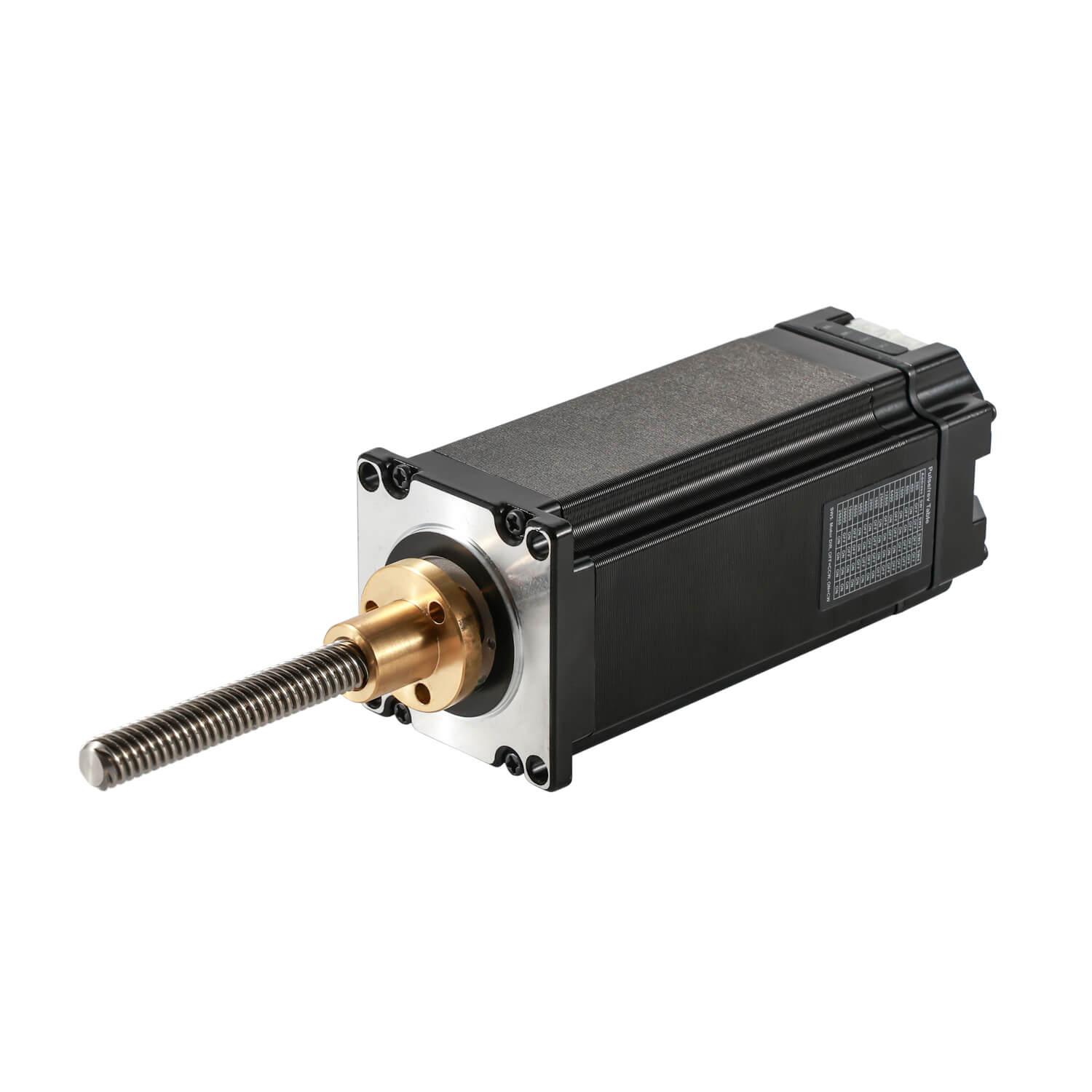

ISS57 Nema23 57mm Integrated Linear Stepper Servo Motor with External Lead Screw

NEMA23 intelligent linear stepper motors, combining integrated stepper servo motors and high precision screws for accuracy and convenience.
Bus communication optional pulse, RS485, CANopen and other communication versions.
Motor parameters: 1.8°, 2A ~ 4.2A, 0.55Nm ~ 3N.m
Optional configuration: Gearbox, brake...

Series

V1 Series

V2 Series

Control Method

Shaft Type

Step Angle

Phase Current

Phase Resistance

Phase Inductance

Rated Torque

Body Length

Weight

Insulation Class

Integrated Encoder

(1.8°)

(A)

(Ω)

(mH)

(Nm)

L(mm)

(Kg)

ISS57-0.55Nm

JKISS57-P01A

JKISC57-P1A3

Pulse

External T-type Lead Screw

1.8

2.8

0.7

1.4

0.55

61.5

0.55

1000ppr/17bit/15bit

JKISS57-R01A

JKISC57-R1A3

RS485

JKISS57-C01A

JKISC57-C1A3

CANopen

ISS57-1.2Nm

JKISS57-P02A

JKISC57-P2A3

Pulse

External T-type Lead Screw

1.8

2.8

0.9

1.2

0.8

1000ppr/17bit/15bit

JKISS57-R02A

JKISC57-R2A3

RS485

JKISS57-C02A

JKISC57-C2A3

CANopen

ISS57-1.89Nm

JKISS57-P03A

JKISC57-P3A3

Pulse

External T-type Lead Screw

1.8

2.8

1.1

3.6

1.89

1.2

1000ppr/17bit/15bit

JKISS57-R03A

JKISC57-R3A3

RS485

JKISS57-C03A

JKISC57-C3A3

CANopen

ISS57-2.2Nm

JKISS57-P04A

JKISC57-P4A3

Pulse

External T-type Lead Screw

1.8

1.4

4.5

2.2

102.5

1.3

1000ppr/17bit/15bit

JKISS57-R04A

JKISC57-R4A3

RS485

JKISS57-C04A

JKISC57-C4A3

CANopen

ISS57-2.8Nm

JKISS57-P05A

JKISC57-P5A3

Pulse

External T-type Lead Screw

1.8

4.2

0.75

2.8

116.5

1.6

1000ppr/17bit/15bit

JKISS57-R05A

JKISC57-R5A3

RS485

JKISS57-C05A

JKISC57-C5A3

CANopen

ISS57-3.0N.m

JKISS57-P06A

JKISC57-P6A3

Pulse

External T-type Lead Screw

1.8

4.2

0.9

3.8

3.0

132

1.8

1000ppr/17bit/15bit

JKISS57-R06A

JKISC57-R6A3

RS485

JKISS57-C06A

JKISC57-C6A3

CANopen

Nema 23 External Lead Screw Specification:
Screw Diameter	Screw Lead	Screw Pitch	Travel Per Step	Screw Diameter	Screw Lead	Screw Pitch	Travel Per Step
mm	mm	mm	mm	mm	mm	mm	mm
Tr8	0.5	0.5	0.0025	Tr9.525	0.635	0.635	0.003175
	2	2	0.01		1.27	1.27	0.00635
	4	2	0.02		1.5875	1.5875	0.0079375
	8	2	0.04		2.54	2.54	0.0127
	12	2	0.06		5.08	2.54	0.0254
	20	2.5	0.1		6.35	3.175	0.03175
Tr10	2	2	0.01		10.16	1.12	0.0508
	4	2	0.02		12.7	3.175	0.0635
	10	2	0.05		25.4	3.175	0.127
	12	3	0.06

ISC60 Nema24 60mm Integrated Linear Stepper Servo Motor with External Lead Screw

The latest generation of precision control integrated stepper servo motor adopts high-resolution magnetic encoder design, and the encoder supports single-turn absolute value mode. Optional pulse control, analog control. Bus communication optional pulse, RS485, CANopen and other communication versions.
Motor parameters: 1.8°, 6A, 1.6N.m ~ 4.1N.m
Optional configuration: Gearbox, brake, linear motions...

Series	V2 Series	Control Method	Step Angle	Phase Current	Phase Resistance	Phase Inductance	Rated Torque	Body Length	Weight	Insulation Class	Integrated Encoder
			(1.8°)	(A)	(Ω)	(mH)	(Nm)	L(mm)	(Kg)
ISC60-1.6Nm	JKISC60-P1A3	Pulse	1.8	4.2	0.5	1.4	1.6	73.7	0.8	B	1000ppr/17bit/15bit
	JKISC60-R1A3	RS485
	JKISC60-C1A3	CANopen
ISC60-2.0Nm	JKISC60-P2A3	Pulse	1.8	4.2	0.6	1.8	2.0	87.2	1.3	B	1000ppr/17bit/15bit
	JKISC60-R2A3	RS485
	JKISC60-C2A3	CANopen
ISC60-2.8Nm	JKISC60-P3A3	Pulse	1.8	4.2	0.8	3.0	2.8	108.2	1.5	B	1000ppr/17bit/15bit
	JKISC60-R3A3	RS485
	JKISC60-C3A3	CANopen
ISC60-3.8Nm	JKISC60-P4A3	Pulse	1.8	4.2	0.75	3.6	3.8	121.2	1.8	B	1000ppr/17bit/15bit
	JKISC60-R4A3	RS485
	JKISC60-C4A3	CANopen
ISC60-4.1Nm	JKISC60-P5A3	Pulse	1.8	4.2	1.0	3.8	4.1	130.7	2.0	B	1000ppr/17bit/15bit
	JKISC60-R5A3	RS485
	JKISC60-C5A3	CANopen

Nema 23 External Lead Screw Specification:
Screw Diameter	Screw Lead	Screw Pitch	Travel Per Step	Screw Diameter	Screw Lead	Screw Pitch	Travel Per Step
mm	mm	mm	mm	mm	mm	mm	mm
Tr8	0.5	0.5	0.0025	Tr9.525	0.635	0.635	0.003175
	2	2	0.01		1.27	1.27	0.00635
	4	2	0.02		1.5875	1.5875	0.0079375
	8	2	0.04		2.54	2.54	0.0127
	12	2	0.06		5.08	2.54	0.0254
	20	2.5	0.1		6.35	3.175	0.03175
Tr10	2	2	0.01		10.16	1.12	0.0508
	4	2	0.02		12.7	3.175	0.0635
	10	2	0.05		25.4	3.175	0.127
	12	3	0.06

linear stepper motor with built in driver

ISC86 Nema34 86mm Integrated Linear Stepper Servo Motor with External Lead Screw

The latest generation of precision control integrated stepper servo motor adopts high-resolution magnetic encoder design, and the encoder supports single-turn absolute value mode. Optional pulse control, analog control. Bus communication optional pulse, RS485, CANopen and other communication versions.
Motor parameters: 1.8°, 6A, 4.5Nm ~ 12.5N.m
Optional configuration: Gearbox, brake, linear motions...

Series	V2 Series	Control Method	Step Angle	Phase Current	Phase Resistance	Phase Inductance	Rated Torque	Body Length	Weight	Insulation Class	Integrated Encoder
			(1.8°)	(A)	(Ω)	(mH)	(Nm)	L(mm)	(Kg)
ISC86-4.5Nm	JKISC86-P1A3	Pulse	1.8	6.0	0.37	3.4	4.5	107.8	2.54	B	1000ppr/17bit/15bit
	JKISC86-R1A3	RS485
	JKISC86-C1A3	CANopen
ISC86-6.5Nm	JKISC86-P2A3	Pulse	1.8	6.0	0.47	4.18	6.5	127.3	3.24	B	1000ppr/17bit/15bit
	JKISC86-R2A3	RS485
	JKISC86-C2A3	CANopen
ISC86-7.0Nm	JKISC86-P3A3	Pulse	1.8	6.0	0.36	2.8	7.0	130.8	3.94	B	1000ppr/17bit/15bit
	JKISC86-R3A3	RS485
	JKISC86-C3A3	CANopen
ISC86-8.5Nm	JKISC86-P4A3	Pulse	1.8	6.0	0.36	3.8	8.5	144.3	4.44	B	1000ppr/17bit/15bit
	JKISC86-R4A3	RS485
	JKISC86-C4A3	CANopen
ISC86-9.5Nm	JKISC86-P5A3	Pulse	1.8	6.0	0.58	6.5	9.5	155.8	4.74	B	1000ppr/17bit/15bit
	JKISC86-R5A3	RS485
	JKISC86-C5A3	CANopen
ISC86-12N.m	JKISC86-P6A3	Pulse	1.8	6.0	0.44	5.5	12	182.3	6.24	B	1000ppr/17bit/15bit
	JKISC86-R6A3	RS485
	JKISC86-C6A3	CANopen

Customized FAQs

—— OEM ODM Customized Intelligent BLDC / Steper Motion Control Manufacturer / Solution Provider Since 2011 ——

1. What applications are integrated linear stepper motors best suited for?

They are widely used in medical devices, semiconductor equipment, CNC machines, 3D printers, automation systems, robotics, and high-speed positioning applications.
2. What frame sizes are supported for integrated linear stepper motors?

Integrated linear stepper motors are available in multiple NEMA sizes, including NEMA 8, 11, 17, 23, 24, and 34, to match different load and space requirements.
3. Are protection levels and environmental customizations available?

Yes, integrated linear motors can be customized with IP30, IP54, or IP65 protection levels, along with sealing solutions for dusty, humid, or harsh environments.
4. Can the motor driver be integrated into the linear motor body?

Yes, integrated drive + motor linear units are available, significantly reducing wiring complexity, installation space, and system footprint.
5. What voltage range and control interfaces do integrated linear motors support?

Integrated linear motors typically support DC 12V–36V and control methods such as pulse control, RS485 Modbus-RTU, and CANopen for flexible system integration.
6. Can integrated linear motors support closed-loop control and encoder feedback?

Yes, closed-loop integrated linear motors with encoder feedback are available, enabling higher positioning accuracy, real-time error correction, and stable motion control.
7. What linear transmission mechanisms can be customized?

Available transmission options include lead screws for cost-effective precision, ball screws for high efficiency and load capacity, and belt drives for high-speed, long-stroke motion.
8. What types of integrated linear stepper motors are available?

Integrated linear stepper motor options include external linear, captive, non-captive, and belt-driven linear motors, designed for different stroke lengths, loads, and speed requirements.
9. What is the lead time for customized integrated linear motors?

Customized integrated linear motors typically ship in 7–15 days for samples and 15–25 days for bulk production, depending on specifications and order quantity.
10. Does Jkongmotor offer OEM/ODM services for integrated linear motor solutions?

Yes, Jkongmotor provides full OEM/ODM services for integrated linear motor solutions, covering mechanical structure, electrical parameters, control methods, and application-specific requirements.
