The DC motor is connected to the power supply through the commutator brush. When the current flows through the coil, the magnetic field generates a force, and the force makes the DC motor rotate to generate torque. The speed of the brushed DC motor is achieved by changing the working voltage or magnetic field strength. Brush motors tend to generate a lot of noise (both acoustic and electrical). If these noises are not isolated or shielded, electrical noise can interfere with the motor circuit, resulting in unstable motor operation. Electrical noise generated by DC motors can be divided into two categories: electromagnetic interference and electrical noise. Electromagnetic radiation is difficult to diagnose, and once a problem is detected, it is difficult to distinguish it from other sources of noise. Radio frequency interference or electromagnetic radiation interference is due to electromagnetic induction or electromagnetic radiation emitted from external sources. Electrical noise can affect the effectiveness of circuits. These Noise can lead to simple degradation of the machine.
When the motor is running, sparks occasionally occur between the brushes and the commutator. Sparks are one of the causes of electrical noise, especially when the motor starts, and relatively high currents flow into the windings. Higher currents usually cause resulting in higher noise. Similar noise occurs when the brushes remain unstable on the commutator surface and the input to the motor is much higher than expected. Other factors, including insulation formed on the commutator surfaces, can also cause current instability.
EMI can couple into the electrical parts of the motor, causing the motor circuit to malfunction and degrade performance. The level of EMI depends on various factors such as the type of motor (brush or brushless), drive waveform and load. Generally, brushed motors will generate more EMI than brushless motors, no matter which type, the design of the motor will greatly affect the electromagnetic leakage, small brushed motors sometimes generate large RFI, mostly simple LC Low pass filter and metal case.
Another noise source of the power supply is the power supply. Since the internal resistance of the power supply is not zero, in each rotation cycle, the non-constant motor current will be converted into a voltage ripple on the power supply terminals, and the DC motor will generate during high-speed operation. noise. To reduce electromagnetic interference, motors are placed as far away from sensitive circuits as possible. The metal casing of the motor usually provides adequate shielding to reduce airborne EMI, but the additional metal casing should provide better EMI reduction.
Electromagnetic signals generated by motors can also couple into circuits, forming so-called common-mode interference, which cannot be eliminated by shielding and can be effectively reduced by a simple LC low-pass filter. To further reduce electrical noise, filtering at the power supply is required. This is usually done by adding a larger capacitor (eg 1000uF and above) across the power supply terminals to reduce the effective resistance of the power supply and thus improve transient response.
Capacitance and inductance generally appear symmetrically in the circuit to ensure the balance of the circuit, form an LC low-pass filter, and suppress the conduction noise generated by the carbon brush. The capacitor mainly suppresses the peak voltage generated by the random disconnection of the carbon brush, and the capacitor has a good filtering function. The installation of the capacitor is generally connected to the ground wire. The inductance mainly prevents the sudden change of the gap current between the carbon brush and the commutator copper sheet, and the grounding can increase the design performance and filtering effect of the LC filter. Two inductors and two capacitors form a symmetrical LC filter function. The capacitor is mainly used to eliminate the peak voltage generated by the carbon brush, and the PTC is used to eliminate the impact of excessive temperature and excessive current surge on the motor circuit.
Final Conclusion：
To reduce EMI levels, motors should be placed as far away from sensitive circuits as possible to reduce interference, and additional metal enclosures should be provided. In order to suppress electromagnetic interference in the case of common mode interference, a simple LC low-pass filter is built in. By connecting the motor with a simple speed controller, other electrical noise can also be eliminated, and a higher-order LC filter can further improve noise filtering performance.
A DC motor is one of the most widely used electromechanical devices in modern engineering, powering everything from small household gadgets to large industrial machines. It operates by converting direct current (DC) electrical energy into mechanical rotational energy, making it essential in automation, robotics, transportation, and consumer electronics.
In this comprehensive guide, we will explore the definition, working principle, types, advantages, disadvantages, and applications of DC motors in detail.
A DC motor is an electrical machine that converts direct current electricity into mechanical energy. It works on the fundamental principle that when a current-carrying conductor is placed inside a magnetic field, it experiences a force. This interaction between the magnetic field and electric current generates torque, which causes the motor shaft to rotate.
The operation of a DC motor is based on Fleming’s Left-Hand Rule. According to this rule:
If the thumb represents the direction of force (motion),
The index finger shows the direction of the magnetic field,
And the middle finger represents the direction of current,
Then the three are mutually perpendicular to each other.
Stator – The stationary part that provides the magnetic field.
Rotor (Armature) – The rotating part where current flows, generating torque.
Commutator – A mechanical switch that reverses the direction of current in the winding to maintain continuous rotation.
Brushes – Conduct electrical current between the stationary and rotating parts.
Field Winding/Permanent Magnets – Generate the magnetic field required for motor operation.
When current flows through the armature conductors placed in the magnetic field, a mechanical force acts on them, causing the rotor to spin.
A DC motor consists of several essential components that work together:
Yoke (Frame): Provides mechanical support and holds magnetic poles.
Poles: Mounted on the yoke; they carry field windings.
Field Windings: Coils that create the magnetic field when current passes.
Armature Core: Cylindrical core made of laminated steel sheets to minimize eddy current losses.
Armature Winding: Copper conductors placed in slots of the armature core.
Commutator: Segmented cylindrical device for reversing current direction.
Brushes: Made of carbon or graphite to ensure smooth current transfer.
DC motors are classified into different types based on their connection between the field winding and armature winding.
Field winding is powered by a separate DC source.
Offers precise speed control.
Used in research, testing, and laboratory setups.
Field winding is connected in parallel with the armature.
Provides constant speed under varying load conditions.
Common in fans, blowers, and conveyors.
Field winding is connected in series with the armature.
Delivers high starting torque.
Used in cranes, lifts, electric traction, and heavy-duty applications.
Combination of shunt and series windings.
Provides both high starting torque and good speed regulation.
Ideal for industrial machinery.
Uses permanent magnets instead of field windings.
Compact, efficient, and lightweight.
Widely used in toys, automotive systems, and consumer appliances.
The performance of a DC motor can be analyzed through its characteristics curves:
Torque vs. Armature Current: Shows how torque increases with armature current.
Speed vs. Armature Current: Explains speed variations under load.
Speed vs. Torque: Important for choosing the right motor for specific applications.
High starting torque, making them suitable for traction and lifting applications.
Excellent speed control over a wide range.
Simple design and easy installation.
Reliable performance in variable speed applications.
Quick response to load changes.
Require regular maintenance due to brushes and commutators.
Lower efficiency compared to AC motors at high power ratings.
Limited lifespan of brushes.
Not suitable for hazardous or explosive environments due to sparking.
DC motors are found in a wide range of applications, from everyday devices to industrial operations.
Electric toys
Hairdryers
Mixers and blenders
Vacuum cleaners
Windshield wipers
Electric windows
Starter motors
Seat adjusters
Machine tools
Rolling mills
Cranes and hoists
Conveyors and elevators
Servo systems
CNC machines
Robotic arms
Electric trains
Tram systems
Electric vehicles (EVs)
One of the greatest advantages of DC motors is their wide speed control range, which is achieved through several methods:
Armature Resistance Control – Adding resistance in series with the armature.
Field Flux Control – Varying the field winding current to change flux.
Voltage Control – Adjusting the supply voltage.
Electronic Controllers – Using modern DC drives and PWM techniques for efficient control.
Proper maintenance ensures long operational life. Common practices include:
Regular brush inspection and replacement.
Cleaning commutators to prevent arcing.
Checking for bearing lubrication.
Monitoring for overheating and vibration.
Ensuring tight connections in winding and terminals.
With advancements in power electronics, permanent magnets, and control technologies, DC motors are becoming more efficient, compact, and versatile. Their role in electric vehicles, robotics, and renewable energy systems ensures their continued importance in modern technology.
Direct Current (DC) motors are widely used in industrial machinery, home appliances, automotive systems, and robotics. While they provide high efficiency and precise control, one of the most common challenges engineers and users face is excessive noise. Noise from a DC motor not only reduces comfort but may also indicate potential performance issues or shorten the motor’s lifespan. In this comprehensive guide, we explore in detail the causes of DC motor noise and the most effective solutions to eliminate it.
To eliminate noise, we must first identify its root causes. DC motor noise typically arises from the following factors:
Mechanical Noise – Caused by friction, worn bearings, misalignment, and unbalanced loads.
Electromagnetic Noise – Originates from magnetic field interactions, cogging torque, or irregular commutation.
Aerodynamic Noise – Produced by airflow disturbances from cooling fans or ventilation structures.
Structural Vibrations – Generated when motor vibration is transmitted to the housing, mounting frame, or surrounding equipment.
Understanding these sources allows us to apply targeted strategies to reduce or completely eliminate motor noise.
Bearings are among the most common sources of mechanical noise. Low-quality or worn bearings cause rattling, grinding, or squealing. Replacing them with sealed, high-precision, and lubricated bearings reduces friction and prevents vibrations.
Insufficient or contaminated lubrication increases metal-to-metal contact, amplifying motor noise. Applying high-grade lubricants at regular intervals ensures smooth operation and noise reduction.
Unbalanced rotors create vibrations that propagate as audible noise. Dynamic rotor balancing ensures equal mass distribution, preventing unwanted oscillations.
Improper shaft alignment causes vibrations, increased wear, and noise. Using laser alignment tools ensures precise coupling alignment, minimizing stress on the motor.
In brushed DC motors, commutator and brush interactions generate sparks and buzzing sounds. Using high-quality carbon brushes or silver-graphite brushes minimizes friction and reduces arcing.
Adding capacitors or RC snubbers across the brushes suppresses high-frequency electromagnetic interference (EMI), leading to quieter motor operation.
Rewinding motors with skewed rotor slots or using distributed windings helps reduce cogging torque, thereby minimizing magnetic noise.
In applications where silent operation is critical, replacing brushed motors with BLDC motors eliminates brush-commutator contact noise completely.
Cooling fans attached to DC motors can generate whistling or rushing sounds. Switching to aerodynamically optimized fans reduces turbulence and noise.
Redesigning motor housings with airflow-friendly channels minimizes aerodynamic drag and airflow noise.
Instead of running fans at full speed continuously, temperature-controlled variable speed fans adjust airflow according to thermal demand, significantly reducing unnecessary noise.
Mounting the motor on rubber isolators, shock absorbers, or anti-vibration pads prevents transmission of vibration to the surrounding structure.
Encasing noisy motors in soundproof enclosures reduces radiated noise, making them suitable for noise-sensitive environments.
Loose or weak mounting structures amplify vibrations. Reinforcing the frame or using precision-machined mounts ensures stable operation.
For high-end applications, active noise cancellation technology can be integrated to neutralize unwanted sound frequencies using counter-phase signals.
Modern motor controllers can adjust pulse-width modulation (PWM) frequencies to avoid resonance frequencies that generate noise. Running at higher PWM frequencies often leads to smoother and quieter operation.
Overheating can distort motor components, increasing noise. Implementing efficient cooling and thermal sensors ensures consistent operation with minimal noise production.
Noise often indicates neglect. Implementing a preventive maintenance schedule greatly enhances both motor lifespan and acoustic performance:
Regular inspection of bearings, brushes, and windings.
Cleaning of dust, dirt, and debris that increase friction and airflow disturbances.
Scheduled lubrication with the correct grease or oil.
Ensuring proper torque and tightening of motor housing bolts and couplings.
Sometimes, despite all efforts, noise persists due to severe wear or inherent design flaws. Replacement becomes more cost-effective when:
Bearings or brushes require frequent replacement.
The rotor or stator shows irreversible damage.
Electromagnetic interference remains uncontrollable.
Silent operation is critical, and upgrading to BLDC motors is more practical.
Eliminating DC motor noise requires a multi-faceted approach, targeting mechanical, electrical, aerodynamic, and structural factors. From precision bearings and optimized windings to advanced motor controllers and vibration isolation techniques, multiple solutions exist to ensure smooth and quiet performance. By combining preventive maintenance with intelligent design upgrades, it is possible to operate DC motors efficiently with minimal or no noise disturbance.
A DC motor is a versatile and reliable electromechanical device that plays a crucial role in countless industries. Its ability to provide high torque, precise speed control, and adaptability makes it invaluable in applications ranging from consumer electronics to industrial machinery and electric vehicles. Despite requiring regular maintenance, DC motors remain one of the most practical and widely used motors in engineering.
 |  |  |  |  |
| 24v 36v regular / or customized | 24V 36V / or customized | 24V 36V / or customized | 48V / or Customized | 48V / or Customized |
| Gearbox / Brake / Encoder / Driver / Shaft Customized | Gearbox / Brake / Encoder / Integrated Driver / Shaft Customized | Gearbox / Brake / Encoder / Integrated Driver / Shaft / Fan Customized | ||

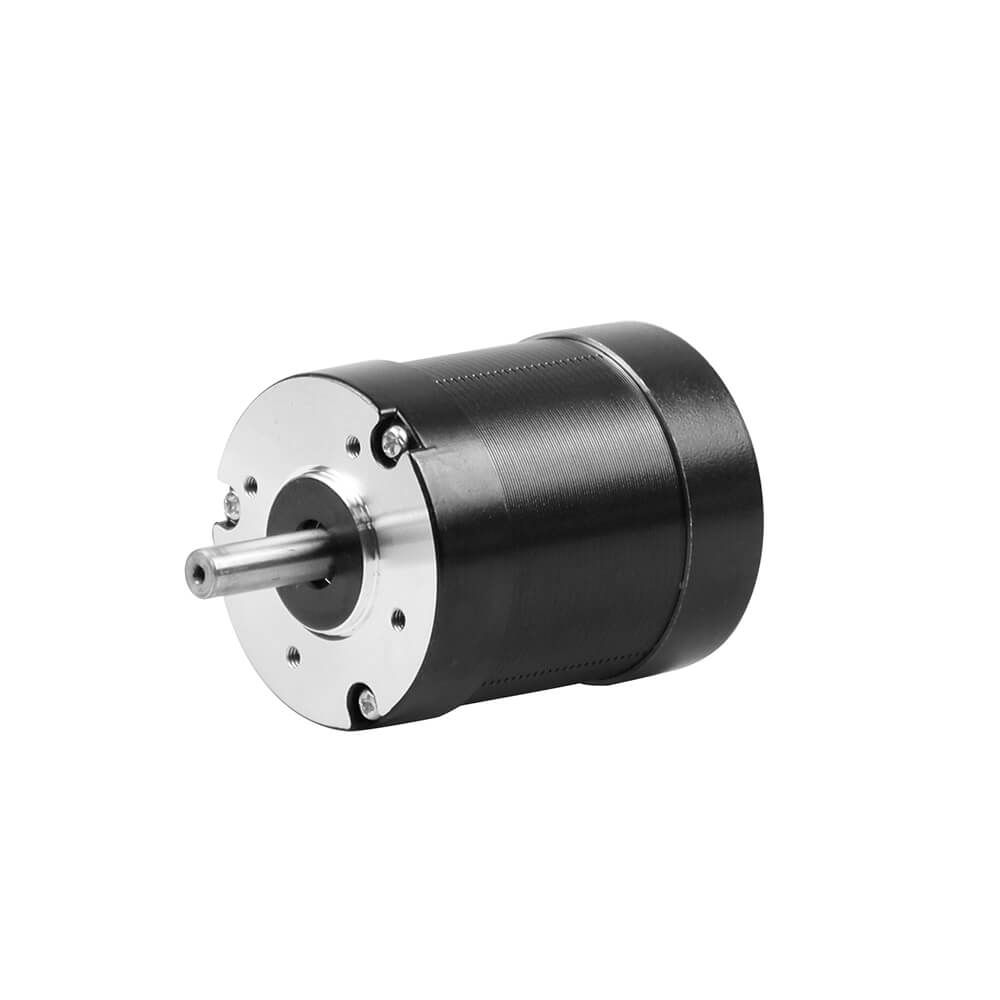

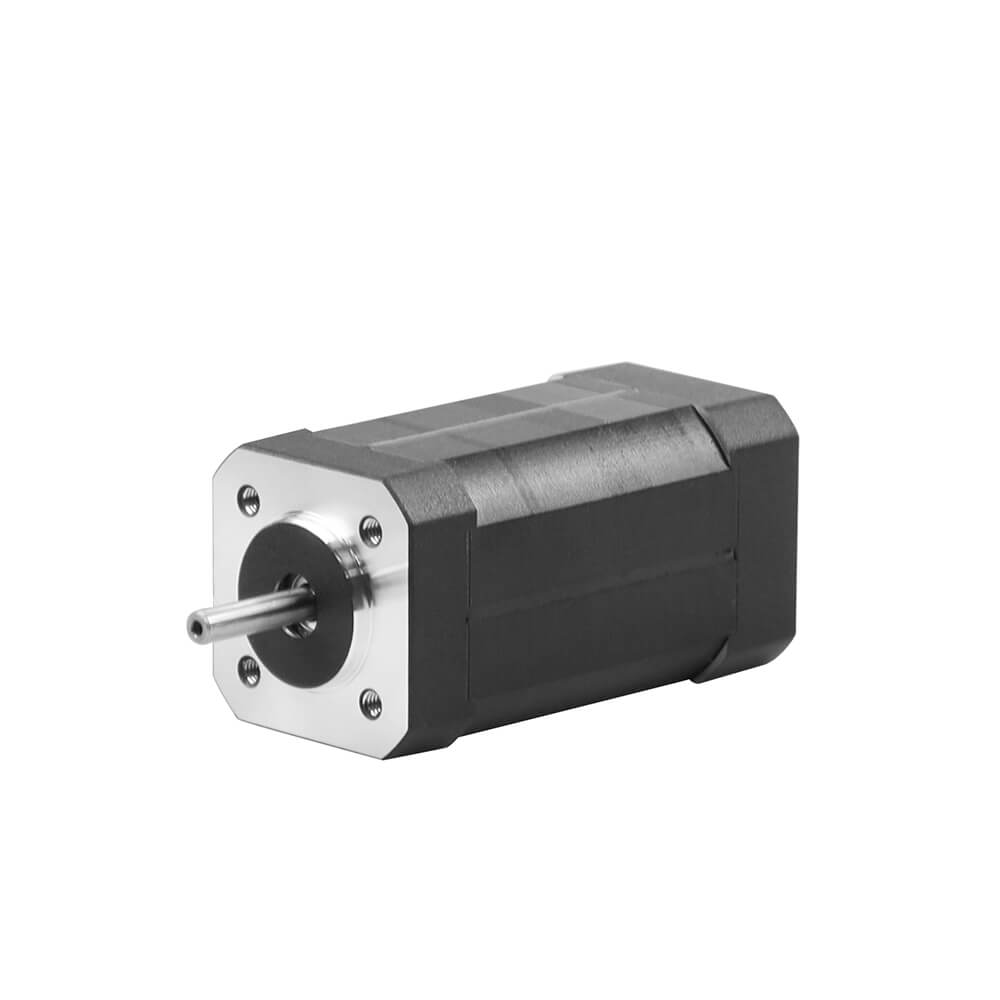

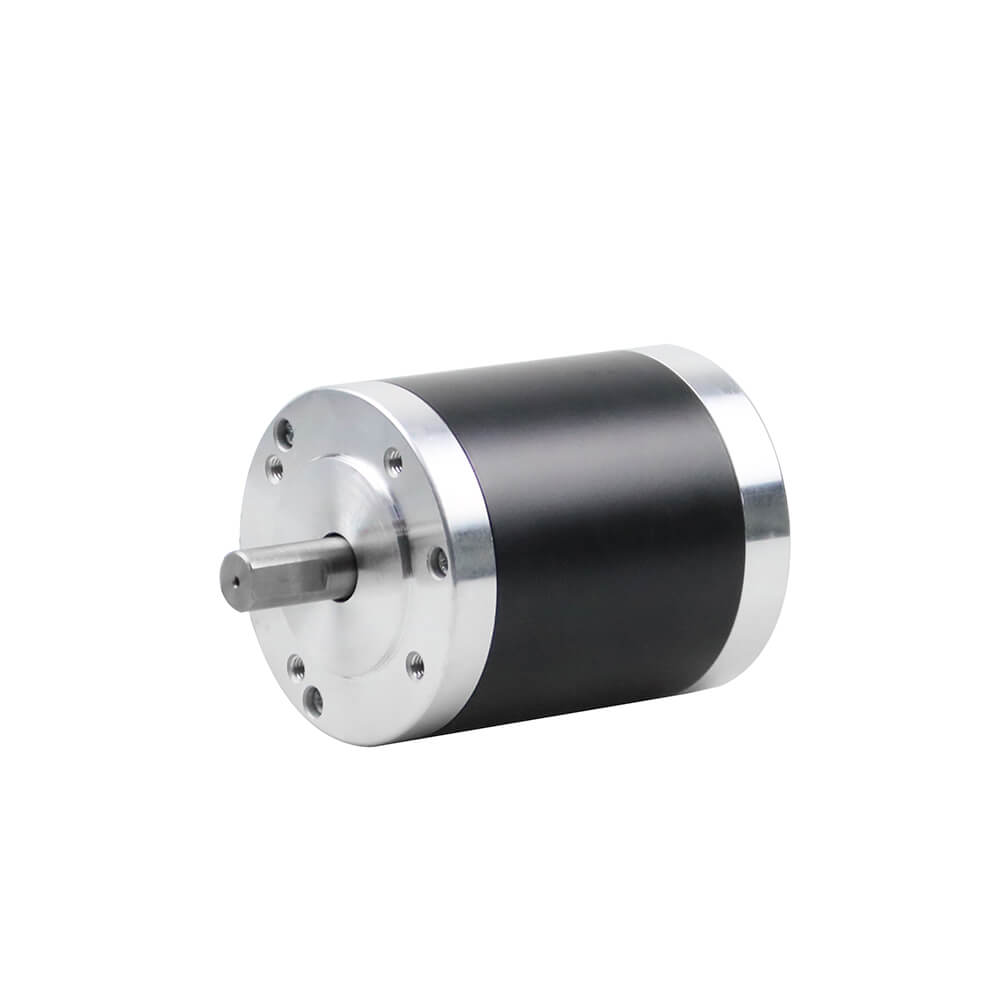

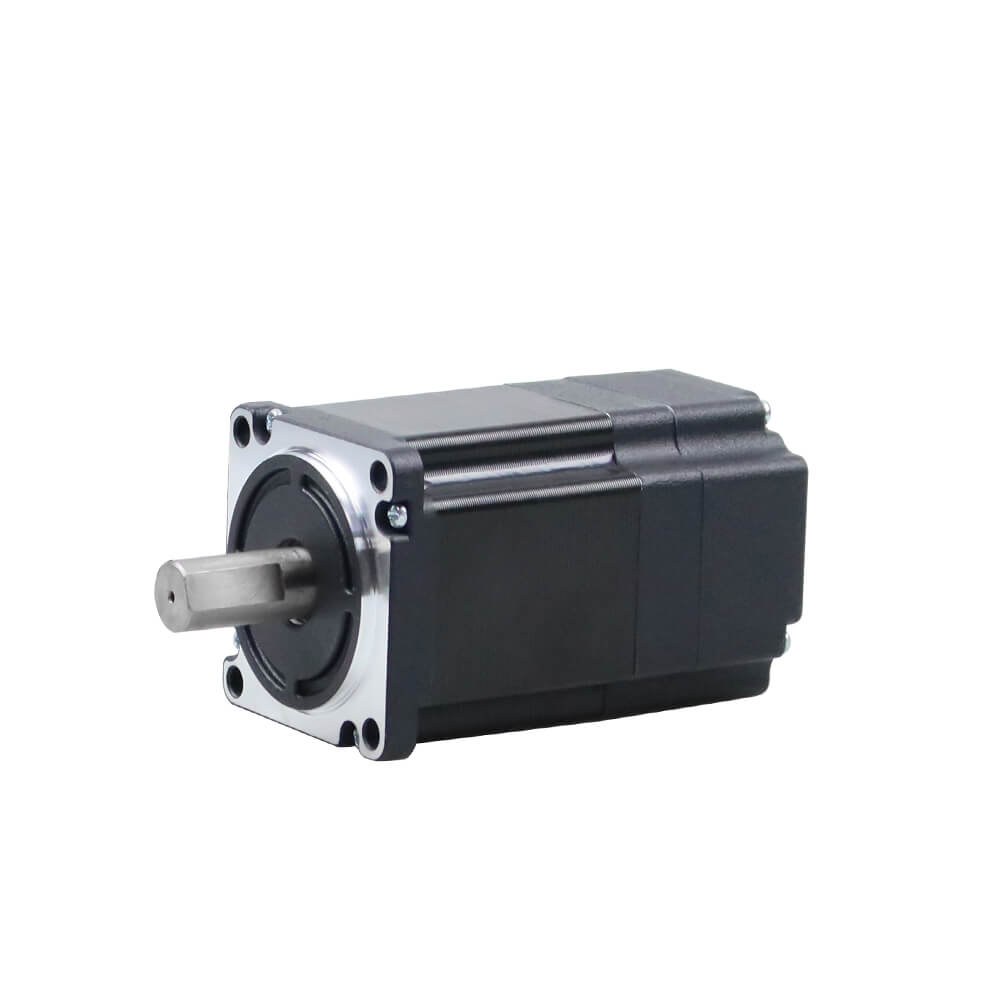

| 42mm Round Brushless Dc Motor | 42mm Square Brushless Dc Motor | 57mm Brushless Dc Motor | 60mm Brushless Dc Motor | 80mm Brushless Dc Motor |
 |  |  |  |  |

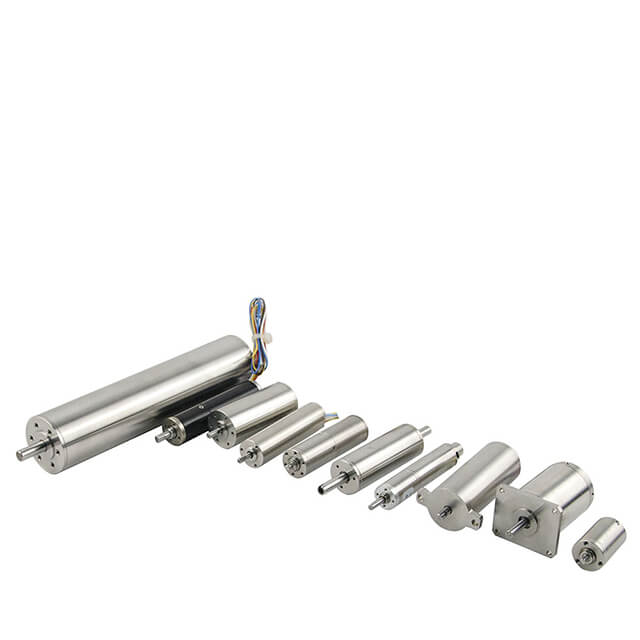

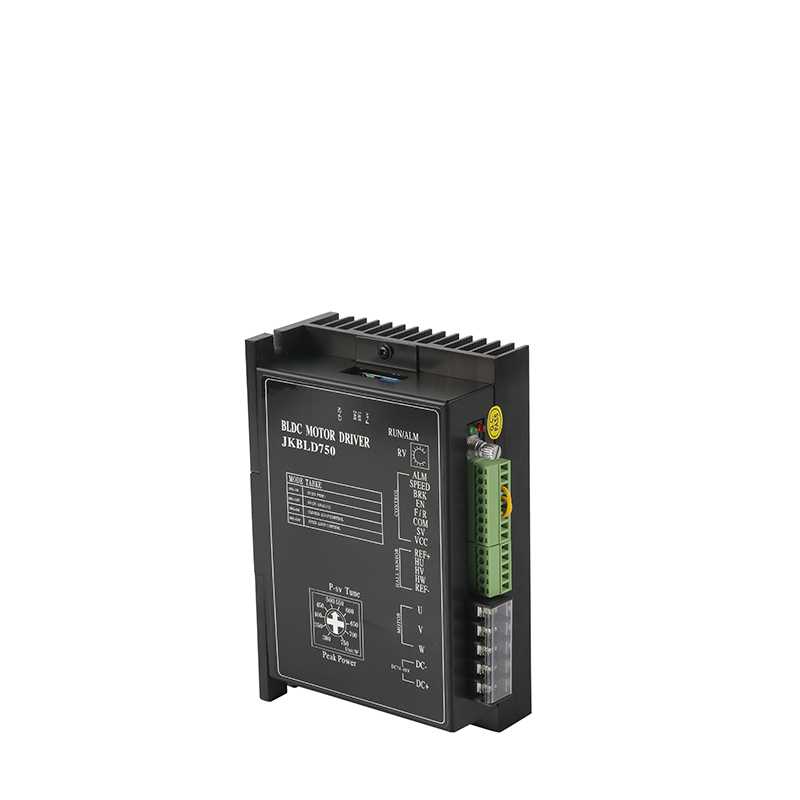

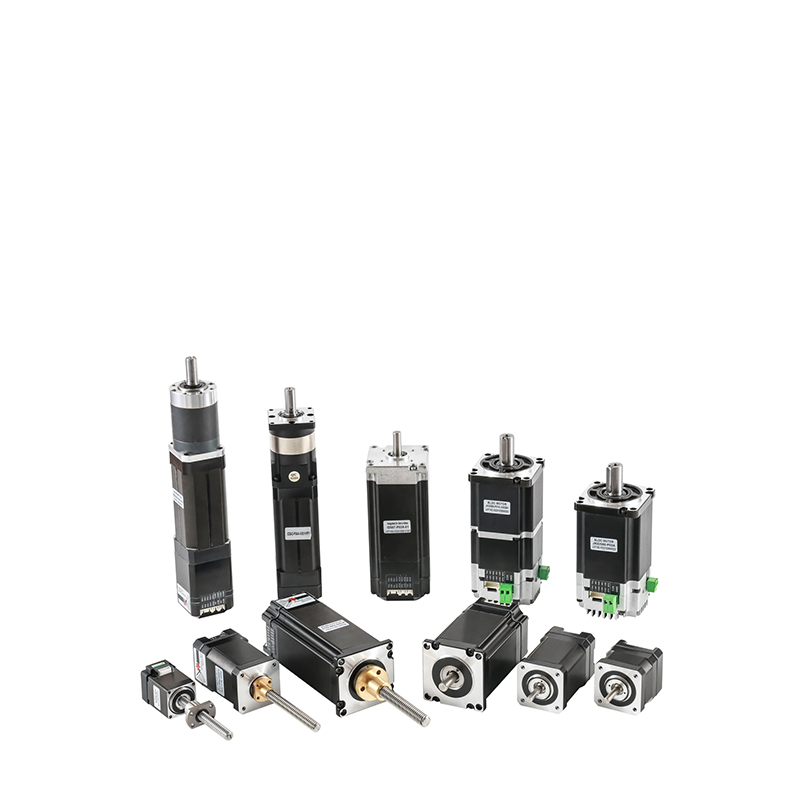

| 48V / or Customized | 310V / or Customized | Coreless Dc Motors | IDS Integrated Servo Motors | Brushless Dc Motor Driver |
