In the world of precision motion control, the NEMA 11 hollow shaft stepper motor stands out as a compact yet powerful solution for high-accuracy and space-constrained applications. With its small frame size, efficient torque performance, and integrated hollow shaft, this motor type is widely used in automation systems, robotics, medical devices, and optical instruments.
In this comprehensive guide, we will explore everything you need to know about NEMA 11 hollow shaft stepper motors — their design, specifications, benefits, applications, and how to choose the right one for your project.
A NEMA 11 hollow shaft stepper motor is a bipolar or unipolar stepper motor with a 1.1-inch (28mm) square faceplate, conforming to the National Electrical Manufacturers Association (NEMA) standards. The key difference from standard stepper motors is its hollow shaft—a central through-hole that allows the passage of cables, optics, or rotating components, making it ideal for compact, integrated designs.
Despite its small size, the NEMA 11 motor delivers precise step angles (typically 1.8° per step) and can achieve excellent positioning accuracy, reliability, and torque consistency.
The NEMA 11 hollow shaft stepper motor is a compact and precise motion control device that converts electrical pulses into accurate mechanical movement. Its hollow shaft design enhances versatility, allowing cables, light beams, or mechanical components to pass through its center, making it ideal for integrated and space-constrained applications.
In this detailed explanation, we will break down how a NEMA 11 hollow shaft stepper motor works, from its internal structure to its operating principles and control methods.
A stepper motor works on the principle of electromagnetic induction. When electrical pulses are applied sequentially to the motor’s coils, magnetic fields are generated that attract the rotor’s teeth. This causes the rotor to move in discrete angular steps, each representing a fraction of a full rotation.
The NEMA 11 stepper motor typically has a step angle of 1.8°, meaning it takes 200 steps to complete one full revolution (360° / 1.8° = 200 steps). The direction, speed, and position of the motor are determined by the timing and order of the electrical pulses sent by the driver.

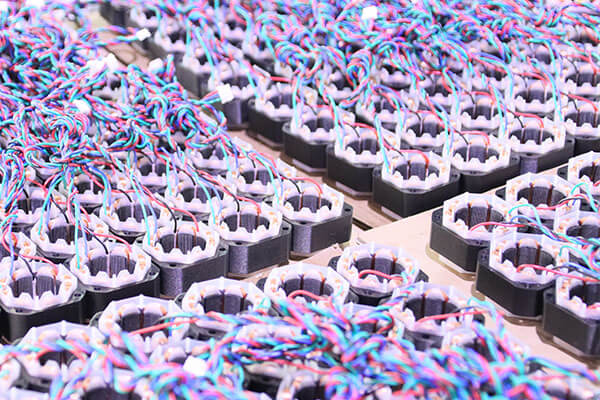

Although small in size, the NEMA 11 motor is composed of several key components that work together to produce precise rotational movement.
Stator: The stationary part of the motor containing multiple coils or windings. It generates a magnetic field when energized.
Rotor: The rotating part, usually made of soft iron with toothed poles that align with the stator’s magnetic field.
Hollow Shaft: A central bore running through the rotor, allowing for optical fibers, cables, or mechanical links to pass through.
Bearings: These support the rotor and ensure smooth rotation.
End Caps and Housing: Provide structural integrity and protect the internal components.
The hollow shaft feature does not alter the electromagnetic function of the motor but enhances mechanical integration and design flexibility.
Let’s explore how the NEMA 11 hollow shaft stepper motor works in practice:
A stepper motor driver sends sequential electrical pulses to the stator coils. Each pulse energizes a specific winding, creating a magnetic field.
The rotor, which has magnetic poles, aligns itself with the energized stator pole due to magnetic attraction. When the next coil is energized, the rotor moves slightly to align with the new magnetic field.
By energizing the coils in a precise sequence, the rotor moves incrementally from one position to the next. Each movement is called a “step,” and the number of steps per revolution defines the motor’s resolution.
The direction of rotation (clockwise or counterclockwise) depends on the order in which the driver energizes the coils. The speed is controlled by the frequency of input pulses — faster pulses result in faster rotation.
When the motor is powered but not rotating, it maintains a holding torque, keeping its position firmly in place. This makes the stepper motor ideal for applications requiring position stability without feedback sensors.
Depending on the internal winding configuration, NEMA 11 motors are available in two main types:
Has two windings (four leads).
Requires a bipolar driver that can reverse current direction in each winding.
Offers higher torque output due to full coil utilization.
Commonly used for precision robotics, optics, and automation systems.
Has center-tapped windings (five or six leads).
Easier to control, requiring simpler drivers.
Produces slightly less torque but has smoother movement at low speeds.
Both configurations can include a hollow shaft, depending on the design and manufacturer.
The hollow shaft is a defining feature of this motor, enhancing its functionality without affecting electromagnetic performance.
Cable and Wire Routing: Ideal for routing sensor cables or optical fibers through the motor axis.
Compact Integration: Reduces space usage in systems requiring central alignment or coaxial connections.
Improved Assembly: Simplifies mechanical design by allowing direct shaft coupling or through-hole mounting.
Optical Applications: Enables light paths to pass through, crucial in laser and camera positioning systems.
This unique structural design makes the NEMA 11 hollow shaft motor popular in medical devices, photonics equipment, and miniature automation systems.
The operation of a NEMA 11 motor relies on a stepper driver that converts logic signals into phase currents for the coils.
Full-Step Mode: Each pulse moves the rotor by one full step (e.g., 1.8°).
Half-Step Mode: Alternates between energizing single and double coils, doubling resolution and smoothing motion.
Microstepping Mode: Divides each step into smaller increments by varying current levels, resulting in ultra-smooth rotation and higher positional accuracy.
Microstepping is the preferred mode for precision applications, as it minimizes vibration and resonance.
To achieve optimal performance from a NEMA 11 hollow shaft stepper motor, several parameters must be fine-tuned:
Supply Voltage: Affects torque and speed. Higher voltages improve response but may increase heat.
Current Limiting: Essential to prevent overheating; drivers often include current control features.
Load Inertia: Should be minimized to prevent missed steps and ensure rapid acceleration.
Mechanical Alignment: The hollow shaft should be properly aligned to prevent imbalance and vibration.
Driver Quality: A high-performance driver with microstepping capability ensures smoother and quieter operation.
Precise Position Control: No feedback required; motion is determined by pulse count.
Compact Design: Fits into tight spaces while providing robust performance.
Quiet and Smooth Operation: Especially with microstepping.
Easy Integration: Hollow shaft enables versatile assembly options.
Low Maintenance: Brushless design ensures long service life.
Because of its accuracy, compactness, and design flexibility, the NEMA 11 hollow shaft stepper motor is widely used in:
Medical automation systems (e.g., infusion pumps, valve controllers)
Optical alignment tools
Miniature robotic actuators
3D printers and micro-CNC systems
Laboratory instrumentation
These applications take advantage of both the precision motion and the hollow shaft’s integration capabilities.
The NEMA 11 hollow shaft stepper motor operates through electromagnetic stepwise rotation, controlled by sequential current pulses. Its hollow shaft structure enhances mechanical integration, cable routing, and design flexibility while maintaining the precise, reliable performance of a traditional stepper motor.
Compact, efficient, and versatile, it remains a cornerstone in modern automation, robotics, and optical positioning systems.
When selecting a NEMA 11 hollow shaft stepper, it’s essential to understand the technical features that make this motor so effective for compact automation solutions:
With a 28mm x 28mm mounting face, this motor easily fits into limited spaces without sacrificing torque. It’s ideal for compact devices like 3D printers, inspection tools, and miniature robotic arms.
The hollow shaft allows for easy cable routing, optical alignment, or mounting of encoders, making integration simpler and cleaner. It can accommodate shafts, wires, or light beams, optimizing assembly efficiency.
Each step delivers consistent incremental motion, typically 1.8° per step or 200 steps per revolution. Microstepping drivers can further enhance resolution for smoother motion control.
Thanks to advanced magnetic construction and microstepping technology, the NEMA 11 hollow shaft motor operates quietly and smoothly, essential for sensitive environments like laboratory equipment and medical devices.
Despite its small footprint, NEMA 11 hollow shaft motors can provide holding torques up to 0.15 Nm (21 oz-in), depending on the winding configuration and operating voltage.
| Parameter | Typical Range |
|---|---|
| Frame Size | 28 mm (NEMA 11) |
| Step Angle | 1.8° or 0.9° |
| Holding Torque | 0.08 – 0.15 Nm |
| Rated Current | 0.5 – 1.0 A/phase |
| Voltage | 2V – 12V (depending on model) |
| Shaft Type | Hollow Shaft (through or blind bore) |
| Rotor Inertia | Low, enabling fast acceleration |
| Number of Leads | 4, 6, or 8 (bipolar/unipolar) |
| Motor Length | 28mm – 55mm |
| Drive Type | Bipolar or Unipolar |
Its small frame size enables easy installation in tight spaces, making it ideal for portable and miniaturized devices.
The hollow shaft simplifies mechanical assembly by allowing cables or light sources to pass through, reducing clutter and potential wear.
With microstepping drivers, these motors achieve sub-degree accuracy, essential for optical instruments and medical automation systems.
Stepper motors have no brushes, ensuring long operational lifespans and minimal maintenance requirements even in continuous duty cycles.
Compared to servomotors, stepper systems offer lower cost, simpler control, and excellent repeatability — ideal for small-scale automation.
The NEMA 11 hollow shaft stepper motor is a compact, high-precision motor that has become an essential component in modern automation, robotics, medical equipment, and optical systems. Its unique hollow shaft design allows cables, optical fibers, or rotating elements to pass directly through the motor’s center, offering unmatched flexibility for tight-space installations and high-integration mechanisms.
Below, we explore the most common and advanced applications of NEMA 11 hollow shaft stepper motors, highlighting how their accuracy, compactness, and adaptability make them ideal for a wide range of industries.
In the world of robotics, size, precision, and integration flexibility are critical — and the NEMA 11 hollow shaft stepper motor delivers on all three fronts.
Miniature robotic arms: Enables smooth, controlled joint movement with consistent torque.
End-effectors and grippers: Provides fine motion control for grasping, positioning, and assembly tasks.
Camera or sensor gimbals: The hollow shaft allows cable routing through the axis, reducing clutter and improving cable management.
Actuator systems: Used in compact actuators that require high torque at low speeds without feedback systems.
The hollow shaft’s design makes it easier to integrate encoders, sensors, or signal wires through the motor’s core, leading to cleaner, more efficient robotic assemblies.
Precision, quiet operation, and reliability are vital in the medical and life sciences industry, and NEMA 11 hollow shaft stepper motors excel in this environment.
Syringe and infusion pumps: Enables controlled fluid delivery with sub-milliliter accuracy.
Laboratory dispensers: Provides precise dosing and positioning in sample preparation devices.
Optical diagnostic instruments: The hollow shaft allows for light or sensor passage, essential in optical alignment systems.
Valve actuators and sample handlers: Offers reliable movement for automated systems requiring compact motion control.
These motors operate with low noise and minimal vibration, ensuring that sensitive laboratory instruments maintain accuracy and stability during operation.
One of the most valuable applications of the NEMA 11 hollow shaft stepper motor is in optical and photonics systems, where alignment precision and space efficiency are crucial.
Laser beam alignment systems: The hollow shaft allows a laser beam or optical fiber to pass directly through the motor center.
Camera positioning modules: Ensures stable, repeatable alignment for imaging devices.
Microscope stages: Used for fine focusing or filter wheel rotation, achieving micrometer-level precision.
Spectroscopy instruments: Provides smooth rotational motion for optical components in spectrometers or beam splitters.
These systems benefit from the direct coaxial alignment possible with the hollow shaft, ensuring that optics and mechanical components share a common central axis for maximum stability and accuracy.
In additive manufacturing and desktop CNC systems, compact motors with high precision and torque are essential for achieving reliable motion control.
Filament feeding mechanisms: Provides consistent extrusion control for 3D printers.
Rotary axes or tool changers: Enables accurate positioning of tools or materials.
Z-axis lifting systems: Delivers smooth and controlled vertical movement.
Micro-CNC spindles: The hollow shaft allows for specialized mounting or wire routing through the motor center.
The NEMA 11’s small footprint and high torque-to-size ratio make it a perfect match for lightweight machines where space and efficiency are limited.
Semiconductor production demands precise, vibration-free motion control to handle fragile components. The NEMA 11 hollow shaft motor’s ability to operate smoothly and quietly makes it suitable for many applications in this sector.
Wafer inspection and positioning tools: Achieves micron-level accuracy.
Pick-and-place robots: Provides accurate part alignment and low resonance movement.
PCB handling systems: Ensures smooth conveyor and stage positioning.
Micro-assembly equipment: Ideal for tasks requiring gentle, controlled actuation in tight spaces.
The hollow shaft is often used to route cables or vacuum lines through the motor, reducing space requirements and improving system organization.
Analytical devices often need precise motion control for scanning, sampling, or measuring. The NEMA 11 hollow shaft stepper motor is widely integrated into such instruments due to its compactness, precision, and reliability.
Spectrometers and analyzers: For rotating optical filters or diffraction gratings.
Chromatography systems: Used in precise valve actuation and sample loading mechanisms.
Coordinate measuring machines (CMM): Provides fine positional control.
Probe and sensor positioning: Allows routing of signal wires through the hollow shaft for compact sensor setups.
These applications benefit from accurate incremental motion without requiring complex servo feedback systems.
Miniaturization and high reliability are crucial in aerospace, defense, and satellite systems. The NEMA 11 hollow shaft stepper motor offers both, along with the ability to route control lines through the motor’s center.
Optical alignment systems for satellites
Camera gimbal control mechanisms
Micro-actuators for instrument calibration
Precision filter wheels and targeting optics
These motors are often chosen for their robust construction, minimal maintenance, and consistent performance in demanding environments.
In industrial automation, compact stepper motors play an essential role in driving small actuators, stages, and inspection tools.
Automated inspection cameras: The hollow shaft allows integrated lighting or wiring to pass through.
Precision conveyors: Used for controlled movement and indexing.
Material testing instruments: Provides smooth and repeatable motion.
Assembly lines: Used for micro-positioning and rotary actuation tasks.
By integrating hollow shaft NEMA 11 motors, manufacturers can design more compact, efficient, and organized motion systems.
Research laboratories and universities use NEMA 11 hollow shaft stepper motors in experimental setups due to their precision, ease of control, and small form factor.
Prototype robotic systems
Optical experiments and laser alignment platforms
Microfluidic and bioengineering tools
Automation learning modules
The ability to route sensors, optics, or cabling through the motor simplifies experimental designs and improves repeatability.
Finally, Original Equipment Manufacturers (OEMs) often integrate NEMA 11 hollow shaft stepper motors into custom-built devices where space, precision, and aesthetics are vital.
Smart home automation devices
Portable analytical systems
Compact medical robots
Precision dosing or control valves
The hollow shaft motor’s modular adaptability allows OEMs to design sleek, efficient, and multifunctional systems tailored to their specific needs.
The NEMA 11 hollow shaft stepper motor offers a unique combination of precision, compactness, and design flexibility, making it indispensable across a wide range of industries — from medical and optical systems to robotics, laboratory equipment, and industrial automation.
Its hollow shaft feature not only simplifies assembly but also enables innovative system designs that reduce space, improve reliability, and enhance performance. As automation continues to advance, the versatility of the NEMA 11 hollow shaft motor ensures it will remain a cornerstone of high-precision motion control solutions.
Choosing the correct motor depends on matching its electrical and mechanical specifications to your system requirements. Consider the following:
Determine the required holding and dynamic torque based on the load inertia, acceleration, and drive mechanism.
Select a step angle (1.8° or 0.9°) appropriate for your application’s precision and smoothness requirements.
The diameter of the hollow shaft should match your intended component or cable size, ensuring proper clearance and stability.
Ensure your driver’s output matches the motor’s rated current per phase. Overdriving can increase torque but may generate excess heat.
Consider temperature limits, vibration exposure, and available mounting space — critical for applications in confined or sensitive environments.
Use a quality stepper driver with microstepping capability for smooth, quiet motion.
Apply appropriate current limits to avoid overheating.
Add an encoder if closed-loop feedback is needed.
Ensure mechanical alignment when passing cables or optics through the hollow shaft.
Use dampers or rubber mounts to reduce vibration and resonance.
Modern developments are pushing the boundaries of performance and efficiency for compact stepper motors:
Integrated driver and controller modules are enabling plug-and-play installation.
Closed-loop NEMA 11 systems with feedback encoders improve torque response and prevent missed steps.
Advanced materials and winding techniques are increasing torque density while reducing power consumption.
Miniaturization of components allows even smaller, high-performance hollow shaft motors for next-generation robotics and optical systems.
The NEMA 11 hollow shaft stepper motor represents a perfect balance between compact size, high precision, and design flexibility. Its hollow shaft architecture enhances system integration, while its performance and reliability make it ideal for diverse industries, from medical equipment to robotics and photonics.
By choosing the right motor configuration and driver system, engineers can unlock the full potential of this small but powerful motion control solution.
