When selecting a stepper motor for precision-driven applications, the choice often narrows down to NEMA 14 and NEMA 17 stepper motors. Both models are popular for their reliability, torque output, and adaptability across a range of industries — from 3D printing to CNC machines. However, understanding their technical differences, performance characteristics, and ideal applications is key to making an informed decision.

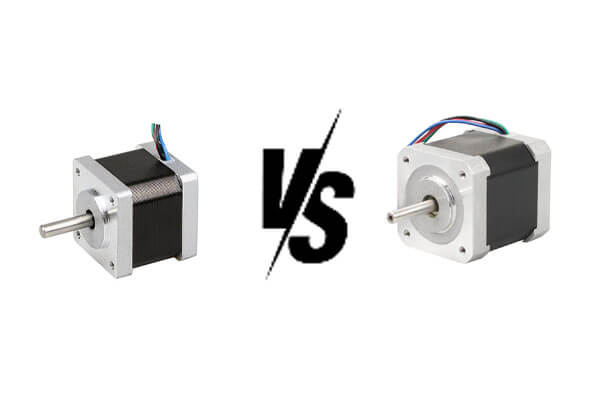

In this detailed guide, we will thoroughly compare NEMA 14 vs NEMA 17 stepper motors, exploring their dimensions, torque, current requirements, compatibility, and applications, to help engineers and manufacturers choose the optimal motor for their projects.
The term NEMA stands for National Electrical Manufacturers Association, which standardizes motor frame sizes and mounting dimensions. The number following “NEMA” — such as 14 or 17 — refers to the motor’s faceplate size in tenths of an inch.
NEMA 14 means a 1.4-inch (35.6 mm) faceplate.
NEMA 17 means a 1.7-inch (43.2 mm) faceplate.
While the frame size impacts the mounting and form factor, it also often correlates with torque output and power capacity. Larger frame sizes generally provide more torque, making them better suited for applications requiring higher load-bearing capabilities.
Stepper motors are among the most versatile and precise motion control devices used in modern automation, robotics, and manufacturing. Their ability to convert electrical pulses into exact mechanical movements makes them ideal for systems that demand high positioning accuracy and repeatable motion.
Stepper motors can be categorized based on their construction and operation principles. The three primary types are:
Permanent Magnet (PM) Stepper Motors
Variable Reluctance (VR) Stepper Motors
Let’s discuss each type in detail.
Permanent Magnet (PM) stepper motors use a permanent magnet rotor and an electromagnet stator. When current flows through the stator windings, magnetic poles are created that attract or repel the rotor poles, causing the motor to rotate in discrete steps.
Step angle: Typically 7.5° to 15° per step
Operates smoothly at low speeds
Provides moderate torque
Cost-effective and simple in construction
Compact and low cost
Good holding torque
Simple control mechanism
Printers and scanners
Small robotics
Camera lens controls
Compact consumer electronics
PM stepper motors are perfect for low-speed, low-torque applications where cost efficiency and simplicity are priorities.
Variable Reluctance (VR) stepper motors use a soft iron rotor with teeth that align with the energized stator poles. Unlike PM steppers, they do not have permanent magnets in the rotor. The movement is achieved as the rotor moves to the position of minimum magnetic reluctance.
Step angle: 5° to 15° per step
Fast response and high stepping rate
No residual magnetism
Lightweight and reliable
High stepping accuracy
Quick acceleration and deceleration
Low manufacturing cost
Plotters and drafting machines
Laboratory automation
Low-torque CNC positioning systems
While VR stepper motors offer excellent precision, they tend to produce less torque compared to PM and hybrid motors, limiting their use in heavy-load systems.
The hybrid stepper motor combines the strengths of both permanent magnet and variable reluctance designs. It includes a permanent magnet rotor with toothed poles, which interacts with the electromagnetic stator windings to create fine and powerful steps.
Step angle: Typically 0.9° or 1.8° per step
High torque and excellent accuracy
Superior performance at high speeds
Smooth operation and precise positioning
High torque-to-size ratio
Excellent step resolution
Reliable in demanding environments
Compatible with microstepping drivers
3D printers and CNC machines
Robotics and automation
Medical imaging and lab instruments
Industrial positioning systems
The hybrid stepper motor is the most widely used type in modern automation due to its balance of torque, speed, and precision.
Beyond the primary categories, several specialized stepper motor designs are tailored for specific applications and performance requirements.
Bipolar stepper motors have two windings and require current reversal in each coil to change magnetic polarity. They provide higher torque than unipolar types but require more complex driver circuits.
Advantages:
Greater efficiency and torque
Uses the full coil winding
Excellent for industrial-grade applications
Applications:
3D printers
Robotics joints
CNC machinery
Unipolar stepper motors feature a center-tapped winding per phase, allowing current to flow in one direction only. They are easier to drive and control using simple driver circuits.
Advantages:
Simple wiring and control
Lower cost
Reliable operation
Applications:
Hobbyist electronics
Small automation projects
Office machines
While unipolar motors are simpler to control, they produce less torque compared to their bipolar counterparts.
A closed-loop stepper motor includes an encoder or feedback sensor to monitor rotor position and speed in real-time. This allows the controller to correct any missed steps and optimize current for efficiency.
Advantages:
No step loss under load
Higher acceleration and smoother motion
Reduced heat generation
Improved efficiency
Applications:
Industrial automation
Precision robotics
Motion control systems requiring feedback
Closed-loop steppers bridge the gap between traditional stepper and servo motors, offering servo-like performance with stepper motor simplicity.
Unlike rotary steppers, linear stepper motors convert electrical pulses into straight-line motion instead of rotation. This is achieved through a lead screw or magnetic linear track mechanism.
Advantages:
Direct linear actuation
High precision and repeatability
No need for additional transmission systems
Applications:
Linear actuators
Pick-and-place systems
Automated inspection tools
Linear stepper motors are ideal where accurate linear displacement is required without additional mechanics.
Some stepper motors are paired with planetary or spur gear reducers to increase torque and reduce speed. This combination enhances load-handling capabilities and positional control.
Advantages:
Increased torque output
Improved load capacity
Higher precision through reduction ratio
Applications:
Robotic arms
Conveyor systems
Precision camera mounts
| Type | Rotor Type | Step Angle | Torque | Control Complexity | Applications |
|---|---|---|---|---|---|
| PM Stepper | Permanent Magnet | 7.5°–15° | Low | Simple | Printers, Cameras |
| VR Stepper | Soft Iron | 5°–15° | Low–Medium | Simple | Plotters, Lab Equipment |
| Hybrid Stepper | PM + Toothed Rotor | 0.9°–1.8° | High | Moderate | CNC, Robotics |
| Unipolar | Center-Tapped Windings | 1.8° | Medium | Easy | Hobby Projects |
| Bipolar | Two Windings | 1.8° | High | Complex | Industrial Equipment |
| Closed-Loop | With Encoder | 0.9°–1.8° | Very High | High | Automation, Robotics |
| Linear Stepper | Screw or Magnetic Track | Custom | Medium | Medium | Actuators, Inspection Systems |
Stepper motors come in a wide range of types and configurations, each offering unique advantages for specific performance requirements.
PM steppers excel in low-cost, compact devices.
VR steppers deliver high stepping precision.
Hybrid steppers dominate in industrial and robotic applications for their torque and accuracy.
Closed-loop and linear stepper motors bring enhanced performance for precision automation systems.
Choosing the right stepper motor type depends on your torque, accuracy, space, and cost constraints — ensuring the best performance and longevity for your design.
The most noticeable difference between NEMA 14 and NEMA 17 motors is their size and weight, which directly influence installation flexibility and system compactness.
| Specification | NEMA 14 | NEMA 17 |
|---|---|---|
| Frame Size | 1.4 inches (35.6 mm) | 1.7 inches (43.2 mm) |
| Shaft Diameter | 3–5 mm | 5 mm |
| Mounting Hole Spacing | 26 mm | 31 mm |
| Typical Motor Length | 20–40 mm | 34–60 mm |
| Weight | 120–250 g | 250–400 g |
NEMA 14 motors are more compact and lightweight, making them ideal for space-constrained applications like small robots, compact 3D printers, and camera gimbals.
NEMA 17 motors, on the other hand, are sturdier and deliver higher torque, suitable for CNC routers, larger 3D printers, and industrial automation systems.
The most significant difference between these two motors lies in their torque output. Torque determines how much rotational force the motor can generate to move or hold a load.
| Specification | NEMA 14 Stepper Motor | NEMA 17 Stepper Motor |
|---|---|---|
| Frame Size | 1.4 in (35.6 mm) | 1.7 in (43.2 mm) |
| Holding Torque | 12–40 oz-in (0.08–0.28 Nm) | 40–90 oz-in (0.28–0.64 Nm) |
| Detent Torque | Low | Moderate |
| Rotor Inertia | Small | Higher |
| Shaft Diameter | 3–5 mm | 5 mm |
| Typical Current Rating | 0.5–1.2 A | 1.2–2.8 A |
NEMA 17 motors clearly provide higher holding torque — up to three times greater than NEMA 14 models. This makes them more suitable for heavy mechanical loads, larger 3D printer axes, and CNC drive systems where torque is critical for maintaining accuracy and motion stability.
In contrast, NEMA 14 stepper motors are ideal for compact designs where space is limited and torque demand is moderate.
While torque is the most visible difference, speed performance also plays a vital role in motion control systems.
Operate efficiently at moderate speeds (0–600 RPM).
Offer smooth and quiet motion, suitable for lightweight precision applications.
May lose steps at high acceleration if torque demand exceeds capacity.
Deliver consistent torque even at higher speeds (up to 1000 RPM or more).
Handle faster acceleration and larger loads without step loss.
Maintain superior dynamic torque performance under demanding conditions.
As a general rule, the larger rotor mass and stronger magnetic field of NEMA 17 motors give them better torque retention at higher speeds, making them more efficient for rapid, heavy-duty motion sequences.
Holding torque is a critical measure for applications where the motor must hold its position under load without movement.
NEMA 14 motors offer holding torque between 12–40 oz-in (0.08–0.28 Nm), which is sufficient for lightweight linear movements, such as small 3D printer extruders, medical devices, or compact robotics.
NEMA 17 motors, with 40–90 oz-in (0.28–0.64 Nm) holding torque, provide stronger positional stability, suitable for CNC tool heads, large robotic joints, and precision automation systems.
If your application involves vertical motion or heavy mechanical resistance, NEMA 17 ensures better positional integrity without step loss.
Efficiency plays a key role in system design, especially in battery-powered or thermally sensitive environments.
NEMA 14 stepper motors consume less current (0.5–1.2 A) and generate minimal heat. They are energy-efficient and operate quietly, making them perfect for low-power systems or portable devices.
NEMA 17 stepper motors, on the other hand, require higher current (1.2–2.8 A) but deliver significantly higher output torque, making them more efficient for load-intensive applications.
If power efficiency and low heat generation are top priorities, the NEMA 14 is the better option. For performance-driven systems, NEMA 17 provides a better torque-to-watt ratio.
The speed-torque curve of a stepper motor shows how torque decreases as rotational speed increases.
NEMA 14: Torque drops rapidly at higher speeds, making it best suited for low to medium RPM ranges.
NEMA 17: Maintains usable torque across a wider speed range, offering better performance in fast-moving linear actuators or high-speed 3D printer axes.
At low speeds, both motors perform similarly.
At high speeds or under load, NEMA 17 motors outperform NEMA 14 in maintaining torque and step accuracy.
Both NEMA 14 and NEMA 17 motors support microstepping, where each full step is divided into smaller steps for smoother motion. Using drivers like the TMC2209 or A4988, both motors can achieve microstepping resolutions of 1/16 to 1/256, dramatically improving precision and vibration control.
However, NEMA 17 motors tend to handle microstepping more effectively under higher loads, due to their superior torque reserve, ensuring consistent motion even during fine positioning.
Thermal efficiency is another vital factor when motors run continuously.
NEMA 14 motors generate less heat and are easier to cool, but sustained overcurrent may cause torque degradation.
NEMA 17 motors, while more powerful, can heat up faster due to higher current draw. Using active cooling or heat sinks ensures stable torque performance and longer motor life.
For continuous industrial applications, NEMA 17 motors handle heat dissipation more effectively when properly cooled.
To better understand the difference, let’s consider a real-world example:
| Parameter | NEMA 14 | NEMA 17 |
|---|---|---|
| Load: 500g Linear Actuator | Operates reliably | Operates easily with extra torque margin |
| Load: 2kg CNC Axis | May skip steps | Operates smoothly |
| Speed: 600 RPM | Stable operation | Stable operation |
| Speed: 1000 RPM | Noticeable torque drop | High torque maintained |
This comparison demonstrates that NEMA 17 stepper motors provide greater load-handling capacity and stability, while NEMA 14 motors perform better in compact, energy-efficient systems.
| Performance Factor | NEMA 14 | NEMA 17 |
|---|---|---|
| Torque Output | Moderate | High |
| Speed Range | Medium | Wide |
| Power Consumption | Low | Higher |
| Efficiency | Excellent for light loads | Excellent for heavy loads |
| Vibration | Very Low | Low |
| Heat Generation | Minimal | Moderate |
| Best Use Case | Compact, low-load devices | Industrial, high-load machines |
If your project prioritizes compact design, quiet motion, and low power use, choose the NEMA 14.
If you need strong torque, speed consistency, and mechanical durability, NEMA 17 is the superior choice.
When comparing torque and performance between NEMA 14 and NEMA 17 stepper motors, the choice comes down to load requirements and design constraints.
NEMA 14 delivers excellent precision in lightweight, space-saving systems.
NEMA 17 offers higher torque, speed stability, and robust performance for demanding motion control tasks.
By understanding these differences, you can select the motor that delivers maximum efficiency, reliability, and precision for your specific application.
The NEMA 14 stepper motor is a compact yet powerful motion control component widely used in precision-driven automation systems. Despite its small frame size of just 1.4 inches (35.6 mm), it delivers remarkable positional accuracy, smooth motion, and reliable torque suitable for numerous modern electromechanical applications.
One of the most common uses of NEMA 14 stepper motors is in 3D printing technology. Their high precision and low vibration make them perfect for ensuring accurate layer deposition and stable movement along multiple axes.
Extruder Drive Motors: NEMA 14 motors are often used to drive filament extruders due to their balance between torque and size.
Z-Axis Actuators: Provide controlled vertical motion for smooth layer transitions.
Compact Printers: Ideal for small desktop 3D printers where space and weight are limited.
Why NEMA 14 is ideal: It offers quiet operation, consistent torque, and low power consumption — all essential for precise, noise-free printing.
In the medical and laboratory fields, precision motion is critical for reliability and accuracy. The NEMA 14 stepper motor meets these demands perfectly due to its smooth stepping performance and compact footprint.
Syringe Pumps: For controlled dispensing of fluids with micro-level accuracy.
Microfluidic Systems: Enables tiny, precise movements in lab-on-chip and diagnostic systems.
Automated Analyzers: Used in positioning mechanisms for sample trays and reagent arms.
High positional repeatability
Smooth microstepping control
Compact size for integration into portable medical devices
Its ability to operate without encoders or feedback systems makes NEMA 14 an efficient and low-maintenance solution in sensitive environments.
In professional imaging and optical equipment, NEMA 14 stepper motors deliver fine angular precision for focus and zoom control.
Camera Gimbals: Stabilizing and adjusting camera orientation.
Lens Focus Systems: Smooth and accurate focusing in automated optical systems.
Microscopes and Telescopes: Enables high-precision focusing adjustments for observation equipment.
Why it’s preferred: The small size and minimal vibration of NEMA 14 motors make them ideal for quiet and stable optical adjustments, ensuring blur-free performance even in delicate imaging setups.
Robotics applications rely heavily on compact motors capable of precise and repeatable motion. NEMA 14 motors fit perfectly into lightweight robotic platforms and educational robotic arms that require controlled movement without excess weight.
Robotic Joints and Grippers: Precise rotational or linear control for picking and placing objects.
Automated Conveyor Mechanisms: Smooth step-by-step movement for small parts.
Autonomous Devices: Used in small mobile robots for directional control and actuation.
Compact and lightweight
High accuracy and responsiveness
Energy-efficient for battery-powered robots
NEMA 14 motors provide reliable, fine-tuned motion control, making them an essential component in robotic education, prototyping, and automation research.
Modern consumer electronics increasingly depend on miniaturized motion control for improved user experience and automation. NEMA 14 stepper motors are integrated into devices that require quiet, precise actuation in confined spaces.
Smart Home Devices: Motorized locks, blinds, and cameras.
Office Equipment: Scanners, label printers, and document feeders.
Automated Vending Systems: Product dispensing mechanisms.
Their low noise, energy efficiency, and compact design make NEMA 14 motors suitable for electronics that operate continuously or in domestic environments.
In compact CNC machines, the NEMA 14 stepper motor provides sufficient torque for fine tool positioning and micro-machining tasks.
Mini CNC Mills: For engraving, PCB drilling, and small-scale machining.
Laser Engraving Systems: Controls the precise positioning of the laser head.
Desktop Plotters: Enables accurate pen or cutter movement.
Consistent step accuracy
Low vibration during movement
Ideal for light-duty precision cutting and engraving
For desktop manufacturing and maker projects, NEMA 14 motors provide industrial-grade precision in a small, affordable package.
In the textile industry, automation in stitching and fabric control benefits greatly from NEMA 14 stepper motors.
Automated Embroidery Machines
Thread Tensioning Systems
Precision Feed Controls
The quiet operation and fine motion steps of NEMA 14 make it suitable for smooth, consistent textile movements, minimizing noise and vibration during continuous operation.
Scientific instruments require accurate and repeatable motion for data consistency. NEMA 14 motors are used in optical measurement devices, spectrometers, and sample positioning systems.
X-Y Stage Positioners for sample scanning.
Spectrometers for filter wheel control.
Micromanipulators in laboratory experiments.
Their microstepping ability allows for sub-millimeter precision, which is critical for scientific and analytical measurements.
NEMA 14 motors are also used in compact industrial automation machines where precision and space efficiency are essential.
Pick-and-Place Equipment
Packaging Machines
Quality Inspection Systems
Their accurate step control, low heat generation, and ease of integration with standard drivers (A4988, DRV8825, or TMC2209) make them reliable for continuous production operations.
Because of their affordability and availability, NEMA 14 stepper motors are widely used in DIY automation and STEM education projects.
Arduino-based motion systems
3D printed robots or sliders
Teaching aids for mechatronics and control systems
Their compatibility with common microcontrollers and drivers allows students and hobbyists to experiment with precise motor control in an accessible way.
The NEMA 14 stepper motor stands out as a compact, efficient, and versatile motion solution suitable for numerous applications across engineering, robotics, manufacturing, and healthcare. Its small size, precise control, and low power consumption make it a preferred choice for systems requiring accuracy and reliability in confined spaces.
From 3D printers and medical devices to robotics and optical instruments, NEMA 14 stepper motors continue to drive innovation in modern automation.
The NEMA 17 stepper motor is one of the most widely used motion control motors across various industries due to its balanced combination of torque, precision, and size. With a 1.7-inch (43.2 mm) frame, the NEMA 17 offers greater power than smaller models like the NEMA 14, while still maintaining a compact form suitable for countless engineering and automation applications.
Perhaps the most famous and widespread use of NEMA 17 stepper motors is in 3D printing. The motor’s exceptional torque output and fine step resolution ensure precise layer control and smooth motion during the printing process.
X, Y, and Z Axis Motion Control: Accurate and repeatable positioning of the print head and platform.
Extruder Drive System: Controls filament feeding with constant torque to maintain smooth extrusion.
Dual Extruder Systems: Used in printers requiring multiple filaments or materials.
Why it’s ideal: NEMA 17 offers a balance of strength and precision, ensuring vibration-free performance, stable step accuracy, and quiet operation, even during long print cycles.
In CNC machines, engravers, and milling machines, precision motion control is vital. The NEMA 17 stepper motor provides strong holding torque, making it suitable for light-to-medium duty CNC operations.
CNC Routers: For tool movement in wood, plastic, or aluminum cutting.
Laser Engraving Machines: Enables precise control of laser positioning.
PCB Milling Machines: Provides detailed accuracy for circuit board fabrication.
Smooth motion control for cutting and engraving.
Excellent torque stability during microstepping.
Reliable positioning without backlash.
This makes NEMA 17 motors an industry favorite for desktop CNC and laser machines, where accuracy and reliability are crucial.
The robotics industry heavily relies on NEMA 17 stepper motors for their precise angular motion, high repeatability, and compact design.
Robotic Arms and Joints: Provides smooth, controlled rotation and positioning.
Autonomous Mobile Robots (AMRs): Used for wheel or sensor actuation.
Pick-and-Place Robots: Ensures precise movement of components on production lines.
Why it’s preferred:
NEMA 17 motors combine low inertia with adequate torque output, which is perfect for smooth robotic articulation and energy-efficient motion in compact robot designs.
Precision and reliability are essential in medical and lab automation systems. The NEMA 17 stepper motor delivers repeatable, high-accuracy motion for applications requiring smooth and controlled actuation.
Automated Syringe Pumps: For accurate fluid dosing and medical infusion systems.
Sample Handlers and Analyzers: For precise movement of test samples and slides.
Diagnostic Instruments: Controls mechanical positioning in automated lab testing equipment.
Smooth operation with minimal noise.
High repeatability in dosing and motion control.
Compact design fits in confined medical device enclosures.
This reliability makes NEMA 17 motors indispensable in healthcare automation, where accuracy and consistency can impact outcomes.
In photography, cinematography, and optical measurement systems, precise motion control ensures optimal focusing and stabilization. The NEMA 17 motor provides fine step movement essential for professional imaging.
Camera Sliders and Gimbals: Enables smooth panning, tilting, and tracking shots.
Focus and Zoom Mechanisms: For accurate lens adjustments.
Microscopy and Optical Scanning: Controls stage or lens movement with sub-micron precision.
Why it’s used: The low vibration and high positional accuracy of NEMA 17 motors enhance image stability, ensuring seamless focus transitions and vibration-free motion for optical systems.
Industrial automation requires consistent torque, precise motion, and durability—qualities that define the NEMA 17 stepper motor.
Packaging Machines: For precise feeding and labeling operations.
Assembly Lines: Drives actuators and positioning mechanisms.
Inspection and Testing Equipment: Moves components or sensors with repeatable accuracy.
Reliable torque under load.
Long operational lifespan.
Easy integration with PLCs and motor drivers.
With its robust design, NEMA 17 provides industrial-grade precision for production automation and inspection systems.
Modern textile machinery integrates automation for thread tensioning, fabric positioning, and pattern stitching. NEMA 17 stepper motors deliver smooth and steady motion, crucial for maintaining fabric quality and accuracy.
Automated Embroidery Machines
Digital Sewing Systems
Thread Feed Controls
Reduced noise and vibration.
Accurate synchronization of movement.
Compact size for integration into small machines.
This precision helps manufacturers achieve consistent fabric handling and intricate stitching patterns.
NEMA 17 stepper motors also find applications in automotive engineering and mechatronic control systems that require precise position control under variable loads.
Throttle and Valve Control Systems
Headlight and Mirror Adjustment Mechanisms
Dashboard Instrumentation Systems
High torque density in a compact frame.
Reliable operation over wide temperature ranges.
Accurate movement synchronization with vehicle electronics.
NEMA 17 motors are ideal for low-speed, high-torque motion in automotive assemblies.
Compact automation in consumer and office devices relies heavily on NEMA 17 stepper motors for precision control and quiet operation.
Printers and Scanners: For printhead positioning and paper feeding.
Vending Machines: Product dispensing mechanisms.
Smart Home Devices: Motorized blinds, locks, and adjustable furniture.
NEMA 17 provides the power and accuracy needed for repetitive motion in compact consumer systems, ensuring smooth, quiet, and energy-efficient operation.
The accessibility and versatility of NEMA 17 stepper motors make them a favorite among students, makers, and engineers for building prototypes and teaching motion control concepts.
Arduino and Raspberry Pi Projects
Mini CNC Machines and Plotters
Robotics Education Kits
Easy to control with standard stepper drivers.
Widely available and affordable.
Excellent tool for learning about precision motion systems.
For STEM education and maker projects, NEMA 17 is the go-to motor for hands-on learning and prototyping.
The NEMA 17 stepper motor stands as the industry standard for mid-size motion control applications, balancing torque, precision, and affordability. From 3D printing and CNC machining to robotics, medical instruments, and automation systems, it delivers reliable, repeatable, and accurate motion across diverse fields.
Its combination of power, performance, and adaptability ensures that the NEMA 17 remains one of the most trusted and versatile motors in both industrial and consumer applications.
Since NEMA frame sizes define the mounting hole pattern, swapping between NEMA 14 and NEMA 17 requires different brackets or motor mounts.
For designs that prioritize modularity, it’s best to select the motor size during the early design phase, ensuring mechanical compatibility. However, many stepper drivers and control systems are electrically compatible with both motor types, allowing flexibility in upgrades.
While both motors are relatively affordable, NEMA 14 stepper motors tend to cost slightly less due to their smaller size and lower material use.
However, NEMA 17 motors deliver significantly better torque per dollar, which can reduce the need for additional gearing mechanisms or torque multipliers, making them cost-efficient for high-load systems.
If your design’s mechanical load is modest, the NEMA 14 will save costs and power. But for performance-critical projects, the NEMA 17 offers superior long-term value.
The decision between NEMA 14 vs NEMA 17 depends on application requirements:
Choose NEMA 14 if:
You need a compact and lightweight motor.
Power consumption must be minimal.
The system handles low to moderate mechanical loads.
Choose NEMA 17 if:
You need high torque and fast acceleration.
The motor drives heavy mechanical components.
The project involves industrial or large-scale automation.
Ultimately, both motors deliver precise, repeatable motion control, but NEMA 17 dominates when torque and robustness are the priority.
In the NEMA 14 vs NEMA 17 debate, both motors offer exceptional performance for different operational needs. NEMA 14 stands out for compact precision systems, while NEMA 17 remains the go-to choice for industrial-grade performance and mechanical reliability. Understanding these distinctions ensures the right balance between power, size, and cost, optimizing system efficiency and longevity.
