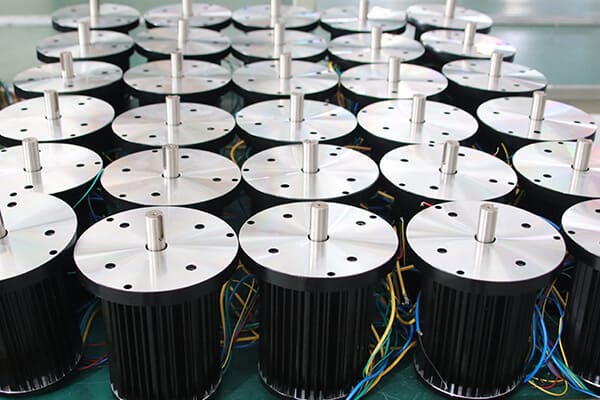

A Brushless DC motor (BLDC motor) is one of the most advanced and efficient types of electric motors used across modern industries. Unlike traditional brushed DC motors, BLDC motors rely on electronic commutation instead of mechanical brushes, providing higher efficiency, durability, and performance. Their design makes them a preferred choice in applications ranging from consumer electronics and household appliances to industrial automation, robotics, and electric vehicles.
A BLDC motor is a synchronous motor powered by direct current (DC) through an inverter or switching power supply. The key difference from a brushed DC motor lies in the absence of brushes. Instead, BLDC motors use electronic controllers to switch current between windings, creating a rotating magnetic field that drives the rotor.
The rotor typically contains permanent magnets, while the stator is composed of multiple windings. The interaction between the stator's electromagnetic field and the rotor's magnetic field generates smooth and controlled rotation.
The stator is made of laminated steel sheets with copper windings embedded in slots. Its primary function is to generate a rotating magnetic field. Depending on the design, the windings may be trapezoidal or sinusoidal, which determines how the motor is driven.
The rotor is the moving part of the motor, consisting of permanent magnets. The number of pole pairs in the rotor determines the motor's torque and speed characteristics. Stronger magnets typically increase efficiency and torque density.
A BLDC motor cannot operate without an electronic speed controller (ESC). The ESC interprets signals from sensors (or back-EMF in sensorless designs) and switches the current through the windings in the correct sequence.
In most BLDC motors, Hall-effect sensors are used to detect the rotor's position. This information ensures precise timing for commutation. In sensorless BLDC motors, back electromotive force (back-EMF) is used for position detection.
A Brushless DC (BLDC) electric motor works by using electronic commutation instead of mechanical brushes to control the flow of current in the motor windings. This design increases efficiency, reduces wear, and provides smoother performance compared to traditional brushed DC motors.
Here's a step-by-step explanation of how it works:
The motor is powered by a DC voltage source.
Instead of directly applying DC to the motor, the electronic controller (ESC – Electronic Speed Controller) converts the DC input into a three-phase AC signal.
This AC signal energizes the motor's stator windings in the correct sequence.
The stator contains copper windings arranged in slots that generate an electromagnetic field when current flows through them.
The rotor has permanent magnets attached. These magnets align themselves with the rotating electromagnetic field created in the stator.
As the field rotates, the rotor follows, producing continuous rotation.
In brushed motors, commutation is mechanical, done by brushes and a commutator.
In BLDC motors, commutation is electronic.
The controller energizes specific stator windings in a timed sequence to create a rotating magnetic field.
The switching is based on feedback from either Hall-effect sensors (which detect rotor position) or back-EMF (sensorless design).
Hall sensors or back-EMF detection provide information about the rotor's position.
The controller uses this feedback to ensure that current is always applied to the right winding at the right time.
This keeps the rotor synchronized with the stator field, maintaining smooth rotation and precise speed control.
Torque is generated due to the interaction of the rotor's permanent magnetic field and the rotating field of the stator.
By adjusting the timing and strength of the stator's magnetic field, the motor can achieve different speeds and torque outputs.
A BLDC motor works by converting DC electricity into a controlled three-phase AC signal through an electronic controller. This signal drives the stator windings, generating a rotating magnetic field that interacts with the rotor’s permanent magnets. With the help of sensors or back-EMF detection, the motor maintains precise synchronization, resulting in high efficiency, long life, and excellent speed control.
Brushless DC (BLDC) motors are widely used in applications that demand high efficiency, precise speed control, and excellent reliability. From drones and electric vehicles to industrial automation systems, BLDC motors are at the heart of modern motion solutions. However, in many applications, engineers and designers often face the question: how can we increase the speed of a BLDC motor effectively and safely?
The speed of a BLDC motor is primarily determined by two factors:
Applied Voltage – The higher the voltage supplied to the motor windings, the faster it rotates, within the limits of design.
Kv Rating (RPM per Volt) – Every BLDC motor has a constant that indicates how many RPMs it will produce per volt applied under no-load conditions.
In simple terms:
Motor Speed (RPM)≈Kv×Voltage (V)\text{Motor Speed (RPM)} \approx Kv \times \text{Voltage (V)}
Motor Speed (RPM)≈Kv×Voltage (V)
Thus, increasing voltage or choosing a motor with a higher Kv rating are the most direct ways to increase speed. However, other advanced methods can help boost performance without compromising safety or motor life.
One of the most straightforward methods is to increase the DC bus voltage supplied to the BLDC motor driver. Since the motor speed is proportional to voltage, boosting voltage will directly raise the RPM.
Ensure the motor driver and power electronics can handle the higher voltage.
Check that the motor insulation can withstand the increased stress.
Keep in mind that higher voltage will also lead to increased heat generation, requiring improved cooling systems.
If redesign or replacement is an option, using a motor with a higher Kv rating will naturally give higher RPMs for the same voltage.
For example, a 1000 Kv BLDC motor produces 1000 RPM per volt, while a 1400 Kv BLDC motor produces 1400 RPM per volt.
High Kv motors trade torque for speed, so this method is most effective in applications where torque demand is lower, such as drones or small fans.
The ESC plays a crucial role in determining motor speed. Optimizing ESC parameters can significantly improve speed performance.
PWM Frequency Adjustment – Higher switching frequencies can allow smoother commutation and better high-speed performance.
Timing Advance (Phase Lead) – By advancing commutation timing, the motor can achieve higher speeds. However, too much advance may cause instability.
Firmware Upgrades – Some ESCs allow custom firmware that unlocks additional speed control features.
Even if electrical inputs are optimized, mechanical resistance can limit the speed of a BLDC motor. Reducing load ensures the motor can reach higher RPMs efficiently.
Use low-friction bearings or upgrade to ceramic bearings.
Optimize gear ratios for higher speed.
Reduce aerodynamic drag in fan or drone applications.
Ensure proper lubrication and maintenance to avoid resistance build-up.
At higher speeds, heat buildup is one of the biggest limiting factors. Excessive temperature can damage windings, magnets, and bearings.
Add active cooling such as fans or liquid cooling systems.
Improve heat dissipation with heat sinks.
Use motors with higher thermal ratings for sustained high-speed operation.
BLDC motors can be commutated using trapezoidal control or field-oriented control (FOC).
Trapezoidal control is simpler but less efficient at high speeds.
FOC (Vector Control) allows precise torque and flux control, enabling the motor to run at higher speeds with better efficiency and less noise.
Upgrading to an FOC-based driver can significantly improve maximum achievable speed.
The rotor's inertia directly affects acceleration and maximum speed. Lighter rotors allow higher RPMs.
Use high-strength, lightweight materials like carbon fiber.
Ensure rotor balance to avoid vibration at high speeds.
Optimize magnet placement for reduced eddy current losses.
In advanced applications such as electric vehicles, field weakening control is used to exceed the base speed of the BLDC motor.
By reducing the effective magnetic flux, the motor can run beyond its rated speed.
This requires a sophisticated controller and careful design to prevent overheating.
Field weakening is often used in servo drives and EVs to extend speed range without compromising efficiency.
An often-overlooked factor is the power delivery system. Inadequate power supply or undersized cables can cause voltage drops, limiting motor speed.
Use high-quality, low-resistance cables.
Ensure the power supply can provide sufficient current at higher voltages.
Add capacitors near the ESC to stabilize voltage during high-speed operation.
Maintaining high motor speeds requires consistent care:
Inspect and replace worn-out bearings.
Keep the motor free from dust and debris.
Check connections and solder joints for integrity.
Monitor motor temperature during prolonged high-speed use.
While speed is often desirable, there are situations where increasing it can be risky or counterproductive:
Applications requiring high torque may suffer performance loss if speed is prioritized.
Exceeding rated speed may cause mechanical failure of rotor, bearings, or magnets.
In safety-critical systems, over-speeding can lead to catastrophic failure.
Always balance speed improvements with safety margins, efficiency, and reliability.
Here are the main benefits of a Brushless DC (BLDC) electric motor explained in clear detail:
BLDC motors are known for their excellent energy efficiency, often reaching 85–90% or higher. Since they use electronic commutation instead of brushes, there is minimal energy loss, making them ideal for applications where power savings are critical, such as electric vehicles and renewable energy systems.
Unlike brushed motors that suffer from brush and commutator wear, BLDC motors do not have these mechanical parts. This means less friction, less heat generation, and fewer mechanical failures, resulting in a much longer service life.
The absence of brushes means no regular replacement or servicing is needed. Maintenance is limited to bearings and external parts, reducing downtime and operating costs.
Because the rotor uses permanent magnets, BLDC motors can deliver more torque in a smaller size compared to other motor types. This high power density makes them perfect for compact devices, drones, and robotics.
With electronic controllers and sensors, BLDC motors offer fine control over speed, torque, and position. This makes them highly suitable for automation, CNC machines, and robotics where accuracy is essential.
Since there are no brushes creating electrical noise or friction, BLDC motors operate quietly and smoothly. This is why they are commonly used in medical devices, household appliances, and cooling fans.
In BLDC motors, most heat is generated in the stator, which is stationary and easier to cool. This allows for higher continuous power output without overheating, improving reliability.
BLDC motors perform well in demanding environments because they lack brushes that can spark, wear, or fail. This makes them suitable for aerospace, automotive, and industrial automation applications.
They can operate efficiently at both low and high speeds, giving them versatility across many different uses, from small fans to electric propulsion systems.
With fewer mechanical parts and high torque density, BLDC motors can be lighter and smaller while still delivering powerful performance. This is especially important in EVs, drones, and portable electronics.
✅ In summary: A Brushless DC electric motor offers efficiency, durability, low maintenance, quiet operation, and precise control, making it one of the most advanced and reliable motor technologies available today.
A Brushless DC (BLDC) motor has many advantages, but it also comes with certain drawbacks that should be considered before choosing it for an application. Here are the main limitations:
BLDC motors are more expensive than brushed DC motors. The use of permanent magnets (often rare-earth magnets like neodymium) and the need for electronic controllers contribute to their higher upfront price.
Unlike brushed motors that can run directly on DC power, BLDC motors require a dedicated electronic speed controller (ESC) to operate. This makes the system design more complex and increases development time.
The rotor typically uses rare-earth magnets, which are costly and sometimes difficult to source. This makes the motor more expensive and subject to supply chain issues.
If a BLDC motor or its controller fails, repairing or replacing it can be more expensive compared to simpler brushed motors. Specialized parts and knowledge are often required.
Since BLDC motors rely on high-frequency switching in controllers, they may produce electromagnetic noise, which can interfere with nearby sensitive equipment unless properly shielded.
Permanent magnets can lose their magnetic properties at high temperatures, which may affect performance in extreme environments if not properly managed.
Sensorless BLDC motors, in particular, can face challenges during start-up at zero speed, because position detection relies on back-EMF, which is absent when the rotor is stationary. This requires advanced algorithms in the controller.
The main drawbacks of BLDC motors are their high cost, control complexity, reliance on rare-earth magnets, and repair difficulties. Despite these challenges, their benefits—such as efficiency, long life, and precision—often outweigh the disadvantages in modern applications.
Increasing the speed of a BLDC motor involves a combination of electrical, mechanical, and control strategies. By carefully adjusting voltage, optimizing ESC settings, reducing mechanical resistance, and employing advanced techniques like field weakening or FOC control, we can achieve significant improvements in speed while maintaining system stability.
However, speed must always be balanced against torque, efficiency, and safety. With proper engineering practices and regular maintenance, BLDC motors can be pushed to their full potential.
